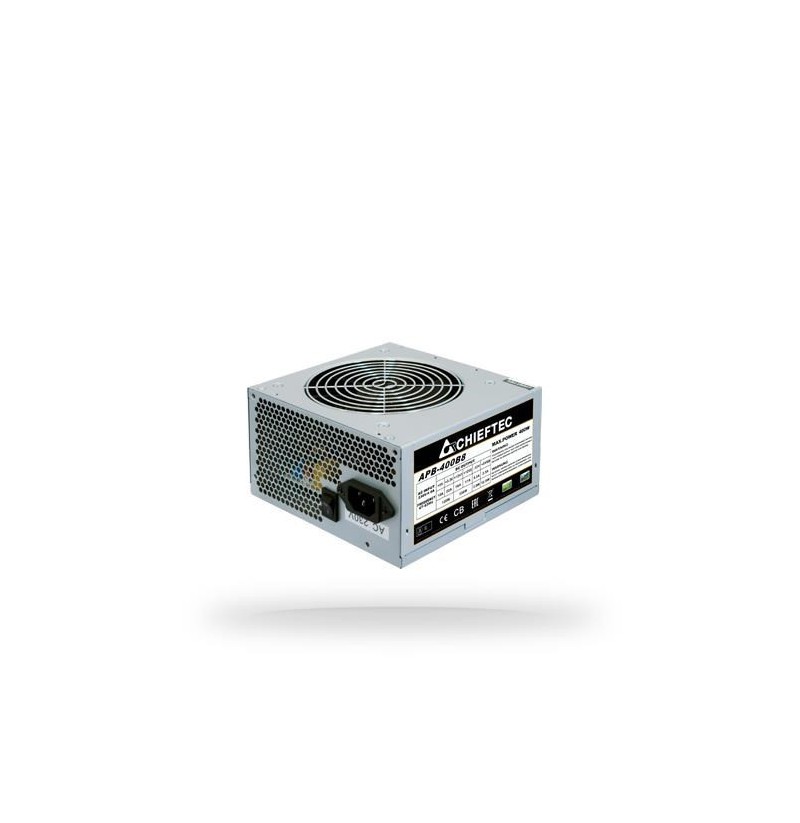

Chieftec Value APB-400B8 power supply unit 400 W 20+4 pin ATX PS/2 Silver

38,81 €

APB-400B8

4710713230552

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Product colour: Silver
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Total power: 400 W
Max output current (+3.3V): 17 A
Combined power (+5Vsb): 12.5 W
Input current: 3 A
Power protection features: Overload, Short circuit, Over voltage, Under voltage
AC input voltage: 200 - 240 V
AC input frequency: 47 - 63 Hz
Combined power (+5V): 100 W
Combined power (+3.3V): 100 W
Max output current (+12V): 30 A
Combined power (-12V): 3.6 W
Power Factor Correction (PFC) type: Active
Combined power (+12V): 360 W
Power factor: 0.9
Max output current (+5V): 16 A
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 2.5 A
Width: 140 mm
Height: 87 mm
Depth: 150 mm
ATX version: 2.3
Power supply unit (PSU) form factor: PS/2
80 PLUS certification: 80 PLUS
Purpose: PC/Server
Cabling type: Non-Modular
Floppy disk drive connector: Yes
PCI Express power connectors (6+2 pin): 1
Motherboard power cable length: 35 cm
Peripheral (Molex) power connectors (4-pin): 2
SATA power cable length: 350 mm, 150
CPU power cable length: 35 cm
Number of SATA power connectors: 3
Motherboard power connector: 20+4 pin ATX
PCI Express power cable length: 35 cm
EPS power connector (4+4 pin): Yes
Floppy drive power connector: 1
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 150, 350 mm
Harmonized System (HS) code: 84733020
