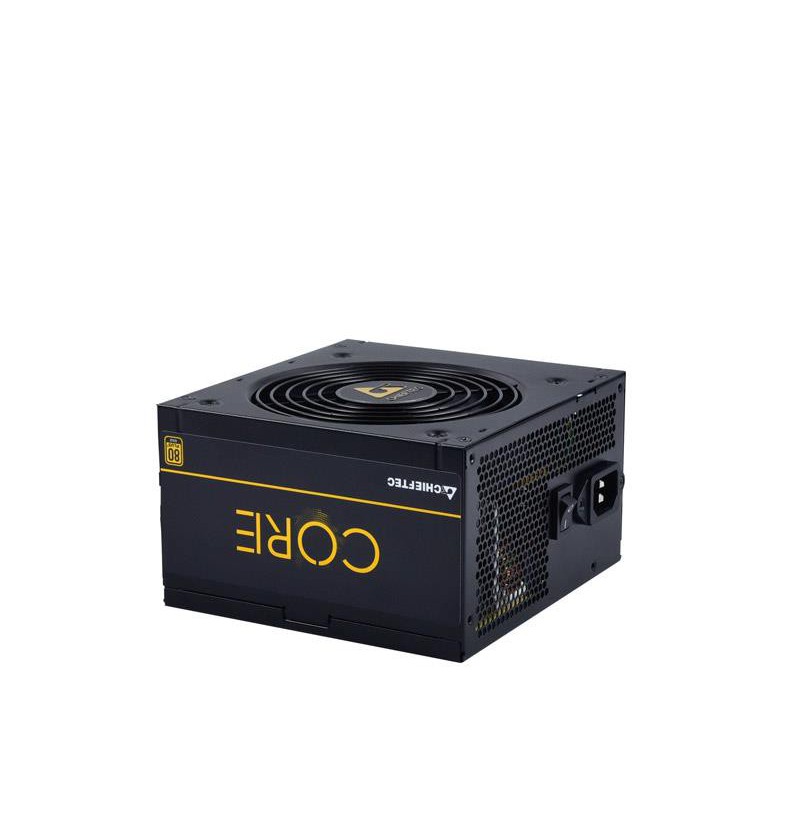

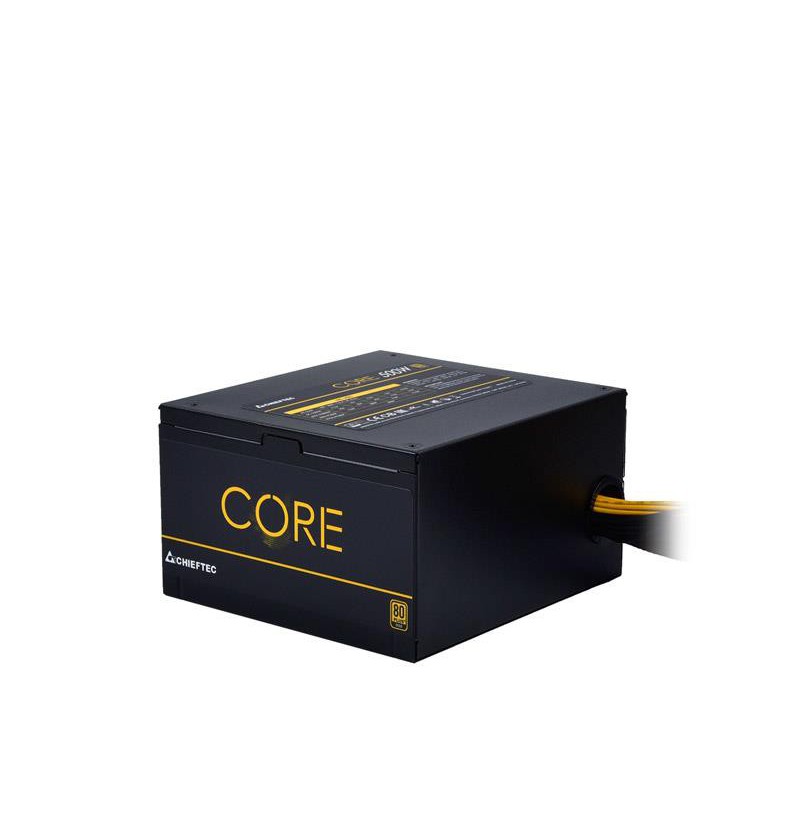

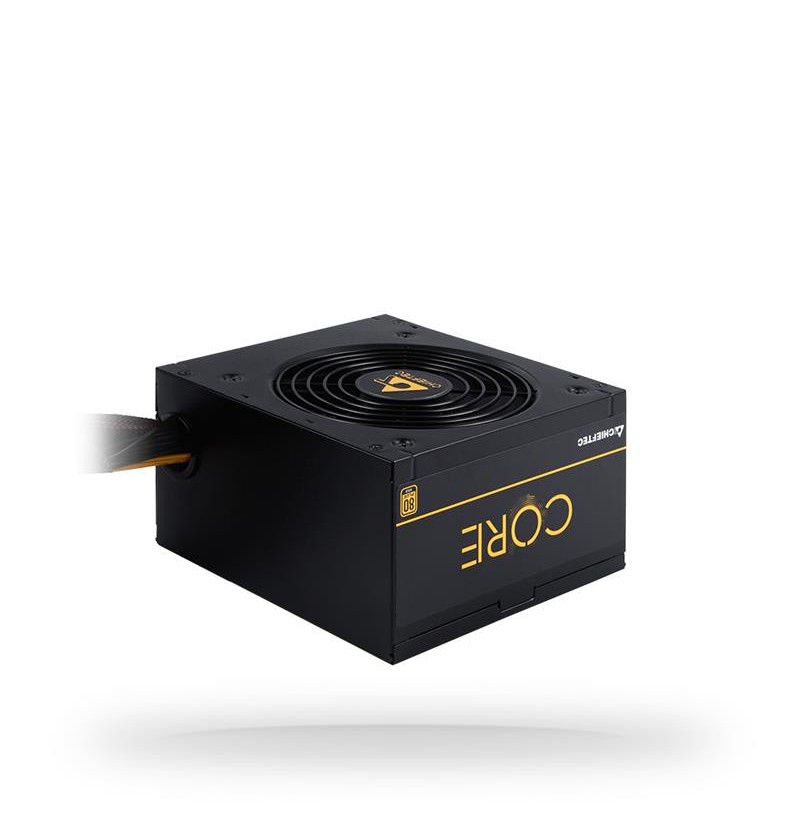

Chieftec BBS-500S power supply unit 500 W 24-pin ATX PS/2 Black Padidinti

Chieftec BBS-500S power supply unit 500 W 24-pin ATX PS/2 Black

68,96 €

7532630761202

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Product colour: Black
Cooling type: Active
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Max output current (+3.3V): 18 A
Power Factor Correction (PFC) type: Active
AC input frequency: 47 - 63 Hz
Max output current (+5Vsb): 2.5 A
Combined power (-12V): 3.6 W
Power protection features: Short circuit, Over voltage, Overload
Max output current (+12V1): 41 A
Max output current (+5V): 18 A
Combined power (+5Vsb): 12.5 W
Input current: 8 A
Total power: 500 W
AC input voltage: 100 - 240 V
Max output current (-12V): 0.3 A
Width: 140 mm
Height: 86 mm
Weight: 1.65 kg
Depth: 150 mm
Power supply unit (PSU) form factor: PS/2
Purpose: PC
80 PLUS certification: 80 PLUS Gold
ATX version: 2.3
Package weight: 2.06 kg
Floppy disk drive connector: Yes
Number of SATA power connectors: 4
CPU power cable length: 65 cm
Floppy drive power connector: 1
CPU power connector (4+4 pin): Yes
PCI Express power connectors (6+2 pin): 1
Peripheral (Molex) power connectors (4-pin): 3
Cabling type: Non-Modular
SATA power cable length: 500, 150
PCI Express power cable length: 50 cm
Motherboard power connector: 24-pin ATX
Peripheral (Molex) power cable length: 150, 500
Harmonized System (HS) code: 84733020
