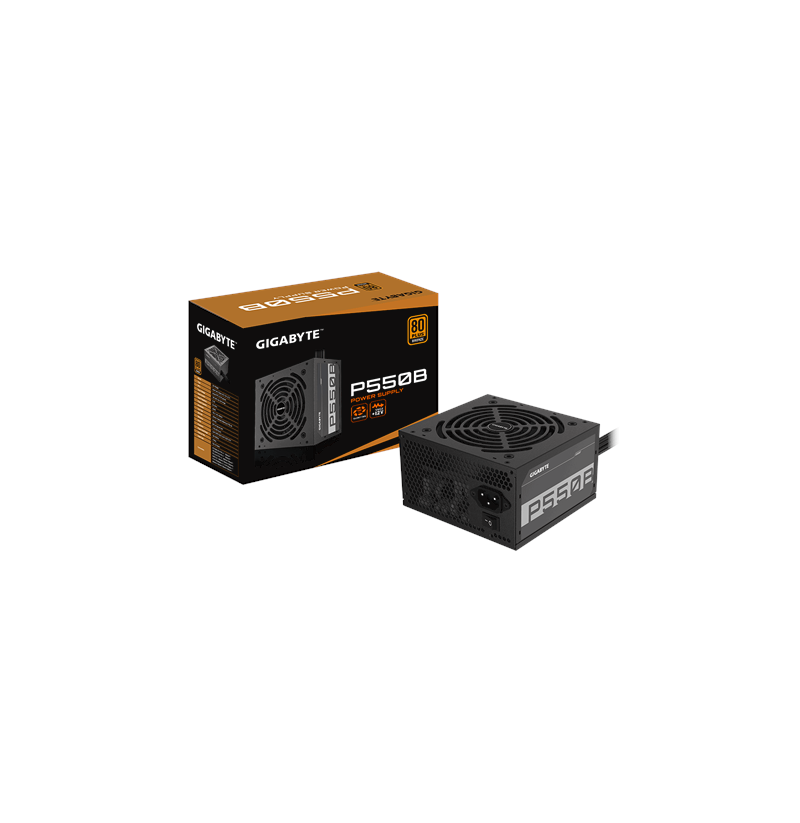

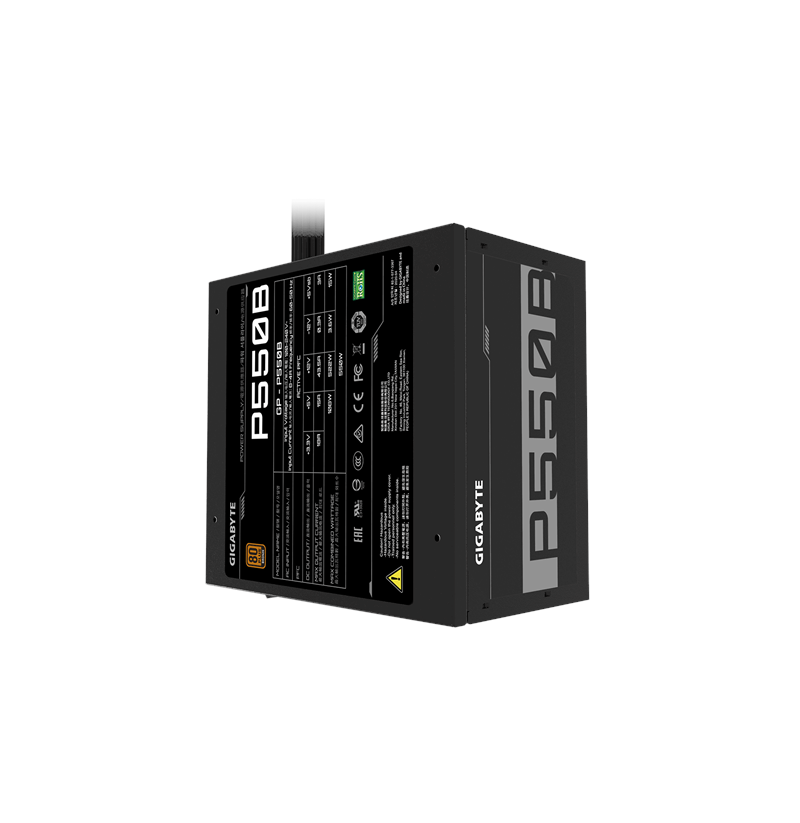

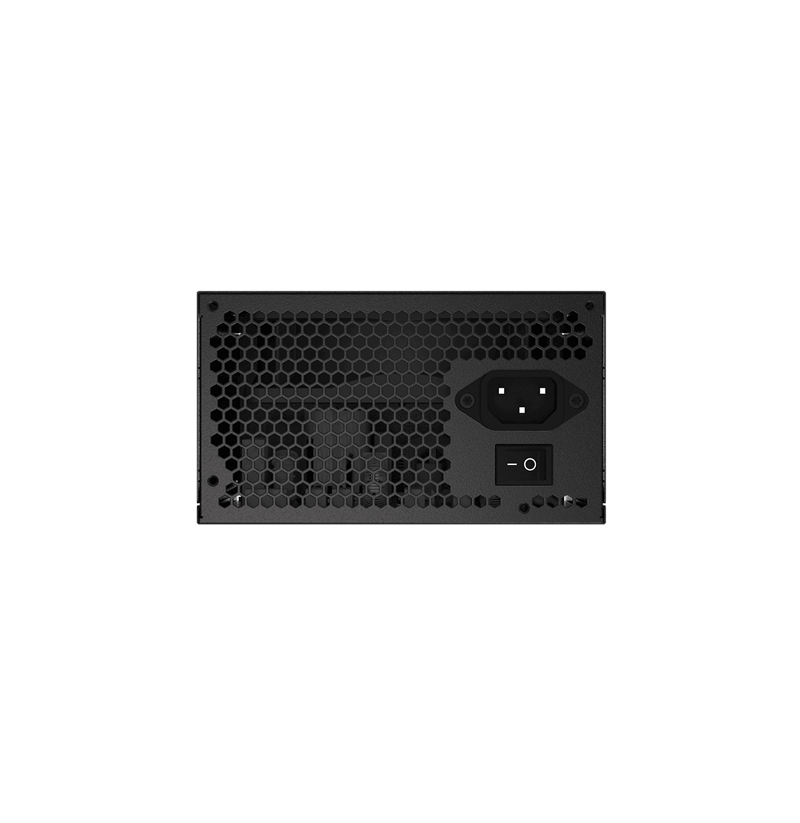

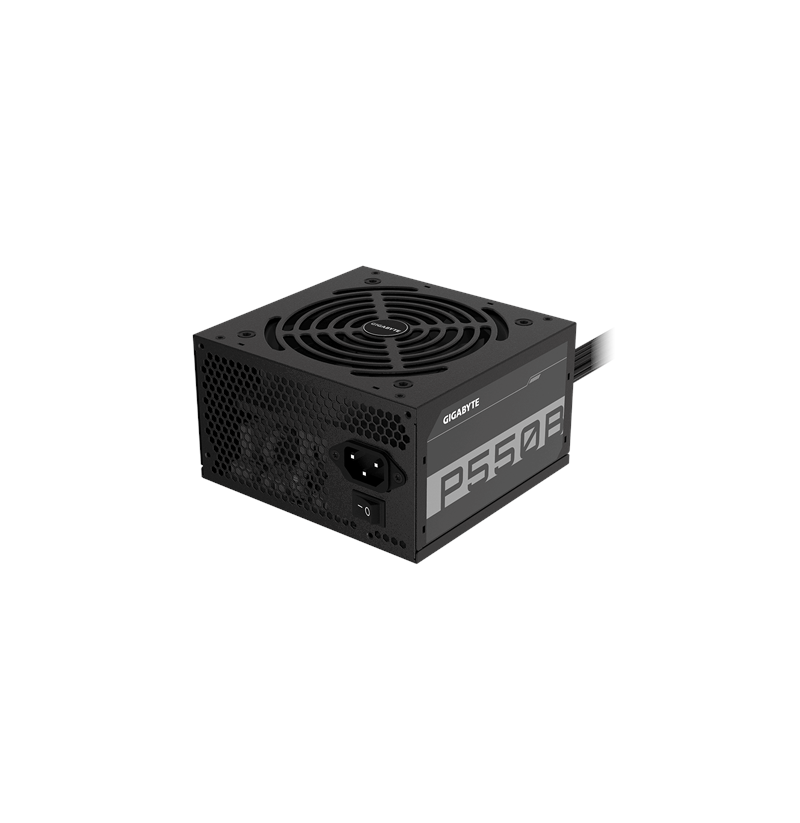

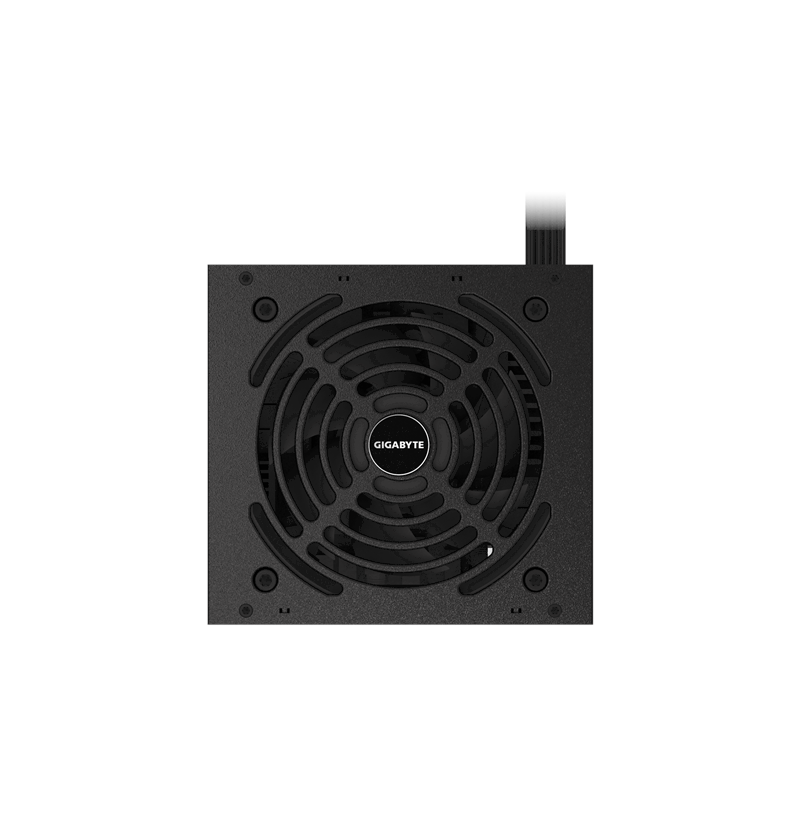

Gigabyte GP-P550B 550 W, 80 PLUS Bronze certified Padidinti

Gigabyte | GP-P550B | 550 W

53,67 €

GP-P550B

4719331551490

Galimas pasirinkimas

 1..4 d.d.


On/off switch: Yes
Number of fans: 1 fan(s)
Fan location: Top
Cooling type: Active
Fan diameter: 12 cm
Product colour: Black
Max output current (+5Vsb): 3 A
AC input voltage: 100 - 240 V
Max output current (+5V): 15 A
Combined power (-12V): 3.6 W
Power protection features: Short circuit, Over voltage, Over power, Under voltage, Over current, Overheating
Input current: 8 - 4 A
AC input frequency: 50 - 60 Hz
Efficiency: 85%
Total power: 550 W
Power Factor Correction (PFC) type: Active
Max output current (+3.3V): 18 A
Combined power (+5V): 108 W
Combined power (+3.3V): 108 W
Max output current (-12V): 0.3 A
Hold time: 16 ms
Power factor: 0.9
Combined power (+12V): 522 W
Combined power (+5Vsb): 15 W
Max output current (+12V): 43.5 A
Depth: 140 mm
Width: 150 mm
Height: 86 mm
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Purpose: PC
Power supply unit (PSU) form factor: ATX
Bearing technology: HDB
ATX version: 2.31
PCI Express connector: Yes
Peripheral (Molex) power cable length: 500
Floppy drive power connector: 1
ATX power connector (20+4 pin): Yes
PCI Express power cable length: 55 cm
Floppy disk drive connector: Yes
Peripheral (Molex) power connectors (4-pin): 3
PCI Express power connectors (6+2 pin): 2
Motherboard power cable length: 55 cm
Number of SATA power connectors: 6
Cabling type: Non-Modular
CPU power cable length: 60 cm
CPU power connector (4+4 pin): Yes
SATA power cable length: 500
Motherboard power connector: 20+4 pin ATX
Harmonized System (HS) code: 84733020
