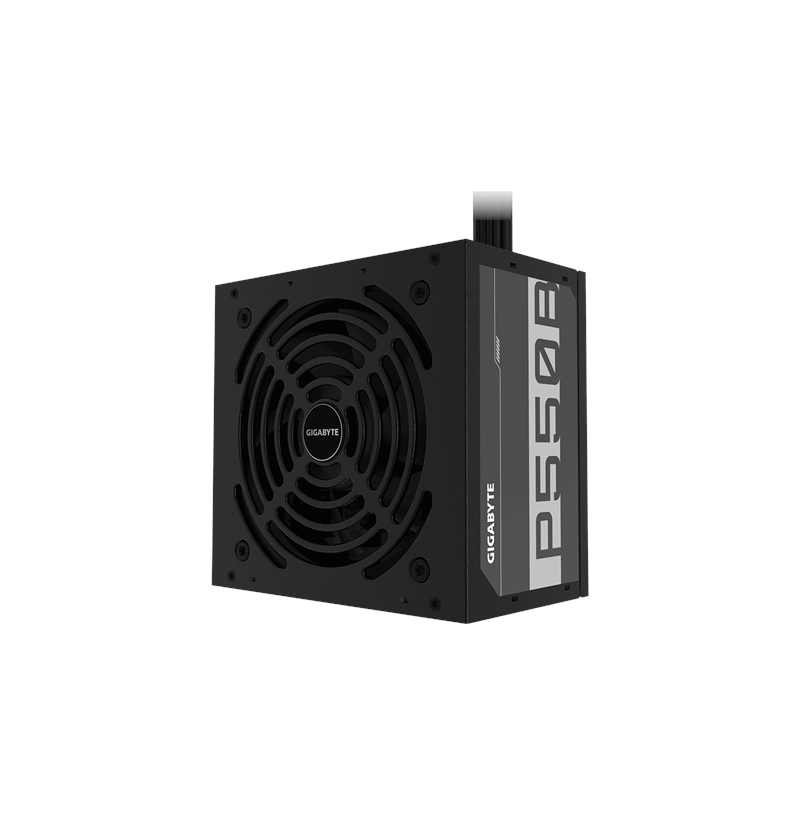

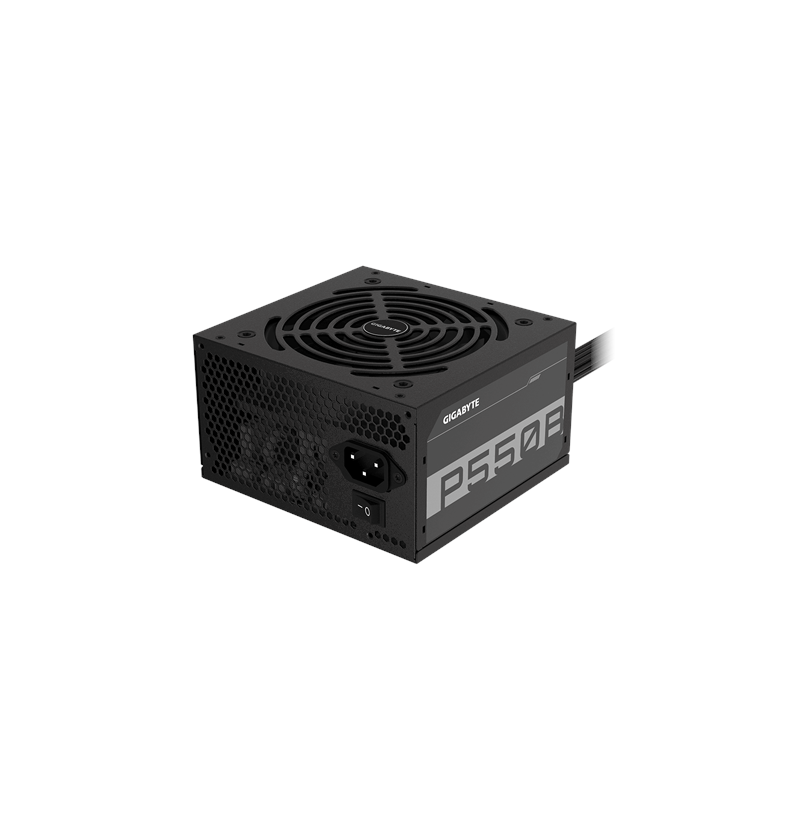

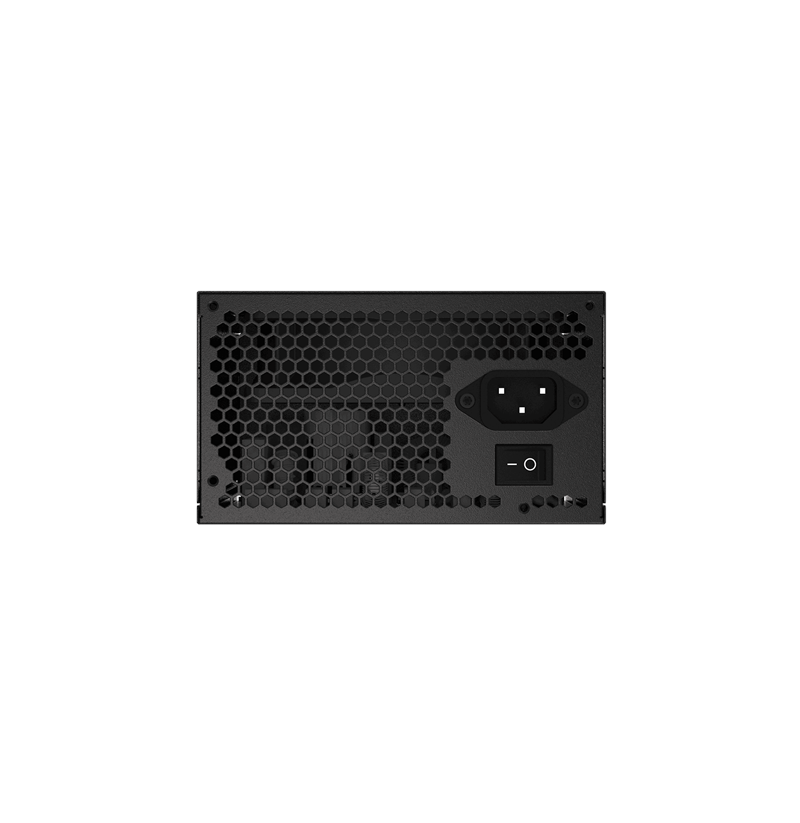

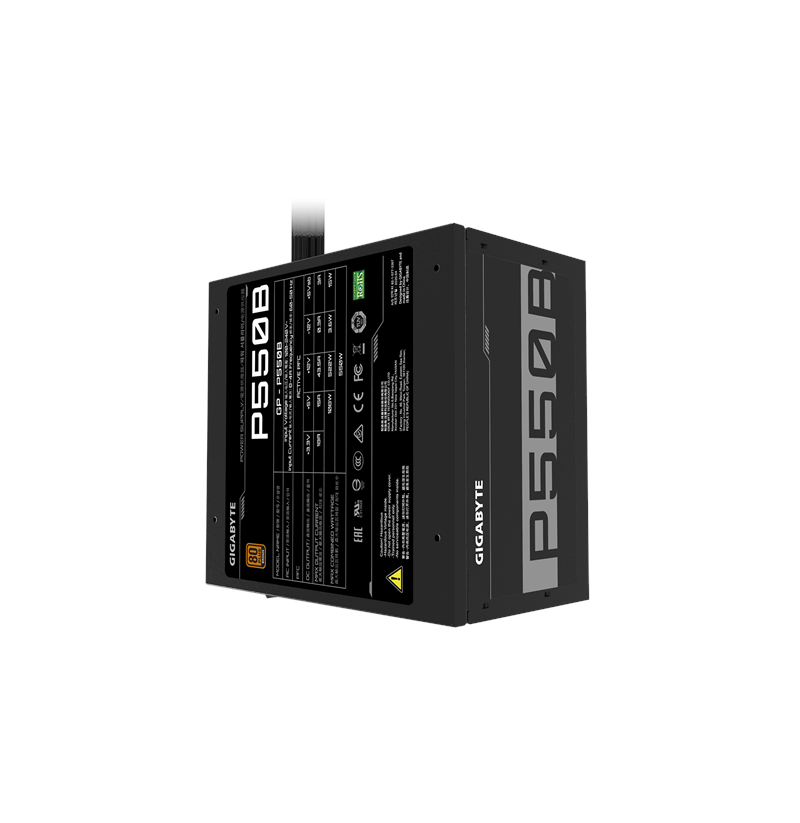

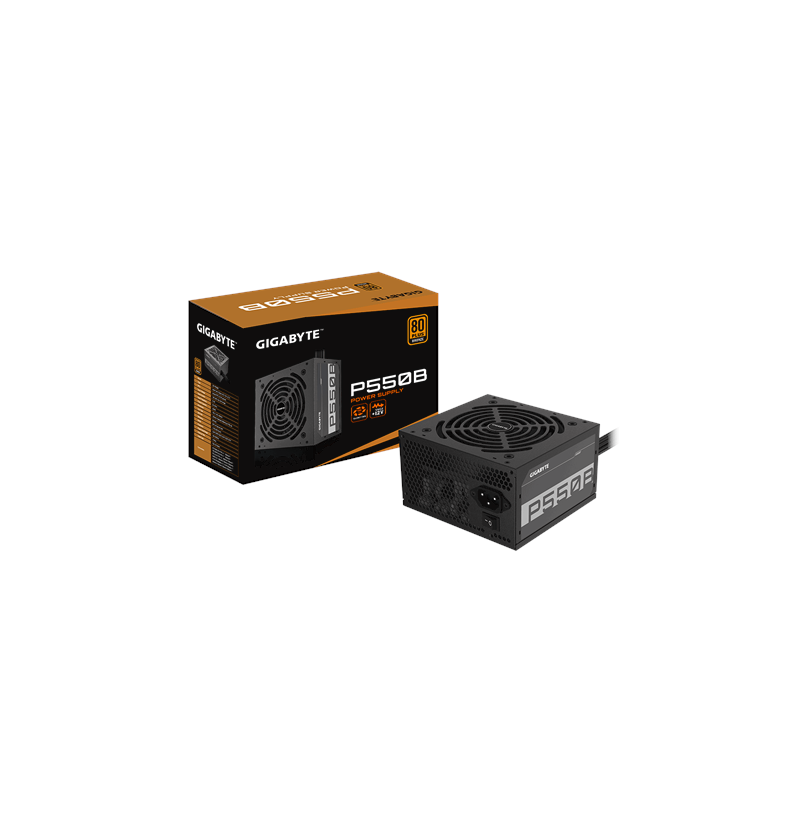

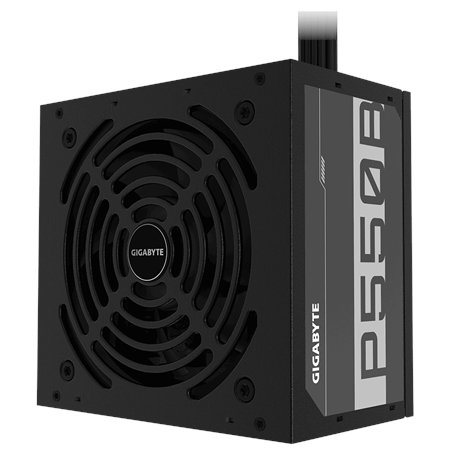

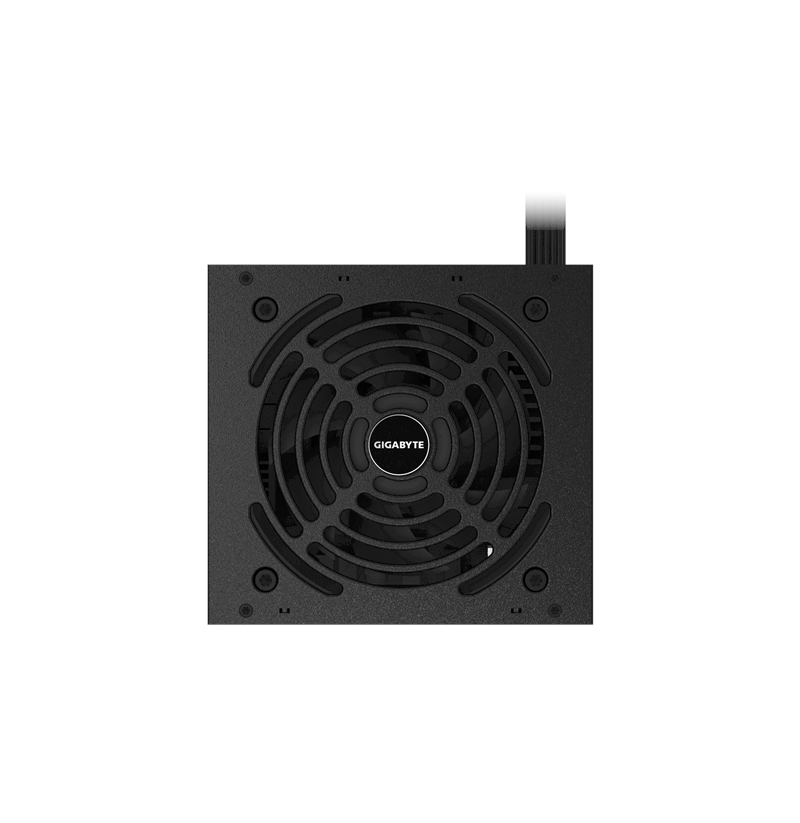

Gigabyte GP-P550B 550 W, 80 PLUS Bronze certified Padidinti

Gigabyte P550B power supply unit 550 W 20+4 pin ATX ATX Black

58,25 €

GP-P550B

4719331551490

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Cooling type: Active
Product colour: Black
On/off switch: Yes
Fan location: Top
Number of fans: 1 fan(s)
Fan diameter: 12 cm
Combined power (+3.3V): 108 W
Max output current (-12V): 0.3 A
Combined power (+12V): 522 W
Power Factor Correction (PFC) type: Active
Max output current (+12V): 43.5 A
Power protection features: Short circuit, Over voltage, Under voltage, Over current, Over power, Overheating
Combined power (-12V): 3.6 W
AC input frequency: 50 - 60 Hz
AC input voltage: 100 - 240 V
Max output current (+5V): 15 A
Combined power (+5V): 108 W
Max output current (+3.3V): 18 A
Max output current (+5Vsb): 3 A
Power factor: 0.9
Input current: 8 - 4 A
Total power: 550 W
Efficiency: 85%
Combined power (+5Vsb): 15 W
Hold time: 16 ms
Height: 86 mm
Width: 150 mm
Depth: 140 mm
Purpose: PC
Bearing technology: HDB
80 PLUS certification: 80 PLUS Bronze
Mean time between failures (MTBF): 100000 h
Power supply unit (PSU) form factor: ATX
ATX version: 2.31
SATA power cable length: 500 mm
Motherboard power cable length: 55 cm
Peripheral (Molex) power cable length: 500 mm
Peripheral (Molex) power connectors (4-pin): 3
Floppy drive power connector: 1
PCI Express power cable length: 55 cm
PCI Express connector: Yes
PCI Express power connectors (6+2 pin): 2
Number of SATA power connectors: 6
Floppy disk drive connector: Yes
CPU power cable length: 60 cm
ATX power connector (20+4 pin): Yes
CPU power connector (4+4 pin): Yes
Cabling type: Non-Modular
Motherboard power connector: 20+4 pin ATX
Harmonized System (HS) code: 84733020
