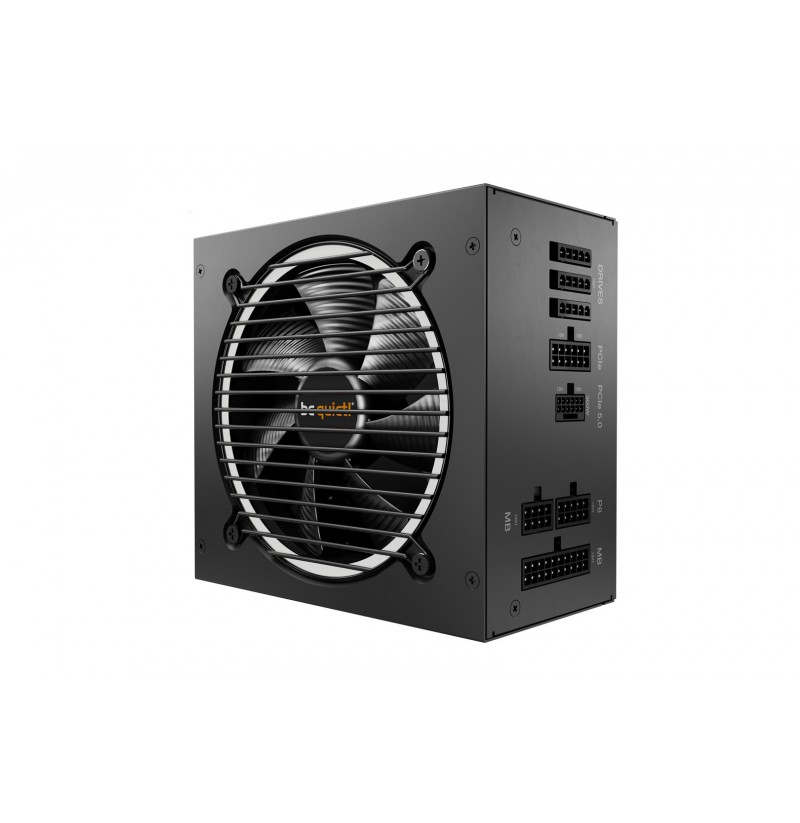

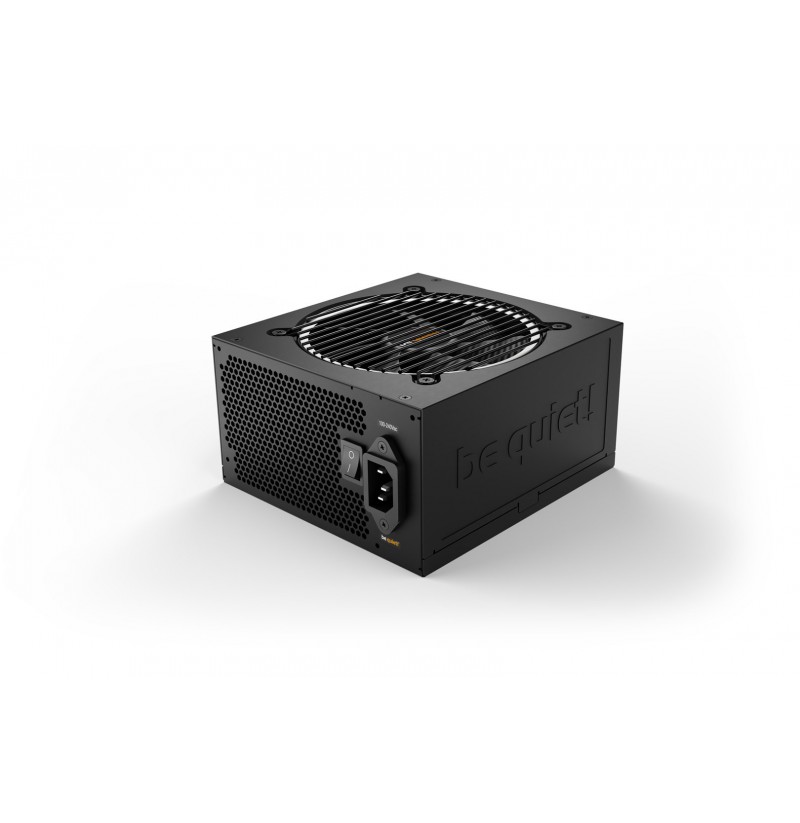

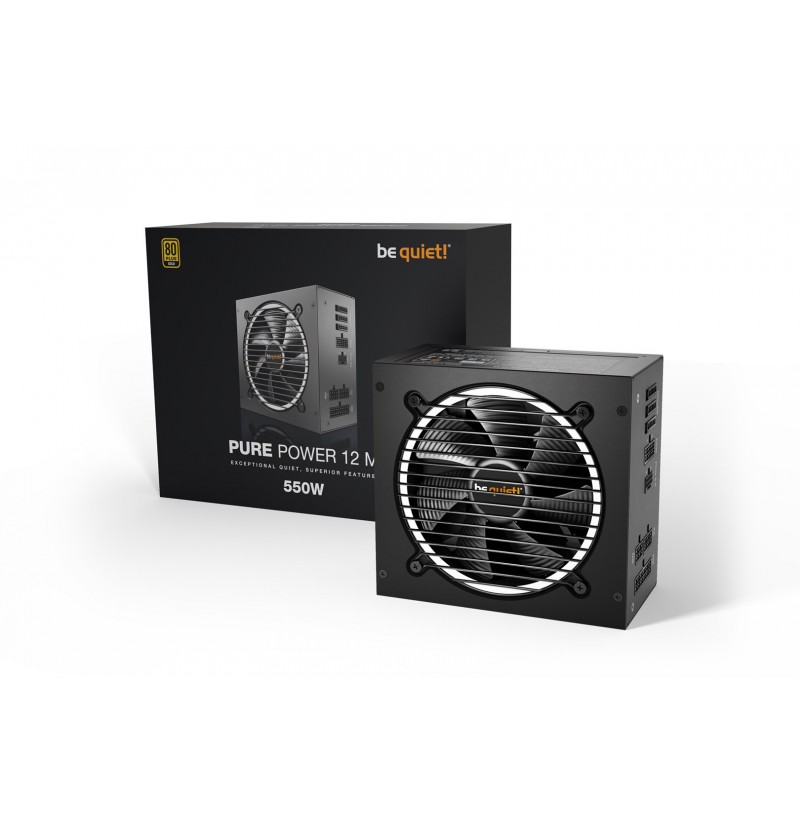

be quiet! Pure Power 12 M power supply unit 550 W 20+4 pin ATX ATX Black Padidinti

be quiet! Pure Power 12 M power supply unit 550 W 20+4 pin ATX ATX Black

103,23 €

4260052189467

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Compliance certificates: RoHS
Warranty period: 10 year(s)
Sustainability certificates: ENERGY STAR, ErP
Sustainability compliance: Yes
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Cooling type: Active
On/off switch: Yes
Fan location: Top
Power factor: 0.98
Input current: 10/5 A
AC input voltage: 100 - 240 V
Efficiency: 92.8%
Power protection features: Over power, Short circuit, Over voltage, Over current, Overheating
AC input frequency: 50 - 60 Hz
Total power: 550 W
Combined power (-12V): 3.6 W
Max output current (+5V): 20 A
Peak power: 600 W
Max output current (+5Vsb): 3 A
Combined power (+12V): 550 W
Max output current (+12V1): 28 A
Max output current (-12V): 0.3 A
Combined power (+3.3V): 120 W
Combined power (+5V): 120 W
Power Factor Correction (PFC) type: Active
Power Good signal delay range: 100 - 150 ms
Combined power (+5Vsb): 15 W
Max output current (+12V2): 24 A
Max output current (+3.3V): 20 A
Operating temperature (T-T): 0 - 40 °C
Depth: 150 mm
Height: 86 mm
Width: 160 mm
Noise level: 17.1 dB
EPS version: 2.92
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
Purpose: PC
ATX version: 3.0
Package type: Box

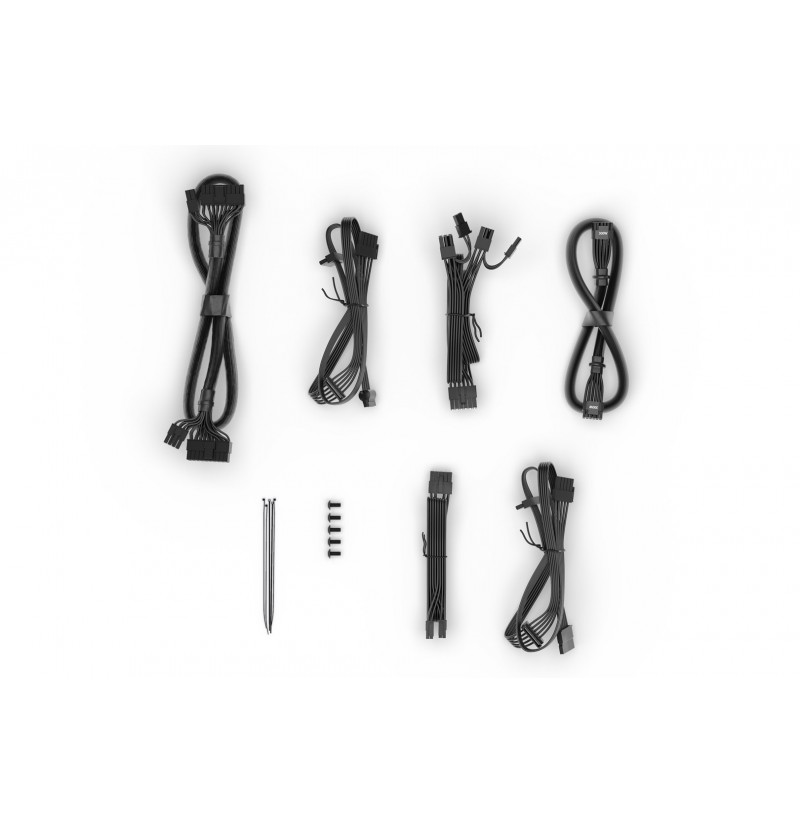

Cables included: PATA, PCIe, Peripheral (Molex), SATA
Peripheral (Molex) power connectors (4-pin): 1
PCI Express power connectors (6+2 pin): 2
Cabling type: Fully-Modular
Number of SATA power connectors: 5
Motherboard power cable length: 55 cm
Number of PATA power connectors: 2
ATX power connector (20+4 pin): Yes
SATA power cable length: 650, 950 mm, 800, 500
Peripheral (Molex) power cable length: 550
EPS power connector (4+4 pin): Yes
PCI Express connector: Yes
Motherboard power connector: 20+4 pin ATX
Number of screws: 5
Screws included: Yes
Cable ties included: Yes
Noise level (silent mode, <30%): 8 dB
Noise level (quiet mode, 50%): 8.2 dB
Noise level (full-load mode, 100%): 17.1 dB
Warnings: Do not open the case - risk of electric shock.
