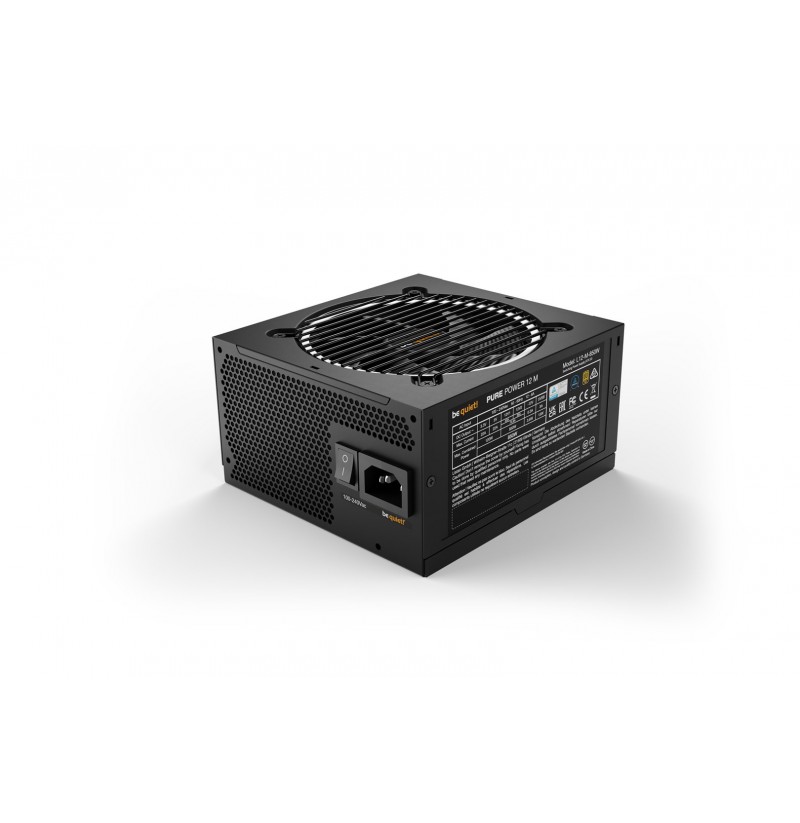

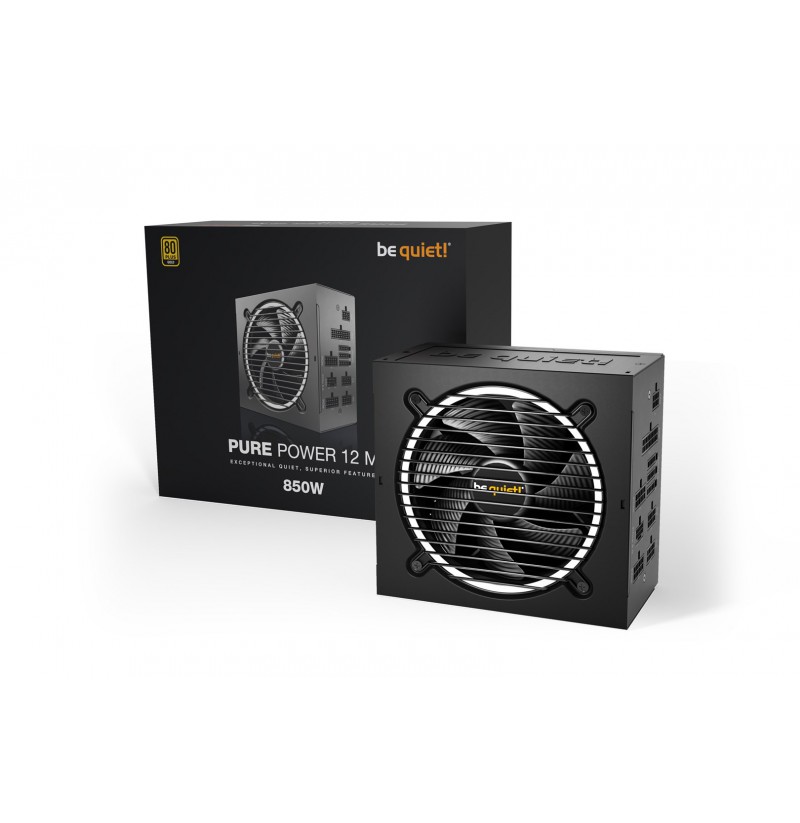

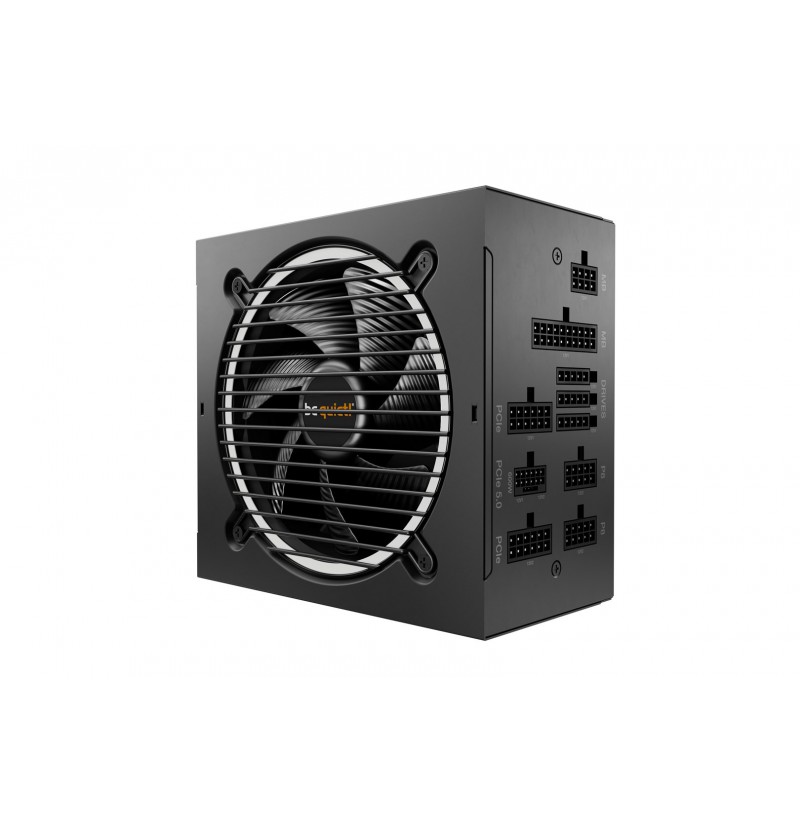

be quiet! Pure Power 12 M power supply unit 850 W 20+4 pin ATX ATX Black Padidinti

be quiet! Pure Power 12 M power supply unit 850 W 20+4 pin ATX ATX Black

145,83 €

4260052189498

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Sustainability compliance: Yes
Sustainability certificates: ENERGY STAR, ErP
On/off switch: Yes
Product colour: Black
Fan diameter: 12 cm
Number of fans: 1 fan(s)
Cooling type: Active
Fan location: Top
AC input frequency: 50 - 60 Hz
Power protection features: Overheating, Over power, Short circuit, Over voltage, Over current
Efficiency: 93.2%
Power factor: 0.98
Input current: 12 / 6 A
Total power: 850 W
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 15 W
Max output current (+5V): 22 A
Max output current (+5Vsb): 3 A
Peak power: 900 W
Combined power (+3.3V): 120 W
Max output current (+12V): 70.9 A
Max output current (-12V): 0.3 A
Combined power (+12V): 850 W
Power Factor Correction (PFC) type: Active
Combined power (-12V): 3.6 W
Combined power (+5V): 120 W
Max output current (+12V2): 36 A
Max output current (+3.3V): 22 A
Max output current (+12V1): 40 A
Power Good signal delay range: 100 - 150 ms
Operating temperature (T-T): 0 - 40 °C
Height: 86 mm
Width: 160 mm
Depth: 150 mm
Purpose: PC
Noise level: 25.7 dB
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
EPS version: 2.92
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Package type: Box

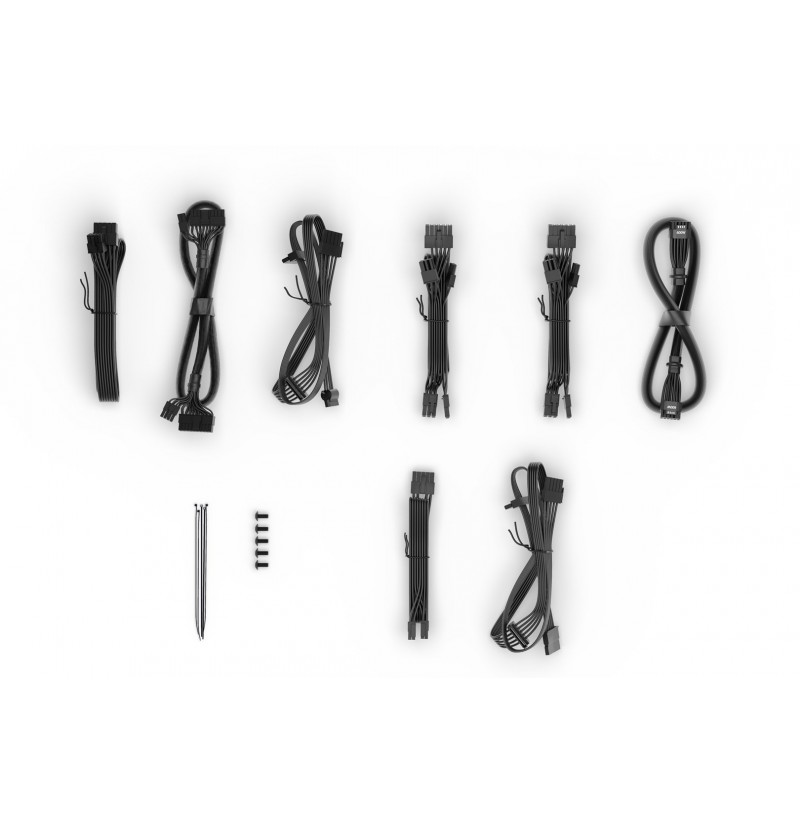

Cables included: PATA, PCIe, Peripheral (Molex), SATA
Compliance certificates: RoHS
EPS power connector (8-pin): Yes
Peripheral (Molex) power connectors (4-pin): 1
Cabling type: Fully-Modular
Number of PATA power connectors: 2
SATA power cable length: 650, 950 mm, 800 mm, 600 mm, 500 mm
PCI Express power connectors (6+2 pin): 4
Number of SATA power connectors: 6
ATX power connector (20+4 pin): Yes
Peripheral (Molex) power cable length: 550 mm
Motherboard power cable length: 55 cm
Motherboard power connector: 20+4 pin ATX
PCI Express connector: Yes
EPS power connector (4+4 pin): Yes
Screws included: Yes
Noise level (silent mode, <30%): 9.4 dB
Cable ties included: Yes
Number of screws: 5
Noise level (quiet mode, 50%): 9.5 dB
Noise level (full-load mode, 100%): 25.7 dB
Warranty period: 10 year(s)
Warnings: Do not open the case - risk of electric shock., The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations., Avoid contact of the product with water or other liquids.
