Deepcool 80Plus Gold PSU | PN850M | 850 W Padidinti

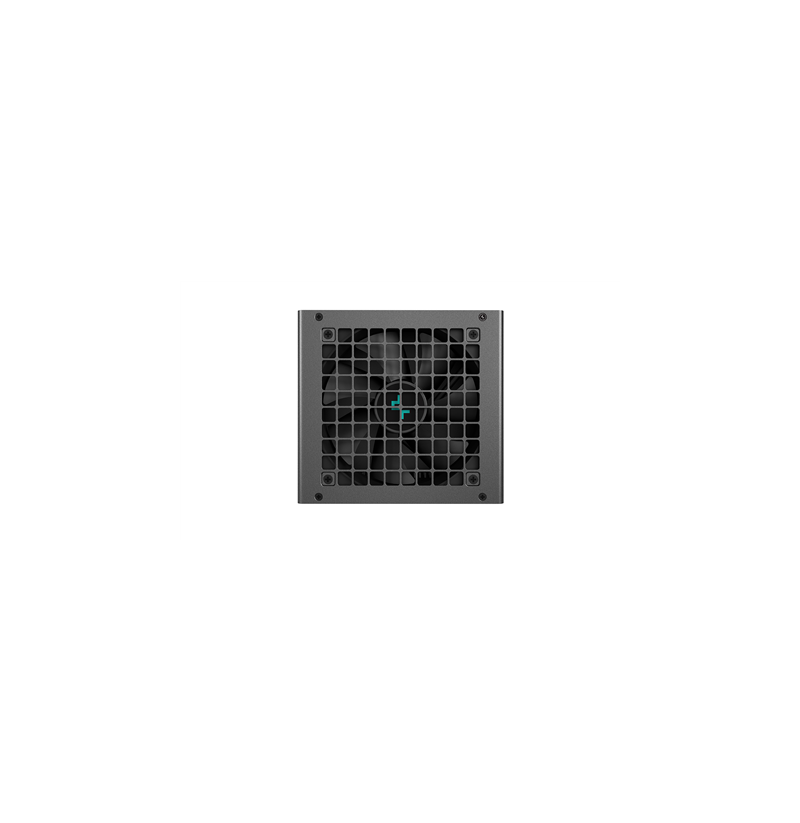

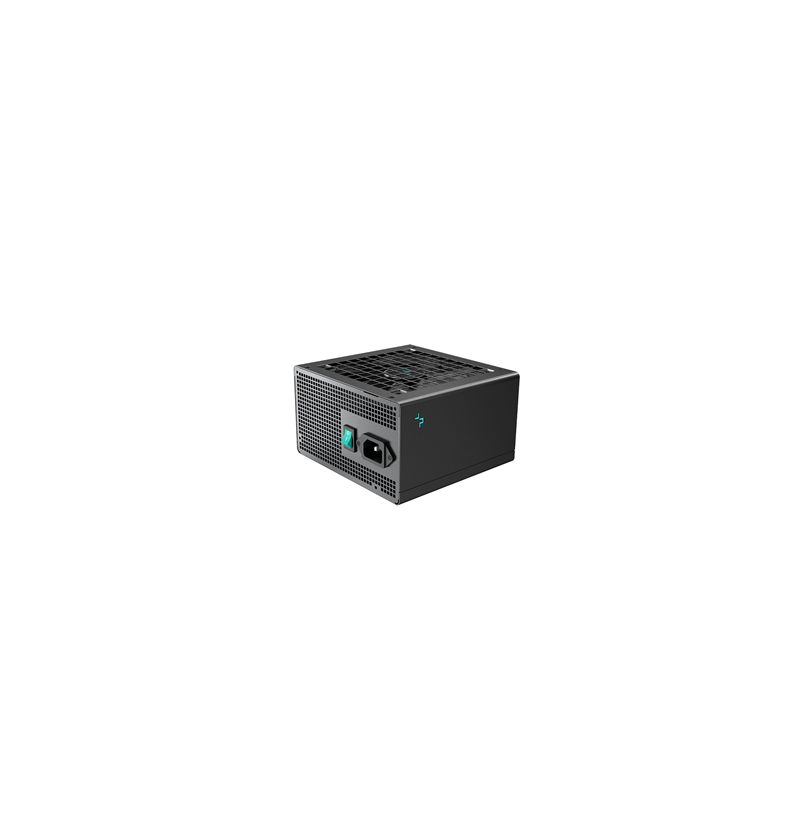

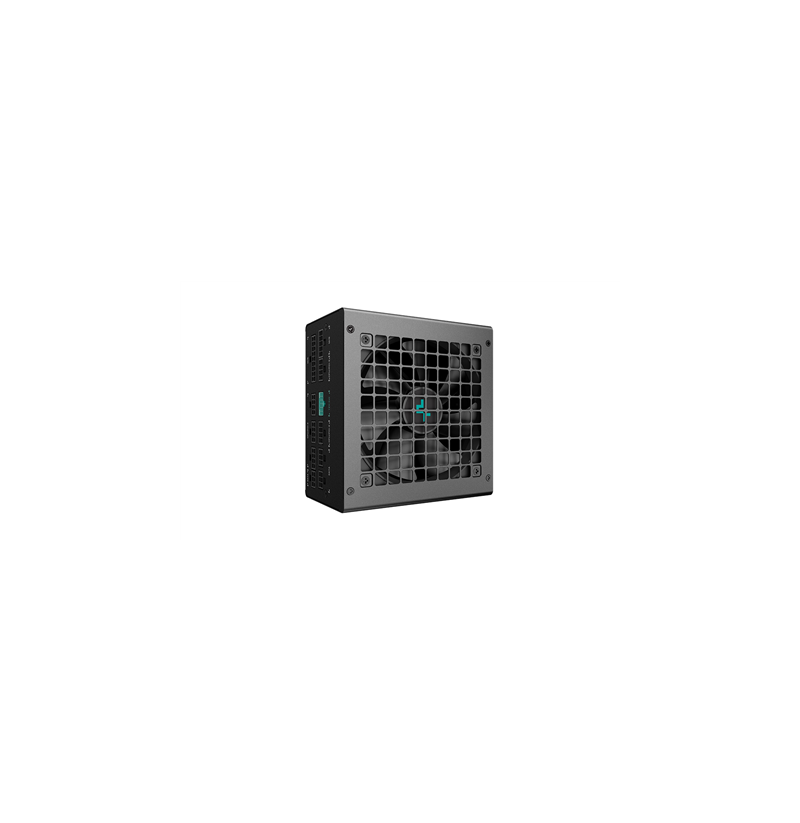

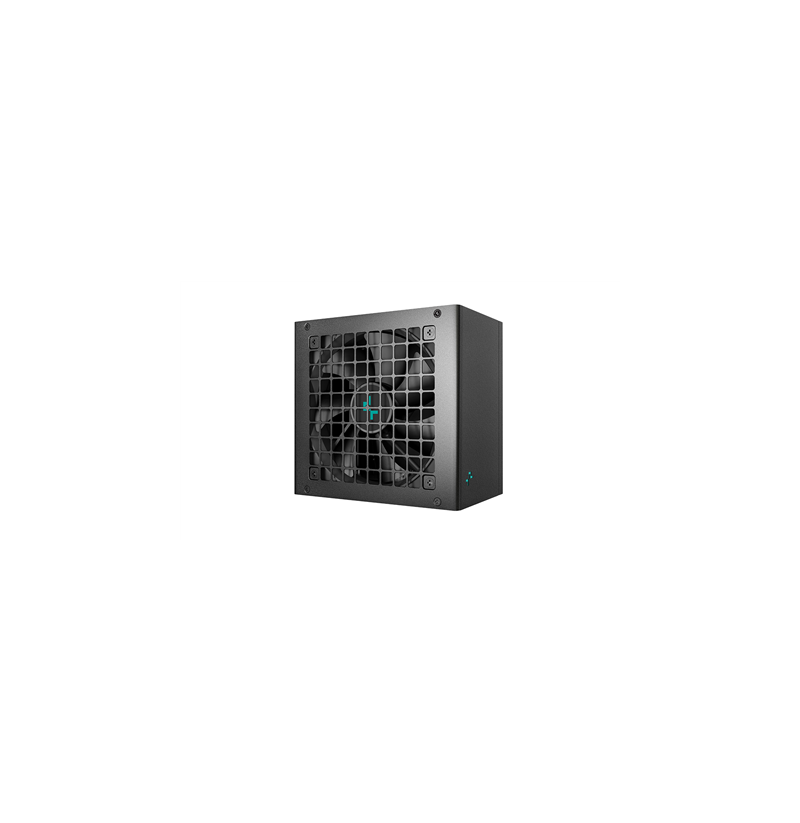

DeepCool PN850M power supply unit 850 W 20+4 pin ATX ATX Black

121,27 €

R-PN850M-FC0B-EU

6933412719564

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Sustainability certificates: RoHS, Federal Communications Commission (FCC), WEEE, Triman, CE, CCC, EAC, RCM, ErP
Sustainability compliance: Yes
Cooling type: Active
Fan location: Top
Fan diameter: 12 cm
On/off switch: Yes
Product colour: Black
Number of fans: 1 fan(s)
Total power: 850 W
Power protection features: Over power, Surge & inrush protection (SIP), No load operation, Overheating, Surge protection, Short circuit, Over voltage, Under voltage
AC input voltage: 100 - 240 V
Efficiency: 90%
Input current: 10 - 5 A
Combined power (+12V): 846 W
AC input frequency: 50/60 Hz
Combined power (+3.3V): 110 W
Power Factor Correction (PFC) type: Active
Max output current (-12V): 0.3 A
Max output current (+5Vsb): 3 A
Combined power (+5V): 110 W
Hold time: 16 ms
Combined power (-12V): 3.6 W
Combined power (+5Vsb): 15 W
Max output current (+12V): 70.5 A
Max output current (+3.3V): 20 A
Max output current (+5V): 20 A
Power Good signal delay range: 100 - 150 ms
Operating temperature (T-T): 0 - 40 °C
Width: 150 mm
Height: 86 mm
Depth: 140 mm
Purpose: PC
Mean time between failures (MTBF): 100000 h
ATX version: 3.1
Bearing technology: FDB
Power supply unit (PSU) form factor: ATX
80 PLUS certification: 80 PLUS Gold
Package type: Box
Cables included: AC
Cable tie(s) included: Yes

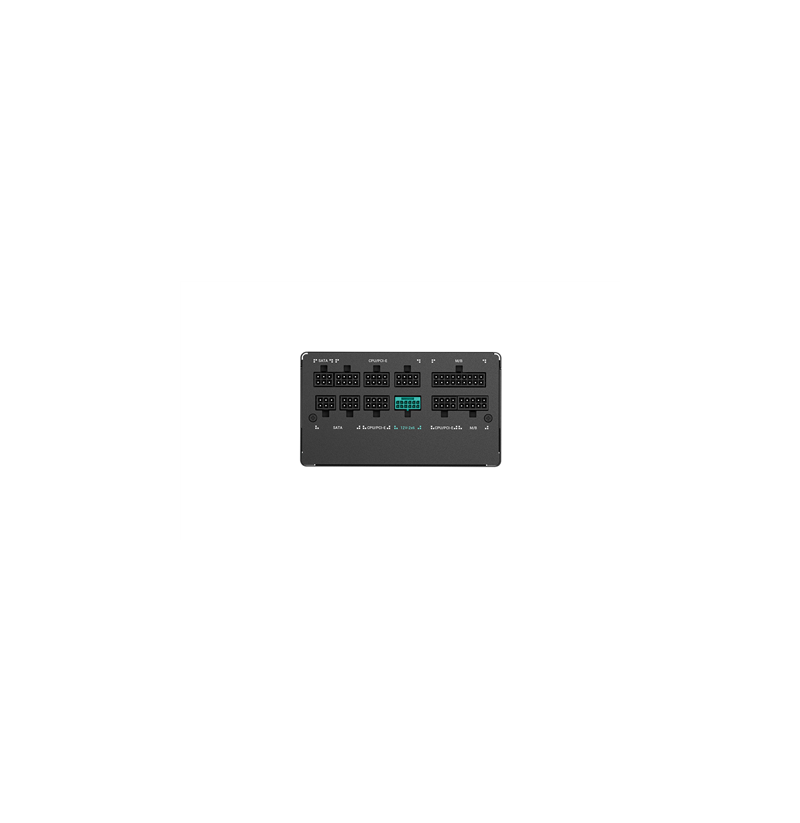

Cabling type: Fully-Modular
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power connectors (6+2 pin): 3
Peripheral (Molex) power cable length: 850 mm
Number of SATA power connectors: 8
Motherboard power cable length: 55 cm
CPU power cable length: 70 cm
CPU power connector (4+4 pin): Yes
SATA power cable length: 450 mm, 550, 650, 750 mm
PCI Express power connectors (16-pin): 1
ATX power connector (20+4 pin): Yes
Motherboard power connector: 20+4 pin ATX
