be quiet! Pure Power 12 M power supply unit 1000 W 20+4 pin ATX ATX Black Padidinti

be quiet! Pure Power 12 M power supply unit 1000 W 20+4 pin ATX ATX Black

182,21 €

BN345

4260052189504

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Sustainability certificates: ENERGY STAR, ErP
Sustainability compliance: Yes
Fan location: Top
On/off switch: Yes
Product colour: Black
Number of fans: 1 fan(s)
Cooling type: Active
Fan diameter: 12 cm
Fan speed: 0 - 2000 RPM
Max output current (+5V): 22 A
Input current: 12 / 6 A
Max output current (+12V): 83.4 A
Max output current (-12V): 0.3 A
AC input voltage: 100 - 240 V
Combined power (+5Vsb): 15 W
Combined power (+5V): 120 W
Total power: 1000 W
Combined power (+3.3V): 120 W
Power protection features: Overheating, Over current, Over power, Short circuit, Over voltage
Combined power (+12V): 1000 W
Efficiency: 93.2%
Power factor: 0.98
Max output current (+5Vsb): 3 A
Combined power (-12V): 3.6 W
Max output current (+12V1): 46 A
Max output current (+12V2): 42 A
Max output current (+3.3V): 22 A
Power Factor Correction (PFC) type: Active
AC input frequency: 50 - 60 Hz
Power Good signal delay range: 100 - 150 ms
Peak power: 1050 W
Operating temperature (T-T): 0 - 40 °C
Height: 86 mm
Depth: 150 mm
Width: 160 mm
Mean time between failures (MTBF): 100000 h
80 PLUS certification: 80 PLUS Gold
EPS version: 2.92
Purpose: PC
Power supply unit (PSU) form factor: ATX
ATX version: 3.1
Noise level: 31.7 dB
Package type: Box

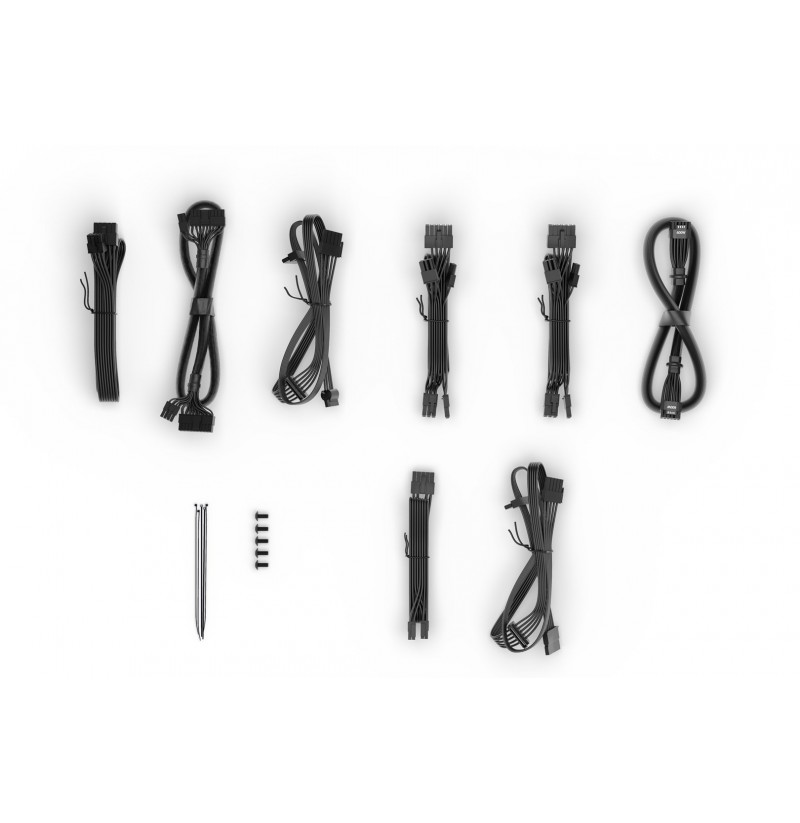

Cables included: PATA, PCIe, Peripheral (Molex), SATA
Compliance certificates: RoHS
PCI Express power connectors (6+2 pin): 4
Peripheral (Molex) power connectors (4-pin): 1
SATA power cable length: 800 mm, 650, 950 mm, 600, 500 mm
Cabling type: Fully-Modular
EPS power connector (8-pin): Yes
Motherboard power connector: 20+4 pin ATX
Motherboard power cable length: 55 cm
ATX power connector (20+4 pin): Yes
Peripheral (Molex) power cable length: 550 mm
PCI Express connector: Yes
Number of PATA power connectors: 2
Number of SATA power connectors: 6
PCI Express power cable length: 65 cm
EPS power connector (4+4 pin): Yes
Screws included: Yes
Number of screws: 5
Noise level (silent mode, <30%): 9.3 dB
Cable ties included: Yes
Noise level (full-load mode, 100%): 31.7 dB
Noise level (quiet mode, 50%): 9.6 dB
Warranty period: 10 year(s)
Warnings: The product is not suitable for disposal with municipal waste - dispose of in accordance with local regulations., Do not open the case - risk of electric shock., Avoid contact of the product with water or other liquids.
