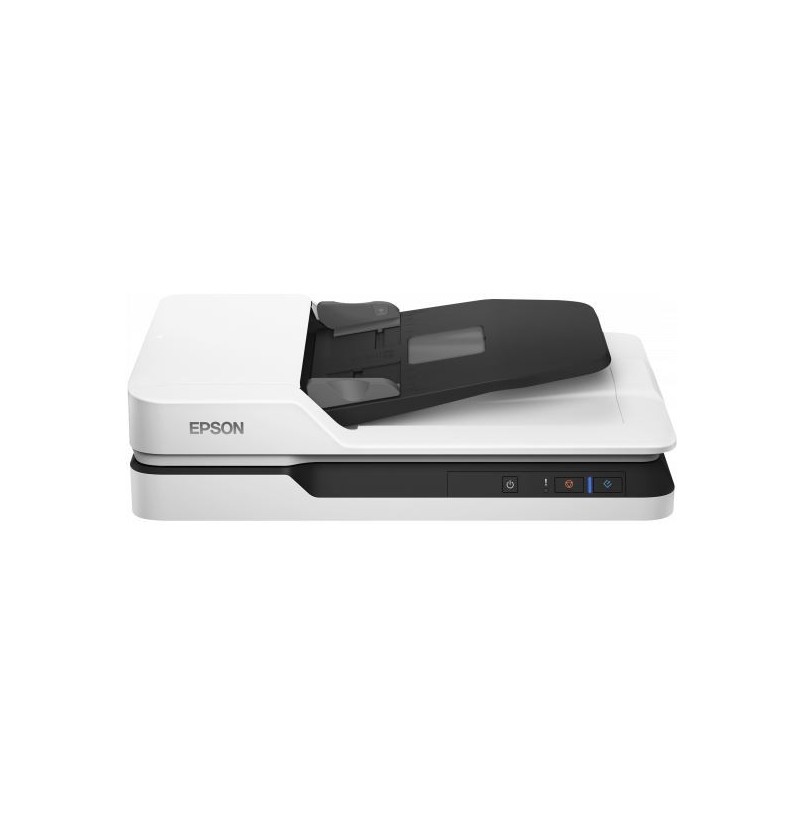

Epson | WorkForce DS-1630 | Flatbed | Document Scanner

Sustainability certificates: RoHS
Scanner type: Flatbed scanner
Product colour: Black, White
Built-in display: No
Input voltage: 100 - 120 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 11 W
Power consumption (PowerSave): 0.8 W
Power consumption (off): 0.15 W
Power consumption (standby): 5.8 W
Power supply type: AC
Operating temperature (T-T): 10 - 35 °C
Storage relative humidity (H-H): 20 - 80%
Operating relative humidity (H-H): 20 - 80%
Depth: 318 mm
Width: 451 mm
Height: 121 mm
Weight: 3.9 kg
Supported network protocols: TCP/IP, DHCP, DNS, SNMP, SLP
IPv6 support: Yes
Compatible operating systems: Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 7, Windows 7, 64-Bit-Version, Windows 8, Windows 8 (32/64 Bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Vista, Windows Vista, 64-Bit-Version
Windows operating systems supported: Windows 8.1, Windows Vista, Windows 7 x64, Windows 7, Windows 8 x64, Windows Vista x64, Windows 8, Windows 10, Windows 8.1 x64
Mac operating systems supported: Mac OS X 10.9 Mavericks, Mac OS X 10.8 Mountain Lion, Mac OS X 10.7 Lion, Mac OS X 10.6 Snow Leopard
Scan to: File, PC
Scan file formats: PDF, JPEG, TIFF
Light source: RGB LED
Daily duty cycle (max): 1500 pages
Password protection: Yes
Sensor type: CIS
Scan drivers: TWAIN, ISIS
Package height: 405 mm
Package depth: 520 mm
Package width: 195 mm
Package weight: 4.83 kg
Bundled software: Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Document Capture Pro Server (on free download), Epson Scan 2
Drivers included: Yes
Cables included: AC
Quick start guide: Yes
Software CD: Yes
Warranty card: Yes
Standard interfaces: USB 3.2 Gen 1 (3.1 Gen 1)
USB port: Yes
USB version: 3.2 Gen 1 (3.1 Gen 1)
Image formats supported: JPEG, TIFF, BMP
Cabling technology: 10/100/1000Base-T(X)
Control panel: 5-line LCD with Push Scan features
Harmonized System (HS) code: 84716070
Auto document feeder (ADF) input capacity: 50 sheets
Auto Document Feeder (ADF) media weight: 50 - 120 g/m²
Maximum ISO A-series paper size: A4
Minimum scan area (ADF): 89 x 127 mm
Maximum scan area (ADF): 210 x 3048 mm
Duplex ADF scan speed (b/w, A4): 10 ipm
Colour scanning: Yes
Optical scanning resolution: 1200 x 1200 DPI
Maximum scan size: 210 x 297 mm
Output greyscale depth: 8 bit
Input colour depth: 30 bit
Input greyscale depth: 10 bit
Output colour depth: 24 bit
ADF scan speed (b/w, A4): 25 ppm
ADF scan speed (colour, A4): 25 ppm
Duplex scanning: Yes
