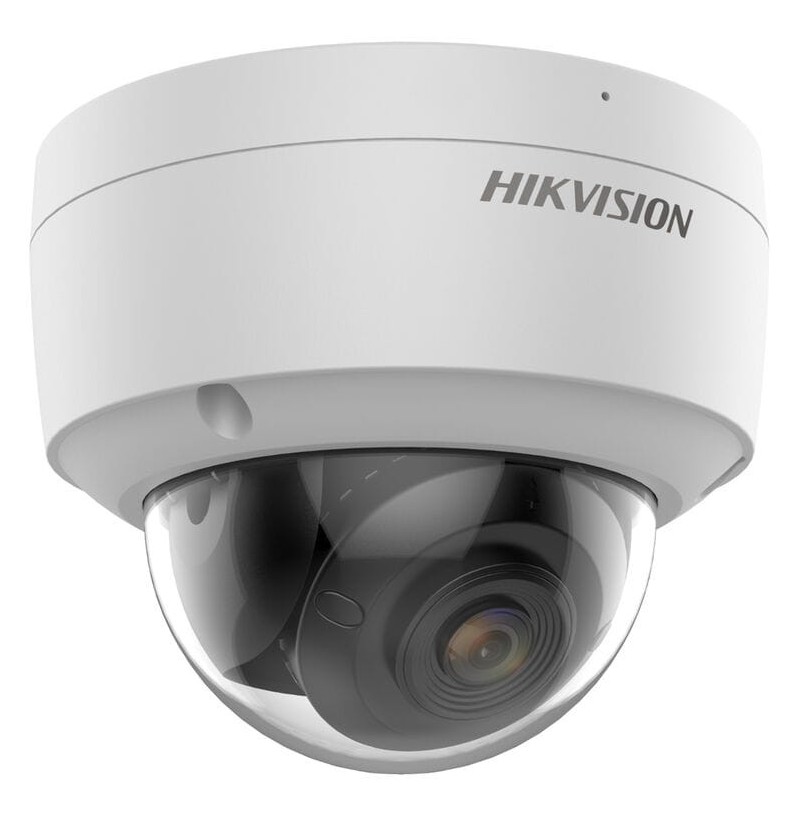

Hikvision dome DS-2CD2147G2-SU F4
261,70 €
- 4 MP
- ColorVu
- AcuSense
- MicroSD: 256GB
- IK10
- IP67
KIP2CD2147G2SUF4
6941264088882
- Kamera
- Sensorius1/1.8" Progressive Scan CMOS
- Maks. rai6ka2688 × 1520
- Min. apšvietimas0.0005 Lux @ (F1.0, AGC ON)
- Užrakto greitis1/3 s to 1/100,000 s
- Diena & naktisBlue glass module to reduce ghost phenomenon
- Kampo pasirinkimasPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lęšiai
- Lęšių tipasFixed focal lens, 2.8 and 4 mm optional
- Židinio nuotolis & FOV
2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
- Lęšių montavimasM16
- Iris tipasFixed
- DiafragmaF1.0
- DORI
- DORI
2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m
4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m
- Vaizdas
- Pagrindinis sraugas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Pagalbinis srautas
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
- Tretinis srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Vaizdo suspaudimas
Main stream: H.265/H.264/H.265+/H.264+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Vaizdo bitų greitis32 Kbps to 8 Mbps
- H.264 tipasBaseline Profile/Main Profile/High Profile
- H.265 tipasMain Profile
- Bitų dažnio kontrolėCBR/VBR
- SVCH.264 and H.265 encoding
- ROI1 fixed region for main stream and sub-stream
- Garsas
- Garso suspaudimas -SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
- Garso bitų greitis-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
- Garso pavyzdžių ėmimo greitis-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Aplinkos triukšmo filtravimas-SU: Yes
- Tinklas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
- Naudotojas/transliuotojasUp to 32 users. 3 user levels: administrator, operator and user
- SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Tinklo saugykla
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasiVMS-4200, Hik-Connect, Hik-Central
- Internetinė naršyklė
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Nuotraukos
- Nuotraukų nustatymų keitimasYes
- Nuotraukų nustatymaiRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Platus dinaminis nuotolis (WDR)130 dB
- SNR≥ 52 dB
- Nuotraukų gerinimasBLC, HLC, 3D DNR
- Sąsajos
- Eterneto sąsajos1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinės sąsajosBuilt-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB
- Įmontuotas mikrofonas-SU: Yes
- Garsas
-SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
- Įspėjamasis signalas-SU: 1 input, 1 output (max. 12 VDC, 30 mA)
- Atkūrimo mygtukasYes
- Įvykiai
- Paprasti įvykiaiMotion detection (human and vehicle targets classification), video tampering alarm, exception
- Išmanūs įvykiai
Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Scene change detection
- Sujungimas
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
-SU: audible warning
- Išmanaus mokymosi funkcijos
- Veidų atpažinimasYes
- Pagrindinis
- Galia
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
- MatmenysØ121.4 mm × 100.1 mm (Ø4.8" × 3.9")
- Pakuotės matmenys150 mm × 150 mm × 141 mm (5.9" × 5.9" ×5.6")
- SvorisApprox. 580 g (1.2 lb.)
- Svoris su pakuoteApprox. 820 g (1.6 lb.)
- Laikymo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Paleidimo ir veikimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Kalba
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Pagrindinės funkcijosAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Patvirtinimai
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC VoC (ICES-003: Issue 6, 2016)
- Saugumas
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
- Aplinkos apsaugaCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ApsaugaIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
