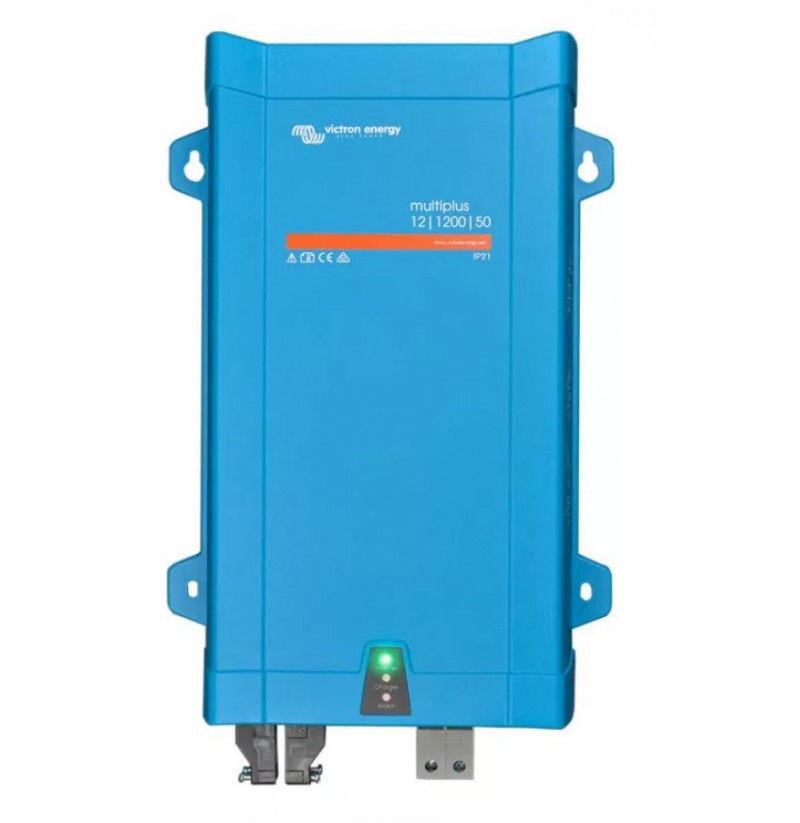

Victron Energy MultiPlus Slim 12/1200/50-16 VE.Bus Inverter Padidinti

Victron Energy MultiPlus Slim 12/1200/50-16 VE.Bus Inverter

638,87 €

8719076039310

Galimas pasirinkimas

 pristatymas 7...9 d.d.


Certification: EN-IEC 60335-1, EN-IEC 60335-2-29, EN 62109-1, EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 / ECE R10-5
Power protection features: Over power, Over voltage, Under voltage, Overheating, Overvoltage protection
International Protection (IP) code: IP21
Efficiency: 93%
Power supply type: Indoor/outdoor
Power current type: DC/AC
Purpose: Solar panel
Connectivity: Ethernet
Cross-section connections supported: 35 mm²
DIP Switch: Yes
Three-phase and parallel operation: Yes
Built-in display: No
Material: Steel, ABS
Product colour: Blue
Number of VE.Bus ports: 1
AC input voltage: 187 - 265 V
Input voltage: 9.5 - 17 V
DC input voltage: 12 V
Peak power: 2400 W
Frequency: 50 Hz
Output voltage: 230 V
Frequency range: 45 - 65 Hz
Apparent power: 1200 VA
Charging the current battery: 50 A
Ongoing charging of the starter battery: 1 A
Charging voltage (liquid): 13.8 V
Output power at 40°C: 900 W
Output power at 25°C: 1000 W
Power at zero load: 10 W
Charging voltage (absorption): 14.4 V
Output power at 65°C: 600 W
Operating temperature (T-T): -40 - 65 °C
Operating relative humidity (H-H): 0 - 95%
Depth: 100 mm
Height: 406 mm
Weight: 8.2 g
Width: 250 mm
Quantity per pack: 1 pc(s)
Set contents: VE.Bus Smart Dongle
