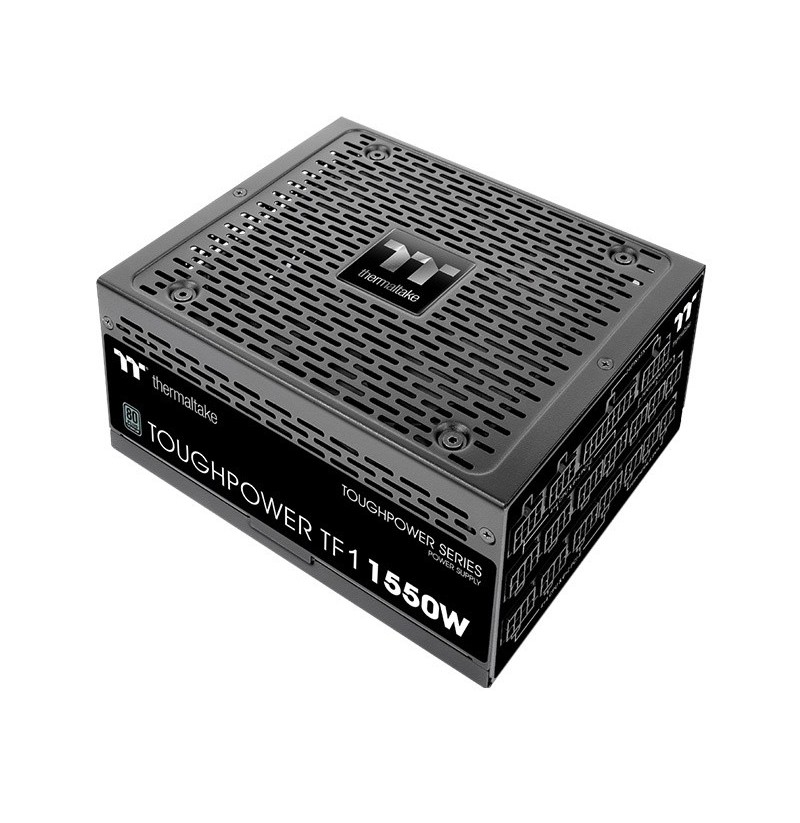

Thermaltake PS-TPD-1550FNFATE-1 power supply unit 1550 W 24-pin ATX ATX Black Padidinti

Thermaltake PS-TPD-1550FNFATE-1 power supply unit 1550 W 24-pin ATX ATX Black

357,26 €

4713227528245

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Number of fans: 1 fan(s)
Product colour: Black
Fan diameter: 14 cm
On/off switch: Yes
Fan location: Top
AC input voltage: 100 - 240 V
Total power: 1550 W
Input current: 18 A
AC input frequency: 47 - 63 Hz
Max output current (-12V): 0.5 A
Combined power (+12V): 1549.92 W
Max output current (+12V): 129.16 A
Max output current (+5Vsb): 3 A
Combined power (+5V): 120 W
Max output current (+3.3V): 22 A
Combined power (+5Vsb): 15 W
Max output current (+5V): 22 A
Combined power (-12V): 6 W
Hold time: 16 ms
Power Factor Correction (PFC) type: Active
Peak power: 1860 W
Combined power (+3.3V): 120 W
Storage relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -20 - 70 °C
Operating temperature (T-T): 0 - 50 °C
Operating relative humidity (H-H): 20 - 90%
Height: 86 mm
Depth: 180 mm
Weight: 2.4 kg
Width: 150 mm
80 PLUS certification: 80 PLUS Platinum
Mean time between failures (MTBF): 120000 h
Purpose: PC
Supported motherboard form factors: ATX
Power supply unit (PSU) form factor: ATX
Floppy disk drive connector: Yes
Peripheral (Molex) power connectors (4-pin): 2
PCI Express power cable length: 50 cm
Motherboard power connector: 24-pin ATX
CPU power cable length: 7 m
Floppy disk drive cable length: 15 cm
SATA power cable length: 500 mm, 150
PCI Express power connectors (8-pin): 4
Cabling type: Fully-Modular
CPU power connector (4+4 pin): Yes
Peripheral (Molex) power cable length: 500 mm, 150
Motherboard power cable length: 60 cm
Number of SATA power connectors: 4
PCI Express power connectors (6+2 pin): 4
Harmonized System (HS) code: 84733020
