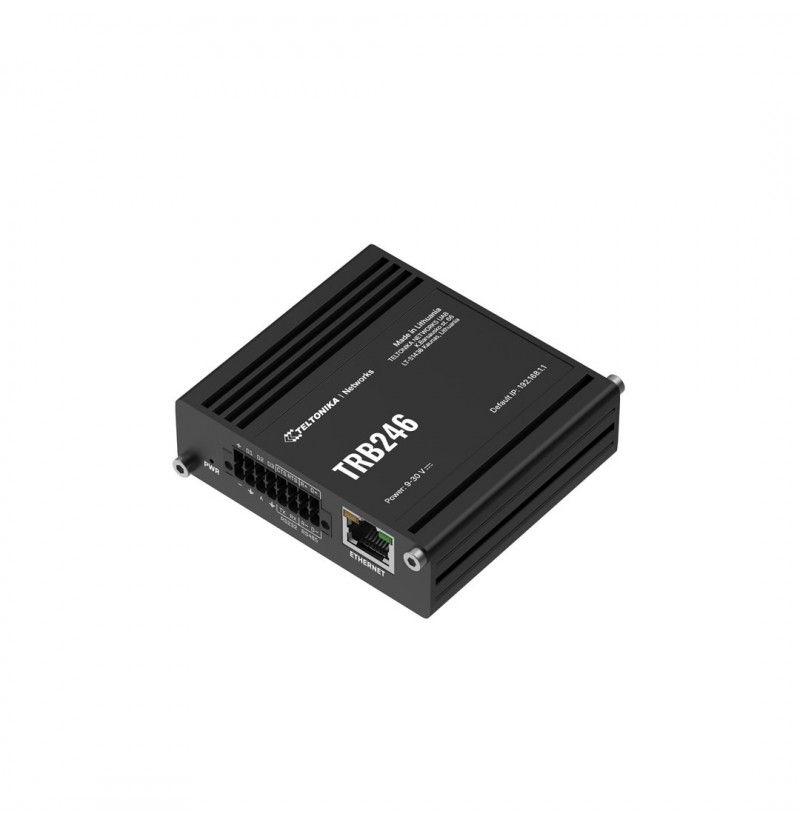

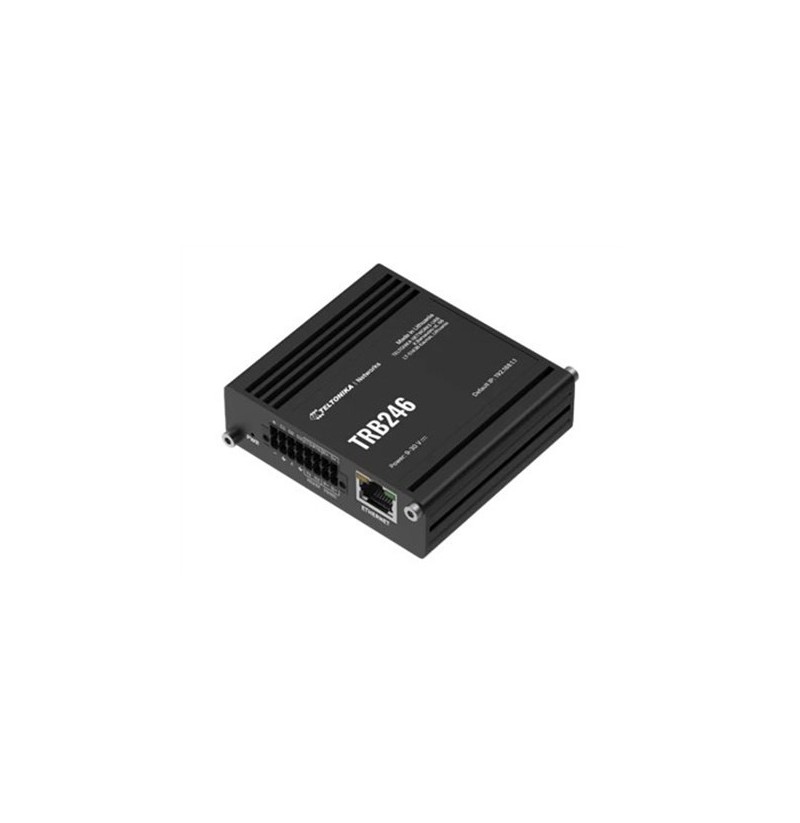

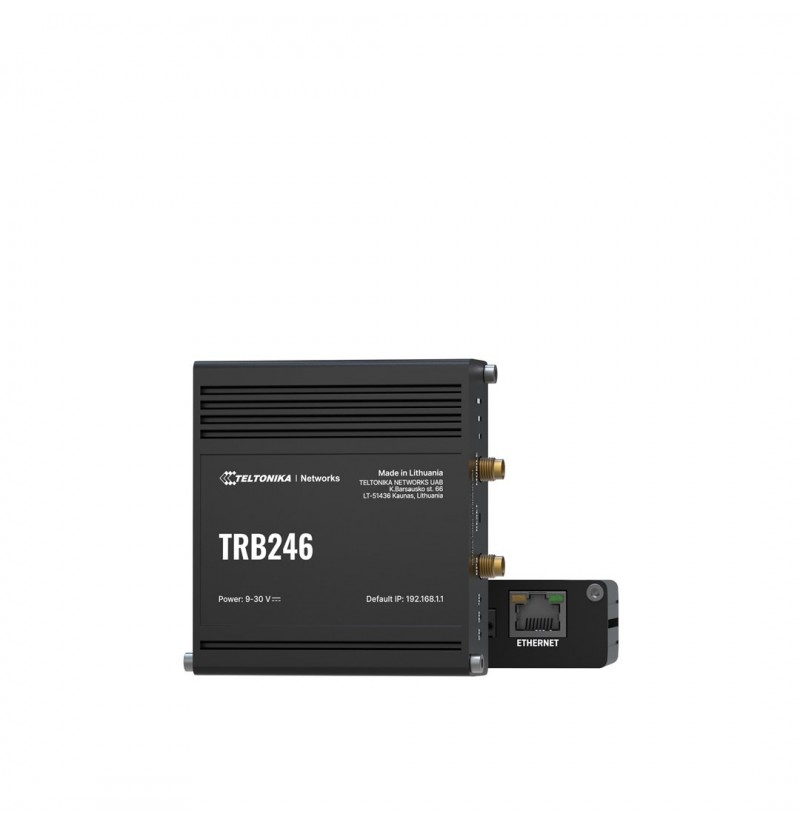

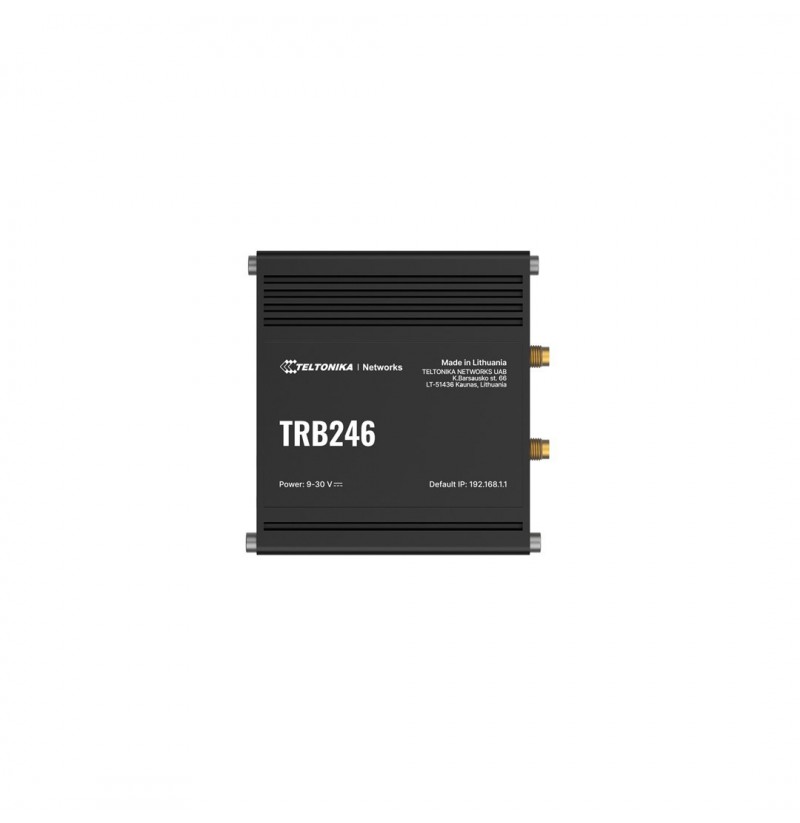

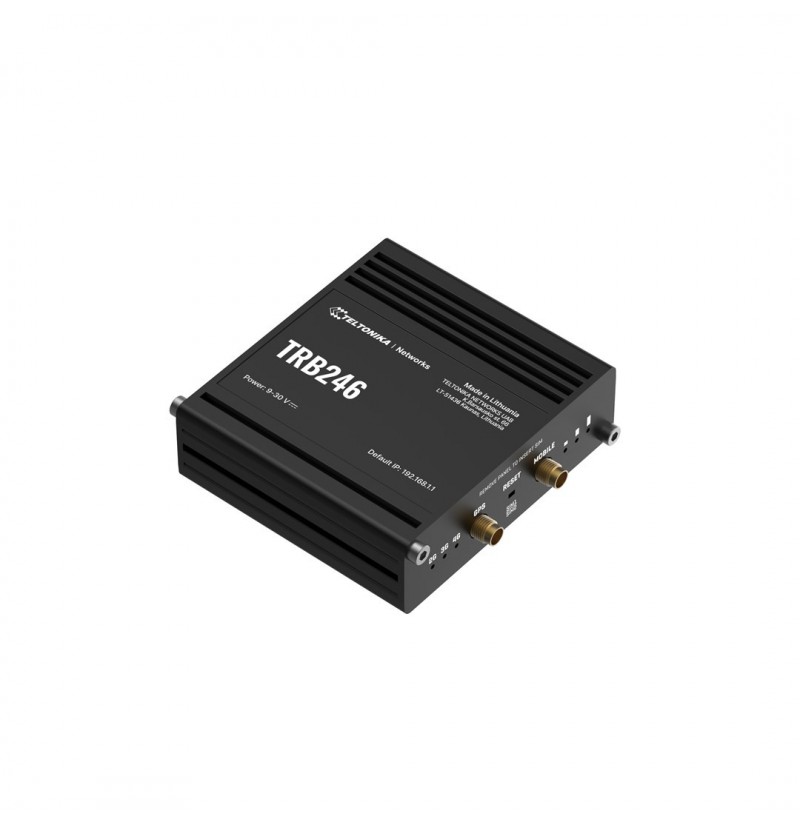

TRB246 (EU) Compact Padidinti

TRB246 (EU) Compact

179,42 €

4779051840755

Galimas pasirinkimas

 pristatymas 9...11 d.d.


LED indicators: Status, Power, LAN, Signal strength
Product colour: Black
Device type: Cellular network gateway
Housing material: Aluminium
Suitable for indoor use: Yes
Mounting: DIN-rail/Wall mounting
Market positioning: Industrial
Power source type: DC
Input voltage: 9 - 30 V
External power adapter: Yes
Port forwarding: Yes
DMZ support: Yes
Operating temperature (T-T): -40 - 75 °C
Operating relative humidity (H-H): 10 - 90%
Web-based management: Yes
Management platform: RMS
Weight: 165 g
Width: 83 mm
Depth: 74.2 mm
Height: 25 mm
Certification: CE, UKCA, RCM, CB, EAC, UCRF, WEEE
Processor frequency: 0.58 GHz
Built-in processor: Yes
RAM capacity: 0.128 GB
RAM type: DDR2
Processor manufacturer: MediaTek
Internal storage capacity: 0.016 GB
Wi-Fi: No
Ethernet LAN (RJ-45) ports: 1

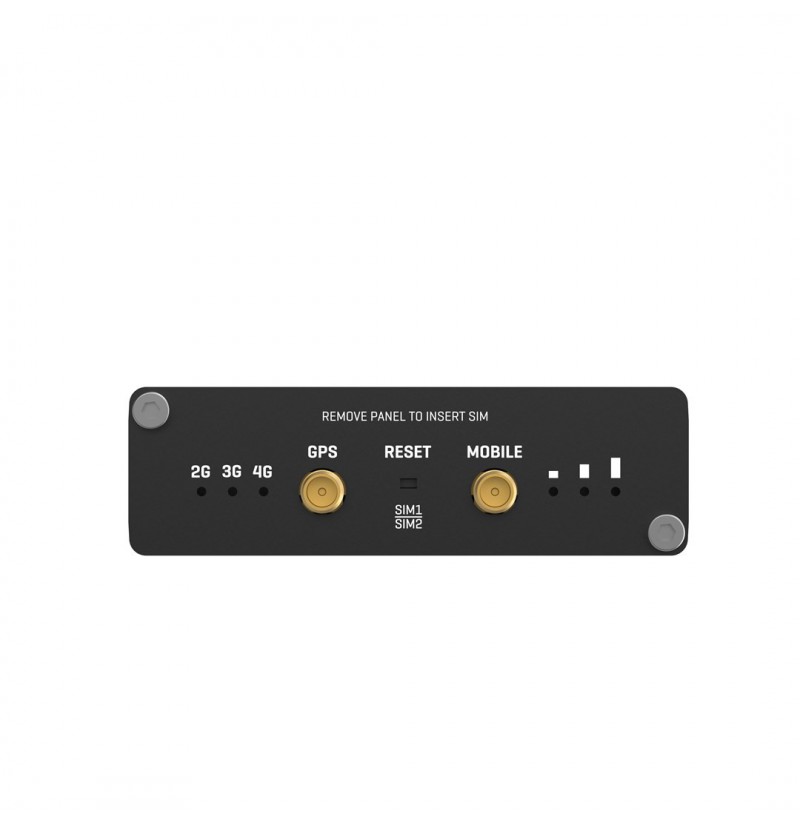

Antenna type: External
Antenna connector type: SMA
Antennas quantity: 2
Quasi-Zenith Satellite System (QZSS): Yes
GPS (satellite): Yes
BeiDou: Yes
Galileo: Yes
GLONASS: Yes
Embedded GNSS: Yes
Data transfer rate (LTE) (upload): 50 Mbit/s
Data transfer rate (LTE) (download): 150 Mbit/s
Short Message Service (SMS): Yes
Number of SIM cards: 2
SIM card type: MiniSIM
Data network: LTE, 4G, 3G, 2G
SIM interface: 3 V
Networking standards: IEEE 802.3az, IEEE 802.3, IEEE 802.11e, IEEE 802.3u
Ethernet LAN data rates: 100, 10
Ethernet LAN: Yes
Auto MDI/MDI-X: Yes
Full duplex: Yes
Ethernet LAN interface type: Fast Ethernet
DHCP server: Yes

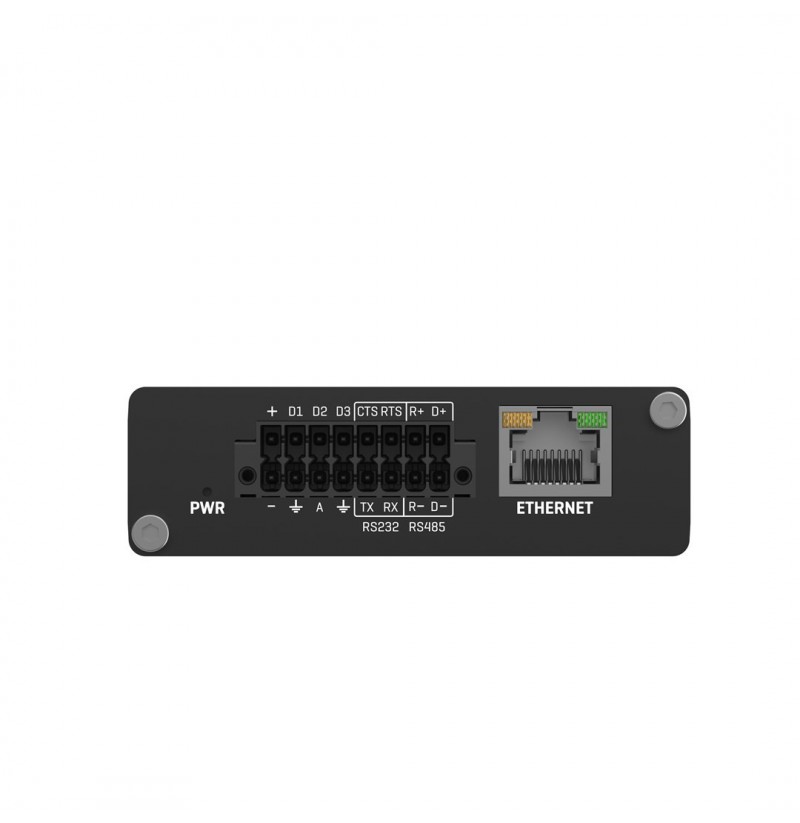

RS-485 signals: RDB+, Data-, Data+, RDA-
RS-232 signals: CTS, Rx, Tx, RTS
Serial interface type: RS-232, RS-232/485
Serial ports quantity: 1
