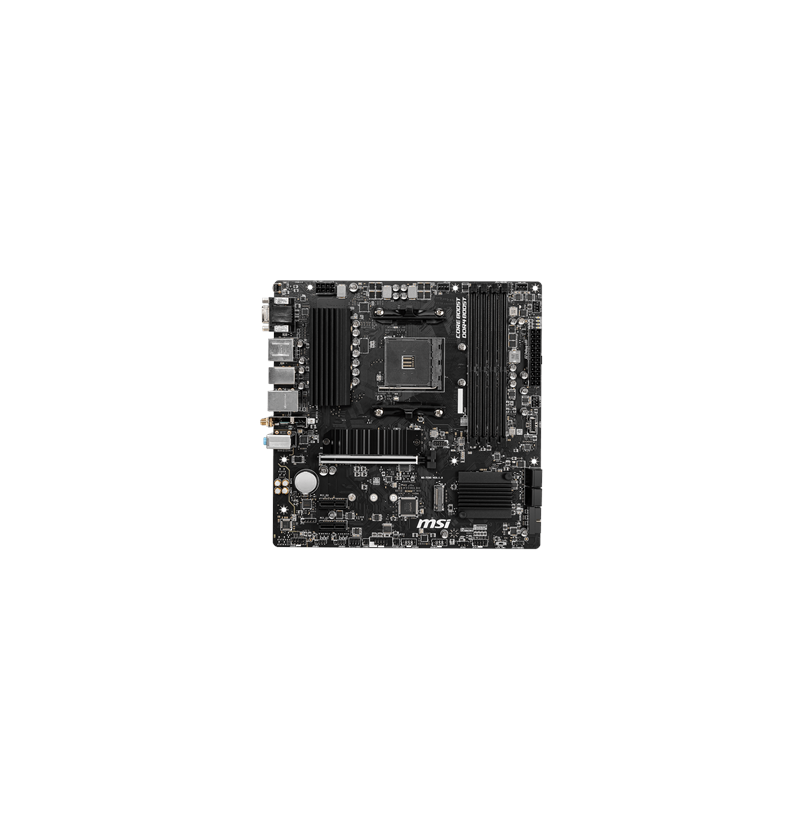

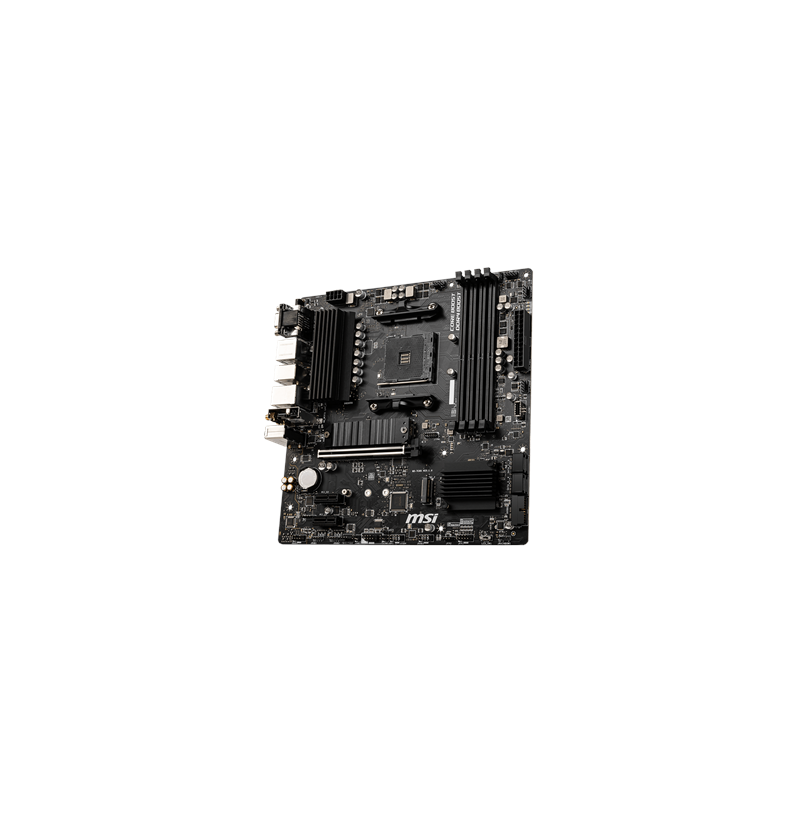

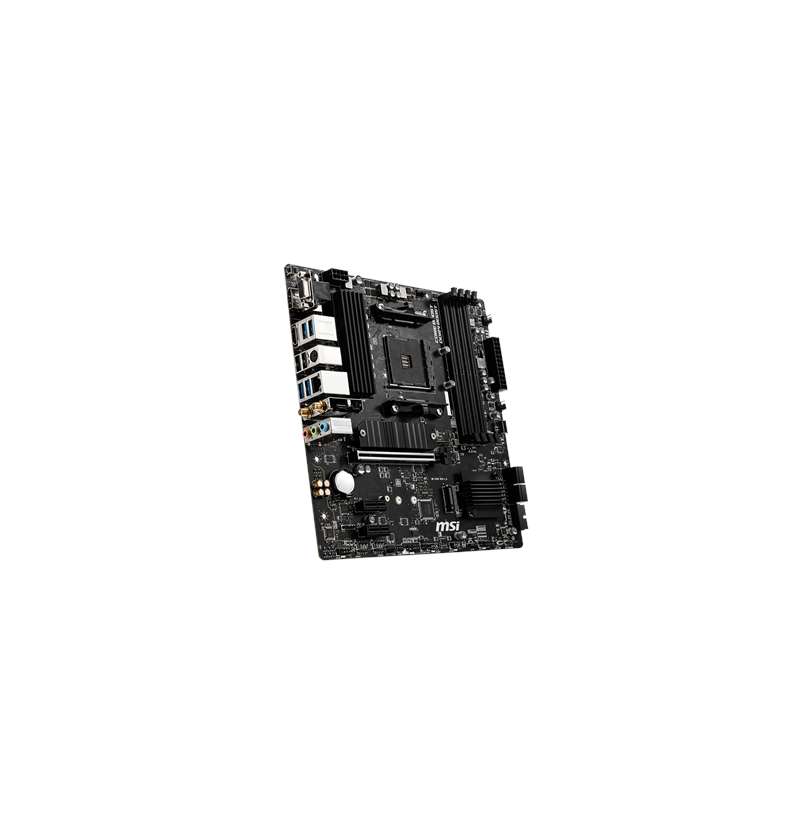

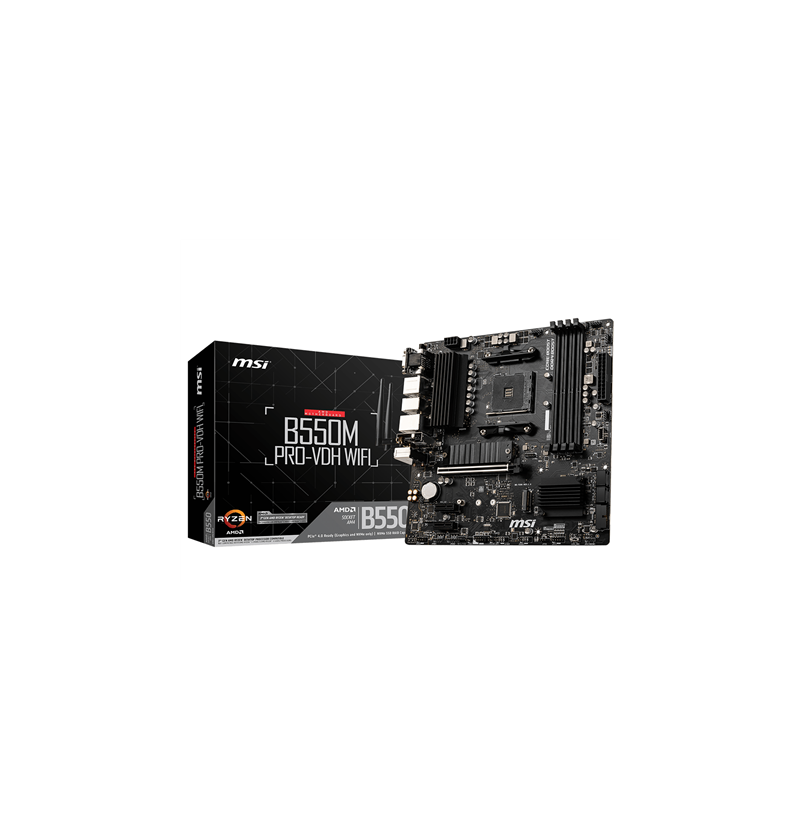

MSI B550M PRO-VDH WIFI Processor family AMD, Processor socket AM4, DDR4, Memory slots 4, Chipset AMD B, Micro ATX Padidinti

MSI | B550M PRO-VDH WIFI | Processor family AMD | Processor socket AM4 | DDR4 | Memory slots 4 | Chipset AMD B | Micro ATX

110,54 €

B550M PRO-VDH WIFI

4719072733698

Galimas pasirinkimas

 1..4 d.d.


Maximum number of SMP processors: 1
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
Compatible processor series: 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 3
Processor manufacturer: AMD
Parallel processing technology support: Not supported
Maximum resolution: 4096 x 2160 pixels
Maximum graphics card memory: 16000 MB
Audio chip: Realtek ALC892
Motherboard chipset: AMD B550
Audio output channels: 7.1 channels
Motherboard form factor: micro ATX
Product colour: Black
Number of mounting holes: 8
Motherboard chipset family: AMD
Supported memory clock speeds: 2133, 2400, 2800, 2667, 3733, 4400, 3066, 1866, 4133, 4000, 3200 MHz, 4266, 3866, 3000, 3466, 2933, 3600 MHz
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Width: 244 mm
Height: 65 mm
Depth: 244 mm
LAN controller: Realtek 8111HN
Bluetooth: Yes
Ethernet interface type: Gigabit Ethernet
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: 802.11a, Wi-Fi 4 (802.11n), 802.11g, Wi-Fi 5 (802.11ac), 802.11b
Ethernet LAN: Yes
Bluetooth version: 4.2
Wi-Fi: Yes
USB 2.0 connectors: 2
RGB LED pin header: Yes
12V power connector: Yes
Number of SATA III connectors: 4
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Serial port headers: 1
Number of chassis fan connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Clear CMOS jumper: Yes
Drivers included: Yes
Cables included: SATA
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III
RAID levels: 0, 10, 1
RAID support: Yes

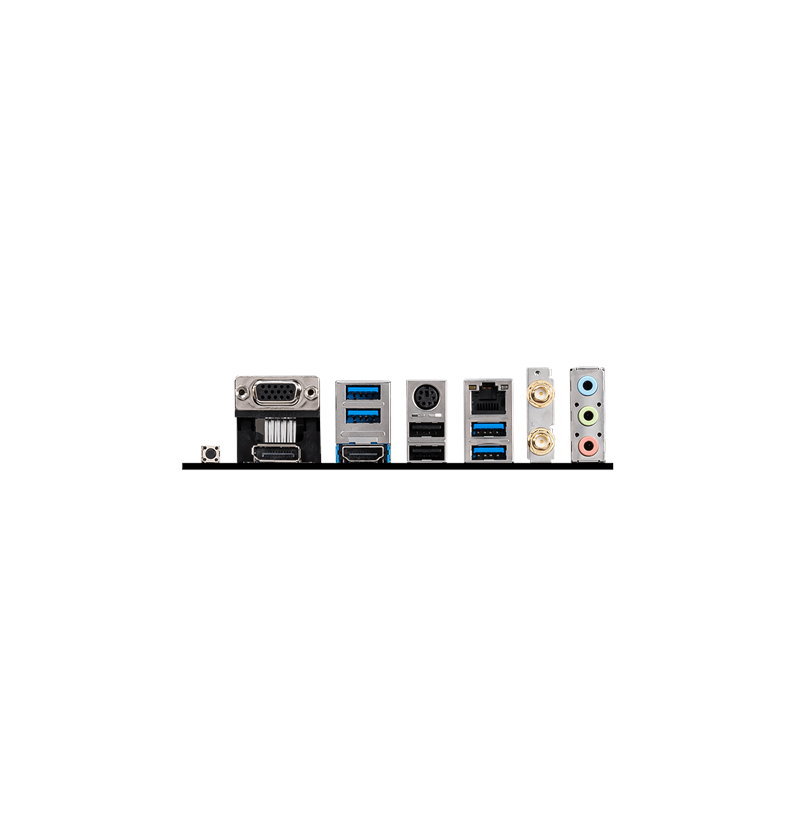

DisplayPorts quantity: 1
WiFi-AP antenna jack: 2
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
USB 2.0 ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
Weight: 1 kg
Harmonized System (HS) code: 84733020
