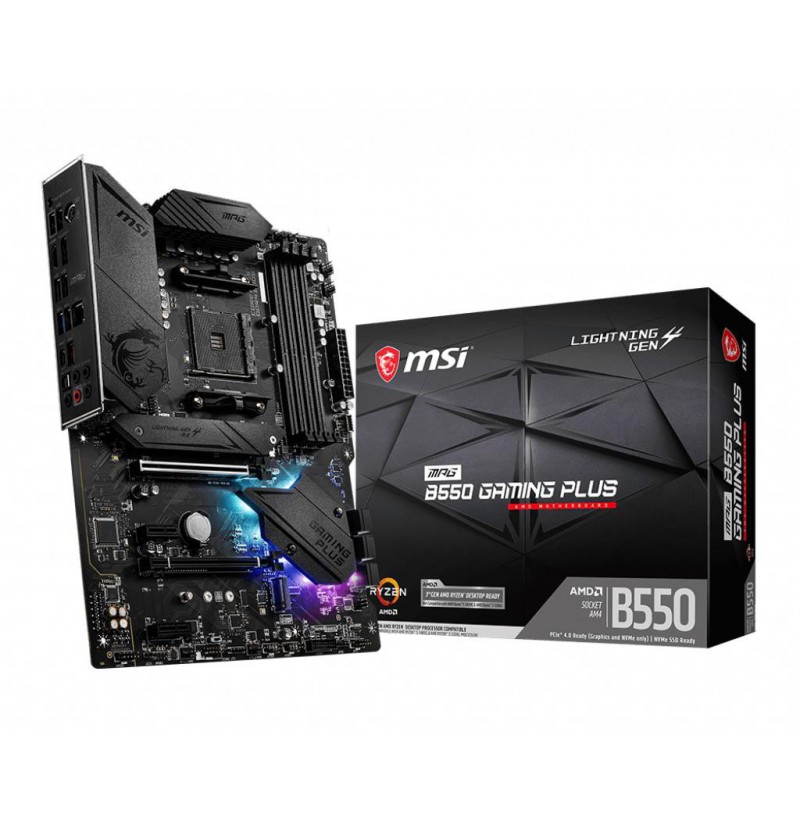

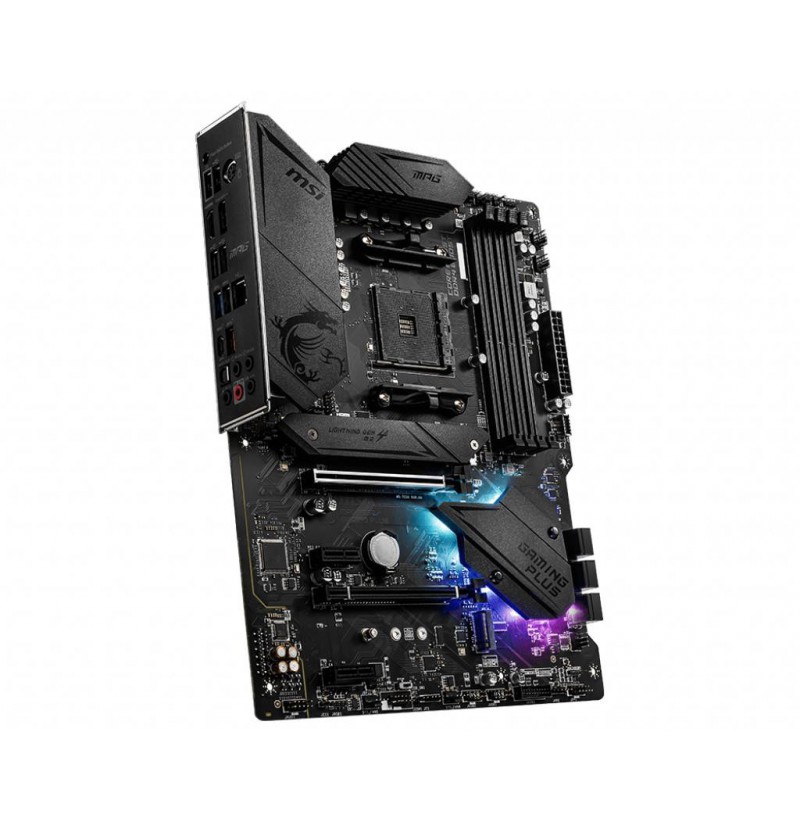

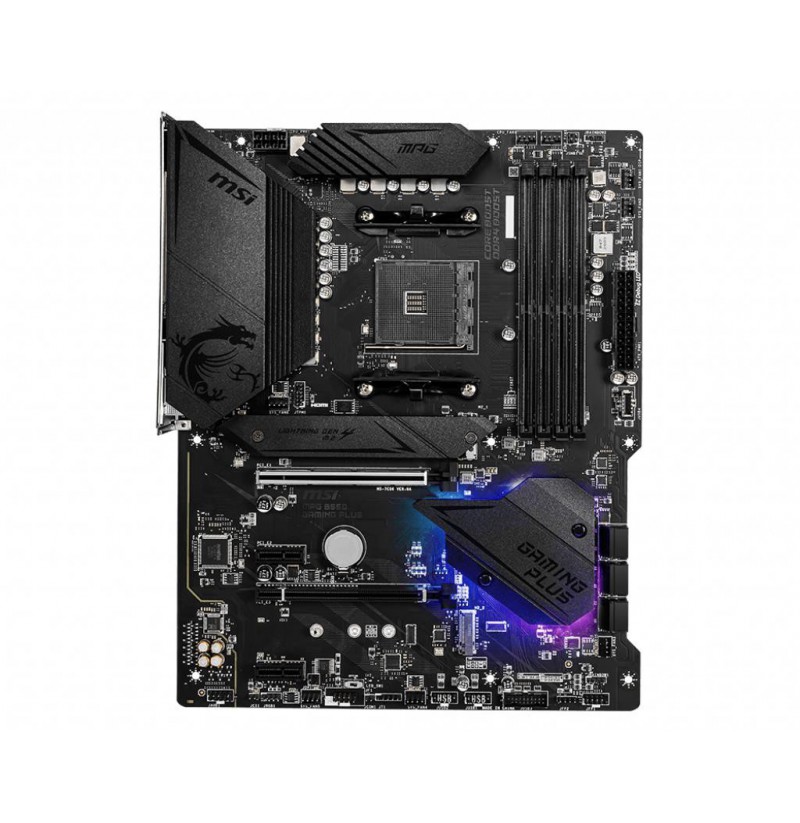

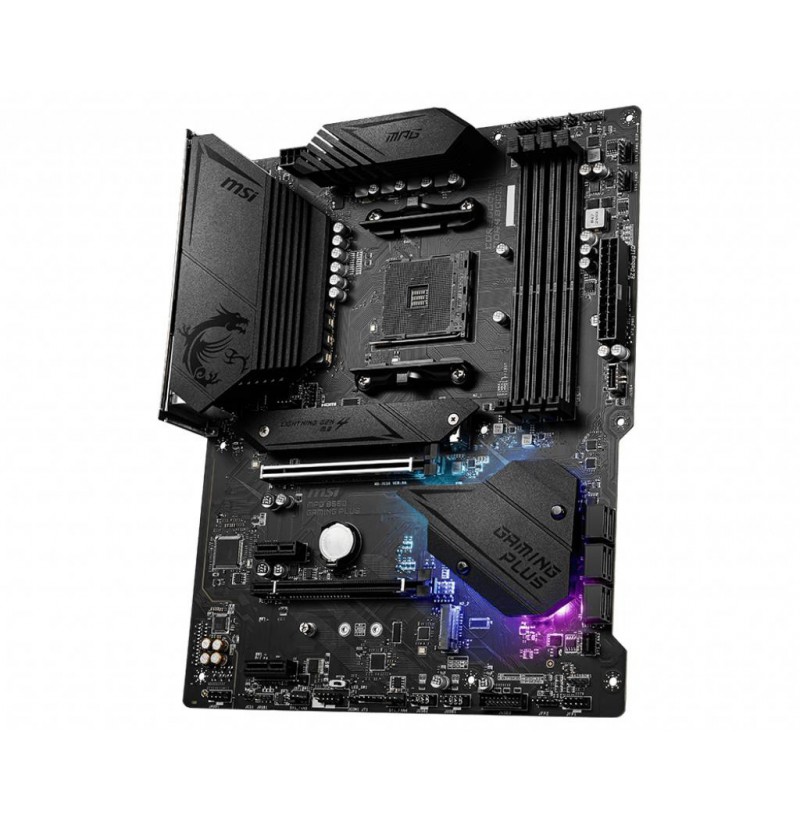

MSI MPG B550 Gaming Plus Socket AM4 ATX AMD B550 Padidinti

MSI | MPG B550 GAMING PLUS | Processor family AMD | Processor socket AM4 | DDR4 | Memory slots 4 | Chipset AMD B | ATX

116,93 €

4719072731885

Galimas pasirinkimas

 1..4 d.d.


Processor manufacturer: AMD
Compatible processor series: 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7
Maximum number of SMP processors: 1
Processor socket: Socket AM4
Parallel processing technology support: 2-Way CrossFireX
Maximum resolution: 4096 x 2160 pixels
Maximum graphics card memory: 16000 MB
PC health monitoring: CPU, Fan, Temperature
Audio output channels: 7.1 channels
Audio chip: Realtek ALC892
Motherboard chipset: AMD B550
Motherboard form factor: ATX
Motherboard chipset family: AMD
Harmonized System (HS) code: 84733020
Number of mounting holes: 9
Unbuffered memory: Yes
Supported memory clock speeds: 3000, 3466, 3200 MHz, 4266, 2667, 3733, 4400, 3066, 3866, 4133, 4000, 1866, 2933, 3600, 2400, 2800, 2133
Maximum internal memory: 128 GB
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory channels: Dual-channel
Memory slots type: DIMM
Width: 305 mm
Depth: 244 mm
Height: 65 mm
LAN controller: Realtek 8111H
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
USB 2.0 connectors: 2
Chassis intrusion connector: Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of chassis fan connectors: 6
Number of SATA III connectors: 6
CPU fan connector: Yes
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
TPM connector: Yes
12V power connector: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Drivers included: Yes
Cables included: SATA
Supported storage drive types: HDD & SSD
RAID levels: 10, 0, 1
Supported storage drive interfaces: SATA III

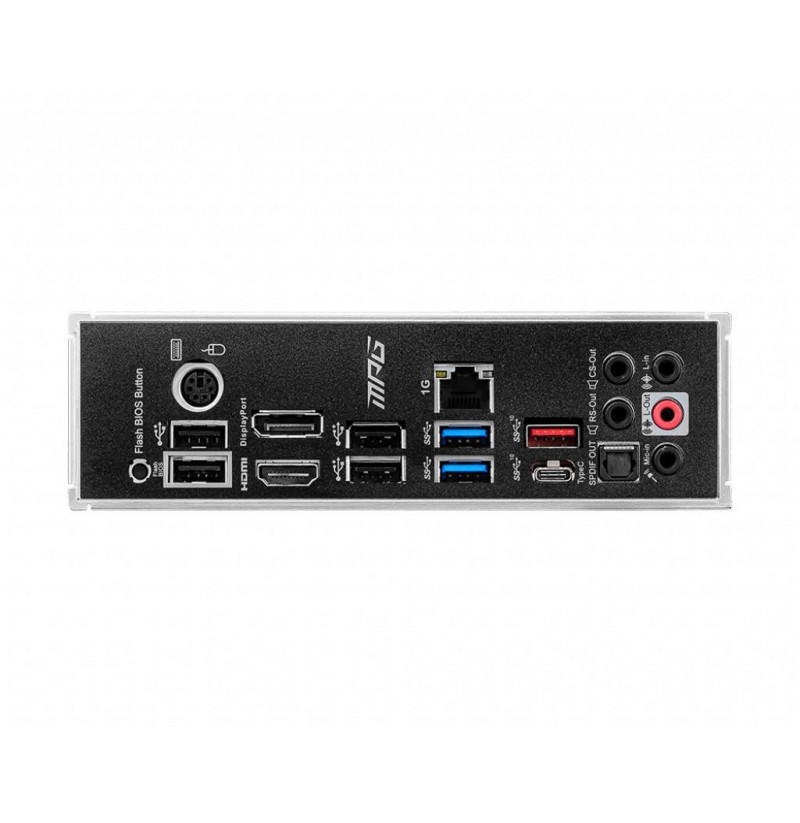

USB 2.0 ports quantity: 4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
Digital audio optical out: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
PS/2 ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Weight: 1 kg
