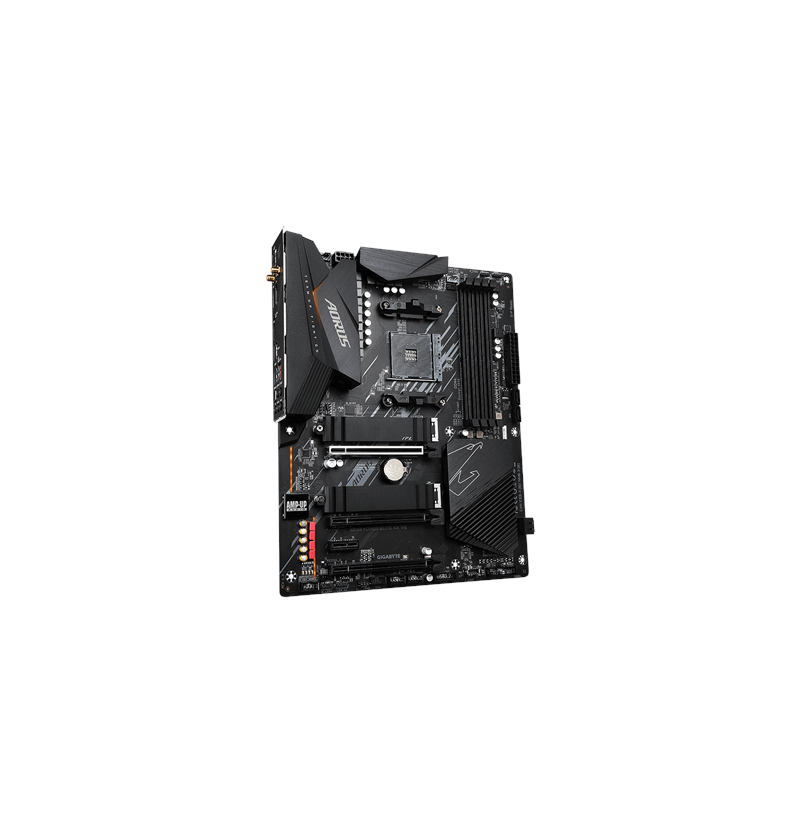

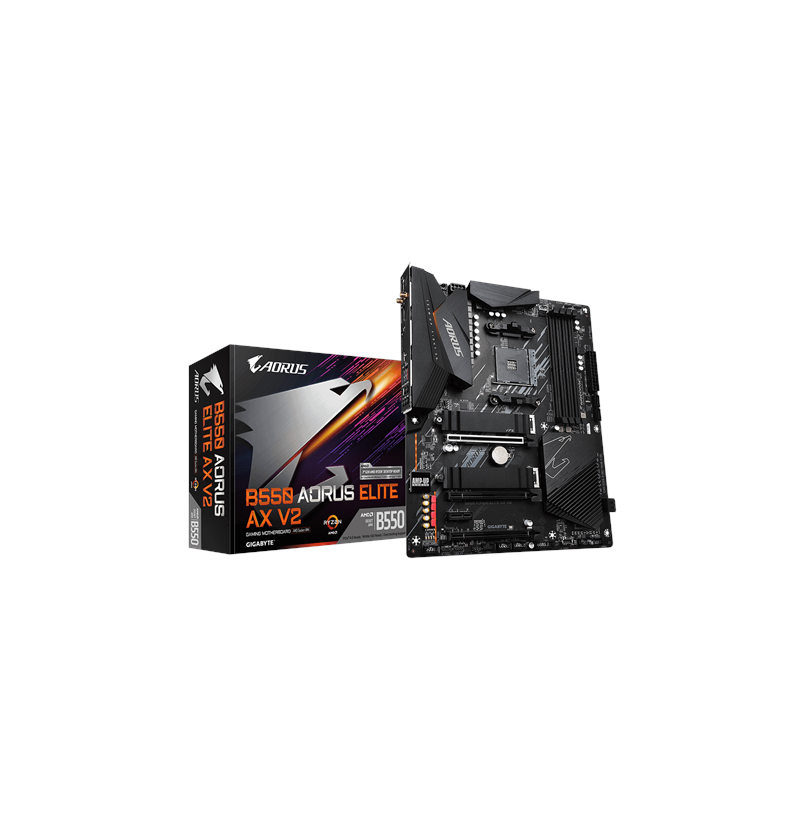

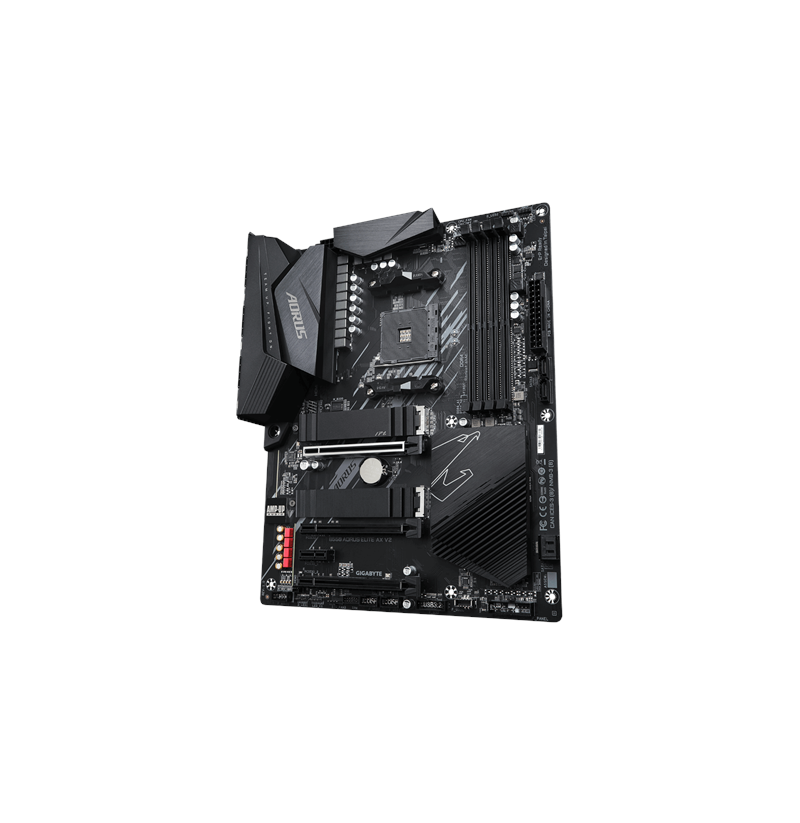

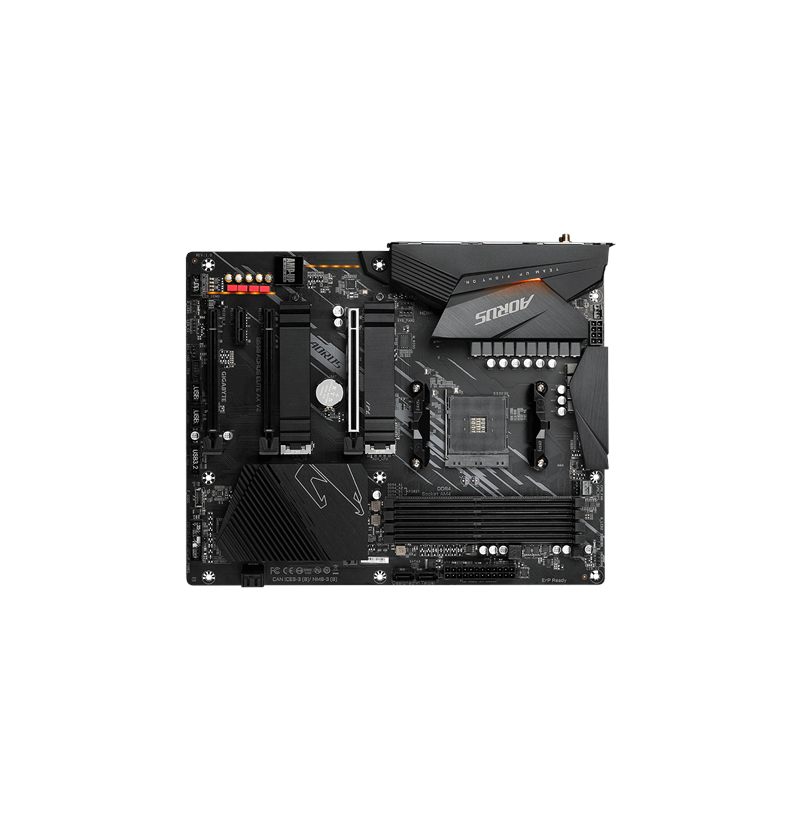

Gigabyte B550 AORUS ELITE AX V2 motherboard AMD B550 Socket AM4 ATX

Warranty period: 3 year(s)
Supported processor sockets: Socket AM4
Compatible processor series: 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen 5
Maximum internal memory supported by processor: 128 GB
Processor manufacturer: AMD
Maximum number of SMP processors: 1
Processor socket: Socket AM4
DirectX version: 12.0
Parallel processing technology support: Not supported
Maximum resolution: 5120 x 2880 pixels
Audio output channels: 7.1 channels
Motherboard chipset: AMD B550
Audio chip: Realtek ALC1200
Product colour: Black
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Motherboard form factor: ATX
PC health monitoring: CPU, Fan, Voltage, Temperature
Power source type: ATX
Motherboard chipset family: AMD
Supported processor sockets (cooler): Socket AM4
Supported memory clock speeds: 4600 MHz, 3333, 2133, 2667, 4400 MHz, 2933, 3600, 4733 MHz, 3200 MHz, 4000, 2400
Unbuffered memory: Yes
Supported memory module capacities: 16GB, 32GB, 8GB
Maximum internal memory: 128 GB
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Supported memory clock speed (max): 4733 MHz
Width: 305 mm
Depth: 244 mm
Height: 35 mm
Bluetooth: Yes
Bluetooth version: 5.2
Wi-Fi: Yes
Ethernet interface type: Fast Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet
Wi-Fi standards: 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11b
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet LAN: Yes
WLAN controller model: Intel Wi-Fi 6E AX210
Number of SATA connectors: 4
Number of chassis fan connectors: 3
ATX Power connector (24-pin): Yes
USB 2.0 connectors: 2
Front panel audio connector: Yes
Front panel connector: Yes
TPM connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
12V power connector: Yes
Total number of SATA connectors: 4
RGB LED pin header: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
Package weight: 1.89 kg
Package depth: 270 mm
Package width: 335 mm
Package height: 80 mm
Batteries included: Yes
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 1, 10, 0
RAID support: Yes
Number of storage drives supported: 6
Number of HDDs supported: 4
S/PDIF out port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
Headphone outputs: 1
Microphone in: Yes
HDMI ports quantity: 1
WiFi-AP antenna jack: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
PCI Express x16 slots: 2
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of battery cells: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Weight: 1.12 kg
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
