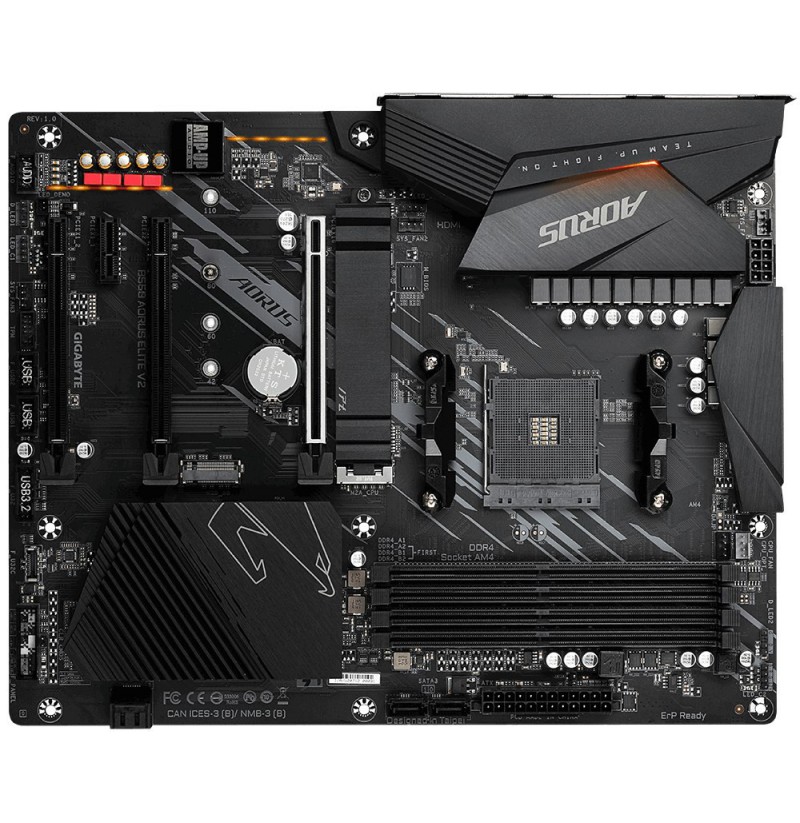

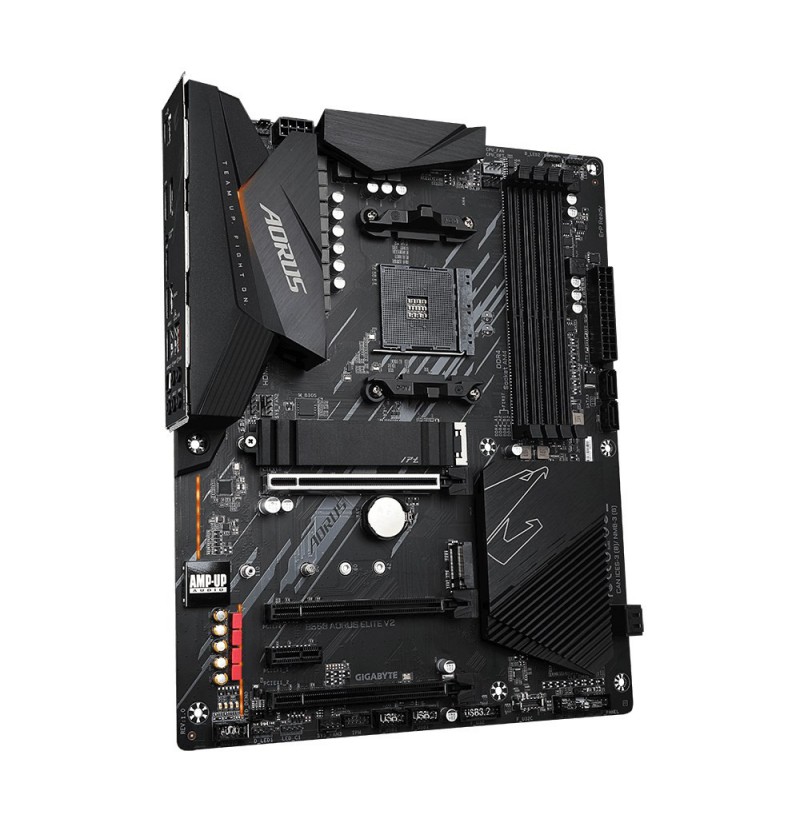

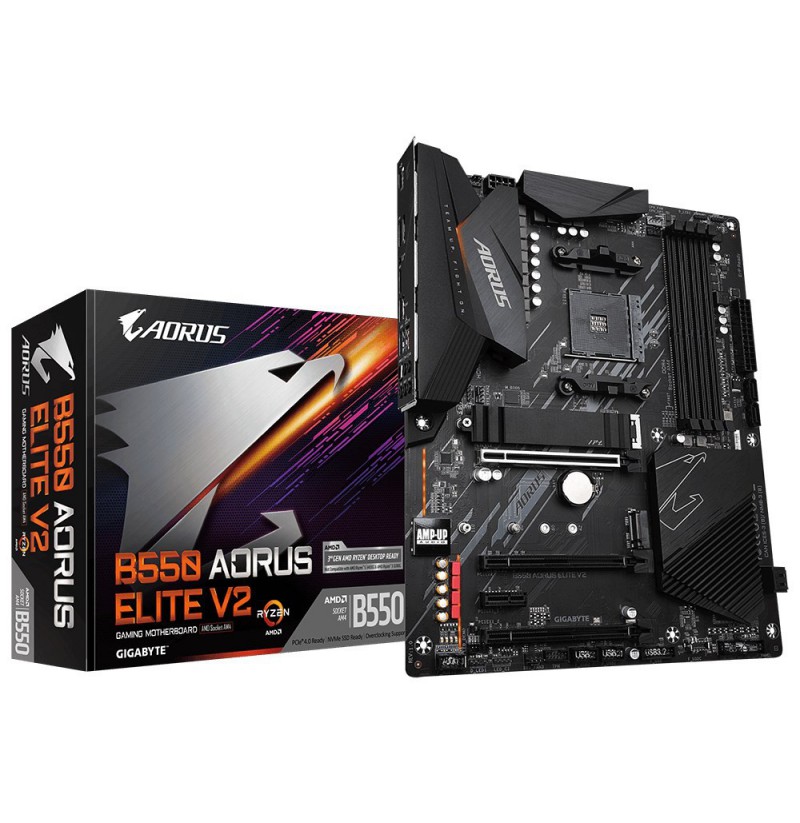

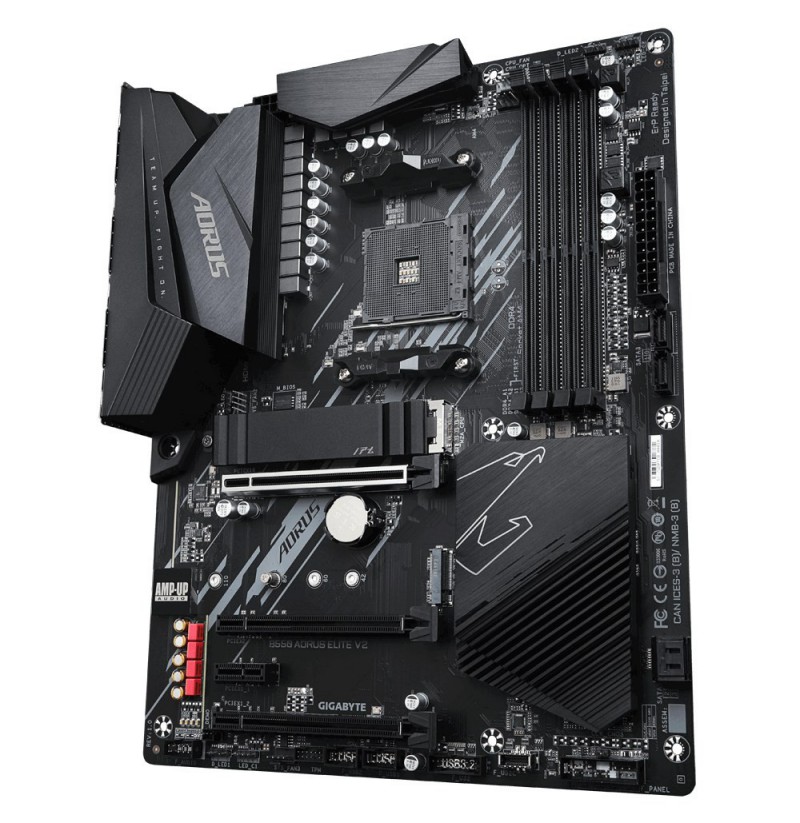

Gigabyte B550 AORUS ELITE V2 1.0 Processor family AMD Padidinti

Gigabyte | B550 AORUS ELITE V2 1.0 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Chipset AMD B |

132,09 €

B550 AORUS ELITE V2

4719331809898

Galimas pasirinkimas

 1..4 d.d.


Warranty period: 3 year(s)
Supported processor sockets: Socket AM4
Processor manufacturer: AMD
Compatible processor series: 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 7
Maximum internal memory supported by processor: 128 GB
Maximum number of SMP processors: 1
Processor socket: Socket AM4
Parallel processing technology support: Not supported
Graphics card family: AMD
DirectX version: 12.0
Audio chip: Realtek ALC1200
Product colour: Black
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Motherboard chipset family: AMD
Motherboard form factor: ATX
Motherboard chipset: AMD B550
Supported memory module capacities: 12GB, 1GB, 8GB, 16GB, 32GB, 2GB, 4GB
Unbuffered memory: Yes
Supported memory clock speeds: 2667, 3200 MHz, 2400, 2933, 2133
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Supported memory clock speed (max): 4733 MHz
Width: 305 mm
Depth: 244 mm
Height: 35 mm
LAN controller: Realtek RTL8125
Ethernet interface type: Gigabit Ethernet, 2.5 Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel connector: Yes
USB 2.0 connectors: 2
TPM connector: Yes
CPU fan connector: Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Number of SATA III connectors: 4
Total number of SATA connectors: 4
RGB LED pin header: Yes
12V power connector: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
Package width: 335 mm
Package weight: 1.8 kg
Package height: 80 mm
Package depth: 270 mm
Batteries included: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
RAID levels: 10, 1, 0
Number of storage drives supported: 6
Number of HDDs supported: 4

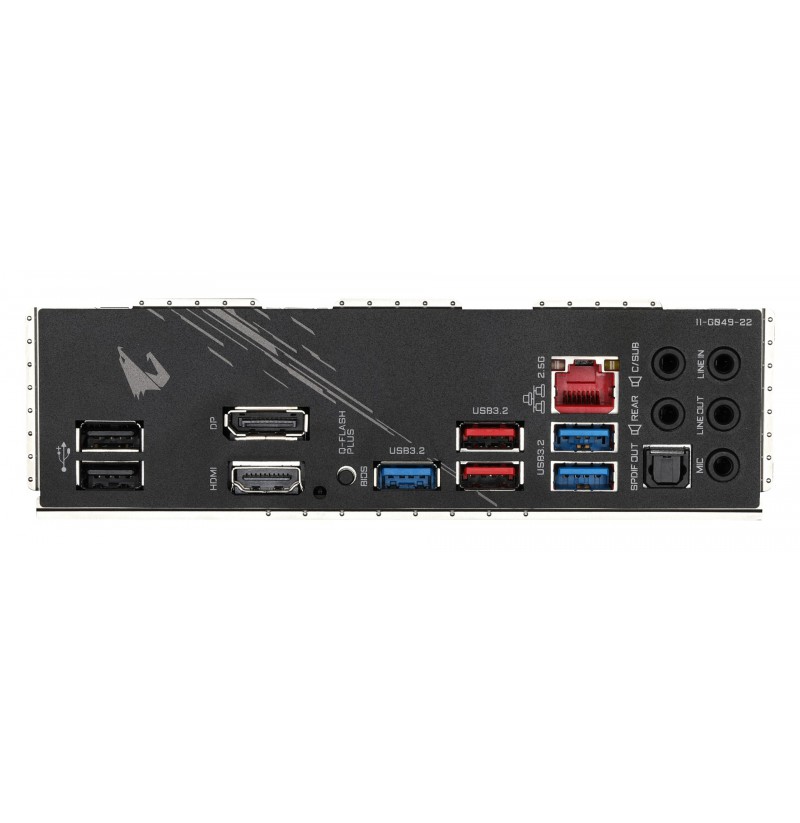

DisplayPorts quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
USB 2.0 ports quantity: 2
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Headphone outputs: 1
PCI Express x16 slots: 2
PCI Express x1 (Gen 2.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Weight: 1.12 kg
Country of origin: China
Harmonized System (HS) code: 84733020
Products per shipping (inner) case: 1 pc(s)
