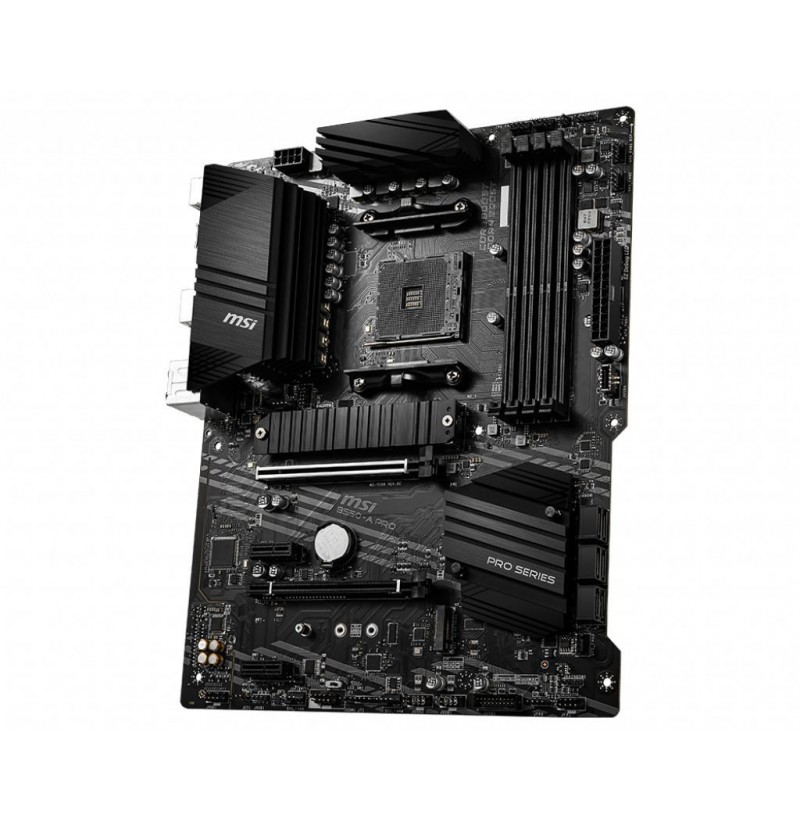

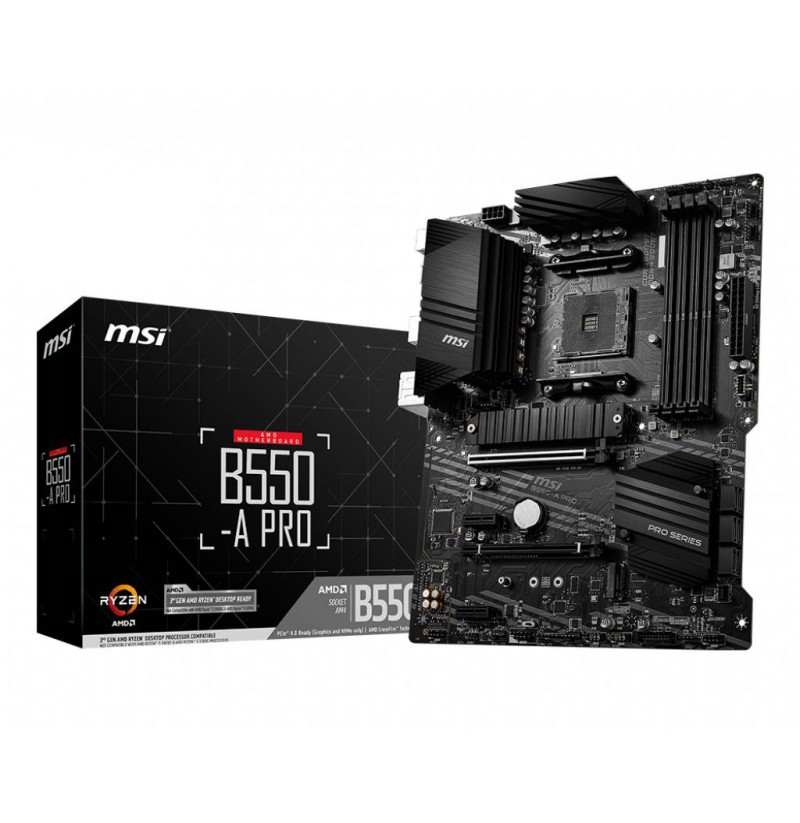

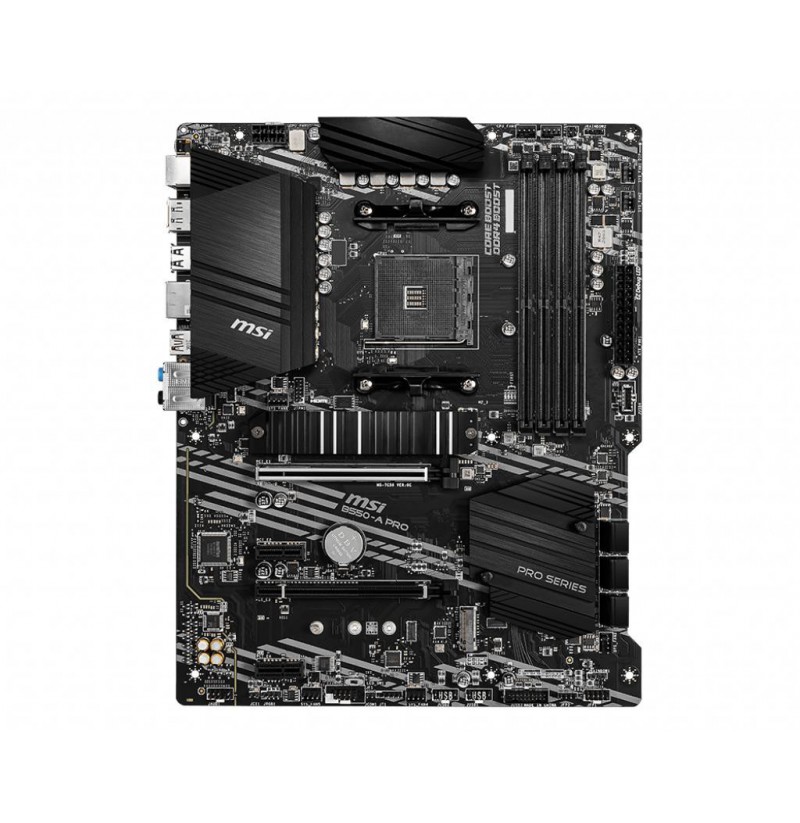

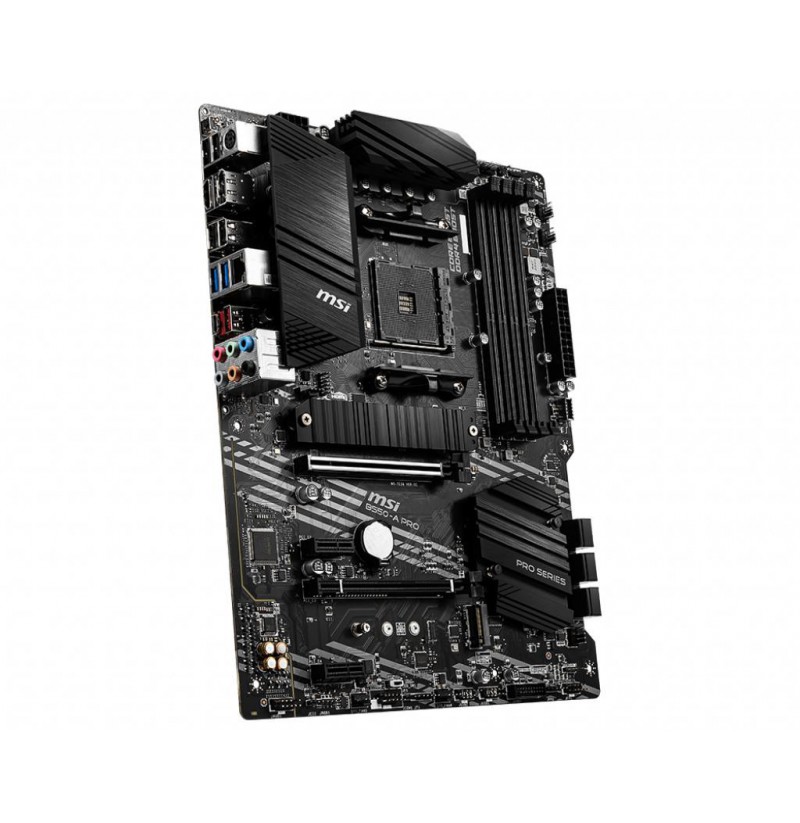

MSI B550-A Pro Socket AM4 ATX AMD B550 Padidinti

MSI | B550-A PRO | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 4 | Supported hard disk drive interfac

112,75 €

4719072733667

Galimas pasirinkimas

 1..4 d.d.


Maximum number of SMP processors: 1
Processor socket: Socket AM4
Compatible processor series: 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 3
Processor manufacturer: AMD
Maximum resolution: 4096 x 2160 pixels
Parallel processing technology support: 2-Way CrossFireX
Maximum graphics card memory: 16000 MB
Motherboard chipset: AMD B550
Motherboard form factor: ATX
Motherboard chipset family: AMD
Audio chip: Realtek ALC892
Audio output channels: 7.1 channels
Number of mounting holes: 9
Harmonized System (HS) code: 84733020
Supported memory clock speeds: 2400, 2800 MHz, 1866, 2933 MHz, 3600, 3200 MHz, 4266 MHz, 2667, 3733 MHz, 4400, 3066, 3466 MHz, 3000 MHz, 2133, 3866 MHz, 4133, 4000, 4800
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Width: 305 mm
Height: 65 mm
Depth: 244 mm
LAN controller: Realtek 8111H
Ethernet interface type: Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 6
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Chassis intrusion connector: Yes
Number of chassis fan connectors: 6
TPM connector: Yes
CPU fan connector: Yes
RGB LED pin header: Yes
12V power connector: Yes
Clear CMOS jumper: Yes
Cables included: SATA
Drivers included: Yes
Supported storage drive interfaces: SATA III
Supported storage drive types: HDD & SSD
RAID levels: 0, 1, 10

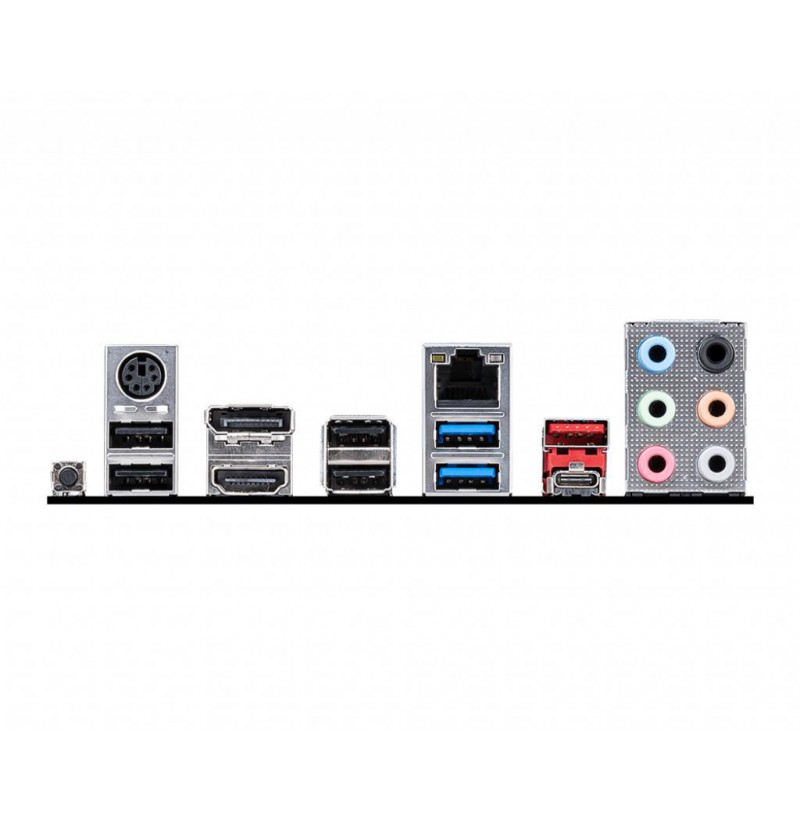

DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
PS/2 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Weight: 1 kg
