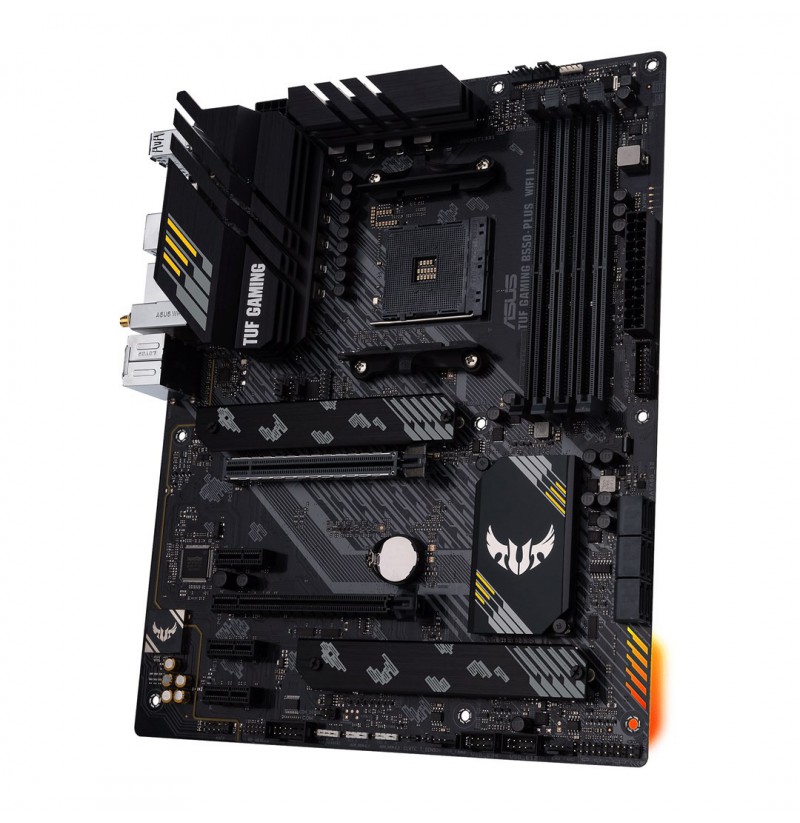

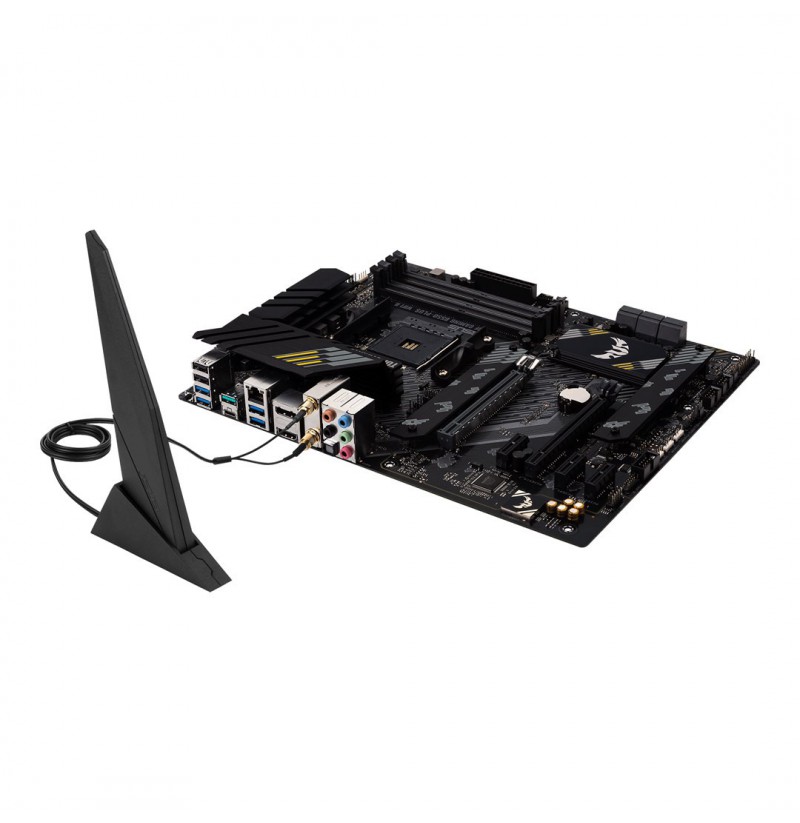

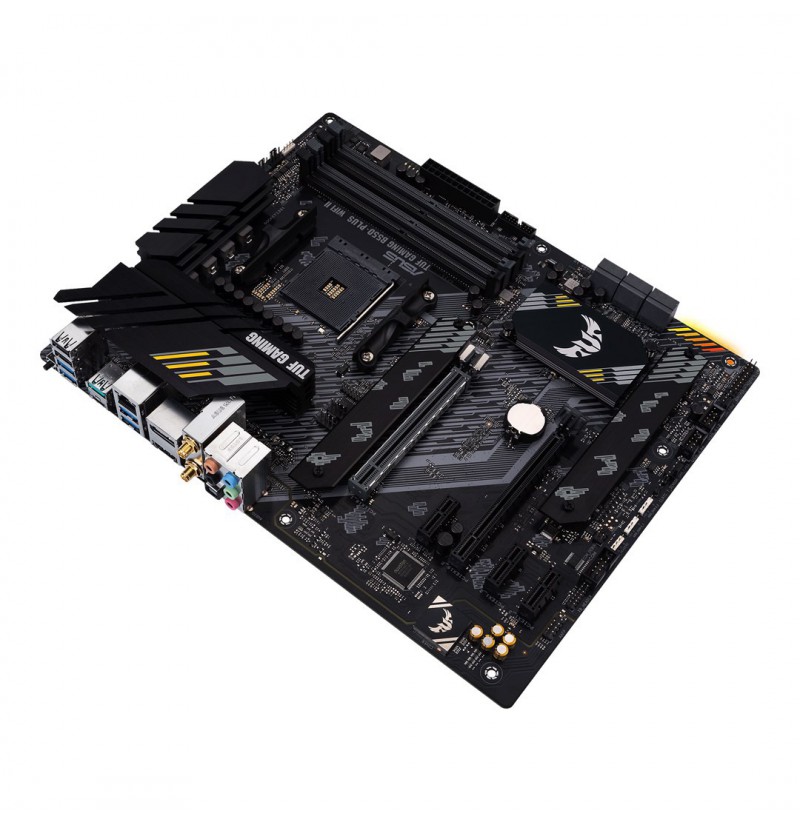

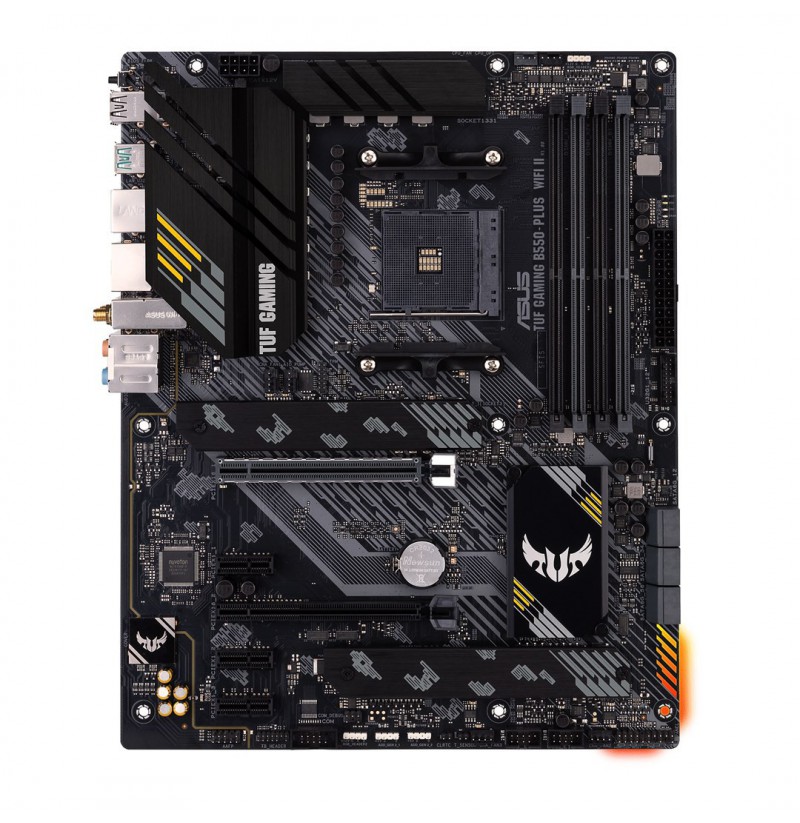

ASUS TUF GAMING B550-PLUS WIFI II AMD B550 Socket AM4 ATX

Supported processor sockets: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series
Processor socket: Socket AM4
Processor manufacturer: AMD
Parallel processing technology support: Not supported
On-board graphics card: No
Number of displays supported: 2
Motherboard form factor: ATX
Windows operating systems supported: Windows 10, Windows 11
Audio output channels: 7.1 channels
Motherboard chipset: AMD B550
Product colour: Black
Motherboard chipset family: AMD
Supported memory clock speeds: 2133, 4200, 3400, 3866, 3200, 2666 MHz, 4266, 2400, 2800, 3000, 3466, 3733, 4400, 3333, 2933, 3600, 4866 MHz, 4333, 4600 MHz, 4466 MHz, 4133, 4000, 4800
Maximum internal memory: 128 GB
Unbuffered memory: Yes
ECC сompatibility: ECC
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Memory channels: Dual-channel
Number of memory slots: 4
Height: 75 mm
Depth: 244 mm
Width: 305 mm
Bluetooth: Yes
Wi-Fi standards: 802.11a, Wi-Fi 4 (802.11n), 802.11b, Wi-Fi 5 (802.11ac), 802.11g, Wi-Fi 6 (802.11ax)
Ethernet LAN: Yes
Wi-Fi: Yes
Bluetooth version: 5.2
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Thunderbolt headers: 1
Number of COM connectors: 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Number of SATA III connectors: 6
TPM connector: Yes
CPU fan connector: Yes
USB 2.0 connectors: 2
Number of chassis fan connectors: 3
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
BIOS type: UEFI AMI
Drivers included: Yes
Cables included: SATA
RAID support: Yes
RAID levels: 10, 1, 0
Supported storage drive interfaces: M.2, SATA
Supported storage drive types: HDD & SSD
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
USB connector type: USB Type-A, USB Type-C
S/PDIF out port: Yes
DisplayPorts quantity: 1
Headphone outputs: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Microphone in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Line-in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
Packaging content: 2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x M.2 Rubber package 1 x M.2 SSD screw package 1 x TUF Gaming sticker 1 x Support DVD 1 x TUF Certification card 1 x User guide
Weight: 945 g
Harmonized System (HS) code: 84733020
