Mainboard ASUS PRIME B660M-K D4 Padidinti

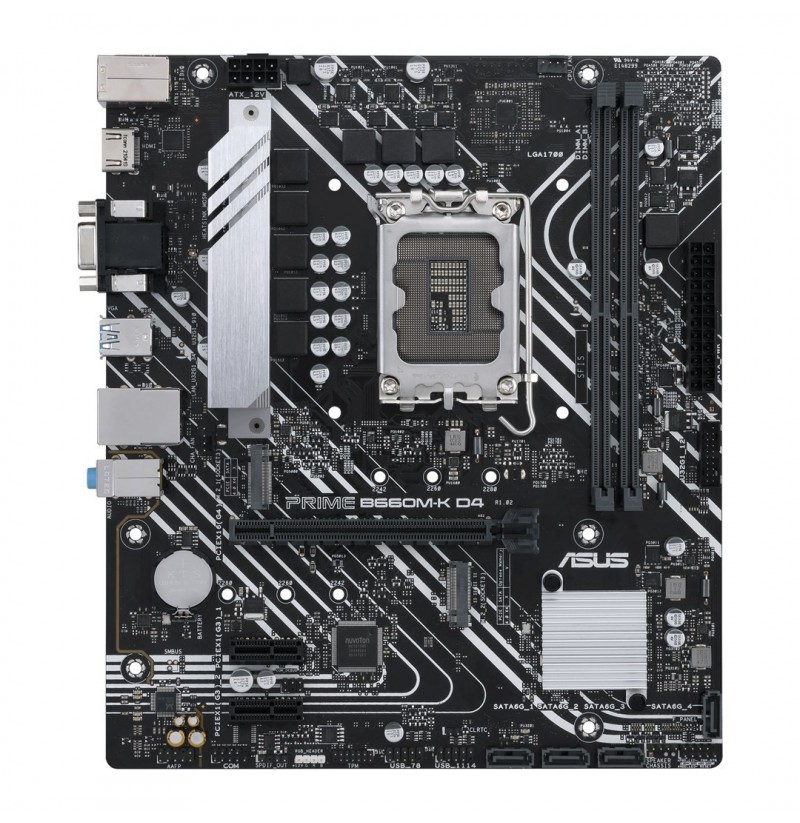

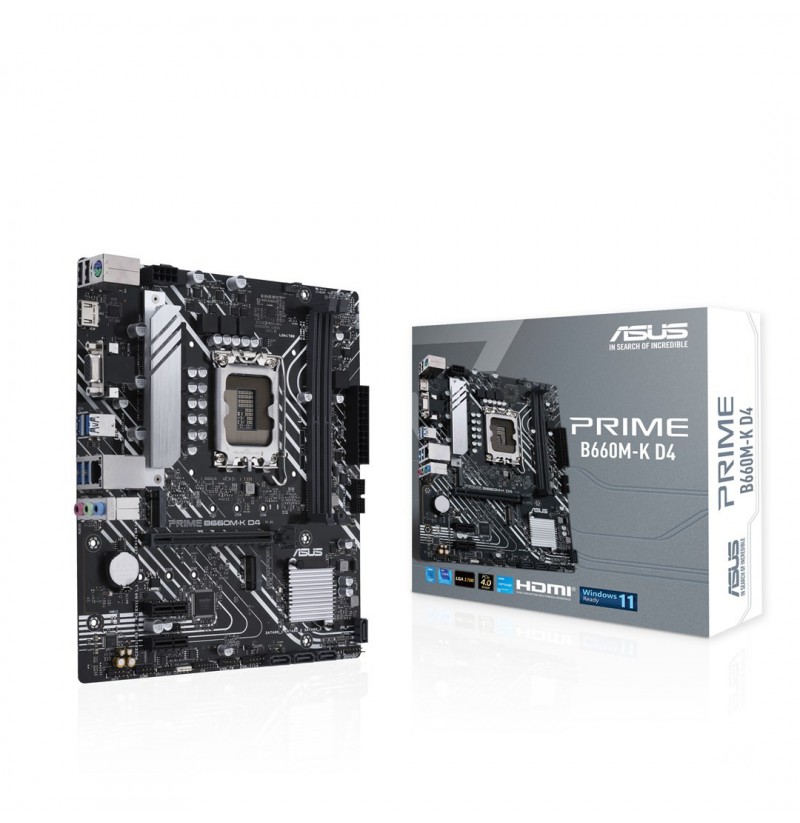

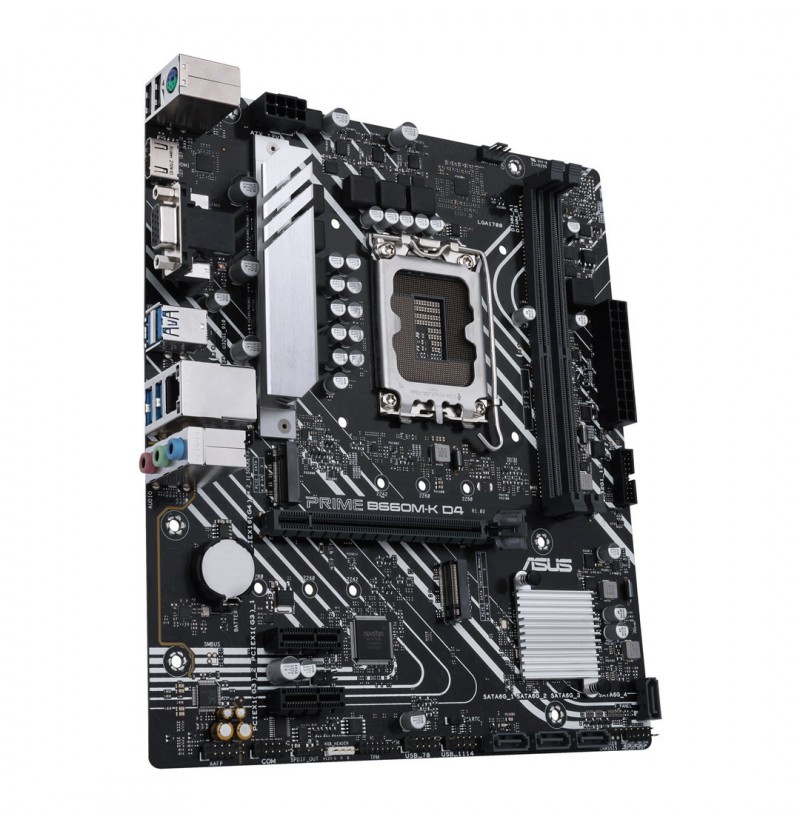

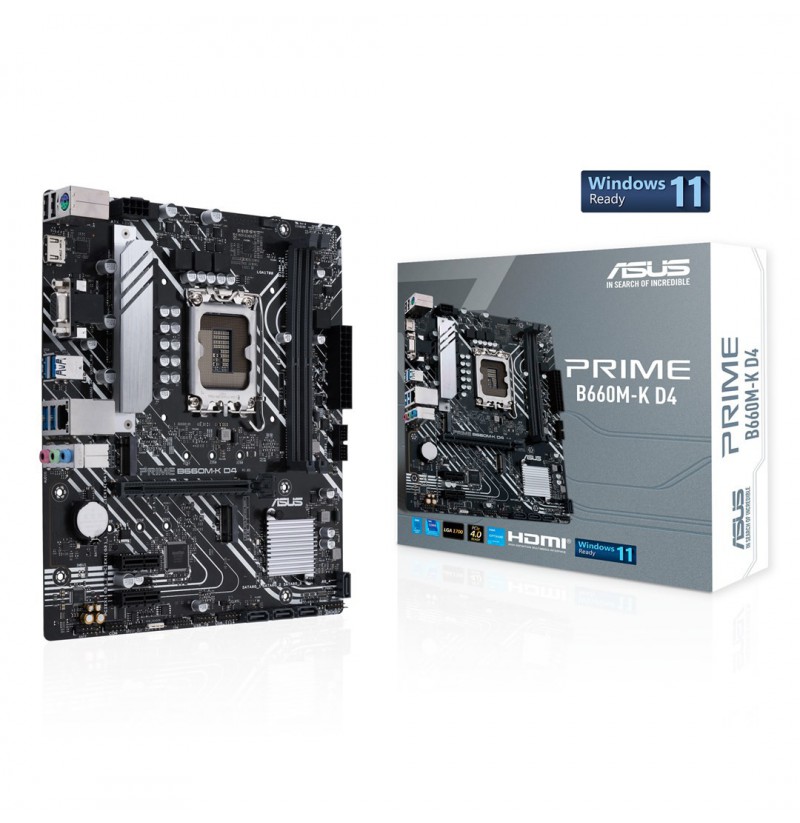

Mainboard ASUS PRIME B660M-K D4

87,78 €

4711081511830

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Processor socket: LGA 1700
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel B660
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Memory channels: Dual-channel
Supported memory clock speeds: 2933, 3600, 3200 MHz, 2666, 4266, 2400, 2800, 4600, 3466, 3000, 5333 MHz, 3400, 2133, 3733, 4400 MHz, 5000, 3333, 4000, 4800
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
ECC сompatibility: Non-ECC
Number of memory slots: 2
Width: 244 mm
Depth: 211 mm
Height: 60 mm
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
Front panel connector: Yes
TPM connector: Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 1
USB 2.0 connectors: 2
Audio connector: Yes
RGB LED pin header: Yes
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Cables included: SATA
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID levels: 10, 0, 1, 5
Supported storage drive types: HDD & SSD
Number of storage drives supported: 6
RAID support: Yes
Number of HDDs supported: 4

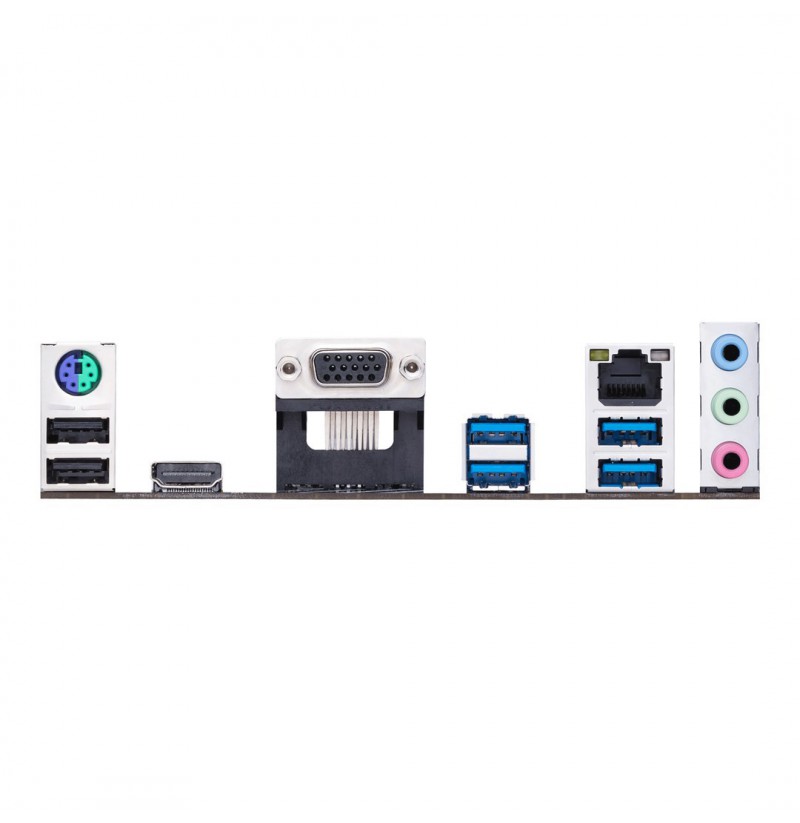

USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 3
VGA (D-Sub) ports quantity: 1
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
Weight: 819 g
Harmonized System (HS) code: 84733020
