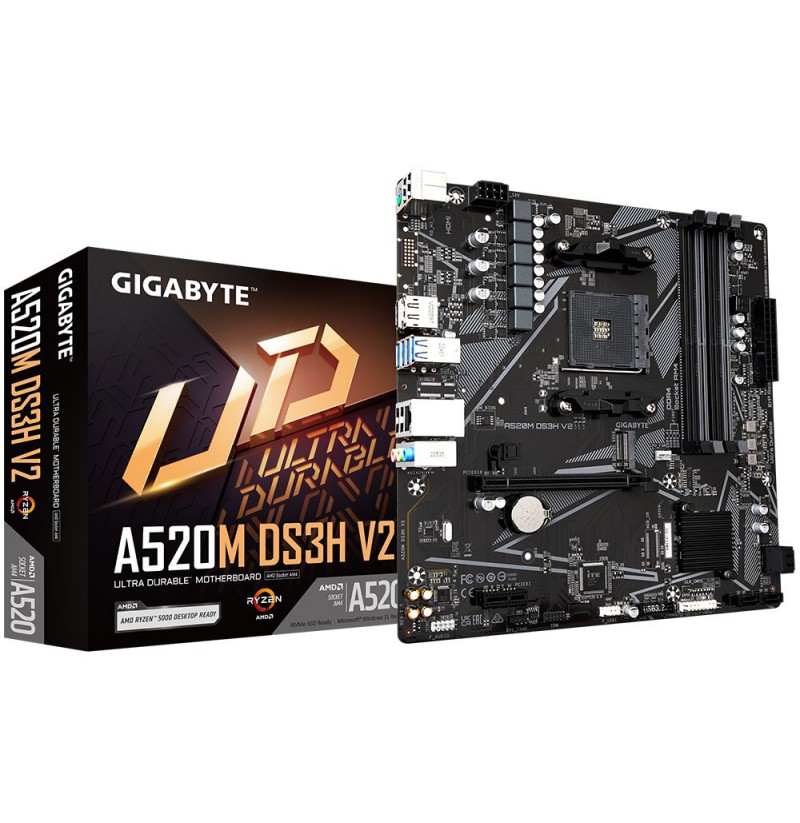

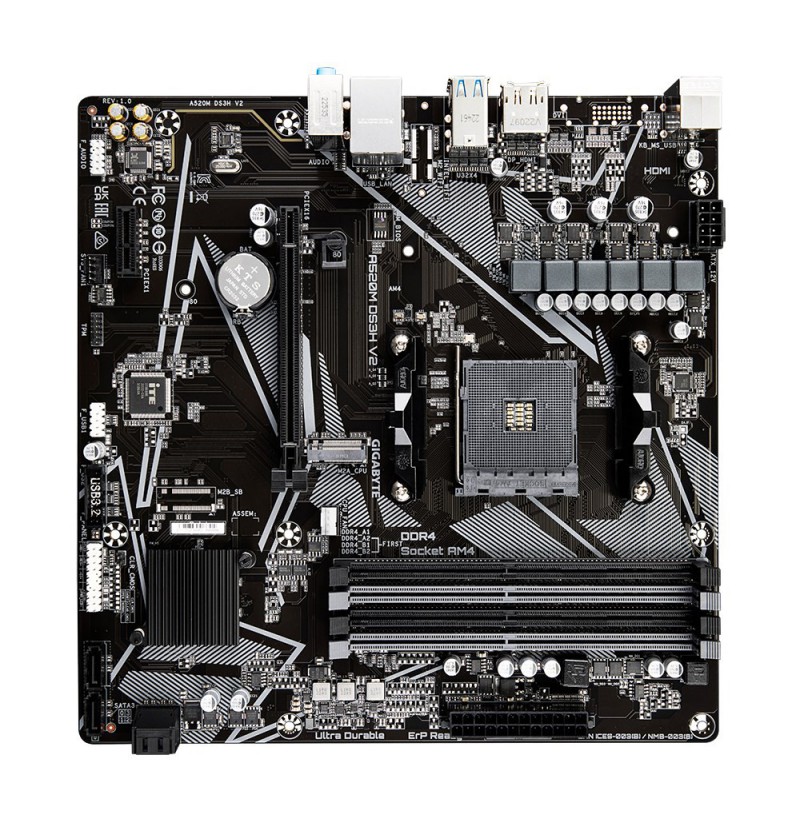

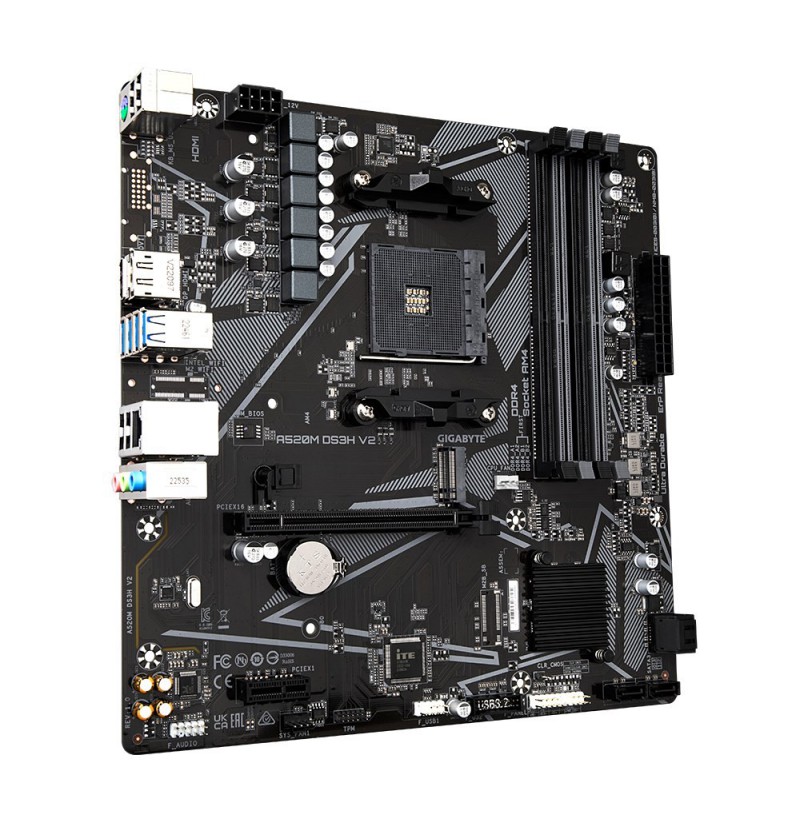

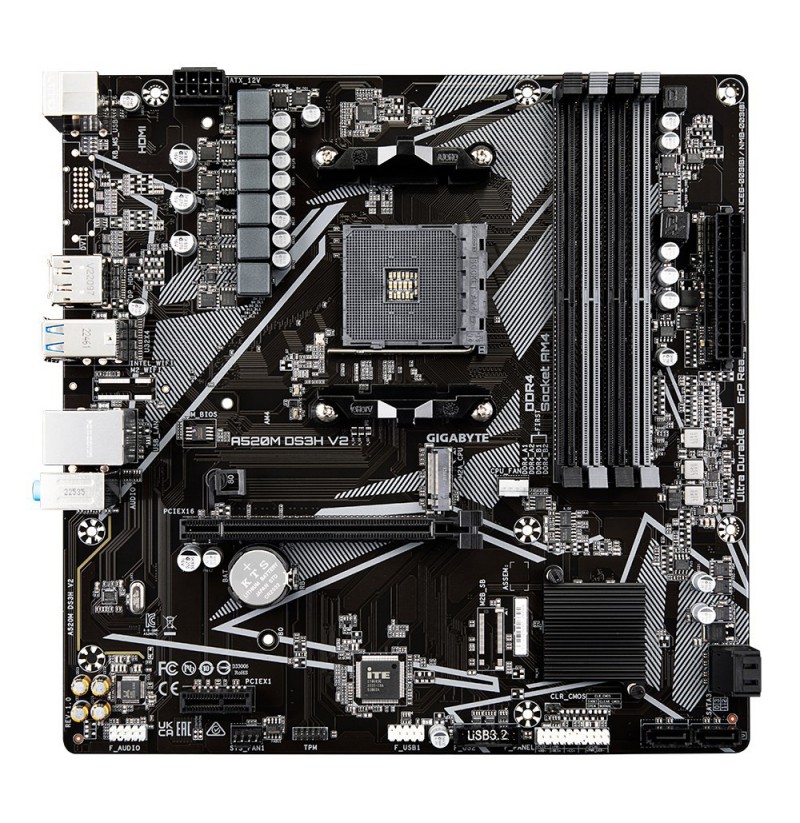

Mainboard Gigabyte A520M DS3H V2 Padidinti

Gigabyte | A520M DS3H V2 | Processor family AMD | Processor socket AM4 | DDR4 DIMM | Memory slots 2 | Number of SATA connectors

70,95 €

4719331854690

Galimas pasirinkimas

 1..4 d.d.


Warranty period: 3 year(s)
Supported processor sockets: Socket AM4
Processor manufacturer: AMD
Compatible processor series: AMD Ryzen Threadripper 3000 Series, AMD Ryzen 3000 Series, AMD Ryzen Threadripper PRO 3000 WX-Series
Maximum internal memory supported by processor: 128 GB
Maximum number of SMP processors: 1
Processor socket: Socket AM4
Number of displays supported: 3
Maximum resolution: 5120 x 2880 pixels
HDCP: Yes
PC health monitoring: Power supply, Voltage, Temperature, LED, CPU
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64
Audio output channels: 7.1 channels
Cooling type: Active
Motherboard form factor: micro ATX
Power source type: ATX
Audio chip: Realtek ALC887
Product colour: Black
Supported memory clock speeds: 2400, 2667, 4400, 3333, 2133, 4000, 3200 MHz, 2933, 3600, 4733
Number of memory slots: 4
Supported memory module capacities: 32GB, 2GB, 4GB, 8GB, 1GB, 16GB
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Unbuffered memory: Yes
Supported memory types: DDR4-SDRAM
ECC сompatibility: ECC & Non-ECC
Width: 244 mm
Depth: 244 mm
Height: 35 mm
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
CPU fan connector: Yes
Number of EATX power connectors: 1
TPM connector: Yes
Front panel connector: Yes
12V power connector: Yes
ATX Power connector (24-pin): Yes
Serial port headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 1
Total number of SATA connectors: 4
Front panel audio connector: Yes
Power fan connector: Yes
Number of SATA III connectors: 4
Clear CMOS jumper: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Package depth: 265 mm
Package height: 54 mm
Package weight: 810 g
Package width: 265 mm
Bundled software: Norton Internet Security (OEM version) Realtek 8118 Gaming LAN Bandwidth Control Utility
Cables included: SATA
Drivers included: Yes
Batteries included: Yes
RAID levels: 0, 10, 1
Number of HDDs supported: 4
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Number of storage drives supported: 5
DVI-D ports quantity: 1
HDMI version: 2.1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
DisplayPorts quantity: 1
USB connector type: USB Type-A
USB 2.0 ports quantity: 2
Digital audio optical out: 1
Microphone in: Yes
DisplayPort version: 2.0
PS/2 ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Battery type: CR2032
Number of battery cells: 1
Lithium weight per battery: 0.07 g
Products per shipping (inner) case: 1 pc(s)
Country of origin: China
