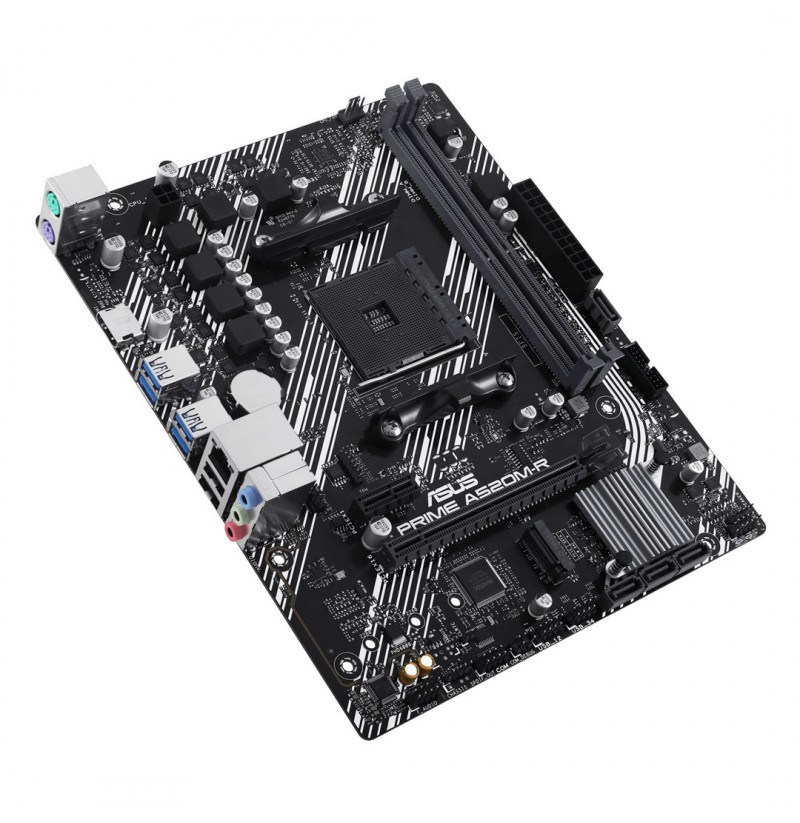

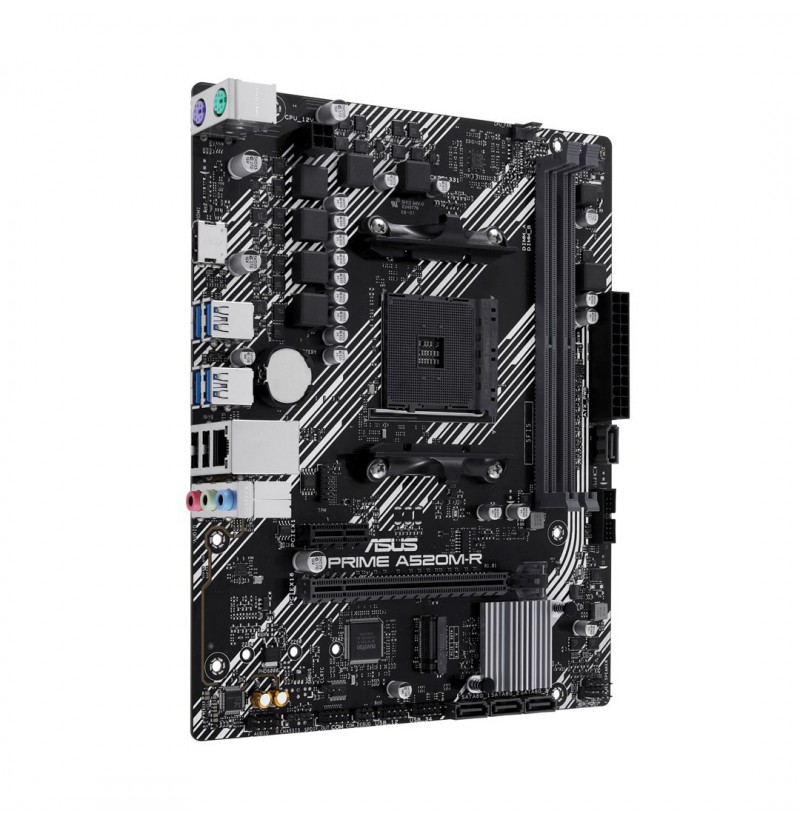

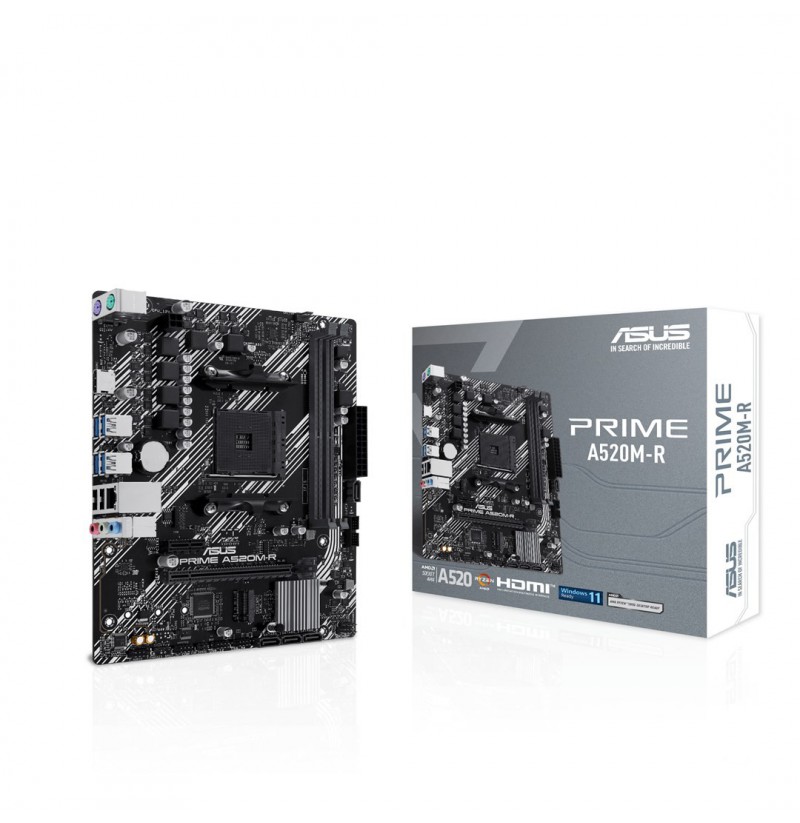

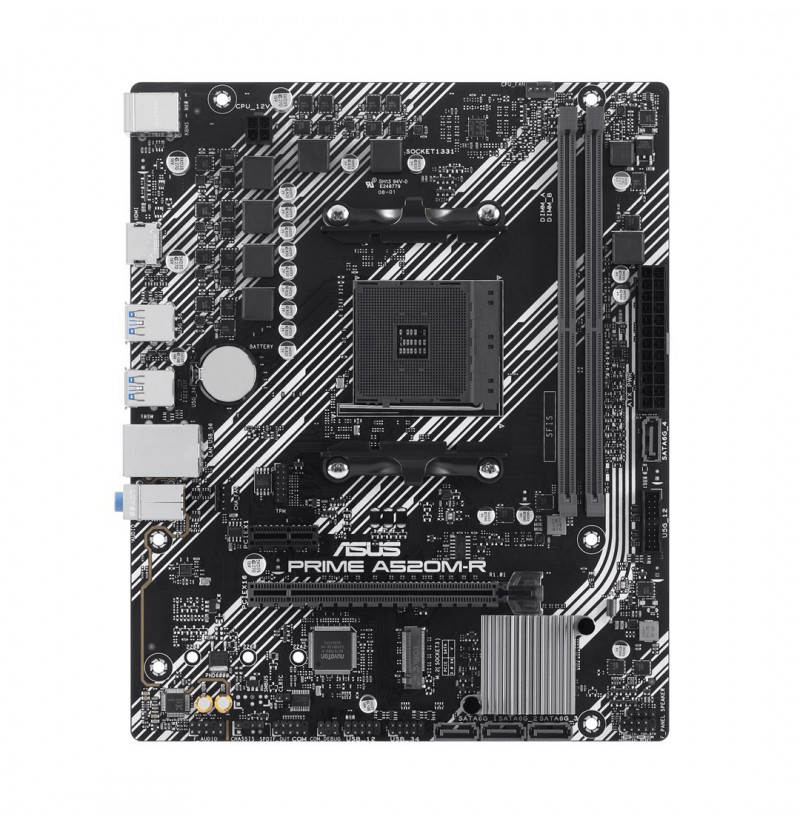

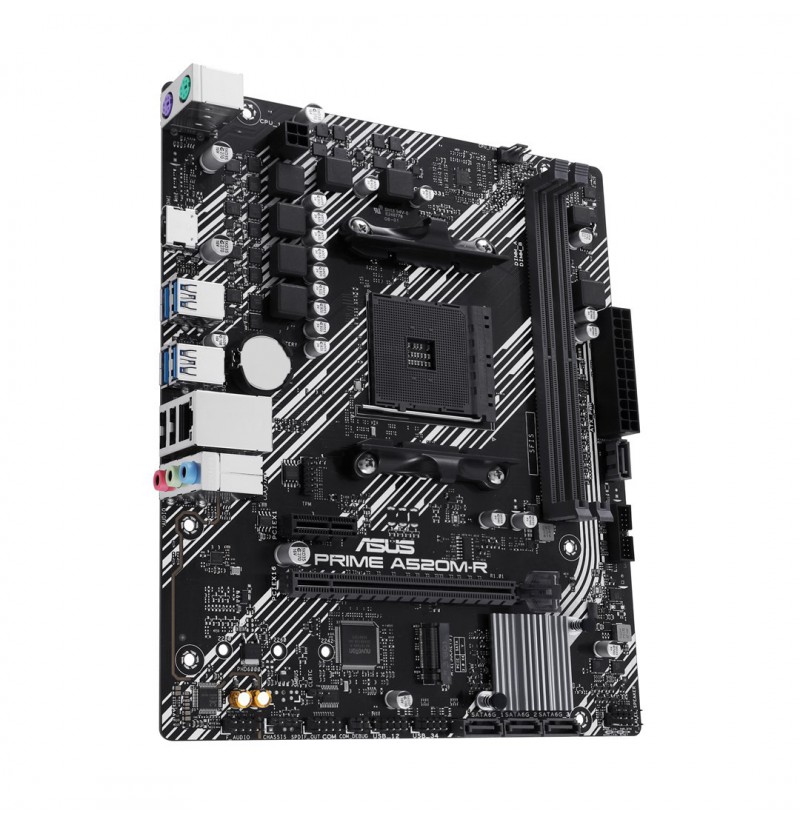

ASUS PRIME A520M-R AMD A520 Socket AM4 micro ATX Padidinti

ASUS PRIME A520M-R | Asus | Processor family AMD A520 | Processor socket 1 x Socket AM4 | 2 DIMM slots - DDR4

77,99 €

4711387466414

Galimas pasirinkimas

 1..4 d.d.


Compatible processor series: AMD Ryzen 9 5th Gen, 3rd Generation AMD Ryzen™ 9, AMD Ryzen™ 7, AMD Ryzen™ 3, AMD Ryzen™ 5
Processor socket: Socket AM4
Processor manufacturer: AMD
Supported processor sockets: Socket AM4
Parallel processing technology support: Not supported
Power source type: ATX
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Cooling type: Passive
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Motherboard chipset: AMD A520
Product colour: Black
Memory channels: Dual-channel
Unbuffered memory: Yes
Supported memory clock speed (max): 5100 MHz
Number of memory slots: 2
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Supported memory clock speeds: 3000, 5100 MHz, 4333, 4600, 2933, 3600, 3200, 2666, 4266, 4866, 4133, 4000, 3733, 4400, 4666, 3466, 3333, 4466, 2400, 2800, 3400, 3866, 2133, 4200
Maximum internal memory: 64 GB
Width: 236 mm
Depth: 193 mm
Ethernet LAN: Yes
Wi-Fi: No
Ethernet interface type: Gigabit Ethernet
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Peripheral (Molex) power connectors (4-pin): 1
Front panel audio connector: Yes
Number of SATA III connectors: 4
Number of COM connectors: 1
CPU fan connector: Yes
TPM connector: Yes
12V power connector: Yes
ATX Power connector (24-pin): Yes
Number of chassis fan connectors: 1
BIOS type: UEFI AMI
Package height: 51.5 mm
Package weight: 880 g
Package depth: 263 mm
Package width: 270 mm

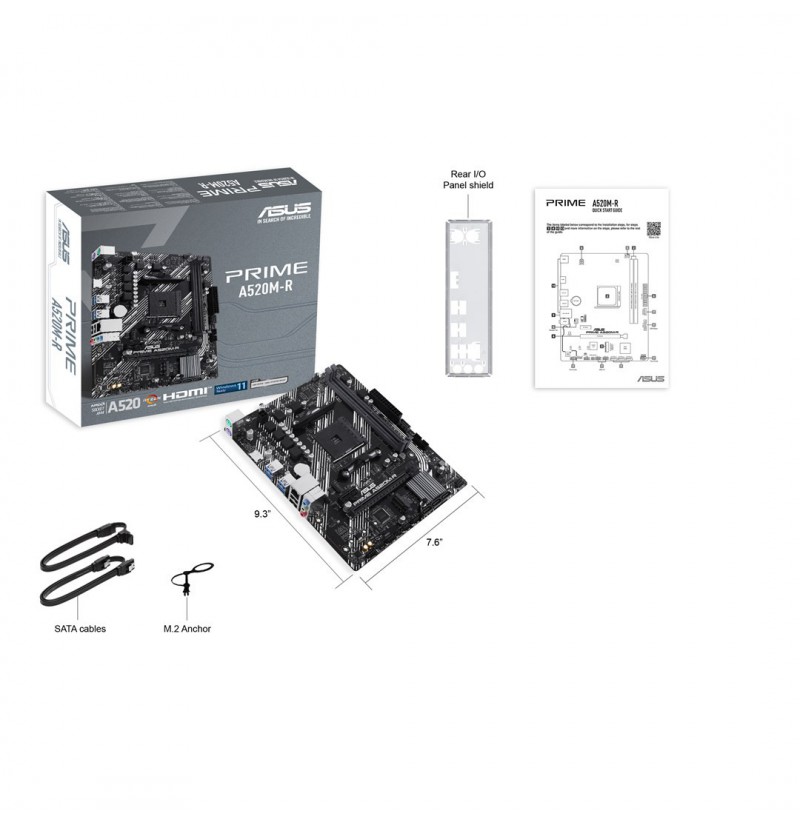

Cables included: SATA
Number of storage drives supported: 5
Supported storage drive interfaces: M.2, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 10, 1, 0
Number of HDDs supported: 4
RAID support: Yes
HDMI ports quantity: 1
PS/2 ports quantity: 2
Microphone in: Yes
HDMI version: 2.1
Line-in: Yes
USB 2.0 ports quantity: 2
Headphone outputs: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
