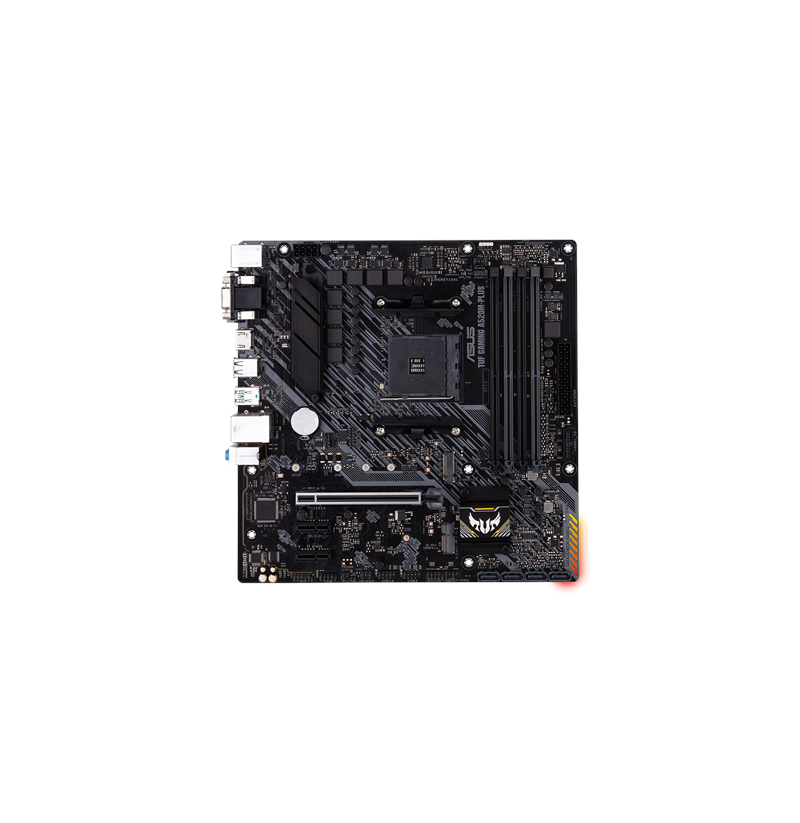

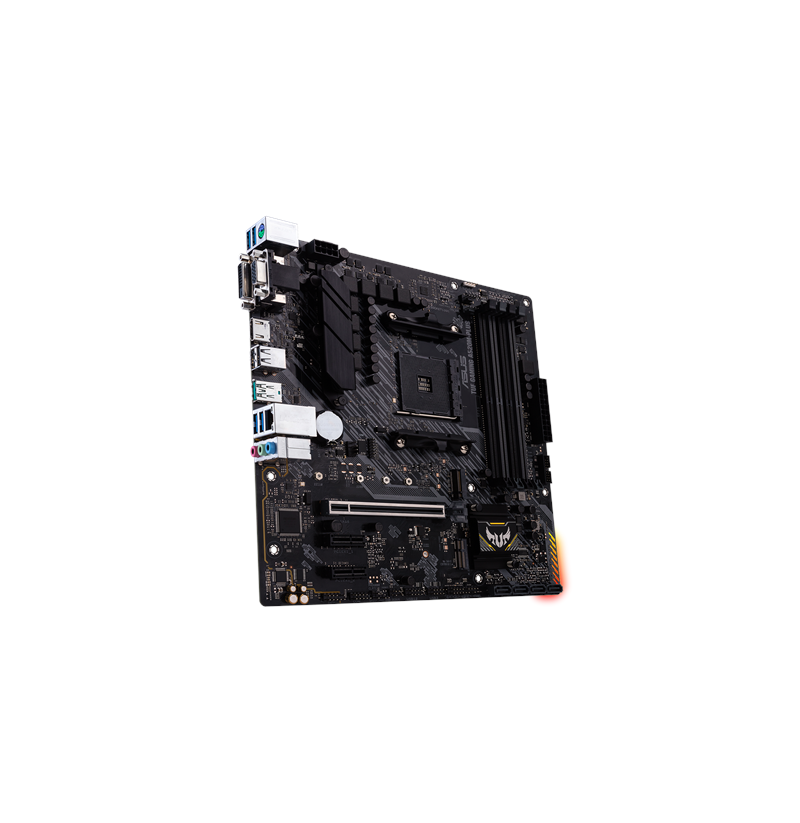

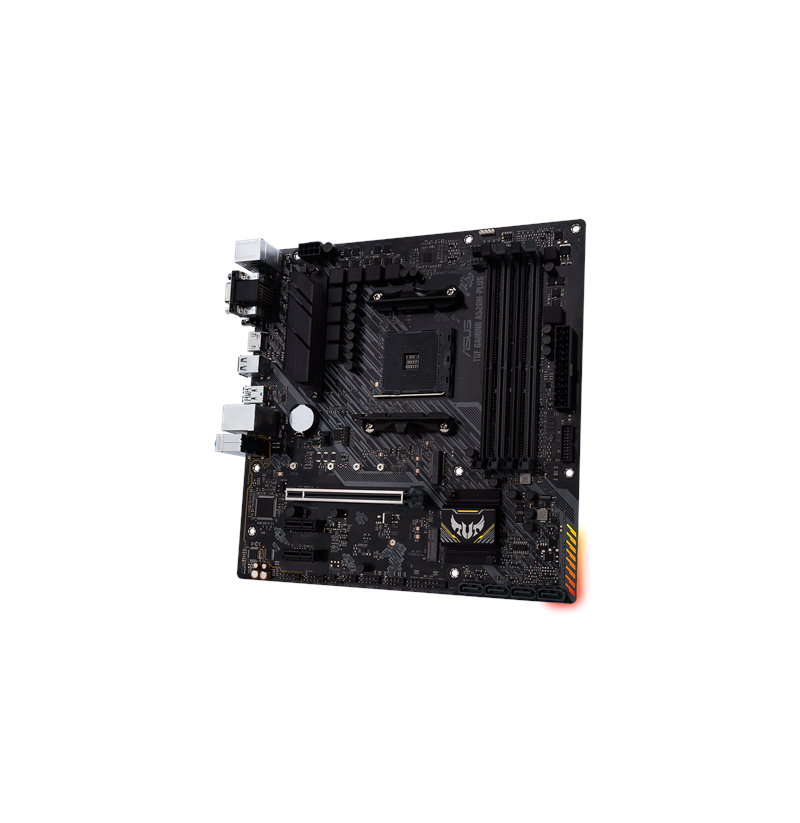

Asus TUF GAMING A520M-PLUS Processor family AMD Padidinti

Asus | TUF GAMING A520M-PLUS | Processor family AMD | Processor socket AM4 | DDR4 | Memory slots 4 | Supported hard disk drive

102,28 €

90MB17F0-M0EAY0

4711081154273

Galimas pasirinkimas

 1..4 d.d.


Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series
Processor socket: Socket AM4
Processor manufacturer: AMD
Supported processor sockets: Socket AM4
Parallel processing technology support: Not supported
Maximum resolution: 3840 x 2160 pixels
Component for: PC
Motherboard chipset: AMD A520
Audio output channels: 7.1 channels
Audio chip: Realtek ALC887 / Realtek ALC897
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64
Motherboard form factor: micro ATX
Supported memory clock speeds: 3866, 2400, 2800, 4600, 4133, 4000, 4800 MHz, 3000, 3733, 4400, 3600, 3200, 2666, 4266, 3466, 2133, 3333, 4466
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Unbuffered memory: Yes
Maximum internal memory: 128 GB
Memory channels: Dual-channel
ECC сompatibility: ECC
Width: 244 mm
Height: 67 mm
Depth: 244 mm
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 4 (802.11n), 802.11b
Wi-Fi: Yes
Bluetooth version: 5.0
Ethernet interface type: Gigabit Ethernet
Wake-on-LAN ready: Yes
WLAN controller model: Realtek RTL8821CE
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
Front panel audio connector: Yes
S/PDIF out connector: Yes
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 2
ATX Power connector (24-pin): Yes
TPM connector: Yes
CPU fan connector: Yes
RGB LED pin header: Yes
Number of SATA III connectors: 4
Number of COM connectors: 1
BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Clear CMOS jumper: Yes
Cables included: SATA
Drivers included: Yes
RAID levels: 10, 1, 0
Number of storage drives supported: 5
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
DisplayPorts quantity: 1
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI version: 2.1
USB 2.0 ports quantity: 2
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
WiFi-AP antenna jack: 1
DisplayPort version: 1.2
USB connector type: USB Type-A
Headphone outputs: 3
Ethernet LAN (RJ-45) ports: 1
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
Weight: 900 g
Harmonized System (HS) code: 84733020
