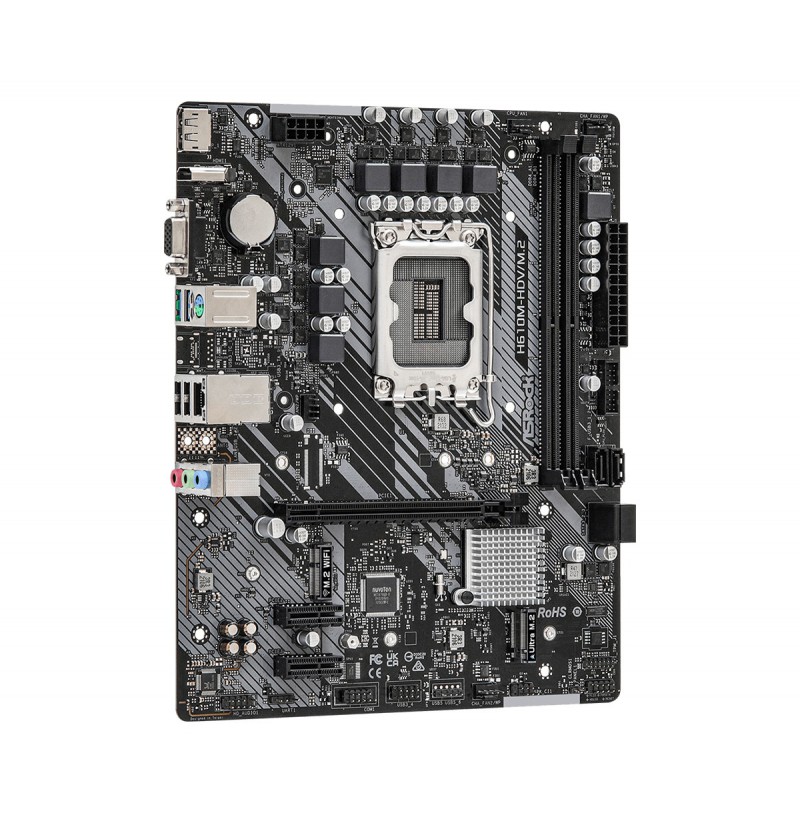

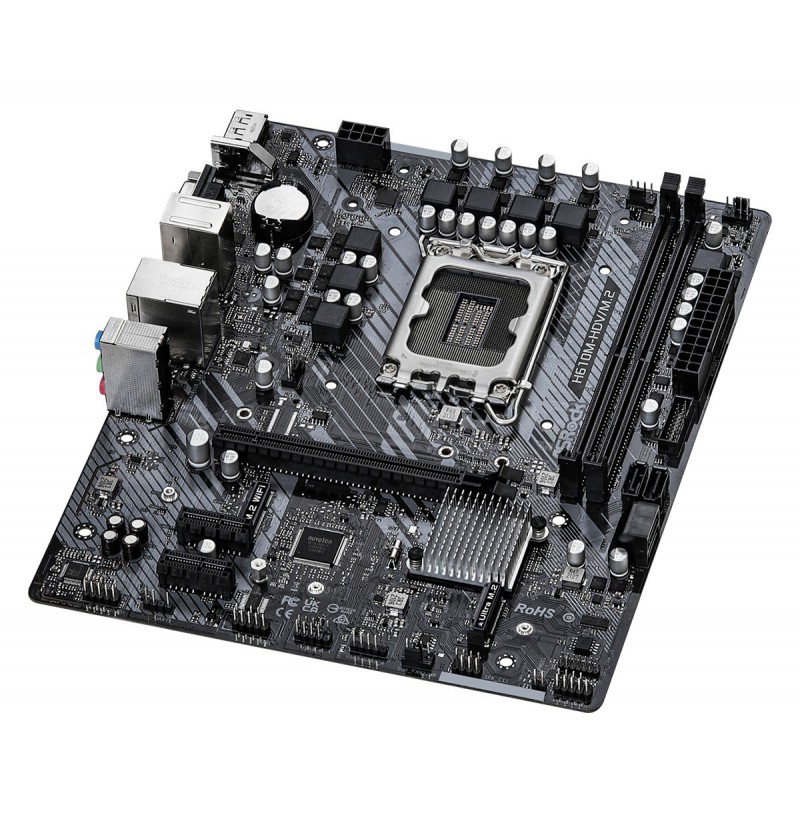

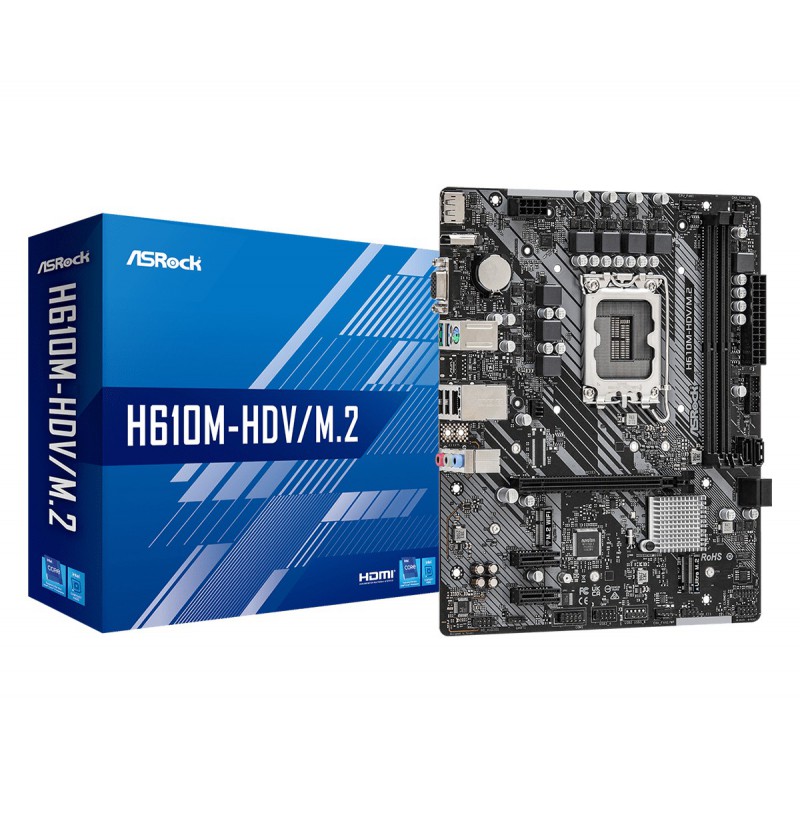

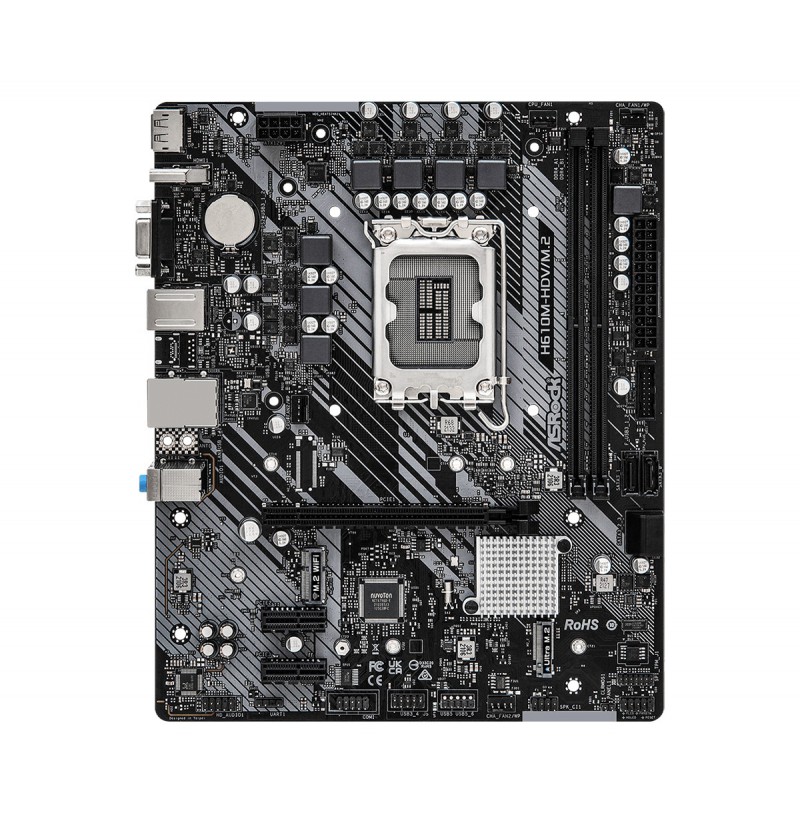

Asrock H610M-HDV/M.2 LGA 1700 Padidinti

ASRock | H610M-HVS

67,87 €

4710483936517

Galimas pasirinkimas

 1..4 d.d.


Maximum number of SMP processors: 1
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel
Maximum resolution: 7680 x 4320 pixels
HDCP: Y
Parallel processing technology support: Not supported
Harmonized System (HS) code: 84733020
Windows operating systems supported: Windows 11 x64, Windows 10 x64
PC health monitoring: CPU, Voltage, Fan, Temperature
Motherboard form factor: micro ATX
Motherboard chipset: Intel H610
Motherboard chipset family: Intel
Audio chip: Realtek ALC887 / Realtek ALC897
Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
Supported memory clock speeds: 3200 MHz
Maximum internal memory: 64 GB
Unbuffered memory: Y
Depth: 201 mm
Width: 244 mm
Ethernet LAN: Y
Ethernet interface type: Gigabit Ethernet
Wi-Fi: N
Wake-on-LAN ready: Y
LAN controller: Intel® I219-V
RGB LED pin header: Y
12V power connector: Y
Chassis intrusion connector: Y
Number of COM connectors: 1
Number of SATA III connectors: 4
Number of chassis fan connectors: 2
USB 2.0 connectors: 2
TPM connector: Y
ATX Power connector (24-pin): Y
CPU fan connector: Y
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
BIOS type: UEFI AMI
Drivers included: Y
Cables included: SATA
Supported storage drive types: HDD & SSD
RAID support: N
Supported storage drive interfaces: M.2, SATA III
WiFi-AP antenna jack: 2

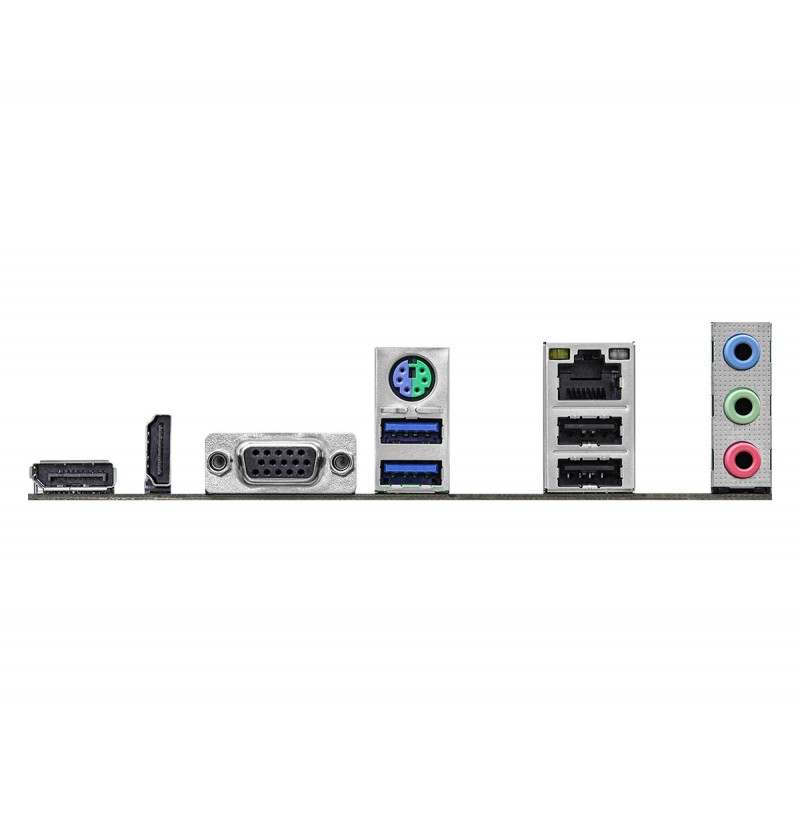

VGA (D-Sub) ports quantity: 1
DisplayPort version: 1.4
HDMI ports quantity: 1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
PS/2 ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 2.0 ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
Number of M.2 (M) slots: 1
