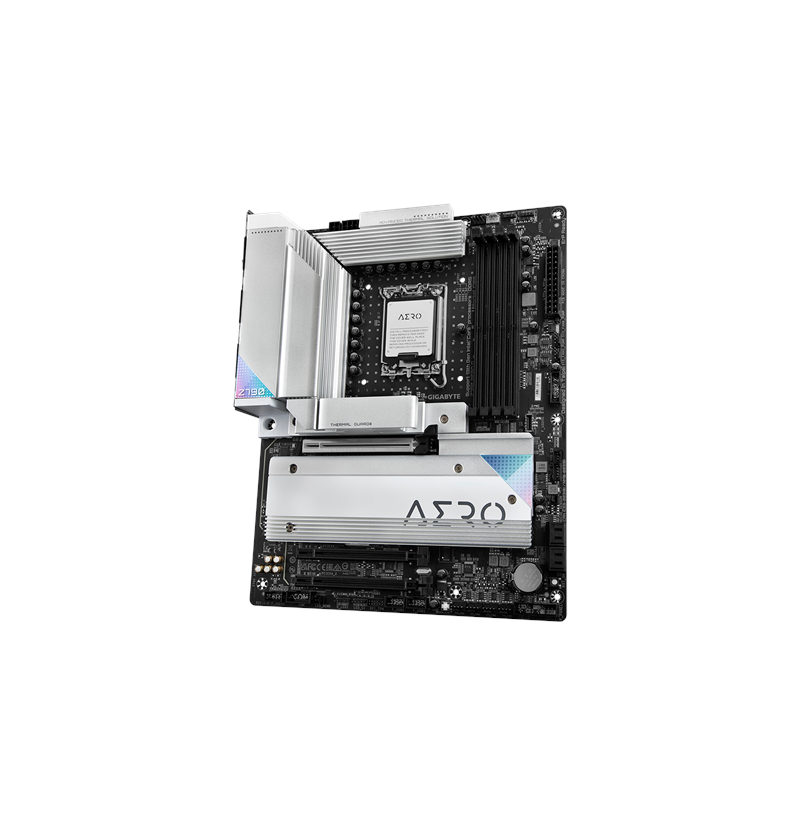

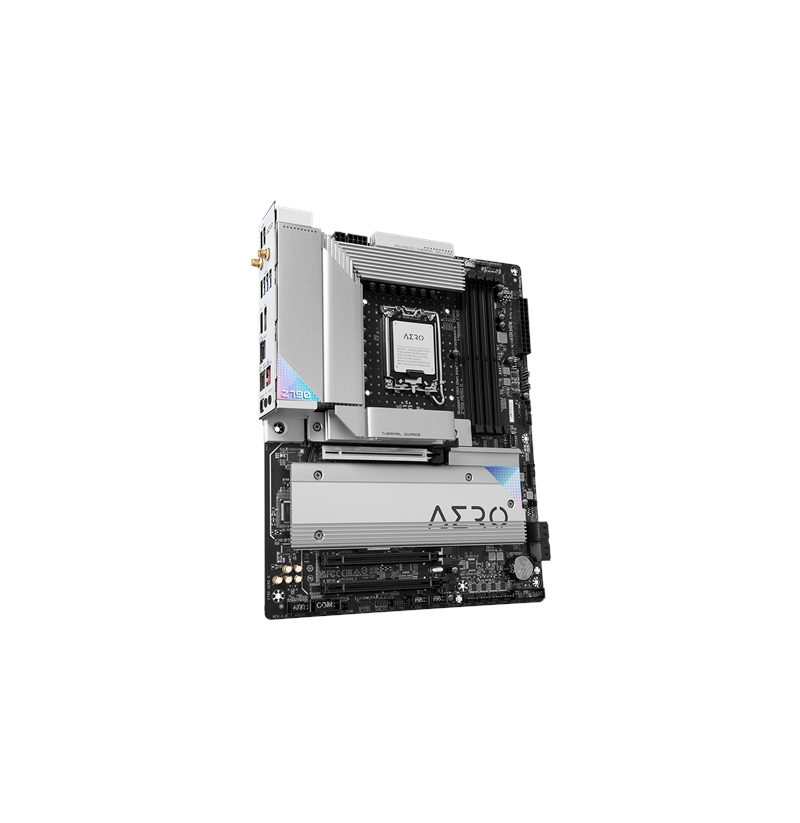

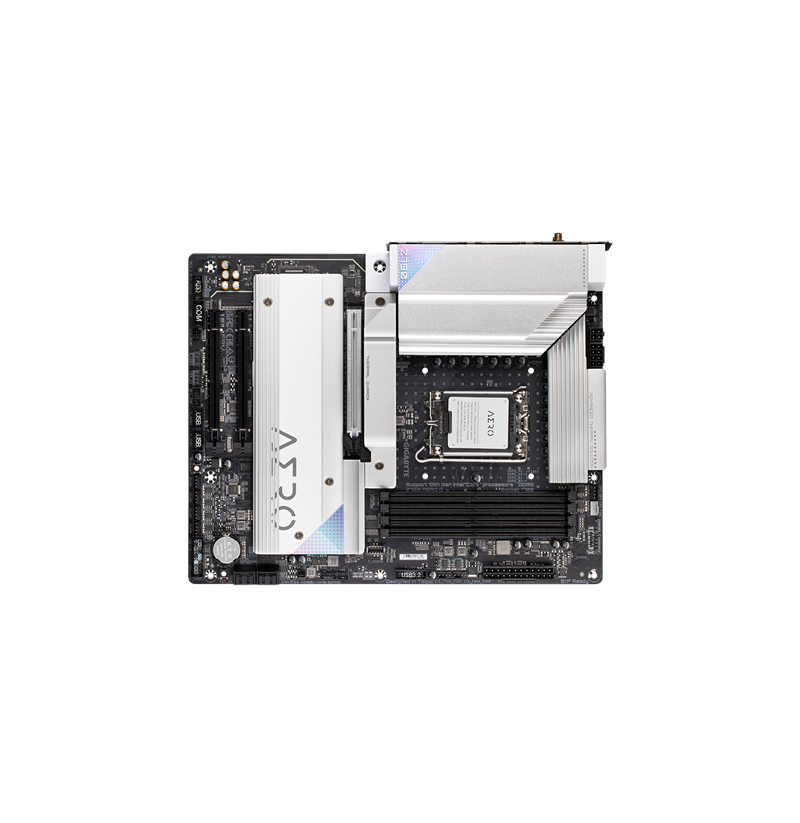

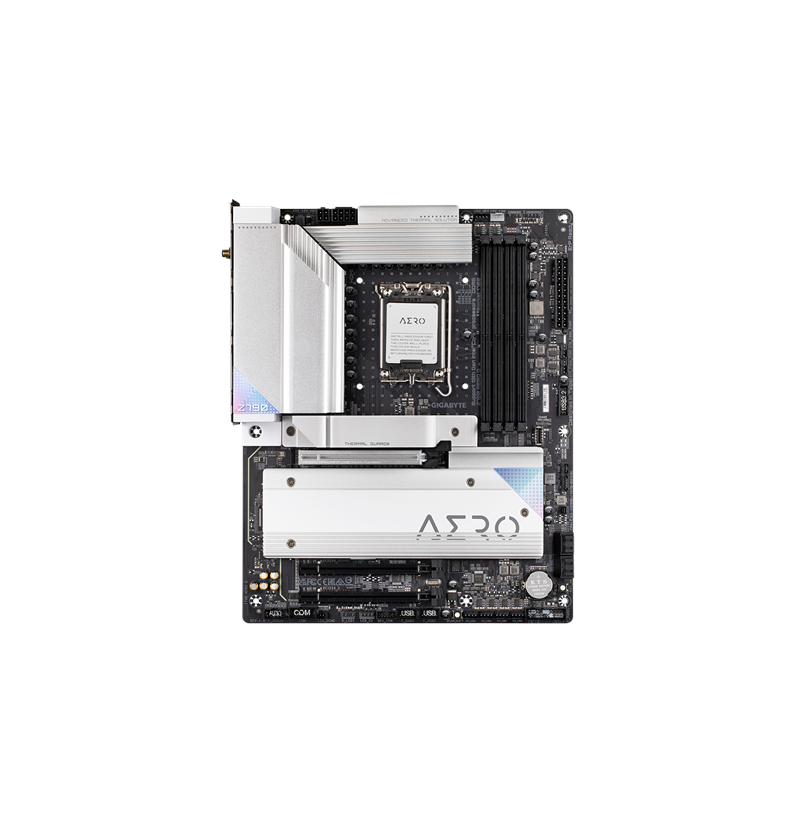

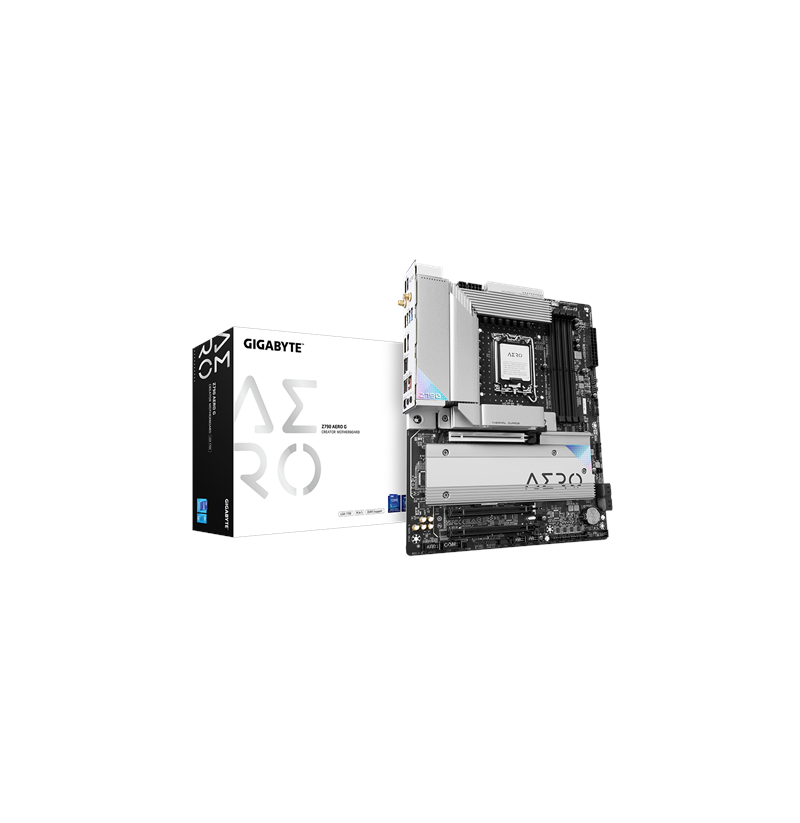

Gigabyte Z790 AERO G motherboard Intel Z790 Express LGA 1700 ATX

Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
Processor socket: LGA 1700
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
Parallel processing technology support: Crossfire
PC health monitoring: Fan, Water cooling, Voltage, Temperature
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Motherboard chipset: Intel Z790
Audio chip: Realtek ALC1220-VB
Motherboard form factor: ATX
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Supported memory clock speeds: 5600, 7200, 6200, 5200, 7600, 4000, 4800, 6800, 6000, 6400, 7400, 6600, 5800, 5400, 7000
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 7600 MHz
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Width: 305 mm
Depth: 244 mm
Bluetooth: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller model: Intel Wi-Fi 6E AX211
Bluetooth version: 5.3
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Serial port headers: 1
ATX Power connector (24-pin): Yes
Number of SATA III connectors: 4
Front panel audio connector: Yes
Thunderbolt headers: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 2.0 connectors: 2
TPM connector: Yes
12V power connector: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
Desktop Management Interface (DMI) version: 2.7
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Bundled software: Norton Internet Security
Cables included: SATA
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types: HDD & SSD
RAID levels: 0, 10, 5, 1
Number of storage drives supported: 9
DisplayPort version: 1.4

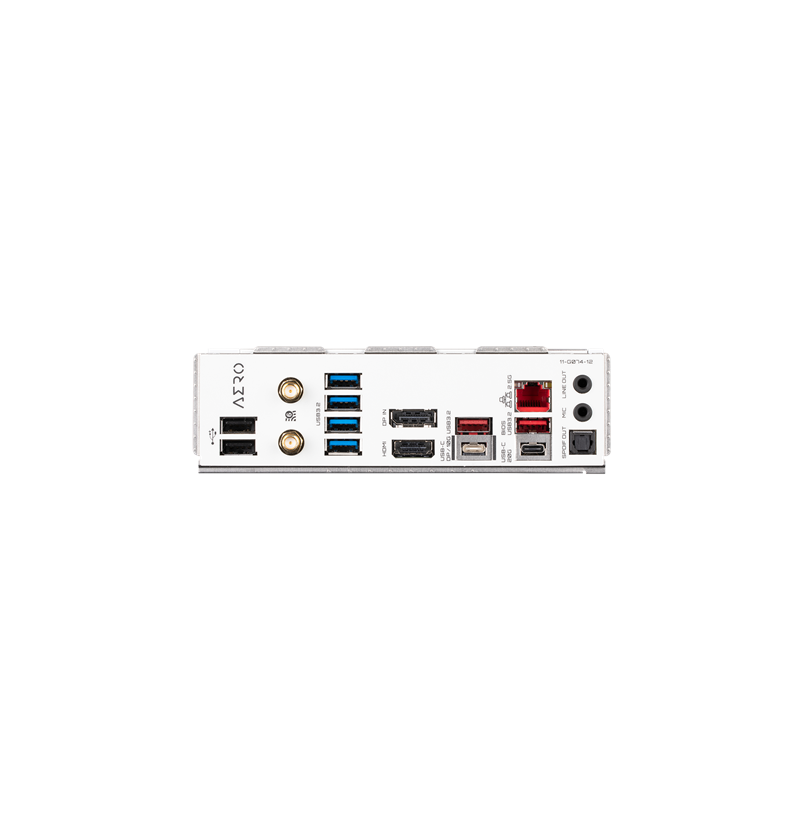

USB connector type: USB Type-C, USB Type-A
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
S/PDIF out port: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
Microphone in: Yes
HDMI version: 2.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Headphone outputs: 2
WiFi-AP antenna jack: 2
Number of M.2 (M) slots: 5
PCI Express x16 slots: 3
