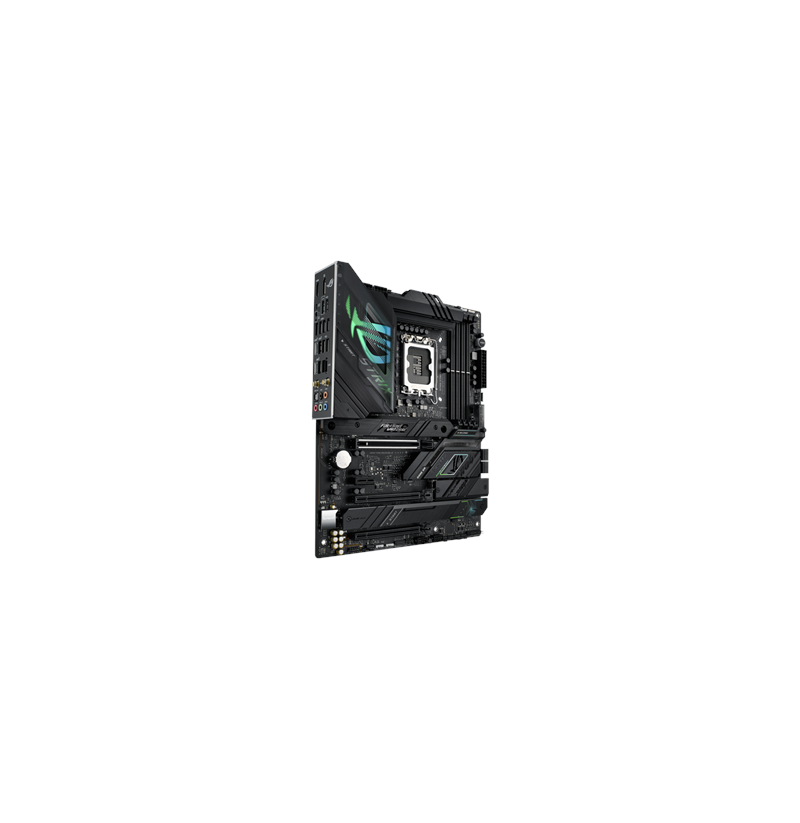

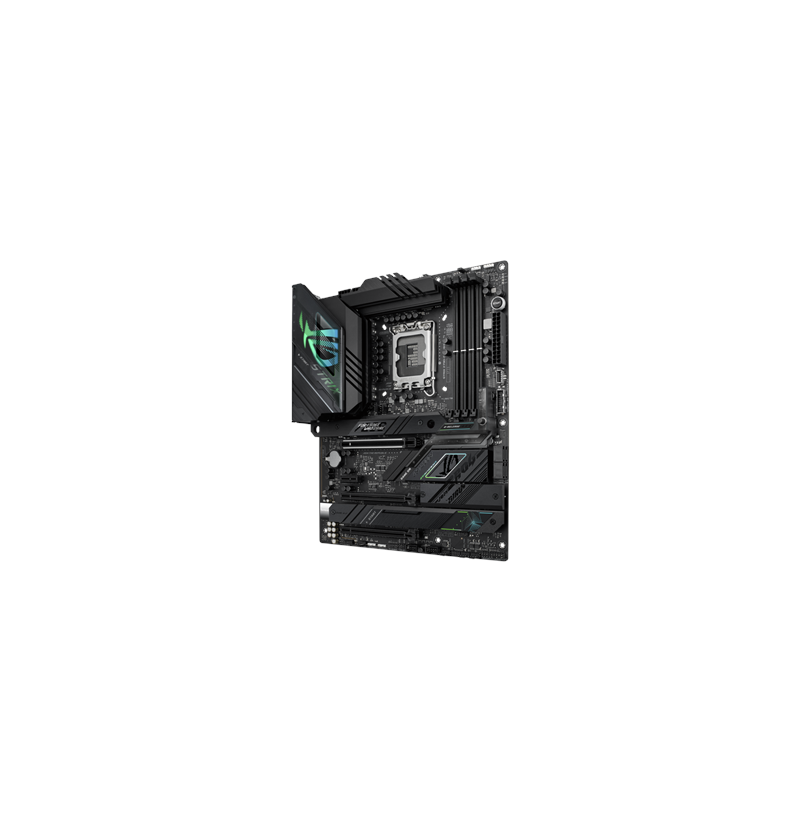

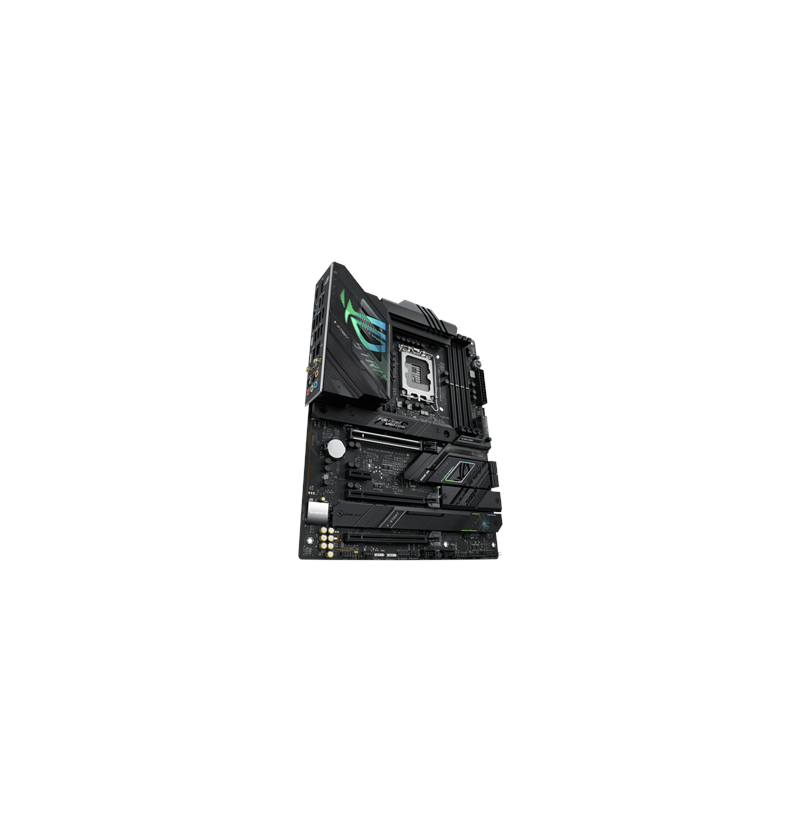

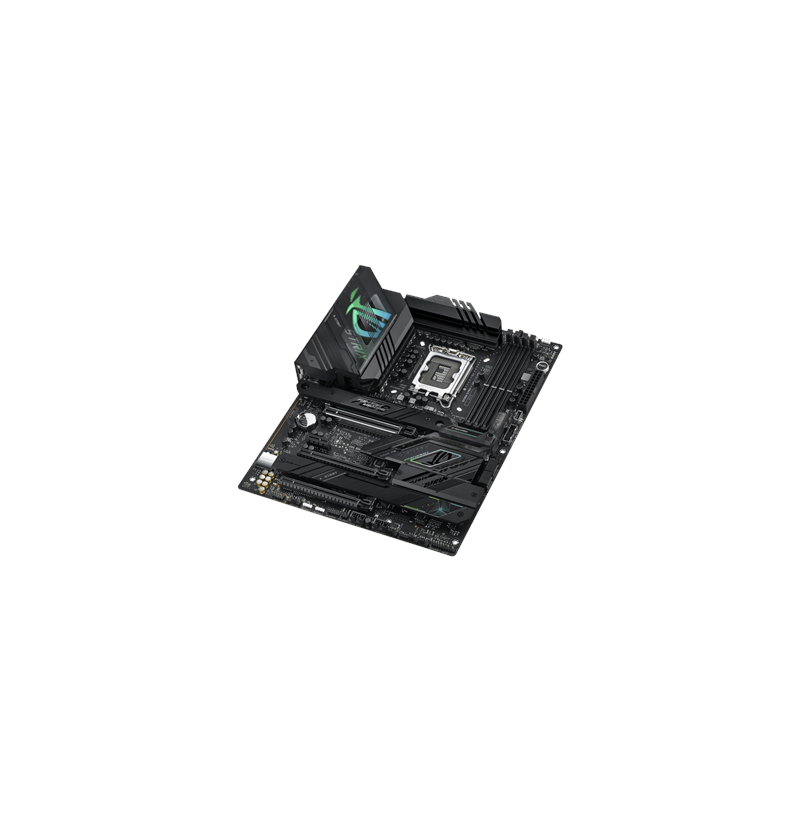

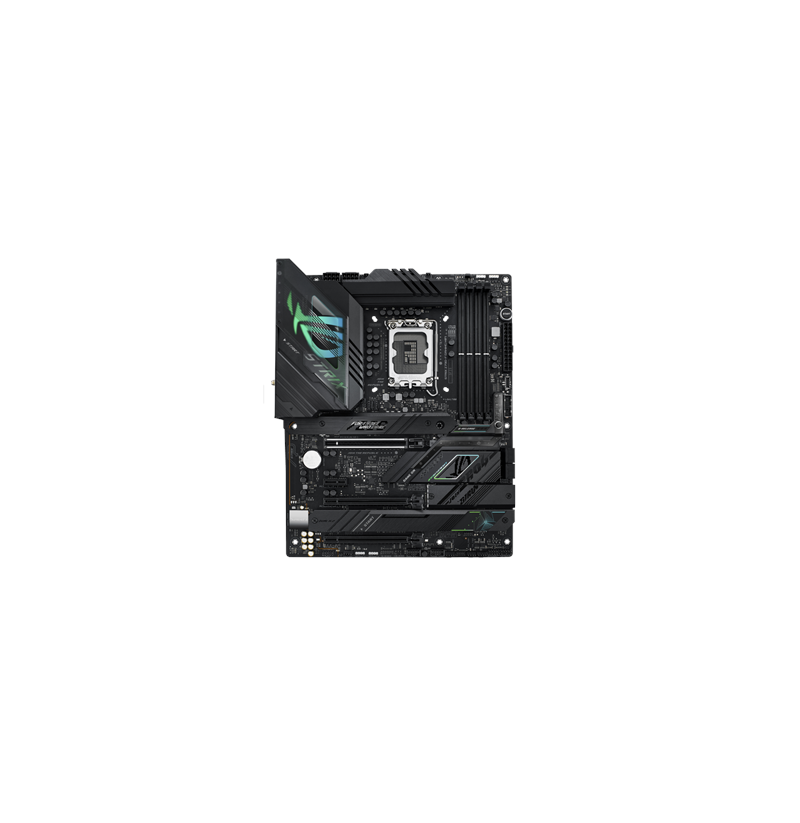

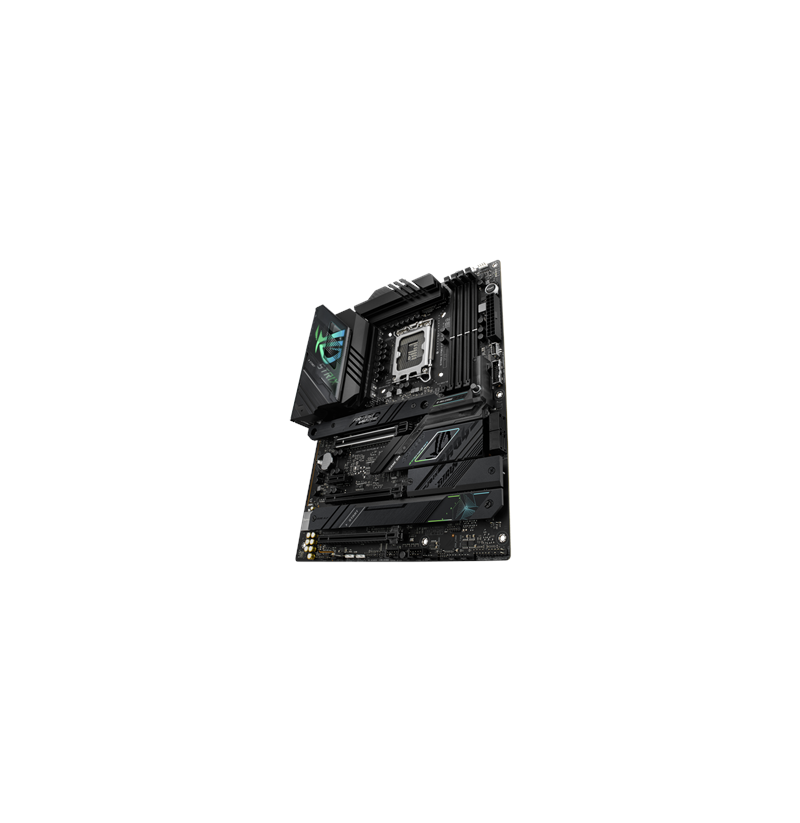

Asus ROG STRIX Z790-F GAMING WIFI Processor family Intel Padidinti

ASUS ROG STRIX Z790-F GAMING WIFI Intel Z790 LGA 1700 ATX

352,21 €

90MB1CP0-M0EAY0

4711081938590

Galimas pasirinkimas

 pristatymas 9...11 d.d.


Processor manufacturer: AMD
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Parallel processing technology support: Not supported
Windows operating systems supported: Windows 10, Windows 11
Motherboard form factor: ATX
Motherboard chipset: Intel Z790
Audio output channels: 7.1 channels
Power source type: ATX
Motherboard chipset family: Intel
Audio chip: Realtek ALC4080
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 7800 MHz
Supported memory clock speeds: 5000, 6800, 7400, 6400, 7000, 6200, 6000, 5200, 7600, 7800, 6600, 5800, 5400, 5600, 7200, 4800
Memory channels: Dual-channel
Maximum internal memory: 192 GB
ECC сompatibility: Non-ECC
Unbuffered memory: Yes
Width: 305 mm
Depth: 244 mm
Bluetooth version: 5.3
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi standards: Wi-Fi 6E (802.11ax), Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Bluetooth: Yes
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
RGB LED pin header: Yes
Number of SATA III connectors: 4
EPS power connector (8-pin): Yes
Number of chassis fan connectors: 5
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Thunderbolt headers: 1
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
CPU fan connector: Yes
Clear CMOS button: Yes
BIOS type: UEFI AMI
Package width: 368 mm
Package weight: 2.25 kg
Package height: 290 mm
Package depth: 293 mm
Cables included: SATA
Drivers included: Yes
User guide: Yes
Supported storage drive types: HDD & SSD
RAID levels: 10, 0, 1, 5
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes
Headphone outputs: 1
Line-in: Yes
WiFi-AP antenna jack: 2
Microphone in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
S/PDIF out port: Yes
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
USB 2.0 ports quantity: 2
DisplayPort version: 1.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 4
Back-to-BIOS button: Yes
