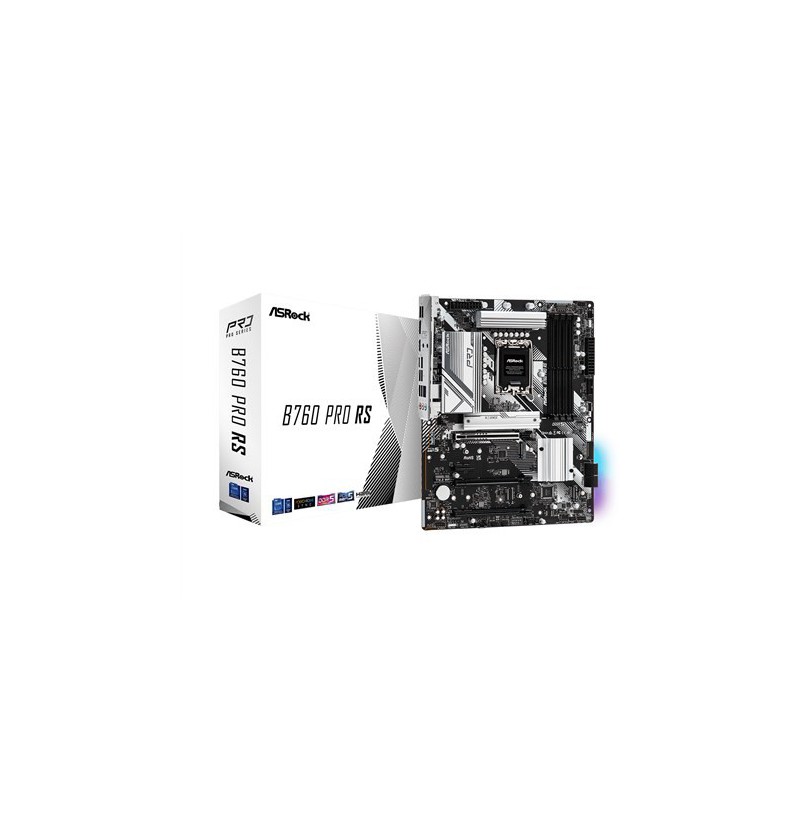

Asrock B760 PRO RS Intel B760 LGA 1700 ATX Padidinti

Mainboard Asrock B760 PRO RS

168,66 €

B760 PRO RS

4710483942044

Galimas pasirinkimas

 pristatymas 11...13 d.d.


Sustainability certificates: CE, ErP, Federal Communications Commission (FCC)
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3
Processor socket: LGA 1700
Processor manufacturer: Intel
HDCP: Yes
On-board graphics card model: Intel Iris Xe Graphics
Graphics card family: Intel
On-board graphics card: Yes
Number of displays supported: 1
Power source type: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Audio output channels: 7.1 channels
Motherboard chipset family: Intel
Audio chip: Realtek ALC897
Motherboard form factor: ATX
Motherboard chipset: Intel B760
Rack-Friendly board: Yes
Supported memory clock speeds: 4000, 4800, 6000, 5600, 7200 MHz, 3600, 4400
Maximum internal memory: 128 GB
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Supported memory clock speed (max): 7200 MHz
Width: 305 mm
Depth: 244 mm
LAN controller: Realtek RTL8125-BG
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
Number of SATA III connectors: 4
Front panel connector: Yes
Thunderbolt headers: 1
Front panel audio connector: Yes
CPU fan connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 6
USB 2.0 connectors: 4
S/PDIF out connector: Yes
Power fan connector: Yes
ATX Power connector (24-pin): Yes
12V power connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 3
Audio connector: Yes
BIOS type: UEFI AMI
RAID levels: 0, 1, 10, 5
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
Supported storage drive types: SSD
Number of HDDs supported: 1
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
DisplayPort version: 1.4
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
Microphone in: Yes
WiFi-AP antenna jack: 2
Line-in: Yes
