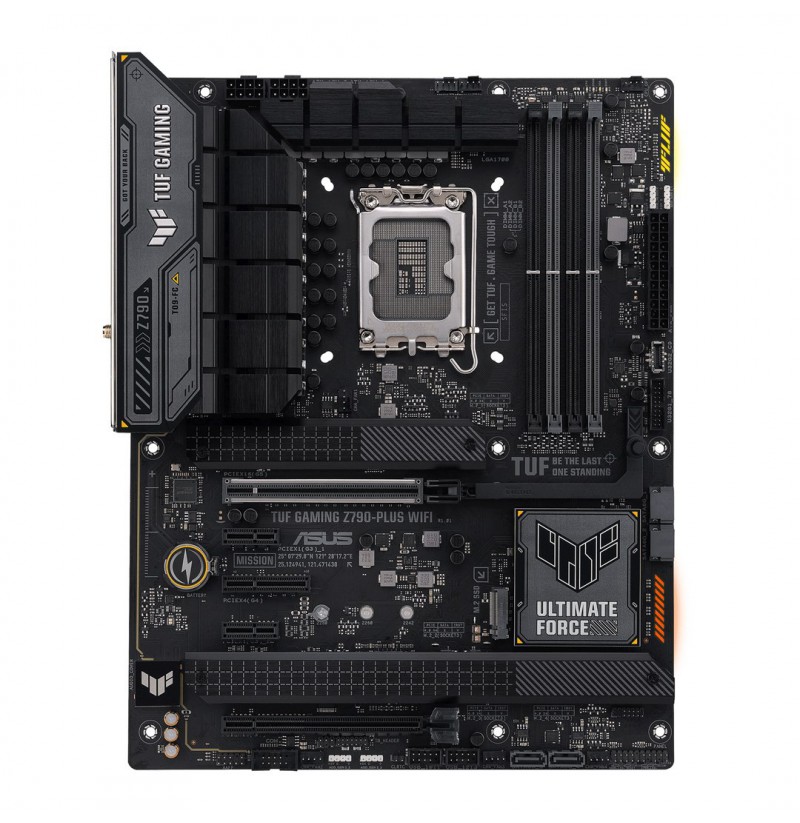

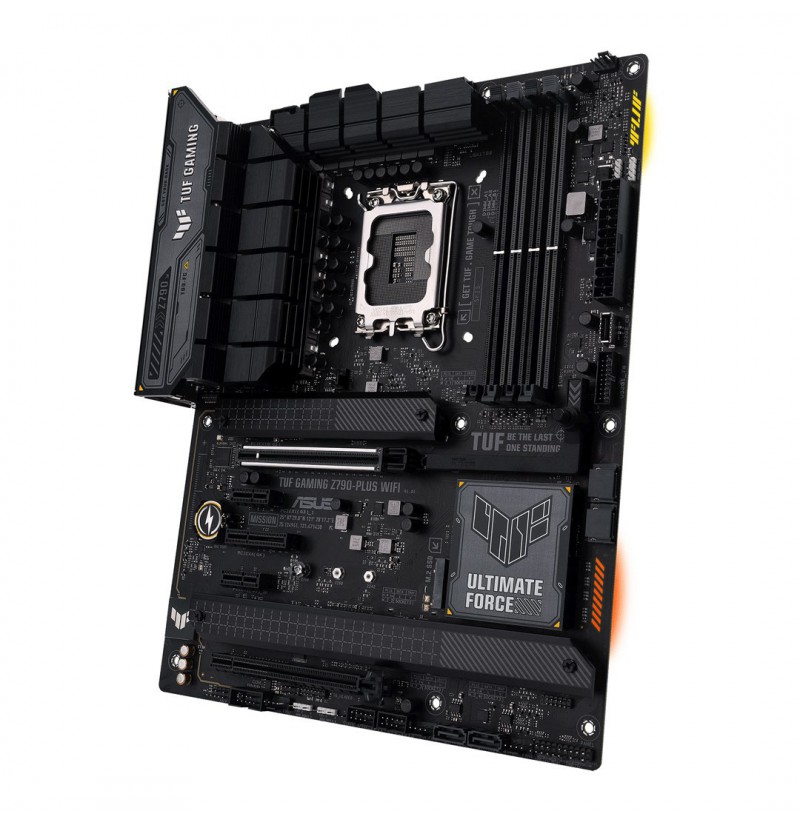

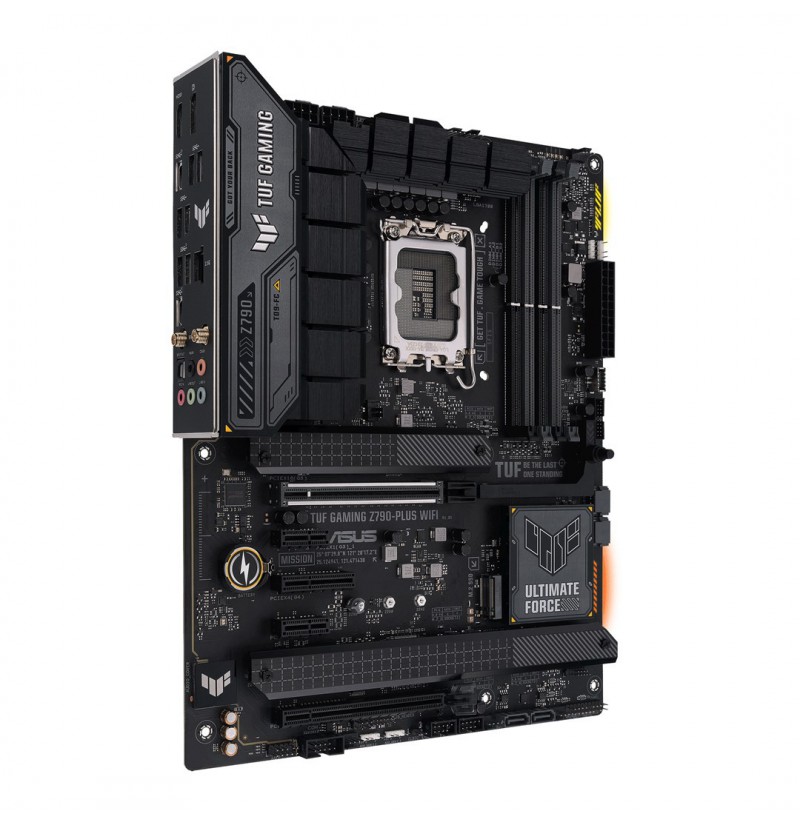

ASUS TUF GAMING Z790-PLUS WIFI Intel Z790 LGA 1700 ATX Padidinti

Asus | TUF GAMING Z790-PLUS WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfac

256,27 €

90MB1D80-M0EAY0

4711387014509

Galimas pasirinkimas

 1..4 d.d.


Processor manufacturer: Intel
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Processor socket: LGA 1700
On-board graphics card: No
Parallel processing technology support: Not supported
Audio chip: Realtek S1220A
Motherboard chipset family: Intel
Product colour: Black
Windows operating systems supported: Windows 11, Windows 10
Audio output channels: 7.1 channels
Motherboard chipset: Intel Z790
Motherboard form factor: ATX
Power source type: ATX
Supported memory clock speeds: 5200, 6200, 6800, 7000, 5000, 6600, 5800, 5400, 6000, 4800 MHz, 5600, 7200, 6400
Memory channels: Dual-channel
Maximum internal memory: 128 GB
Unbuffered memory: Yes
ECC сompatibility: Non-ECC
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Supported memory clock speed (max): 7200 MHz
Width: 305 mm
Depth: 244 mm
Wi-Fi standards: Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, 802.11b, Wi-Fi 4 (802.11n)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
Bluetooth: Yes
Ethernet LAN: Yes
Bluetooth version: 5.3
Wi-Fi: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
CPU fan connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
Number of chassis fan connectors: 4
ATX Power connector (24-pin): Yes
Thunderbolt headers: 1
Number of SATA III connectors: 4
Number of COM connectors: 1
USB 2.0 connectors: 2
RGB LED pin header: Yes
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
BIOS type: UEFI AMI
Cables included: SATA
User guide: Yes
Supported storage drive types: HDD & SSD
RAID levels: 10, 5, 1, 0
RAID support: Yes
Supported storage drive interfaces: M.2, SATA III
HDMI version: 2.1
DisplayPort version: 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
S/PDIF out port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Microphone in: Yes
Line-in: Yes
USB 3.2 Gen 2x2 Type-C ports quantity: 1
WiFi-AP antenna jack: 2
Headphone outputs: 1
Number of M.2 (M) slots: 4
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
