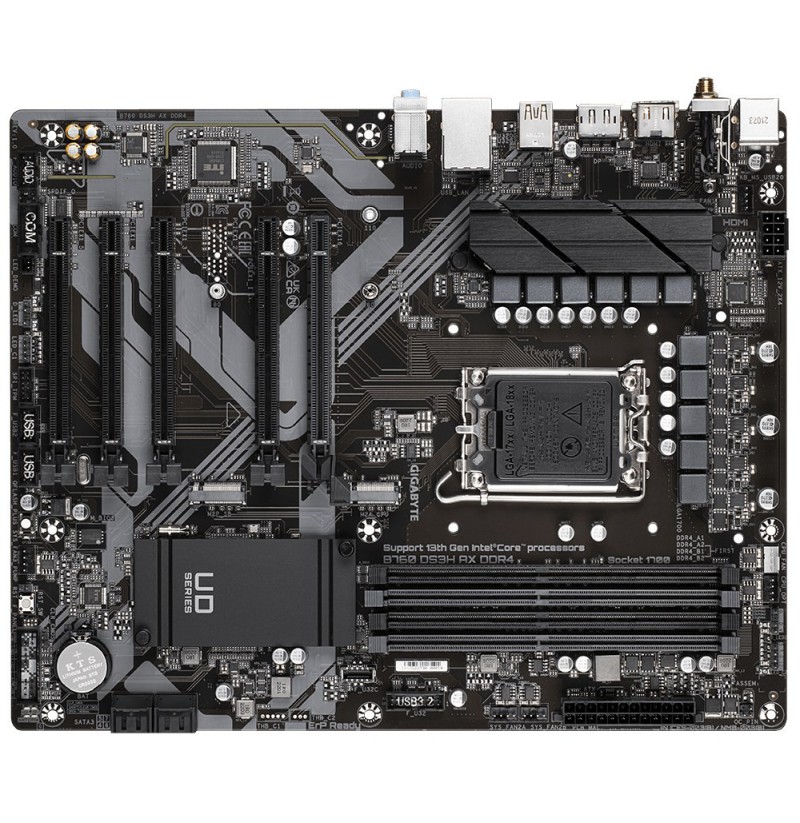

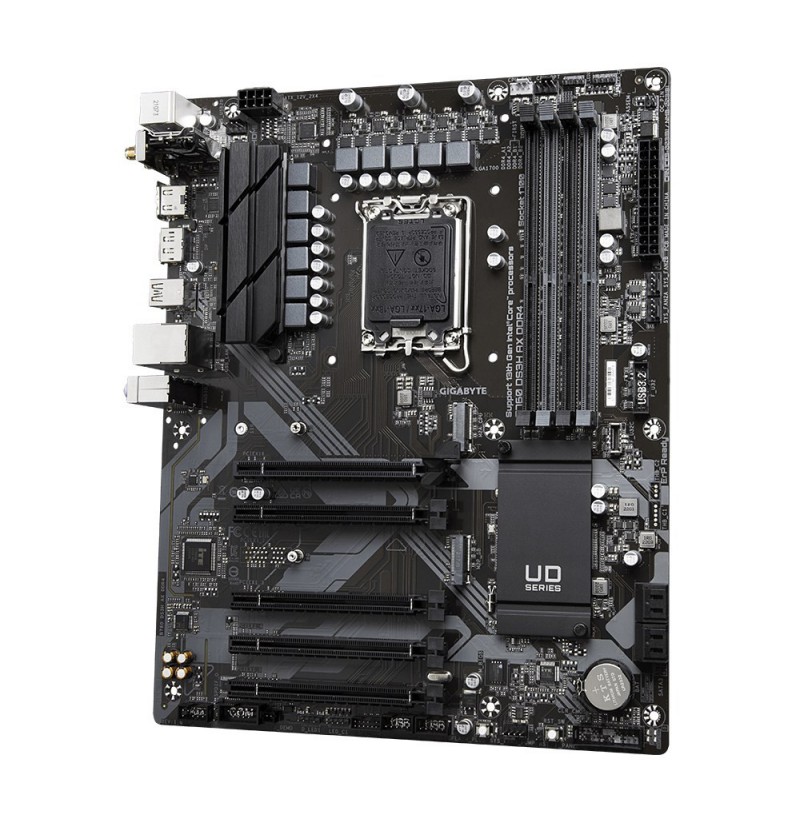

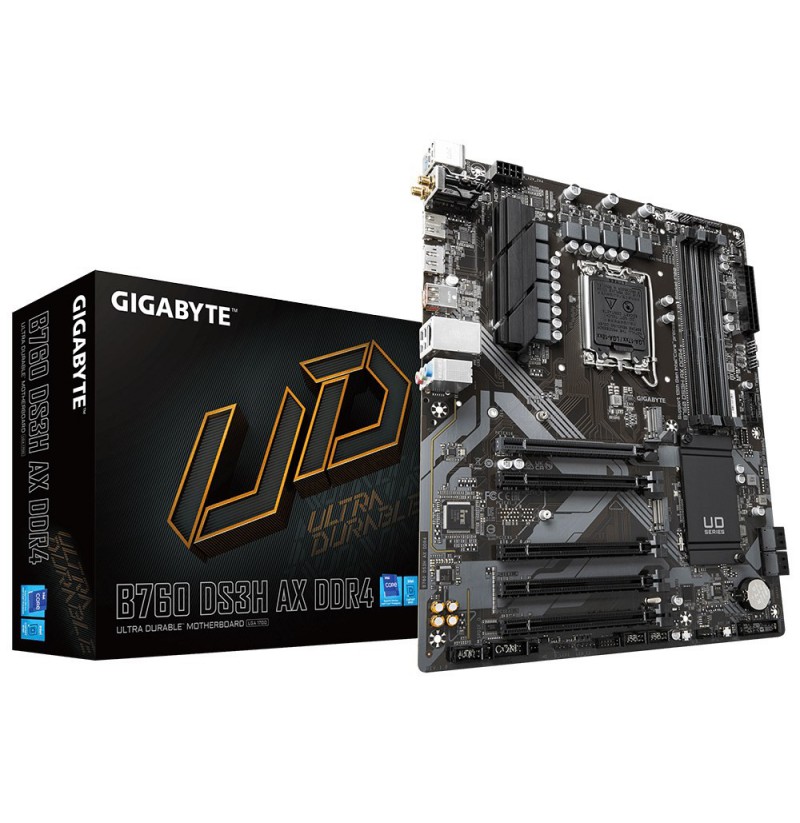

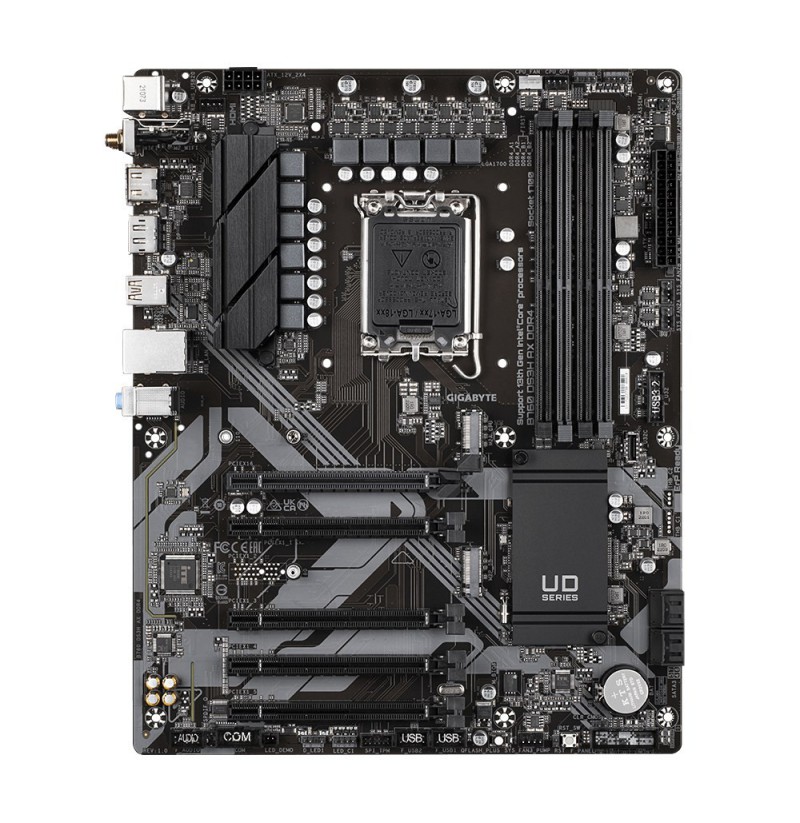

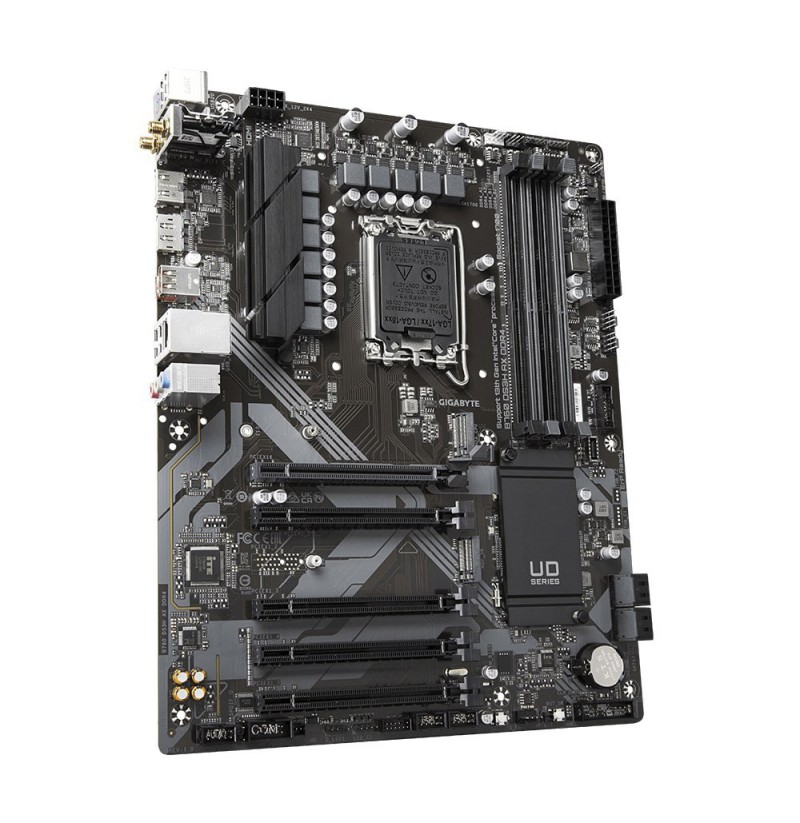

Gigabyte B760 DS3H AX DDR4 motherboard Intel B760 Express LGA 1700 ATX

Warranty period: 3 year(s)
Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
Maximum internal memory supported by processor: 128 GB
Processor socket: LGA 1700
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
DirectX version: 12.0
Parallel processing technology support: Not supported
PC health monitoring: Temperature, Voltage, Fan, Water cooling
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760 Express
Motherboard chipset family: Intel
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64, Windows 11 x64
Supported memory module capacities: 16GB, 2GB, 4GB, 32GB, 8GB, 12GB, 1GB
Supported memory clock speeds: 3733, 3800, 3333, 2933, 3600, 3300, 5133, 3200 MHz, 2666, 4266, 4500, 4600, 2400, 4700, 2133, 4133, 4000, 3666, 4800, 4933, 3400, 3866, 3000, 5333, 4300, 4400 MHz, 5000, 3466
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory types: DDR4-SDRAM
Memory slots type: DIMM
Supported memory clock speed (max): 5333 MHz
Height: 35 mm
Depth: 244 mm
Width: 305 mm
Bluetooth: Yes
Wi-Fi standards: 802.11g, Wi-Fi 4 (802.11n), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: Yes
WLAN controller model: RZ608
Bluetooth version: 5.2
Number of SATA III connectors: 4
S/PDIF out connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
Serial port headers: 1
CPU fan connector: Yes
Front panel connector: Yes
TPM connector: Yes
EPS power connector (8-pin): Yes
12V power connector: Yes
RGB LED pin header: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Package weight: 1.49 kg
Package height: 80 mm
Package depth: 270 mm
Package width: 335 mm
Bundled software: Norton Internet Security
Cables included: SATA
Batteries included: Yes
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
RAID levels: 0, 1, 10, 5
Number of HDDs supported: 4
Number of storage drives supported: 6
DisplayPorts quantity: 1
DisplayPort version: 1.2
USB connector type: USB Type-C, USB Type-A
Ethernet LAN (RJ-45) ports: 1
USB 2.0 ports quantity: 4
PS/2 ports quantity: 1
Headphone outputs: 3
HDMI version: 2.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
WiFi-AP antenna jack: 2
Microphone in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
PCI Express x16 slots: 5
Number of M.2 (M) slots: 2
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells: 1
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
