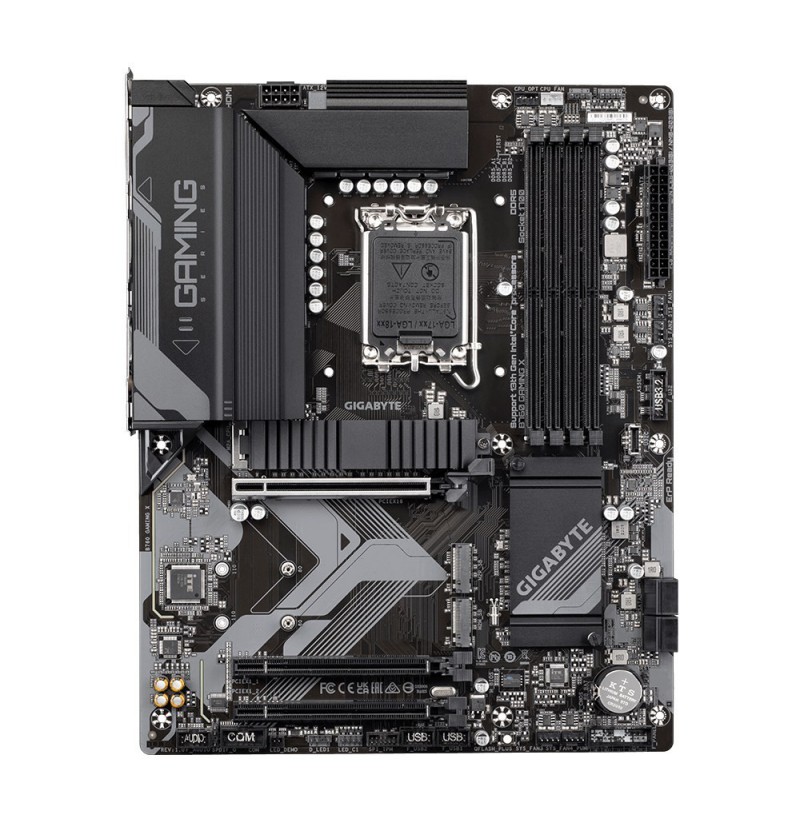

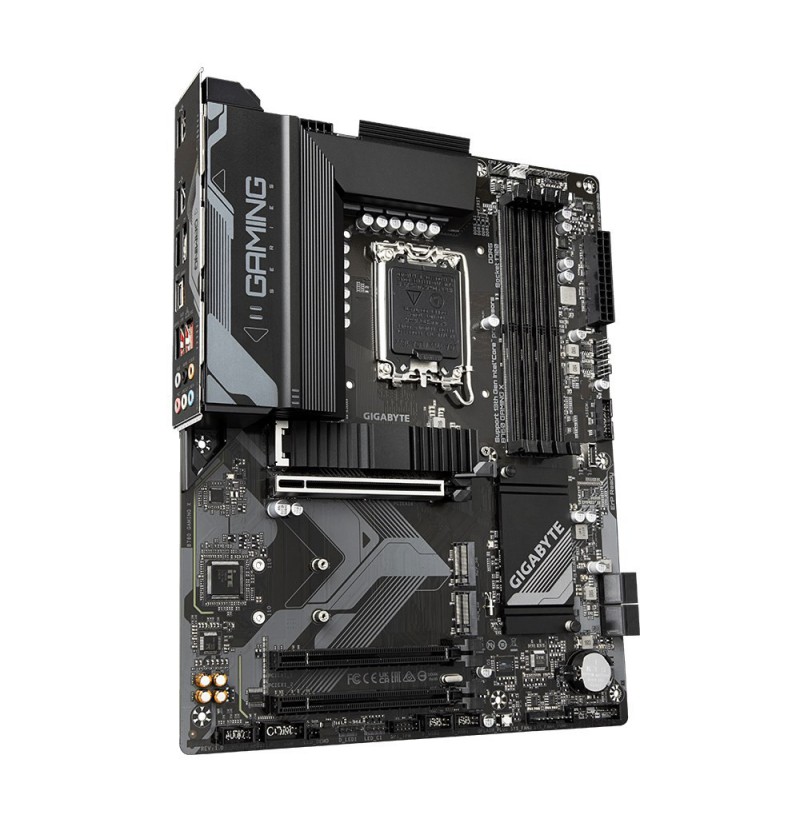

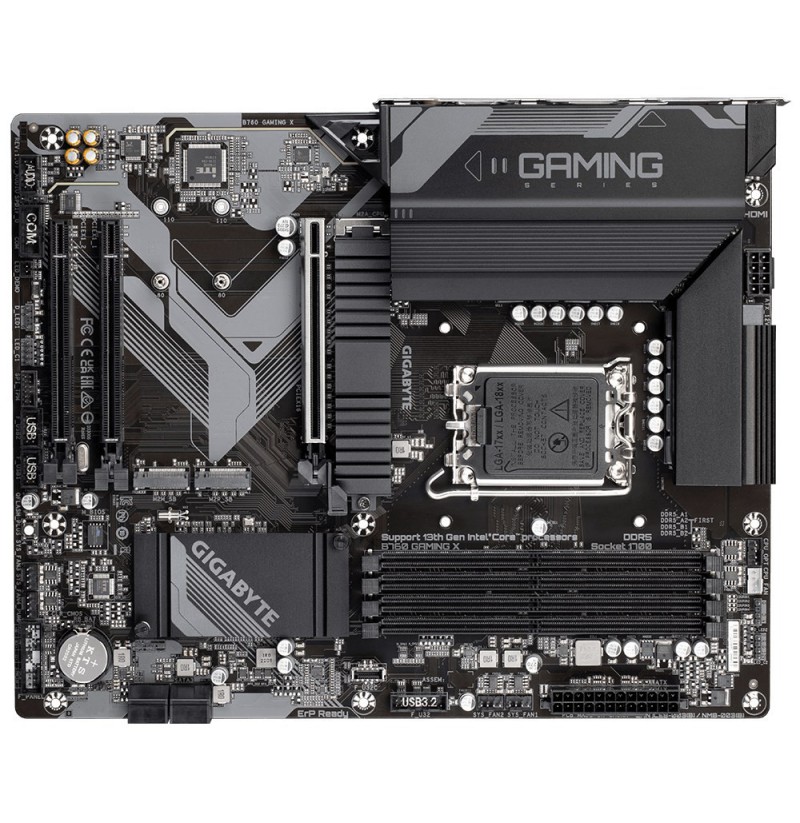

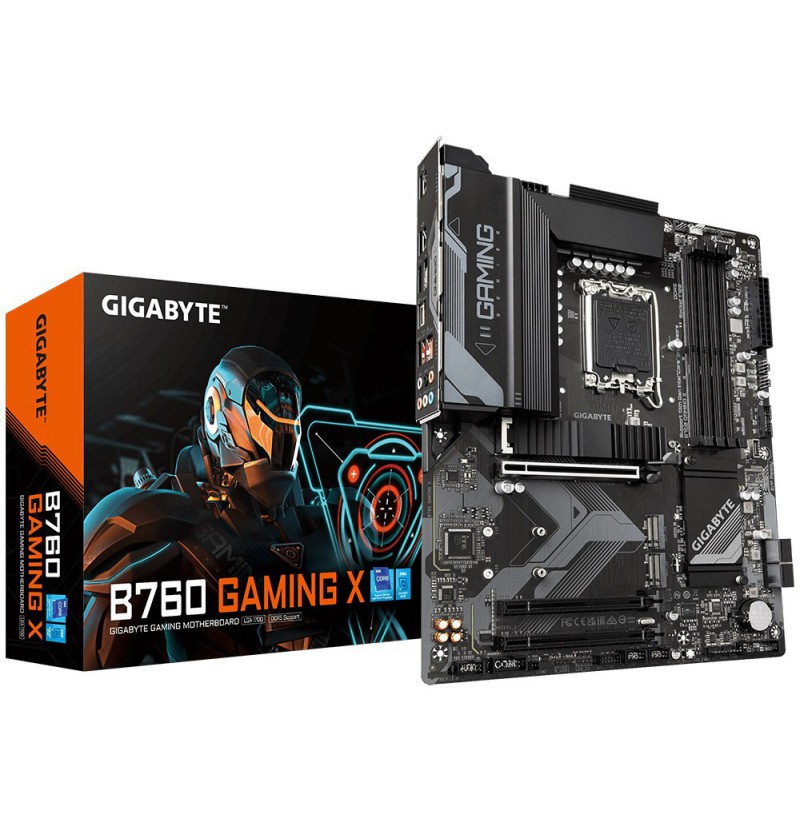

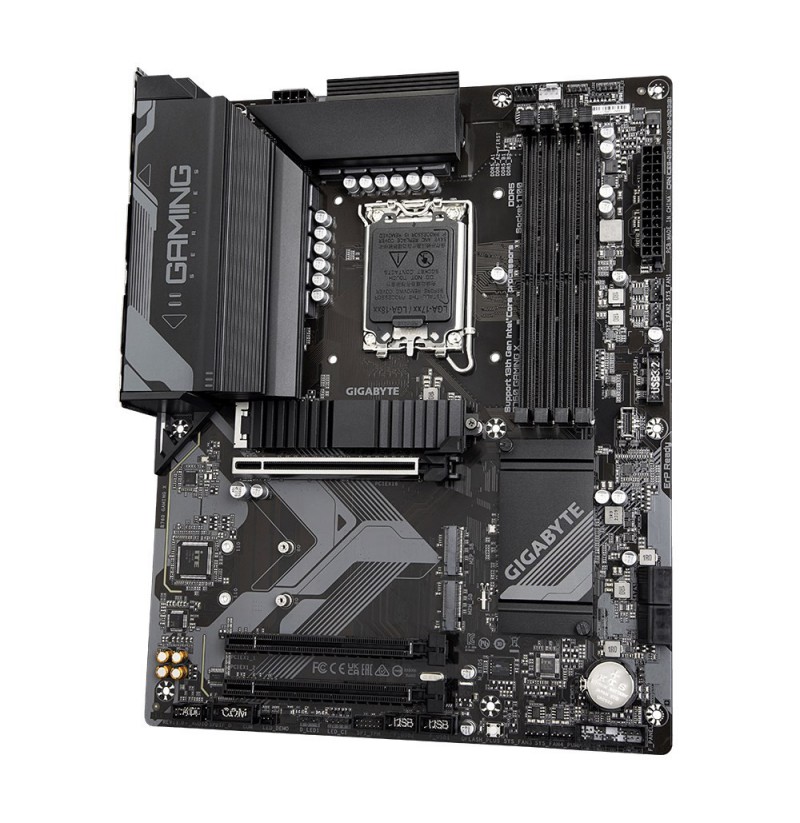

Gigabyte B760 GAMING X motherboard Intel B760 Express LGA 1700 ATX

Warranty period: 3 year(s)
Supported processor sockets: LGA 1700
Maximum internal memory supported by processor: 192 GB
Processor manufacturer: Intel
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor socket: LGA 1700
Maximum resolution: 4096 x 2304 pixels
HDCP: Yes
DirectX version: 12.0
Parallel processing technology support: Not supported
Motherboard chipset: Intel B760 Express
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11 x64, Windows 10 x64
PC health monitoring: Voltage, Water cooling, Fan, Temperature
Audio output channels: 7.1 channels
Product colour: Bronze
Motherboard form factor: ATX
Power source type: ATX
Supported memory module capacities: 1GB, 8GB, 12GB, 32GB, 16GB, 48GB, 2GB, 4GB
Supported memory clock speeds: 4000 MHz, 4800, 7000, 7400, 6000, 7600, 5200, 6600, 6400 MHz, 5600, 7200, 6800, 6200, 5800, 5400
Maximum internal memory: 192 GB
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory clock speed (max): 7600 MHz
Depth: 244 mm
Width: 305 mm
Height: 35 mm
Wi-Fi: No
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
ATX Power connector (24-pin): Yes
Serial port headers: 1
Front panel connector: Yes
EPS power connector (8-pin): Yes
S/PDIF out connector: Yes
Front panel audio connector: Yes
USB 2.0 connectors: 2
Number of SATA Express connectors: 4
TPM connector: Yes
RGB LED pin header: Yes
12V power connector: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Clear CMOS jumper: Yes
Package width: 335 mm
Package weight: 1.62 kg
Package depth: 270 mm
Package height: 80 mm
Bundled software: Norton Internet Security
Batteries included: Yes
Cables included: SATA
Supported storage drive types: HDD & SSD
RAID support: Yes
RAID levels: 0, 1, 10, 5
Supported storage drive interfaces: M.2, SATA III
Number of storage drives supported: 7
Number of HDDs supported: 4

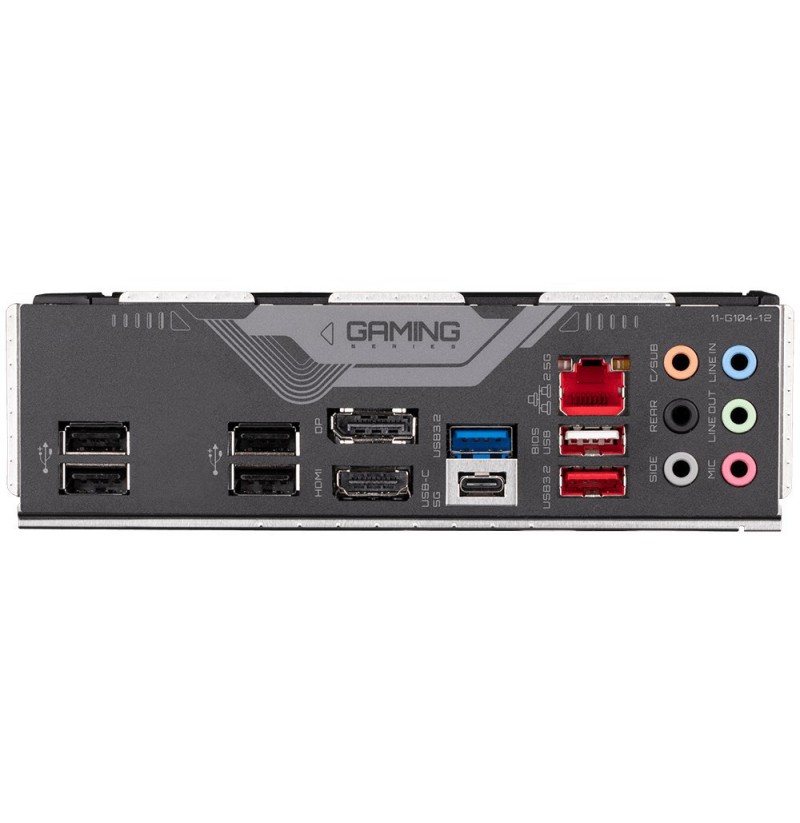

Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.2
USB 2.0 ports quantity: 5
USB connector type: USB Type-A, USB Type-C
DisplayPorts quantity: 1
Headphone outputs: 6
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
HDMI version: 2.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Number of M.2 (M) slots: 3
PCI Express x16 slots: 3
Number of battery cells: 1
Battery type: CR2032
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery weight: 3 g
Lithium weight per battery: 0.07 g
Country of origin: China
Products per shipping (inner) case: 1 pc(s)
