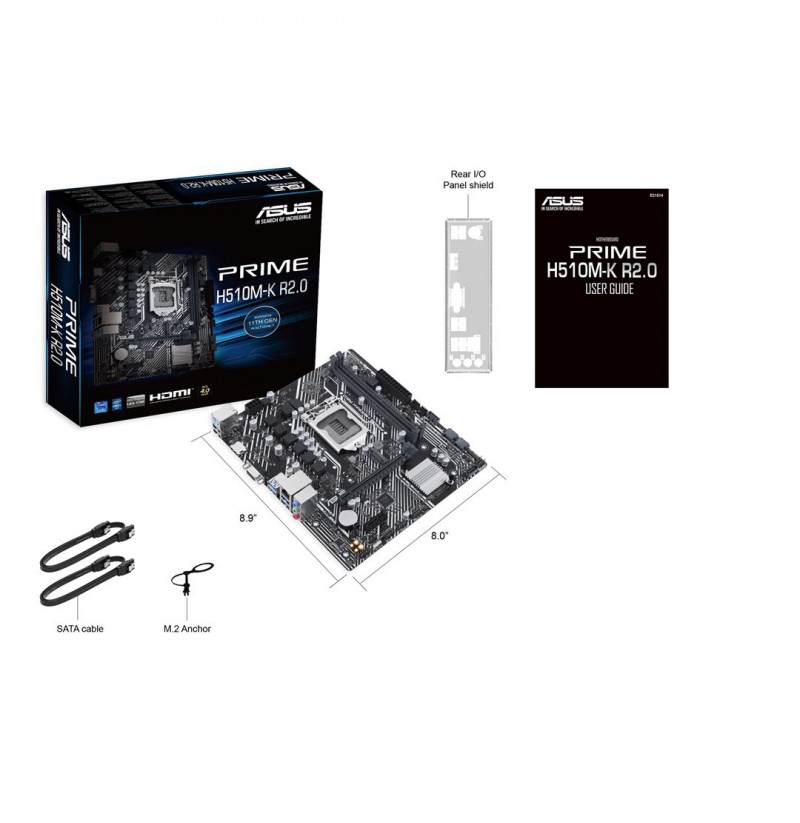

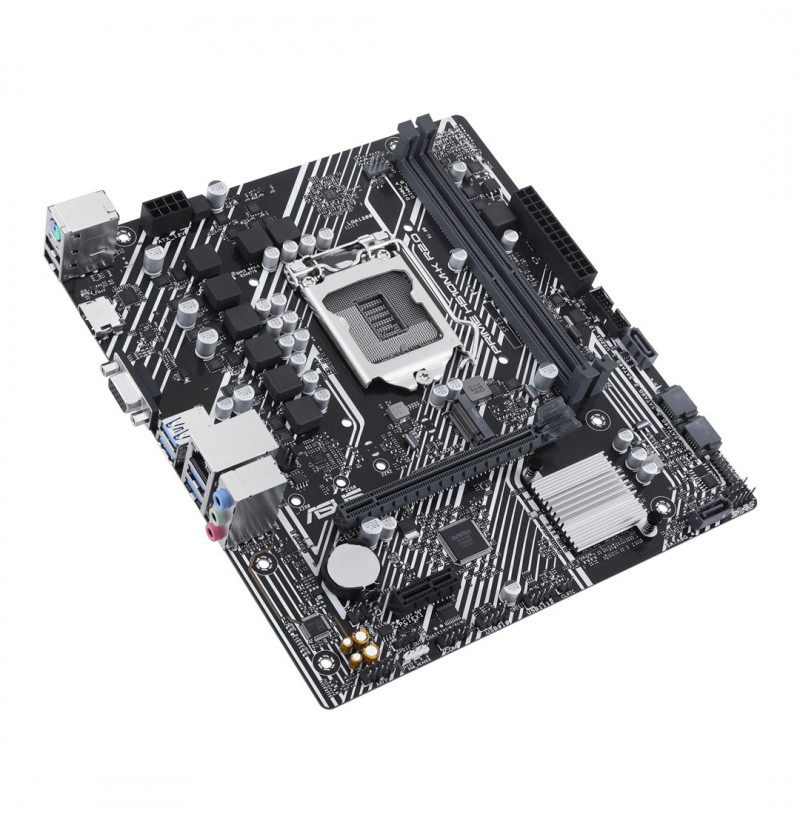

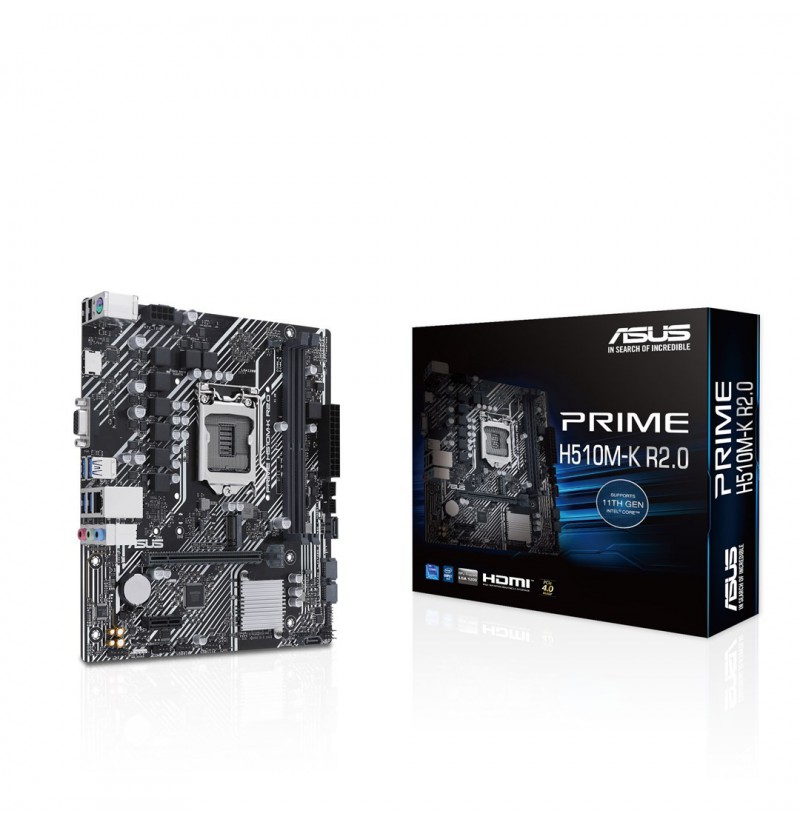

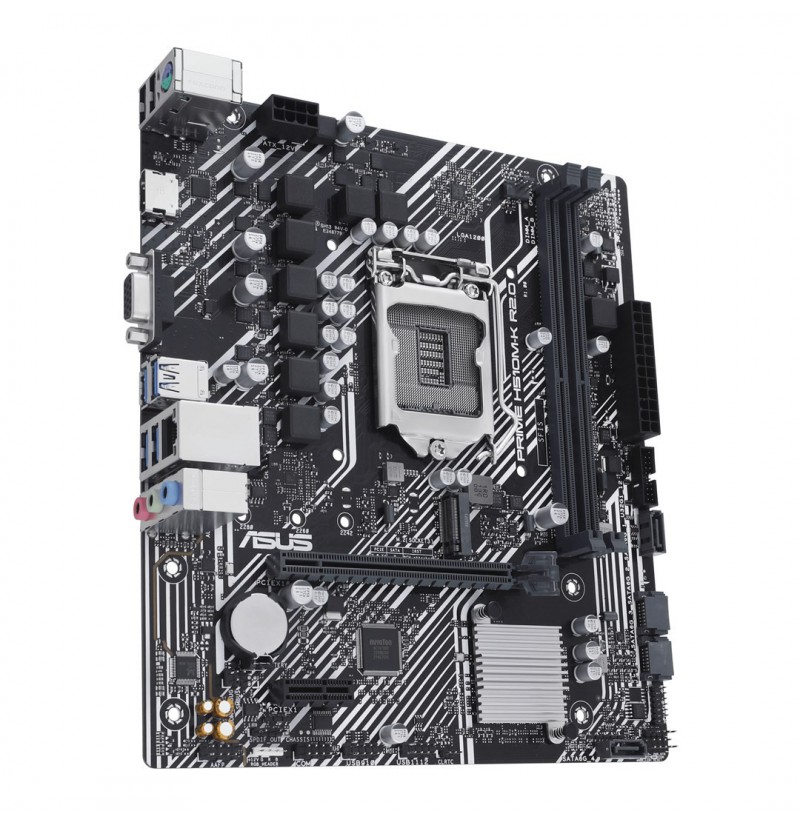

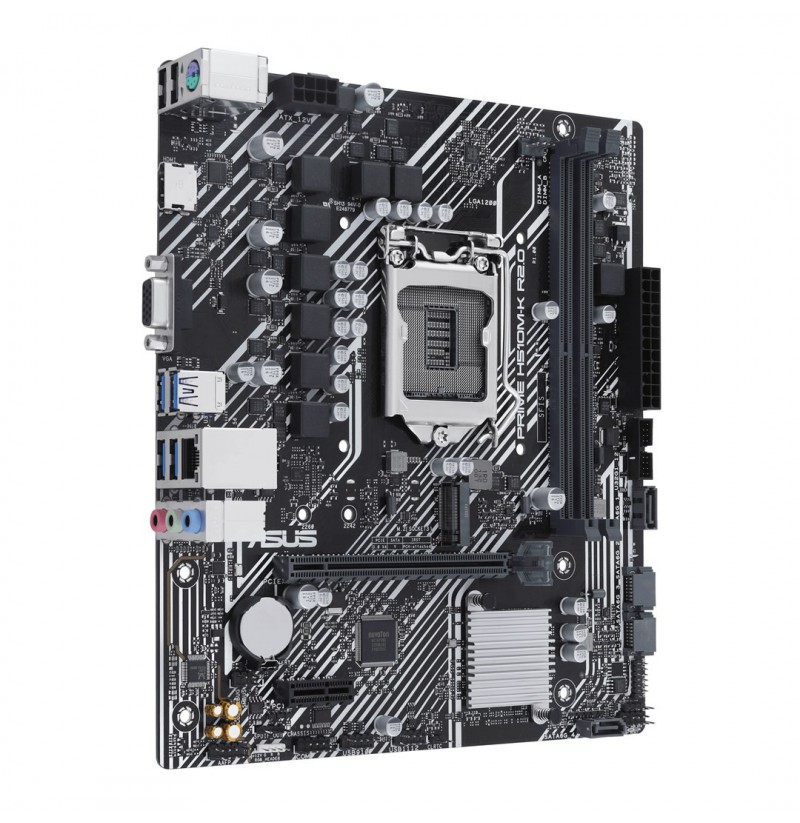

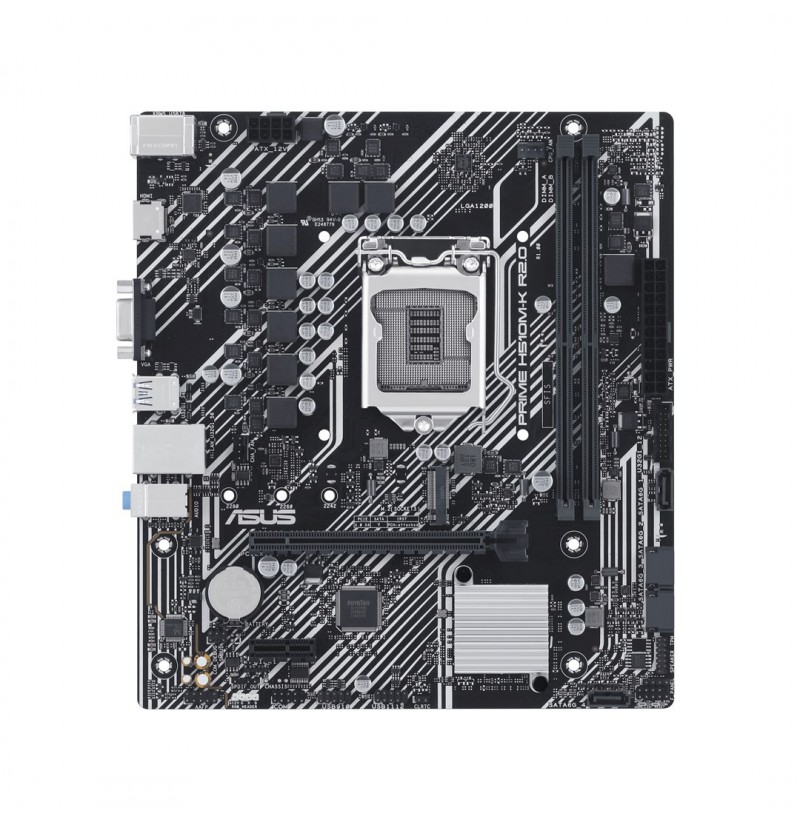

ASUS PRIME H510M-K R2.0 Intel H470 LGA 1200 micro ATX Padidinti

ASUS PRIME H510M-K R2.0 Intel H470 LGA 1200 micro ATX

65,74 €

4711387113189

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Compatible processor series: Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10 x64
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Motherboard chipset: Intel H510
Memory channels: Dual-channel
Number of memory slots: 2
Supported memory clock speeds: 3000, 3200 MHz, 2666, 2400, 2800, 2133, 2933
Maximum internal memory: 64 GB
Unbuffered memory: Yes
Memory slots type: DIMM
Supported memory types: DDR4-SDRAM
ECC сompatibility: Non-ECC
Depth: 203 mm
Width: 226 mm
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Wi-Fi: No
Ethernet LAN: Yes
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
TPM connector: Yes
CPU fan connector: Yes
12V power connector: Yes
Number of chassis fan connectors: 1
USB 2.0 connectors: 2
Number of SATA III connectors: 4
S/PDIF out connector: Yes
ATX Power connector (24-pin): Yes
BIOS type: EFI AMI
Supported storage drive types: HDD & SSD
Number of storage drives supported: 5
Number of HDDs supported: 4
Supported storage drive interfaces: M.2, SATA III

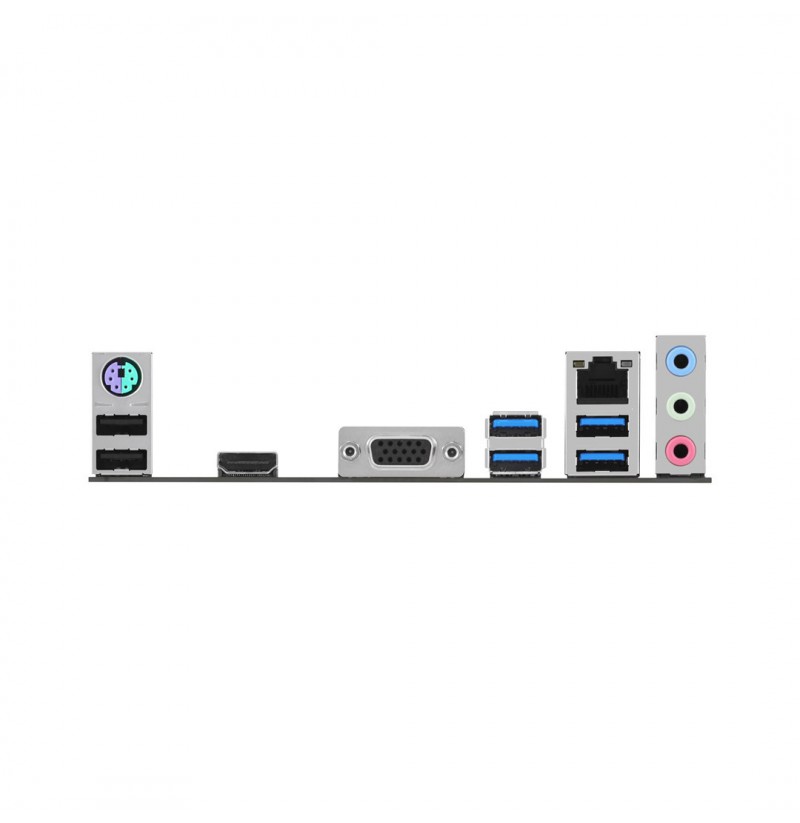

PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
VGA (D-Sub) ports quantity: 1
COM ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
HDMI ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
PCI Express x1 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1
