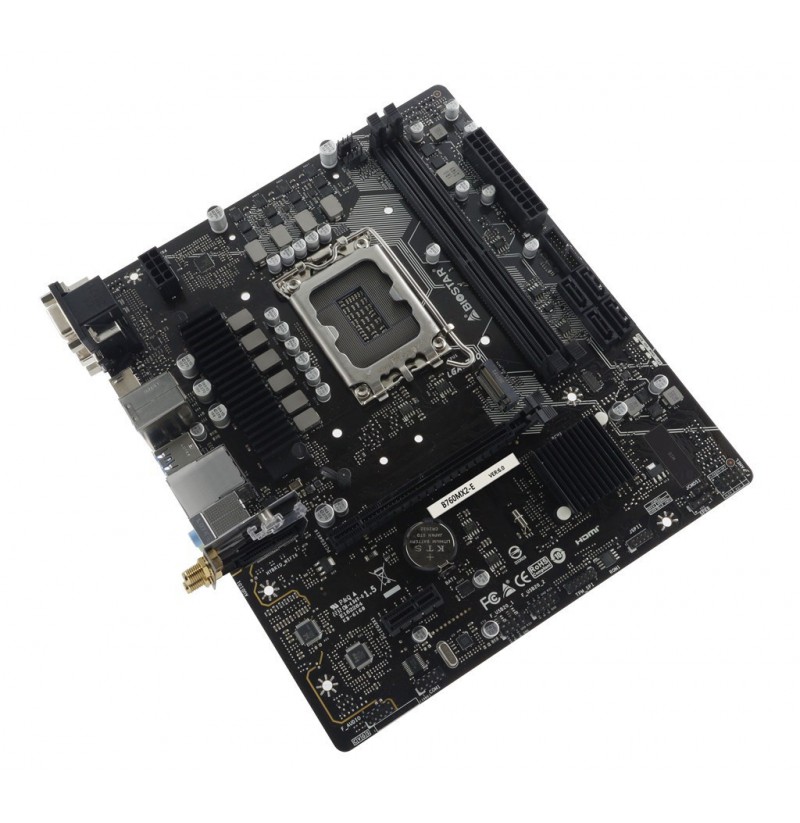

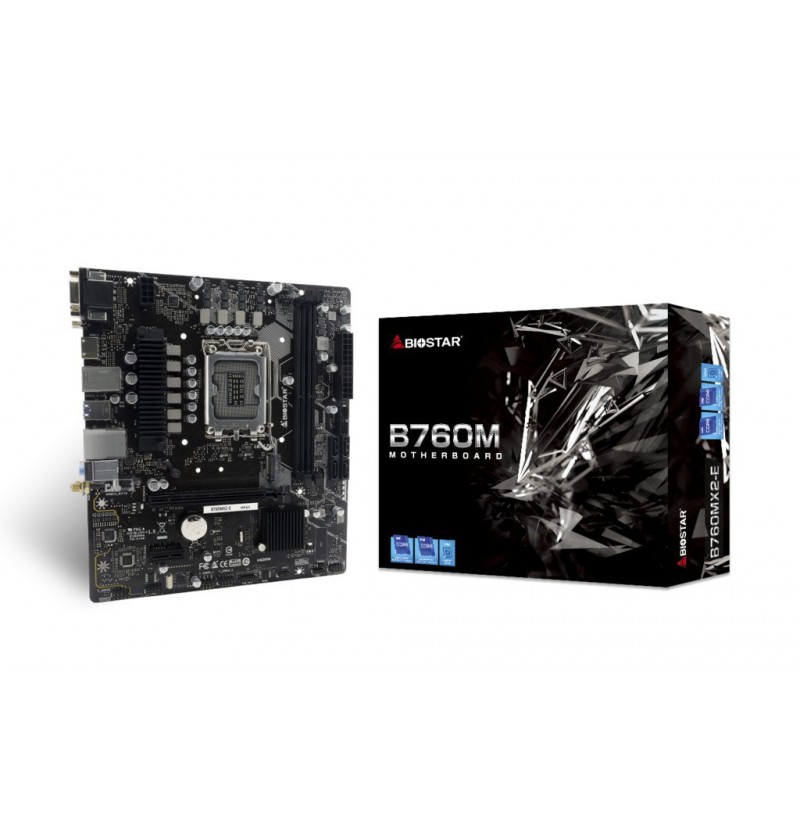

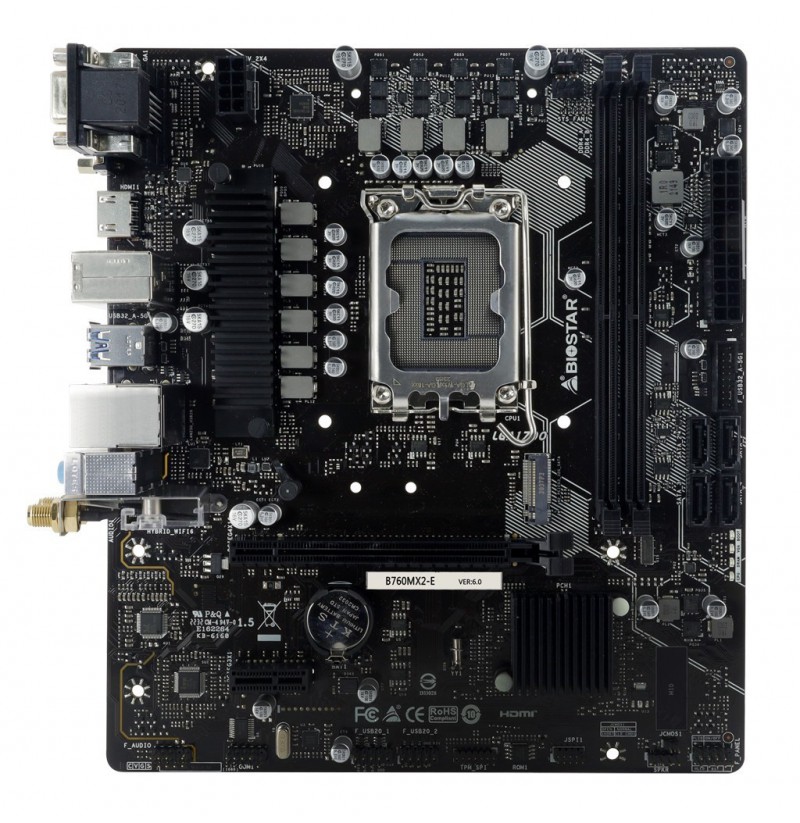

Biostar B760MX2-E D4 motherboard Intel B760 LGA 1700 micro ATX Padidinti

Biostar B760MX2-E D4 motherboard Intel B760 LGA 1700 micro ATX

96,11 €

4712960686892

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Compatible processor series: Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i3, Intel® Pentium®, Intel® Core™ i5, Intel® Celeron®
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Audio output channels: 7.1 channels
Power source type: ATX
Cooling type: Passive
Windows operating systems supported: Yes
Audio chip: Realtek ALC897
Motherboard chipset: Intel B760
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Maximum internal memory: 64 GB
Supported memory clock speeds: 5400, 6000, 5600, 5200 MHz, 4800
Depth: 208 mm
Width: 236 mm
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Yes (no WiFi card included): Yes (no WiFi card included)
Number of M.2 (E) slots: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
Number of chassis fan connectors: 1
Number of COM connectors: 1
Front panel audio connector: Yes
USB 2.0 connectors: 2
ATX Power connector (24-pin): Yes
Front panel connector: Yes
TPM connector: Yes
EPS power connector (8-pin): Yes
Drivers included: Yes
Cables included: SATA
Set contents: WiFi antenna accessories
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III

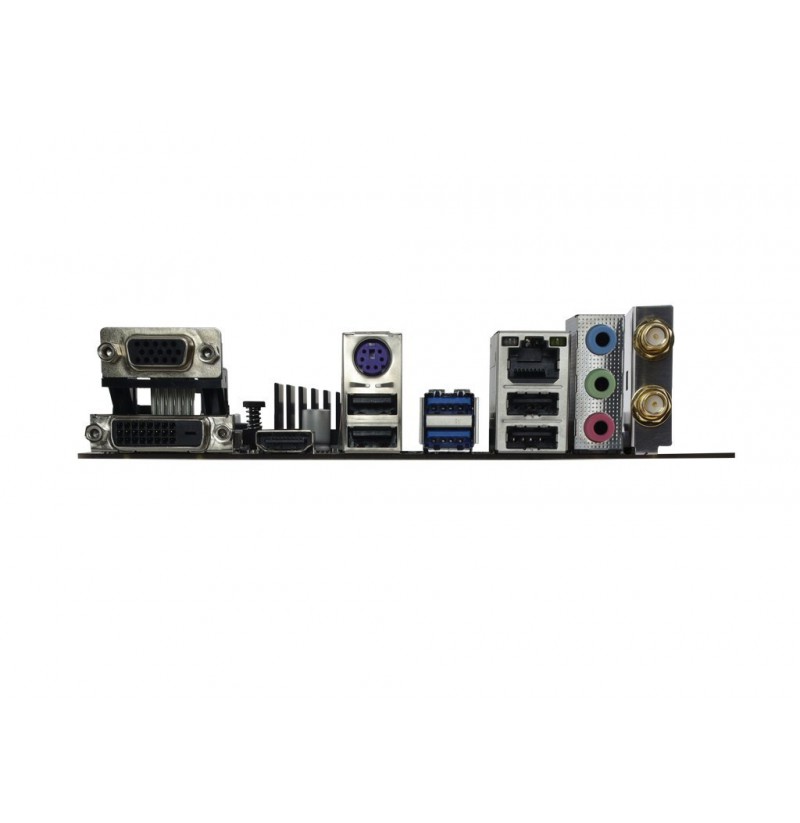

Ethernet LAN (RJ-45) ports: 1
DVI ports quantity: 1
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Audio ports quantity: 3
HDMI ports quantity: 1
Number of Wi-Fi antenna ports: 1
PCI Express x4 (Gen 4.x) slots: 1
