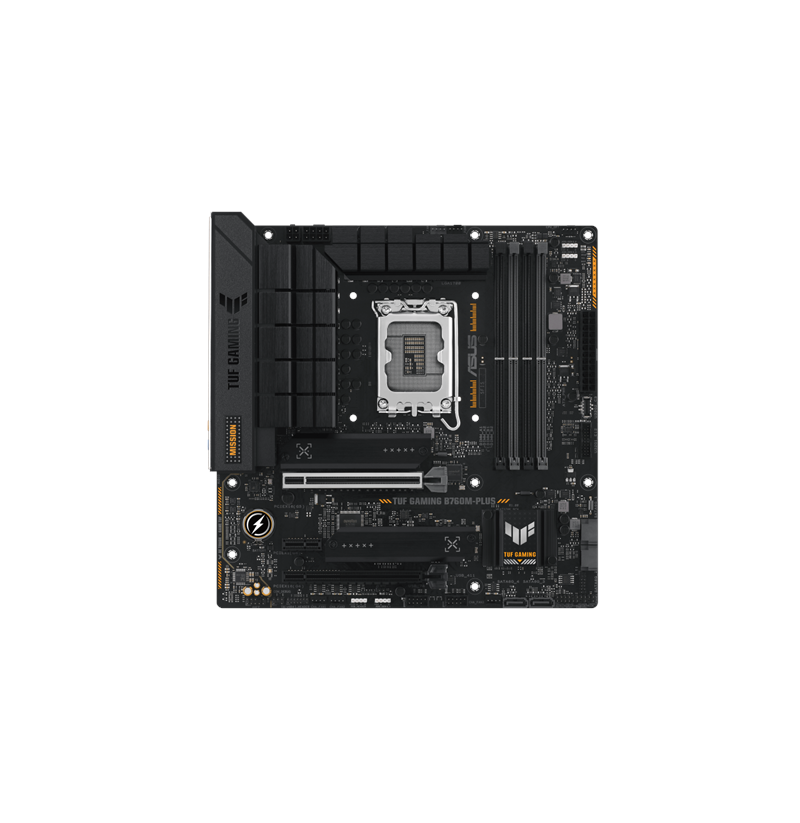

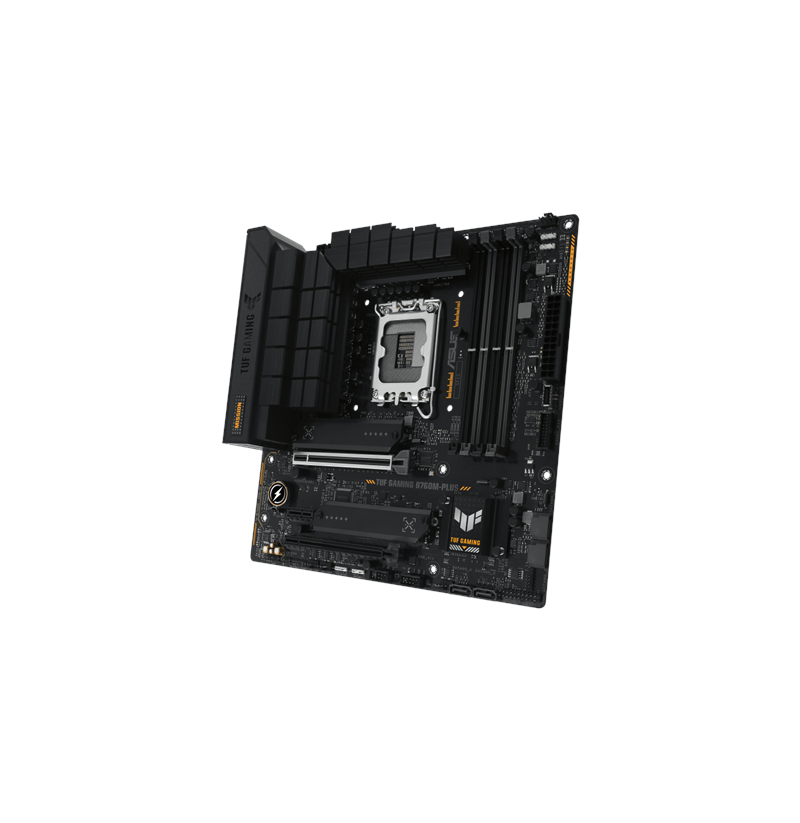

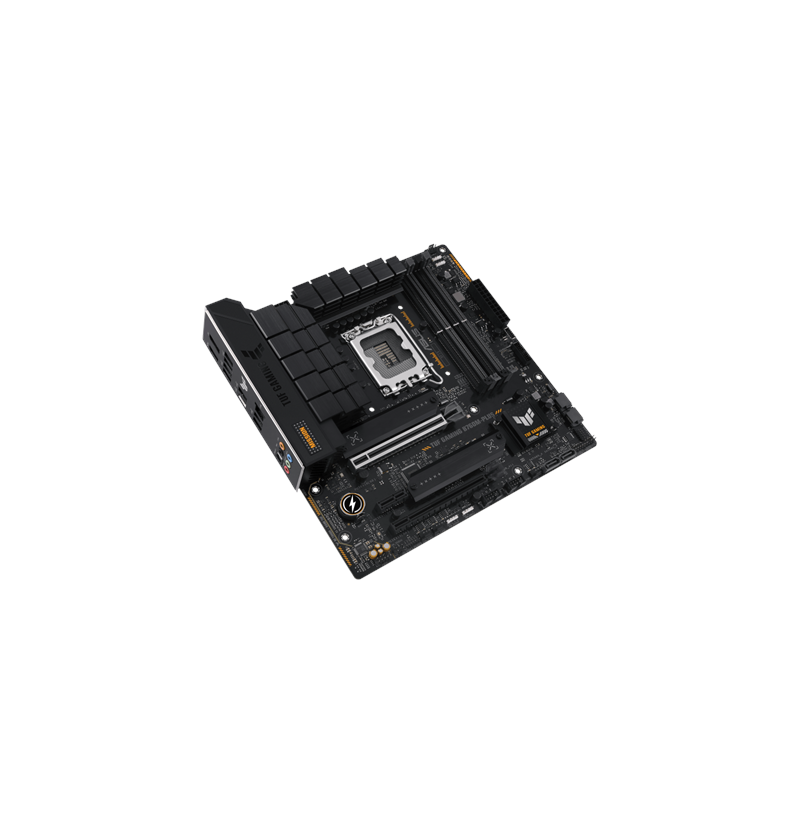

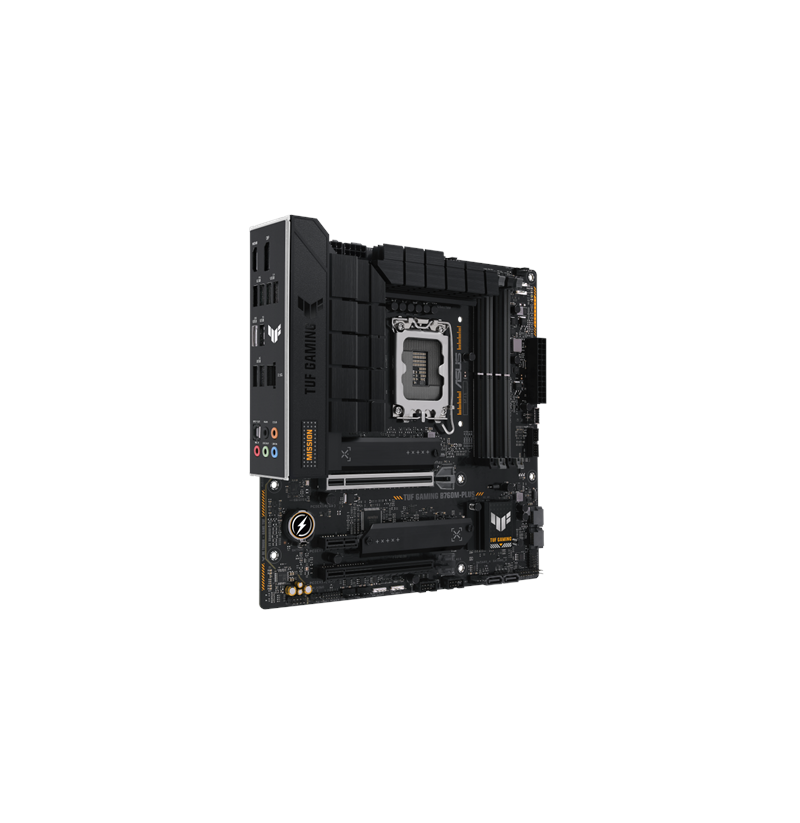

Asus TUF GAMING B760M-PLUS Processor family Intel Padidinti

ASUS TUF GAMING B760M-PLUS | Asus | Processor family Intel B760 | Processor socket 1 x LGA1700 Socket | 4 DIMM slots - DDR5, non

185,11 €

90MB1ES0-M0EAY0

4711387139349

Galimas pasirinkimas

 1..4 d.d.


Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
Parallel processing technology support: Not supported
Audio output channels: 7.1 channels
Motherboard chipset: Intel B760
Component for: PC
Power source type: ATX
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10, Windows 11
Cooling type: Passive
Supported memory clock speeds: 6000, 4800, 7000, 6800, 5000, 6200, 5800, 5400, 5200, 6600, 5600, 7200, 6400
ECC сompatibility: Non-ECC
Non-ECC: Yes
Memory channels: Dual-channel
Number of memory slots: 4
Memory slots type: DIMM
Supported memory types: DDR5-SDRAM
Maximum internal memory: 128 GB
Unbuffered memory: Yes
Supported memory clock speed (max): 7200 MHz
Depth: 244 mm
Width: 244 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Wi-Fi: No
Thunderbolt headers: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
EPS power connector (8-pin): Yes
USB 2.0 connectors: 2
12V power connector: Yes
Number of SATA III connectors: 4
Front panel connector: Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
ATX Power connector (24-pin): Yes
RGB LED pin header: Yes
Peripheral (Molex) power connectors (4-pin): 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
BIOS memory size: 128 Mbit
BIOS type: UEFI AMI
Package weight: 1.57 kg
Package height: 67.5 mm
Package depth: 275 mm
Package width: 275 mm
Cables included: SATA
RAID levels: 10, 0, 1, 5
Number of storage drives supported: 6
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
RAID support: Yes
USB 2.0 ports quantity: 2
S/PDIF out port: Yes
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI version: 2.1
DisplayPort version: 1.4
Line-in: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Microphone in: Yes
HDMI ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
