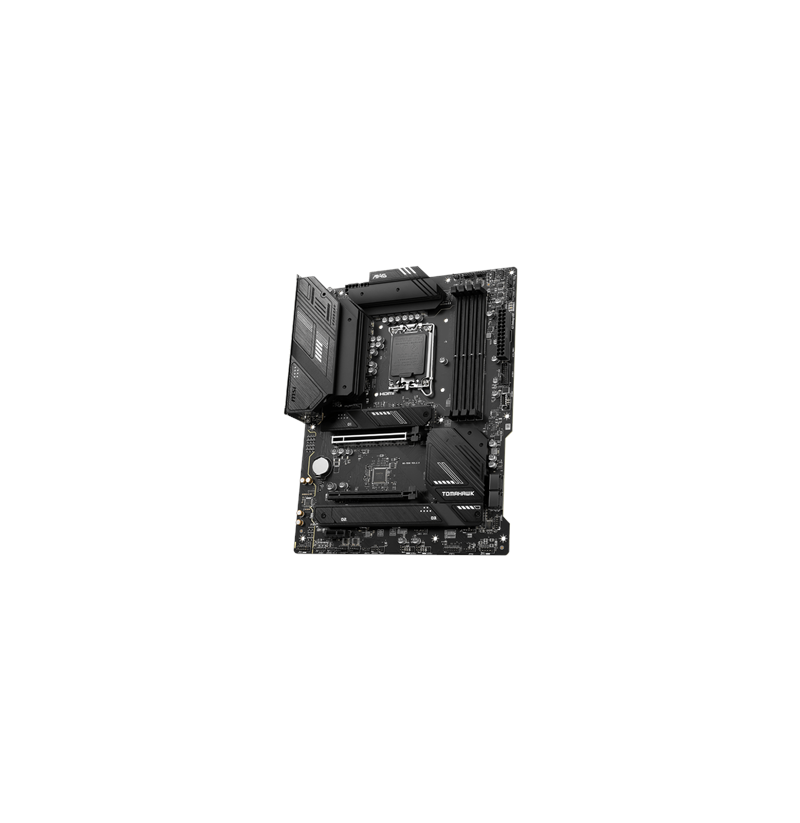

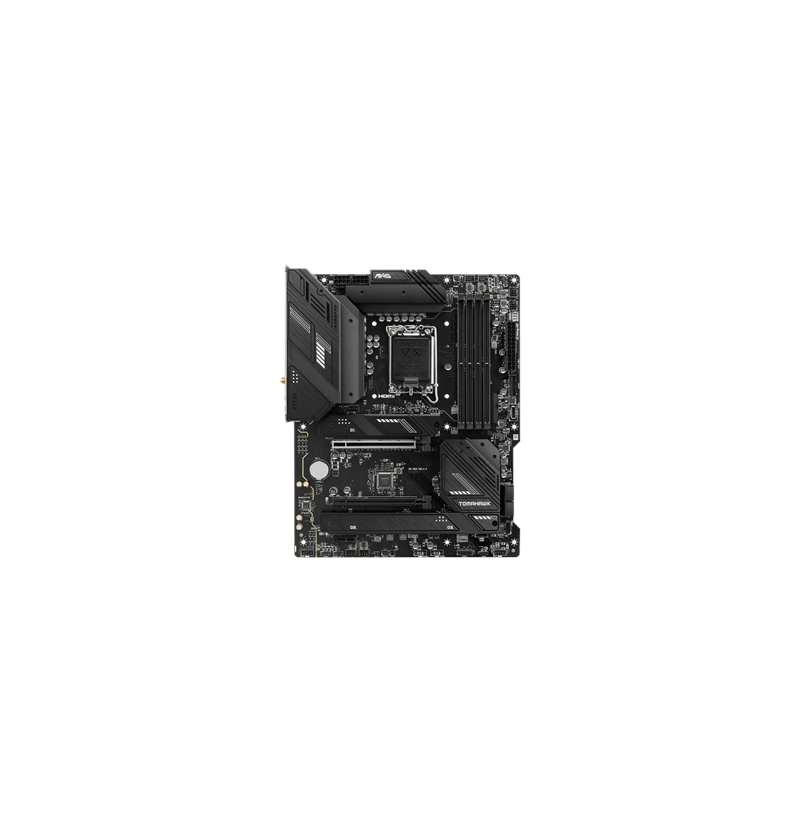

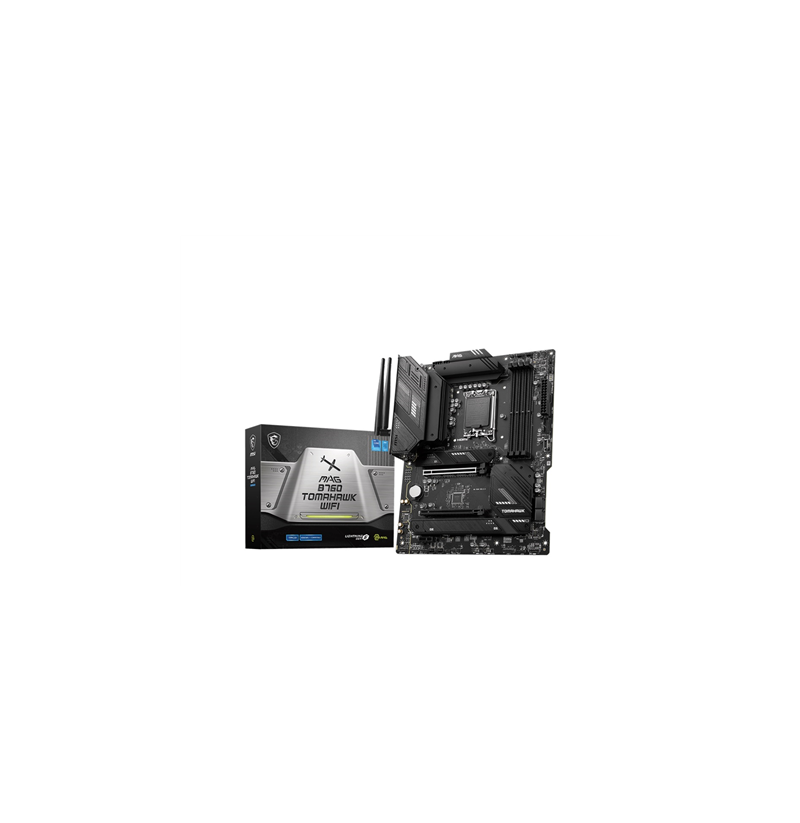

MSI MAG B760 TOMAHAWK WIFI Processor family Intel Processor socket LGA1700 DDR5 Supported hard disk drive interfaces SATA, M.2 N Padidinti

MSI | MAG B760 TOMAHAWK WIFI | Processor family Intel | Processor socket LGA1700 | DDR5 | Supported hard disk drive interfaces S

183,52 €

MAG B760 TOMAHAWK WIFI

4711377034210

Galimas pasirinkimas

 1..4 d.d.


Supported processor sockets: LGA 1700
Maximum number of SMP processors: 1
Processor socket: LGA 1700
Processor manufacturer: Intel
Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold
On-board graphics card: No
Motherboard chipset family: Intel
Audio chip: Realtek ALC897
Product colour: Black
Motherboard form factor: ATX
Power source type: ATX
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 10, Windows 11
Supported memory clock speeds: 6800, 6000, 5800, 5400, 5000, 5200 MHz, 7000, 6200, 6400, 5600, 6600, 4800
Maximum internal memory: 128 GB
Supported memory clock speed (max): 7000 MHz
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Width: 243.8 mm
Depth: 304.8 mm
Bluetooth: Yes
Wi-Fi standards: Wi-Fi 4 (802.11n), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), 802.11b, 802.11g, Wi-Fi 5 (802.11ac)
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Ethernet LAN: Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
S/PDIF out connector: Yes
USB 2.0 connectors: 4
ATX Power connector (24-pin): Yes
Front panel audio connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
TPM connector: Yes
Front panel connector: Yes
RGB LED pin header: Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
BIOS type: UEFI AMI
Supported storage drive interfaces: M.2, SATA III
RAID levels: 0, 1, 10, 5
RAID support: Yes
Ethernet LAN (RJ-45) ports: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
HDMI ports quantity: 1
HDMI version: 2.1
PCI Express x16 slots: 2
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 3.x) slots: 1
