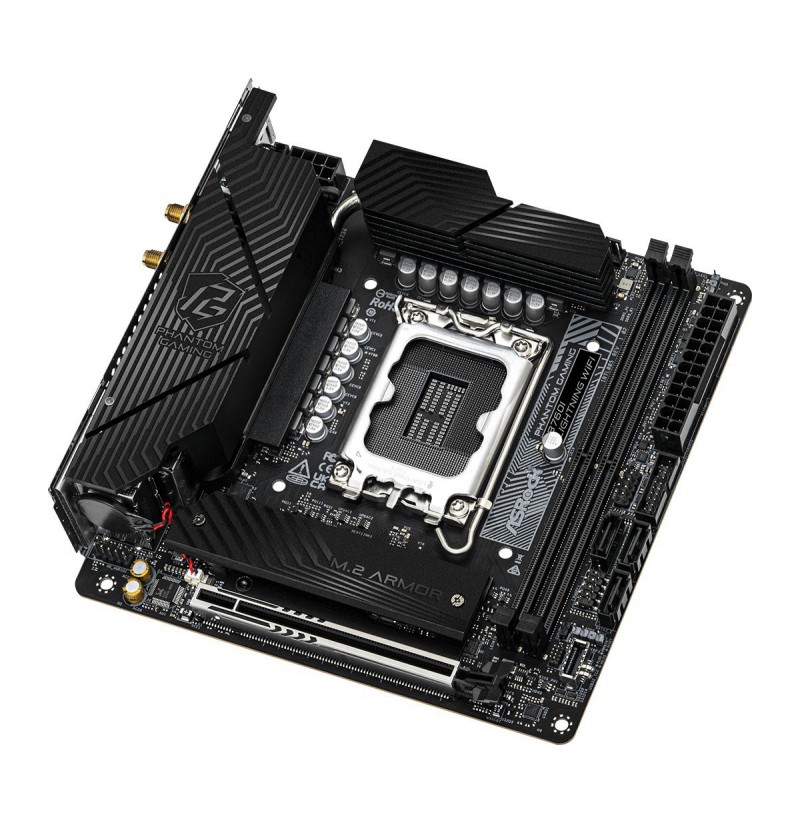

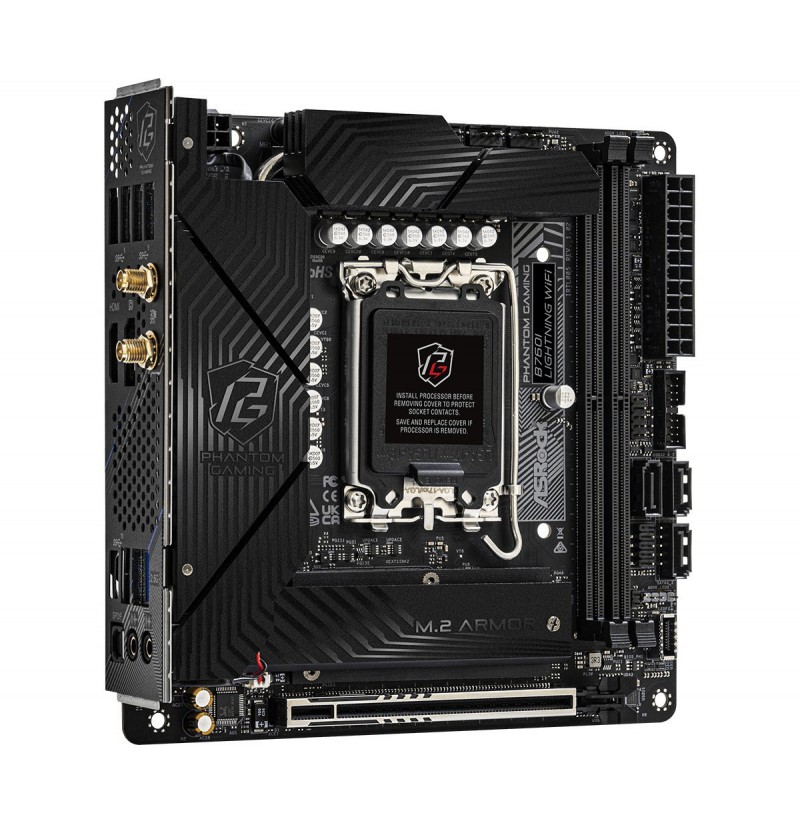

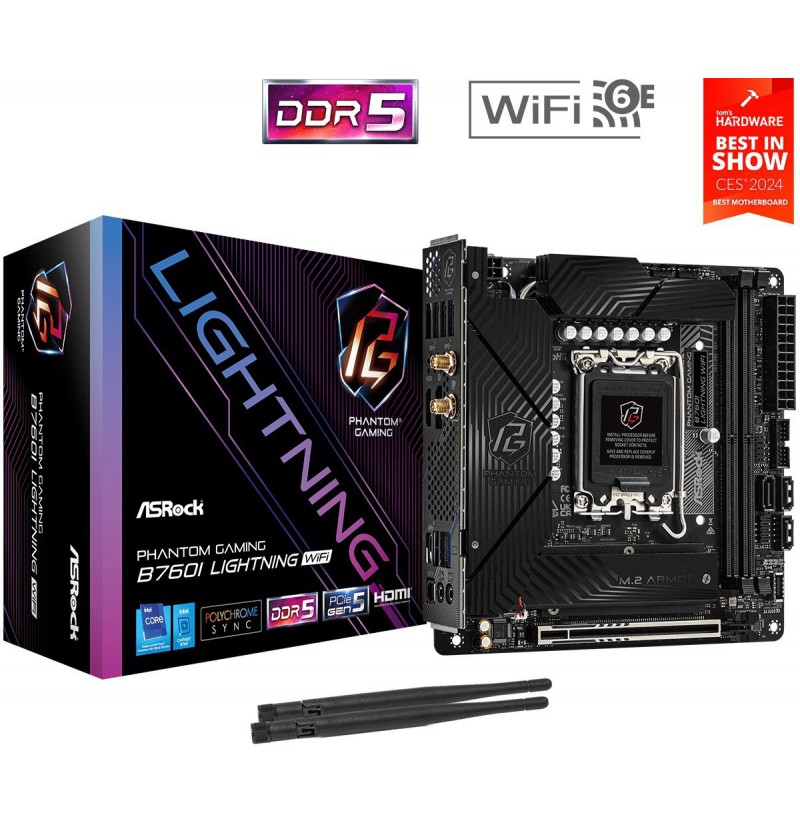

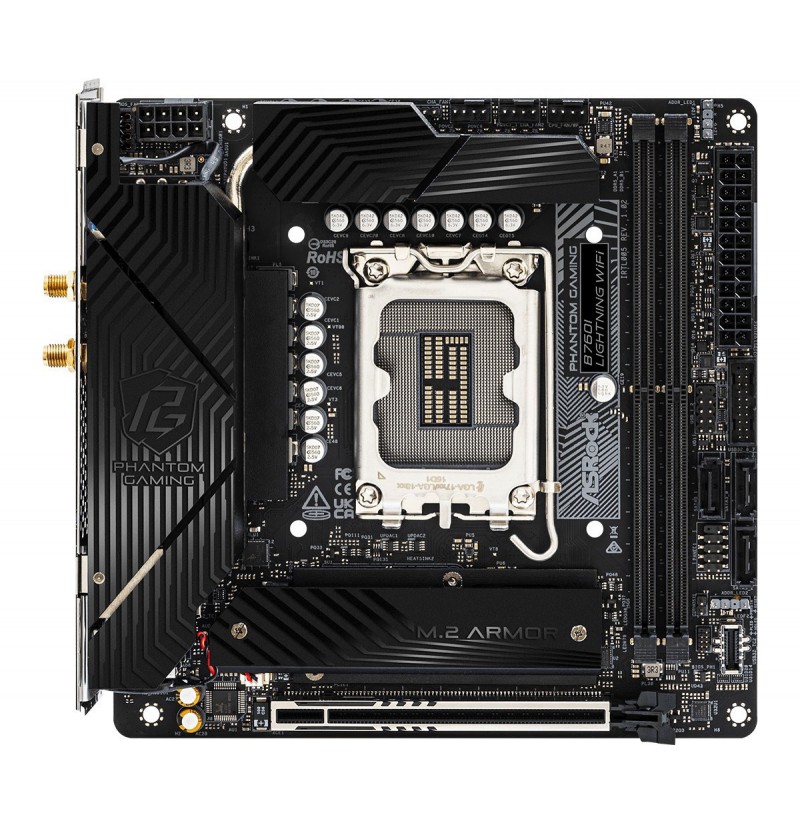

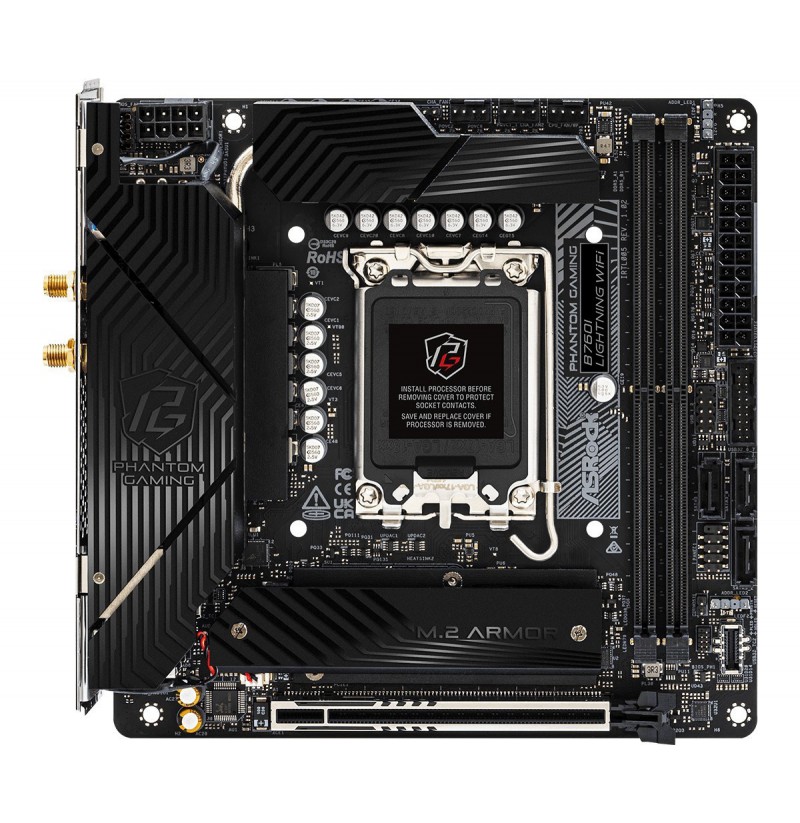

Płyta główna ASRock B760I LIGHTNING WIFI Padidinti

Płyta główna ASRock B760I LIGHTNING WIFI

188,65 €

4710483946677

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
Processor socket: LGA 1700
Maximum resolution: 7680 x 4320 pixels
Certification: FCC, CE, ErP/EuP
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset: Intel B760
Audio output channels: 7.1 channels
Motherboard form factor: Mini-ITX
Audio chip: Realtek ALC897
Product colour: Black
Motherboard chipset family: Intel
Memory channels: Dual-channel
Supported memory clock speed (max): 8600 MHz
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Maximum internal memory: 96 GB
Width: 170 mm
Depth: 170 mm
Wi-Fi: Yes
Wi-Fi standards: 802.11 axe, 802.11a, Wi-Fi 6 (802.11ax), 802.11b, Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard: Wi-Fi 6E (802.11axe)
Ethernet interface type: 2.5 Gigabit Ethernet
Bluetooth version: 5.3
Ethernet LAN: Yes
LAN controller: Dragon RTL8125BG
Bluetooth: Yes
Number of addressable LED slots: 2
USB Type-C socket on the front panel: Y
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
CPU fan connector: Yes
12V power connector: Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Front panel audio connector: Yes
USB 2.0 connectors: 1
Number of SATA III connectors: 3
ATX Power connector (24-pin): Yes
BIOS type: UEFI AMI
Cables included: SATA
Screws included: Yes
Antenna included: Yes
Number of storage drives supported: 5
RAID levels: 0, 1, 5
Supported storage drive types: HDD & SSD
RAID support: Yes
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
SPDIF optical output: Y
Number of USB 3.2 Gen 2 Type-C ports: 1
Number of USB 3.2 Gen 1 ports: 4
MIC input: 1
HDMI ports quantity: 1
Number of USB 3.2 Gen 2 Type-A ports: 1
WiFi-AP antenna jack: 2
Line-out: Yes
DisplayPort version: 1.4
USB connector type: USB Type-A, USB Type-C
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 2
