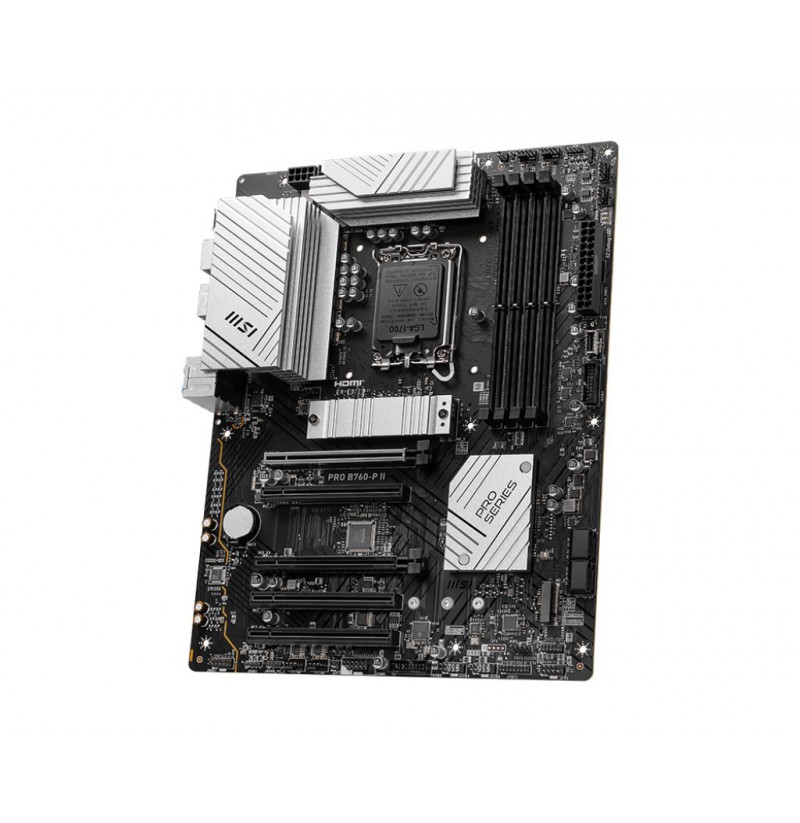

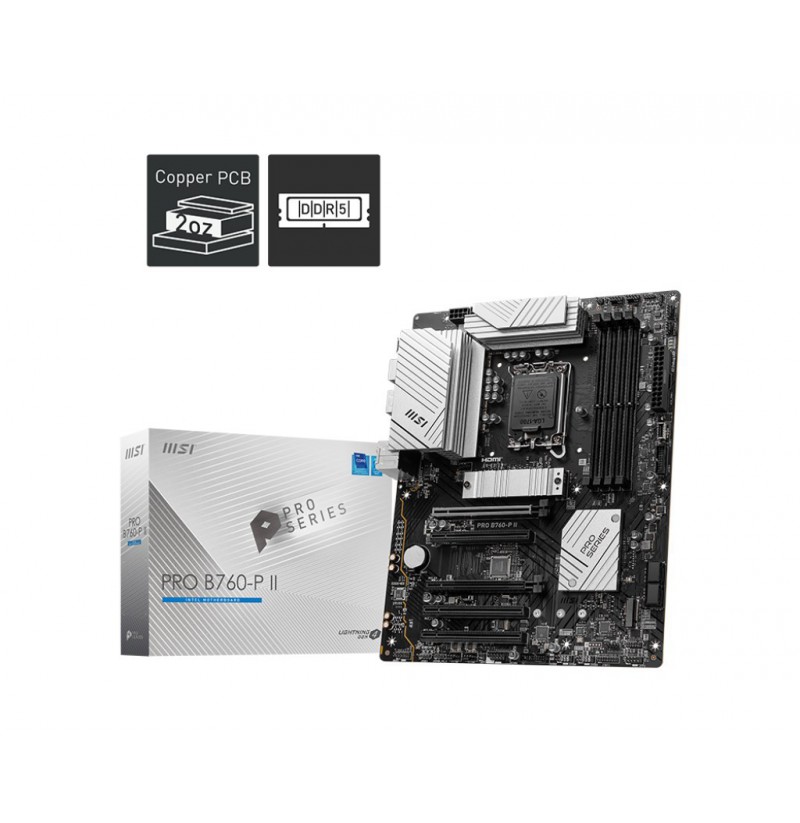

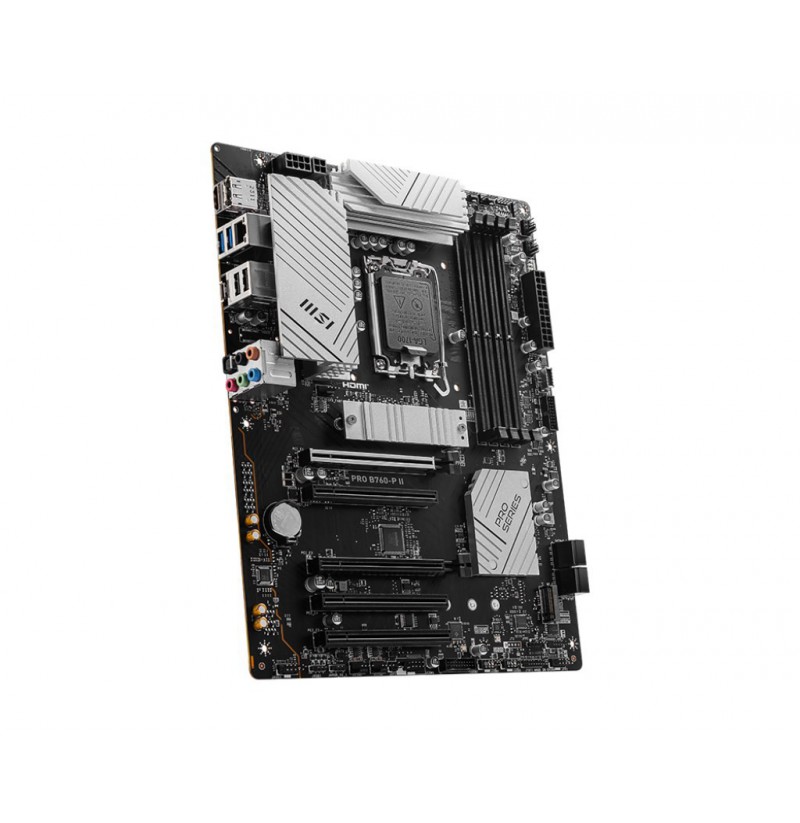

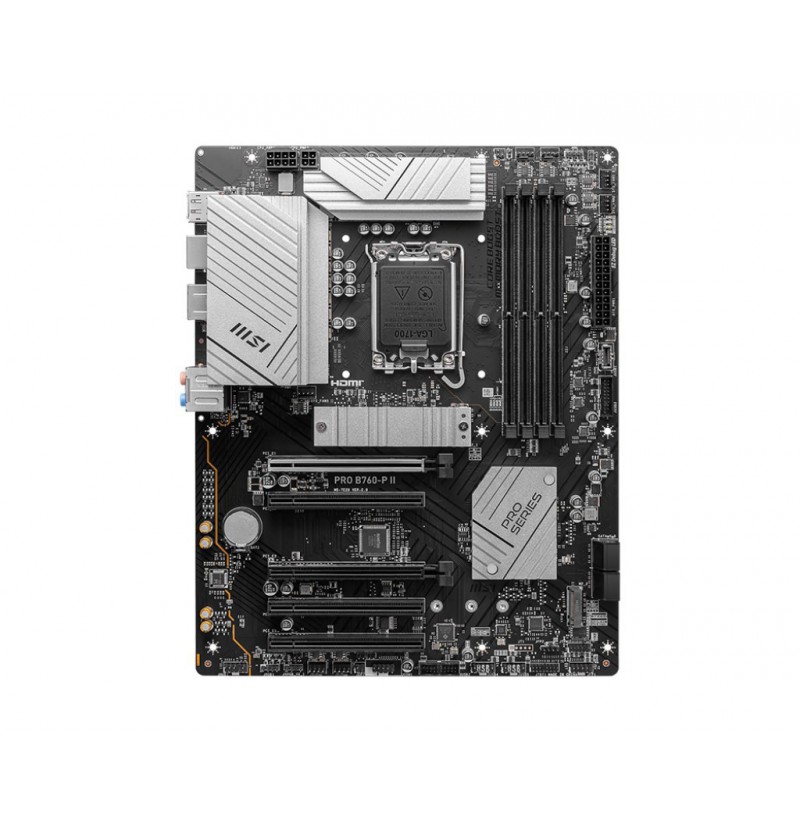

MSI PRO B760-P II motherboard Intel B760 LGA 1700 ATX Padidinti

MSI | PRO B760-P II | Processor family Intel | Processor socket LGA1700 | DDR5 | Number of SATA connectors 4

143,35 €

4711377193887

Galimas pasirinkimas

 1..4 d.d.


Maximum internal memory supported by processor: 256 GB
Processor socket: LGA 1700
Compatible processor series: Intel® Core™ i7, Intel® Core™ i3, Intel® Core™ i5, Intel® Pentium® Gold, Intel® Celeron®
Processor manufacturer: Intel
Motherboard chipset: Intel B760
Audio chip: Realtek ALC897
Motherboard chipset family: Intel
Motherboard form factor: ATX
Component for: PC
Audio output channels: 7.1 channels
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Supported memory clock speed (max): 7000 MHz
Non-ECC: Yes
Supported memory clock speeds: 5000, 5600, 6400, 6200, 5200, 6600, 6000, 4800, 7000, 5800, 5400, 6800
Unbuffered memory: Yes
Maximum internal memory: 256 GB
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Memory channels: Dual-channel
Memory slots type: DIMM
Width: 243.8 mm
Depth: 304.8 mm
Ethernet interface type: 2.5 Gigabit Ethernet
Wi-Fi: No
LAN controller: Realtek RTL8125-BG
Ethernet LAN: Yes
Chassis intrusion connector: Yes
Front panel connector: Yes
S/PDIF out connector: Yes
Power fan connector: Yes
ATX Power connector (24-pin): Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
12V power connector: Yes
CPU fan connector: Yes
Number of SATA III connectors: 4
USB 2.0 connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel audio connector: Yes
BIOS memory size: 256 Mbit
ACPI version: 6.4
System Management BIOS (SMBIOS) version: 3.5
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Clear CMOS button: Yes
Drivers included: Yes
Cables included: SATA
Number of HDDs supported: 4
RAID levels: 0, 5, 10, 1
RAID support: Yes
Supported storage drive interfaces: PCI Express 4.0, SATA III
Number of storage drives supported: 6

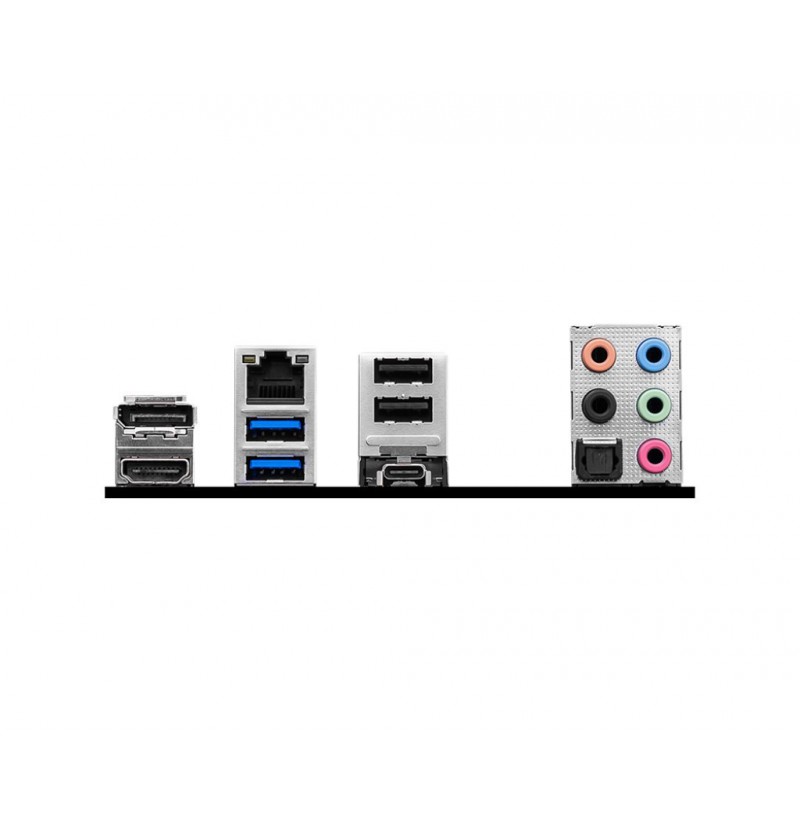

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
DisplayPorts quantity: 1
DisplayPort version: 1.4
PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 2
Number of M.2 (M) slots: 2
