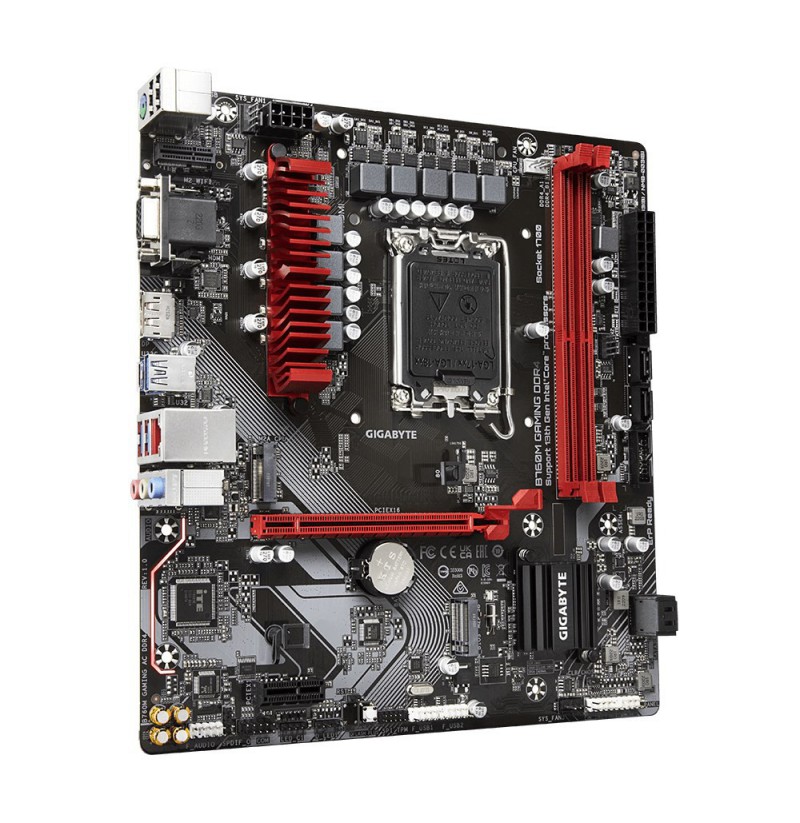

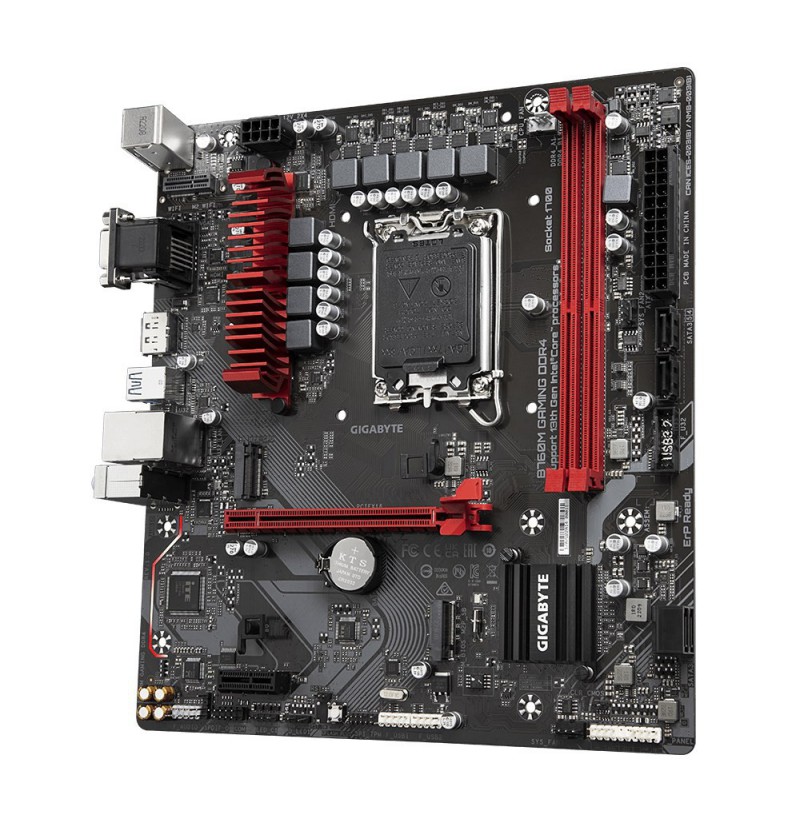

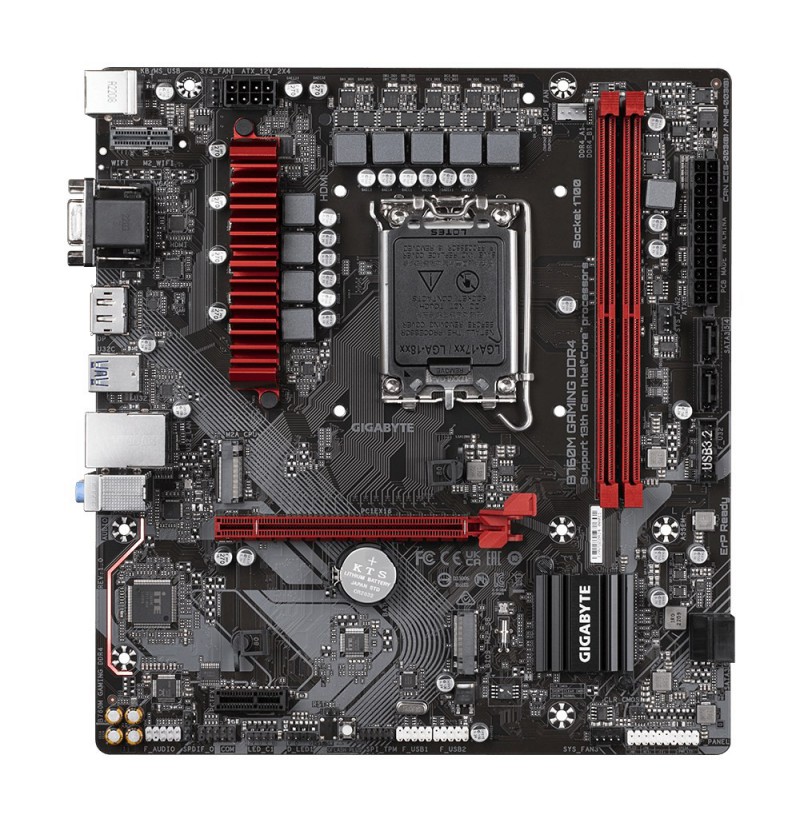

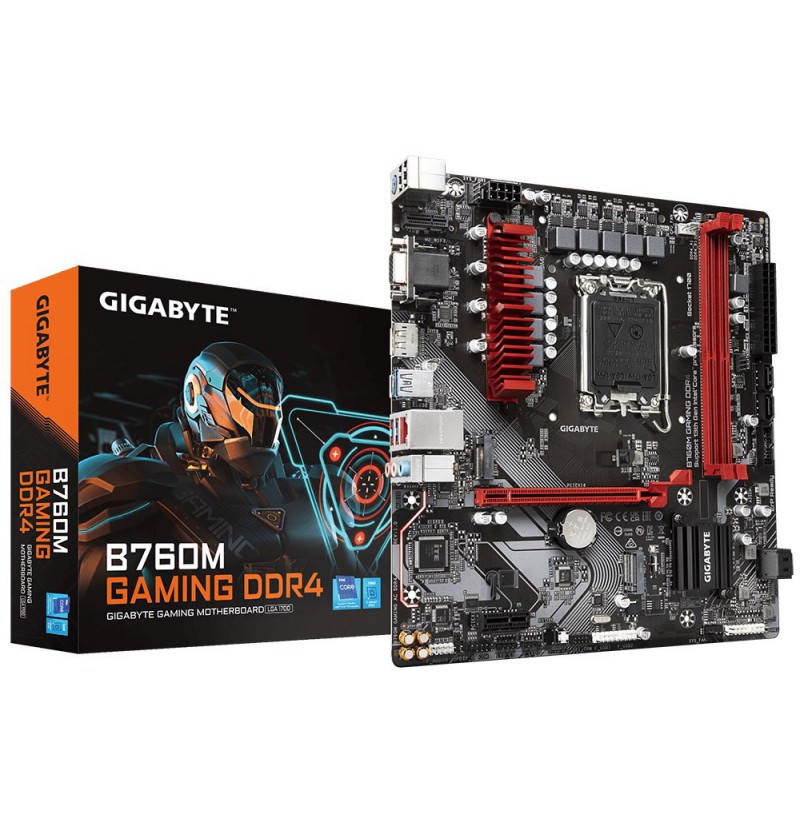

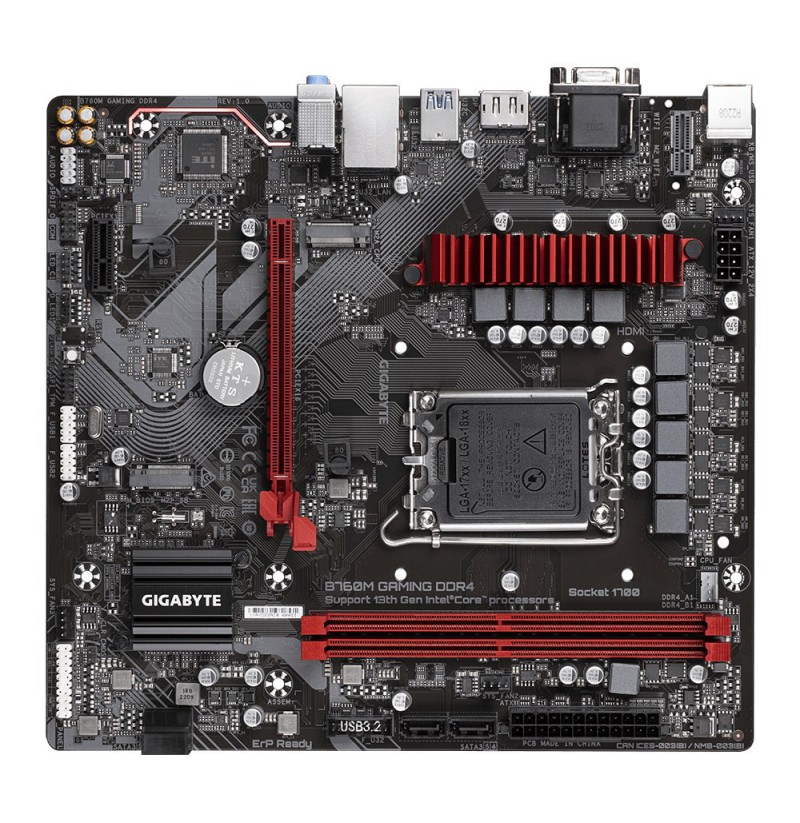

Gigabyte B760M GAMING DDR4 1.0 M/B Processor family Intel Padidinti

Gigabyte | B760M GAMING DDR4 1.0 M

104,00 €

B760M GAMING DDR4

4719331851415

Galimas pasirinkimas

 1..4 d.d.


Supported processor sockets: LGA 1700
Compatible processor series: Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Processor manufacturer: Intel
Processor socket: LGA 1700
HDCP: Yes
Maximum resolution: 4096 x 2304 pixels
Parallel processing technology support: Not supported
Number of displays supported: 3
Windows operating systems supported: Windows 11 x64, Windows 10 x64
Motherboard chipset family: Intel
Audio output channels: 7.1 channels
PC health monitoring: Voltage, Water cooling, Temperature, Fan
Motherboard form factor: micro ATX
Motherboard chipset: Intel B760 Express
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR4-SDRAM
Unbuffered memory: Yes
Supported memory clock speeds: 3400, 3866, 3466, 3800, 3333, 4600, 2933, 3600, 3300, 5133 MHz, 3200, 2666, 4266, 4500, 2400, 4700, 3733, 4300, 4400, 5000, 2133, 3000, 5333, 4133, 4000, 3666, 4800, 4933
Maximum internal memory: 64 GB
Width: 244 mm
Depth: 225 mm
Wi-Fi: No
Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
EPS power connector (8-pin): Yes
Number of SATA III connectors: 4
Serial port headers: 1
CPU fan connector: Yes
Front panel connector: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
12V power connector: Yes
RGB LED pin header: Yes
S/PDIF out connector: Yes
Clear CMOS jumper: Yes
BIOS type: UEFI AMI
Desktop Management Interface (DMI) version: 2.7
Bundled software: Norton Internet Security
Cables included: SATA
Number of storage drives supported: 6
RAID levels: 10, 1, 0, 5
Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III
RAID support: Yes
Supported storage drive types: HDD & SSD
HDMI version: 2.0
DisplayPort version: 1.2

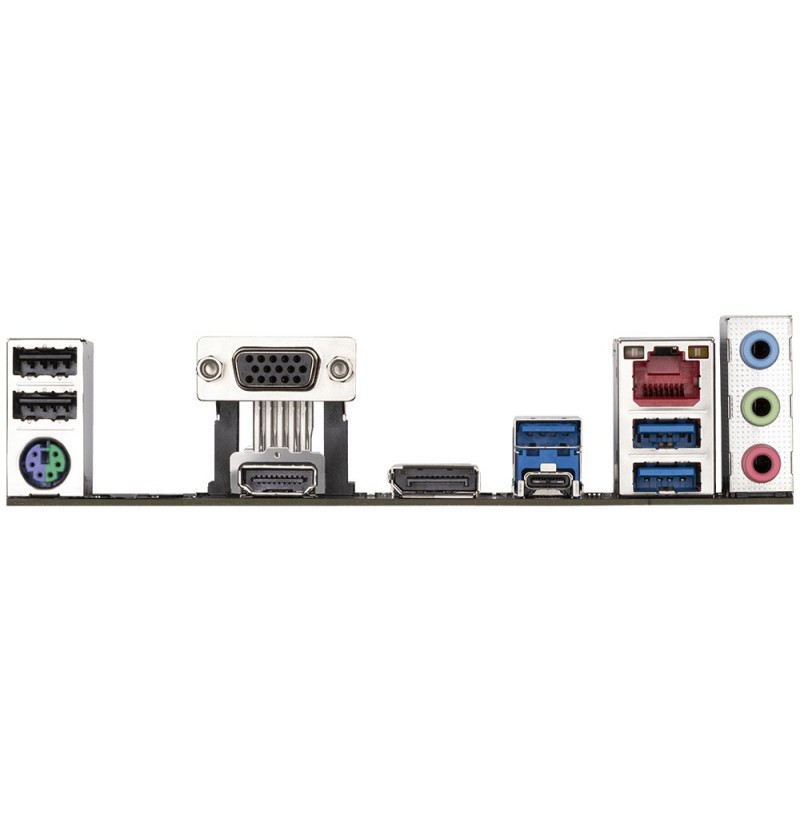

USB connector type: USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
HDMI ports quantity: 1
DisplayPorts quantity: 1
PS/2 ports quantity: 1
Microphone in: Yes
USB 2.0 ports quantity: 2
VGA (D-Sub) ports quantity: 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Headphone outputs: 3
Number of M.2 (M) slots: 2
PCI Express x1 slots: 1
PCI Express x16 slots: 1
