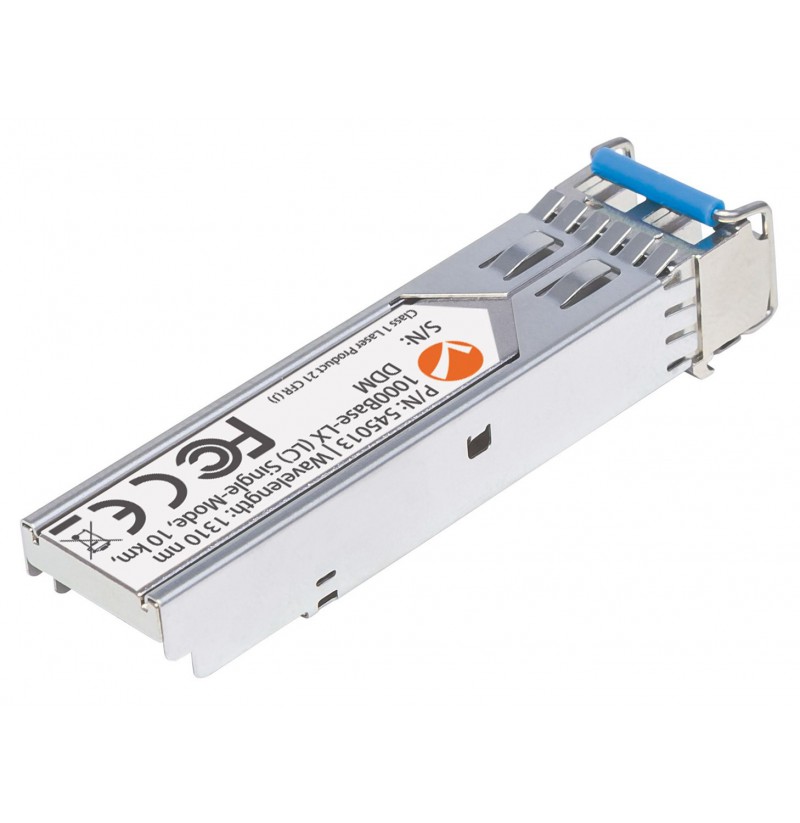

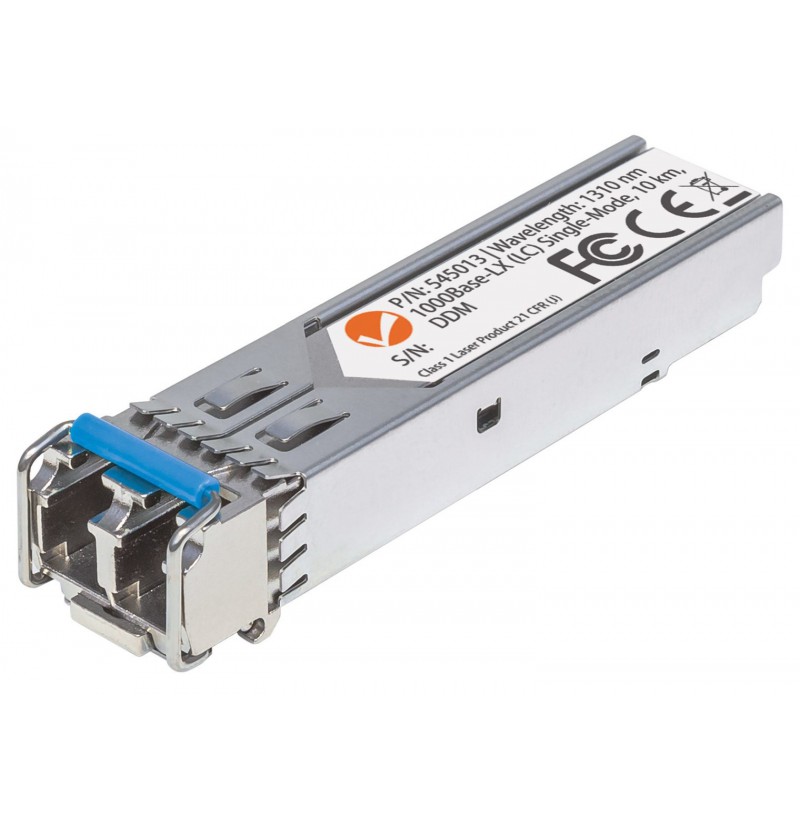

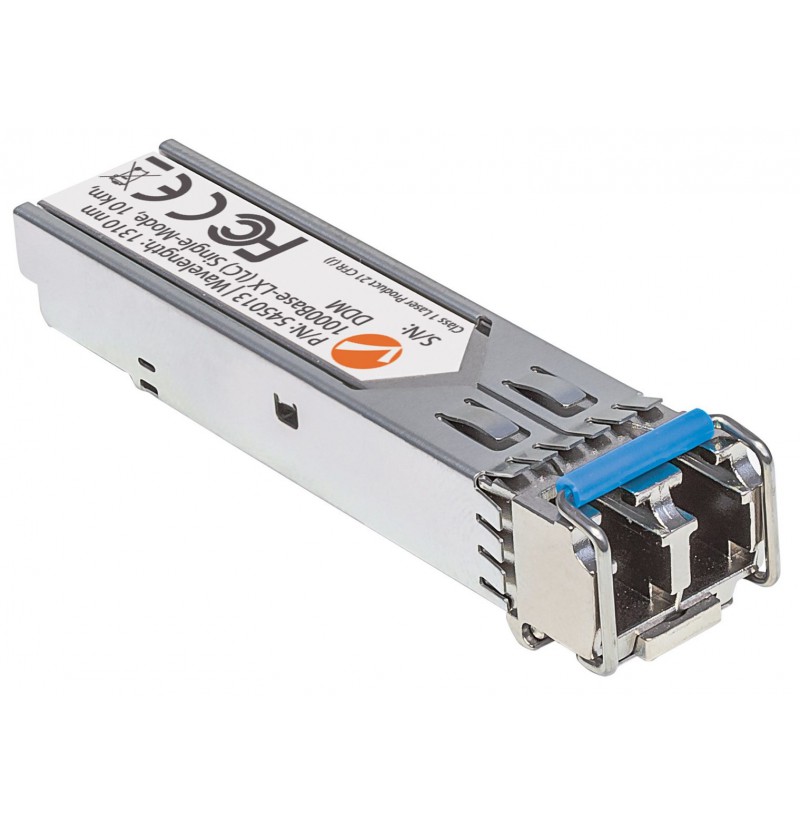

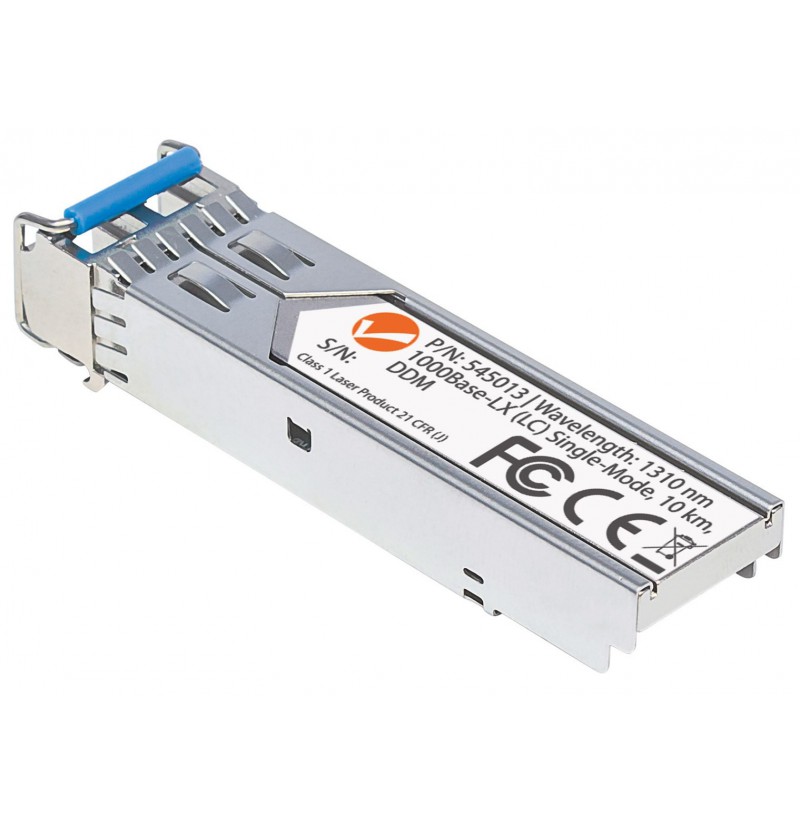

Intellinet Gigabit Fibre SFP Optical Transceiver Module, 1000Base-Lx (LC) Single-Mode Port, 10km Padidinti

Intellinet Gigabit Fibre SFP Optical Transceiver Module, 1000Base-Lx (LC) Single-Mode Port, 10km

23,54 €

7666235450138

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Sustainability certificates: RoHS
Certification: FCC Class A, CE Mark
Hot-Plug support: Yes
Product colour: Aluminium
Input voltage: 3.3 V
Power consumption (typical): 1 W
Operating temperature (T-T): 0 - 70 °C
Operating relative humidity (H-H): 10 - 85%
Storage temperature (T-T): -40 - 85 °C
Weight: 18 g
Width: 14 mm
Height: 12 mm
Depth: 57 mm
Wavelength: 1310 nm
Tx power (max): -3 dBmW
Networking standards: IEEE 802.3z
Maximum transfer distance: 10000 m
Interface type: SFP
SFP transceiver type: Fiber optic
Maximum data transfer rate: 1000 Mbit/s
Ethernet interface type: Gigabit Ethernet
Harmonized System (HS) code: 85369010
Tx power (min): -8 dBmW
Link budget: 14 dB
Single-mode fiber (SMF) supported: Yes
Ethernet LAN: Yes
Duplex system: Full
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
Number of products included: 1 pc(s)
