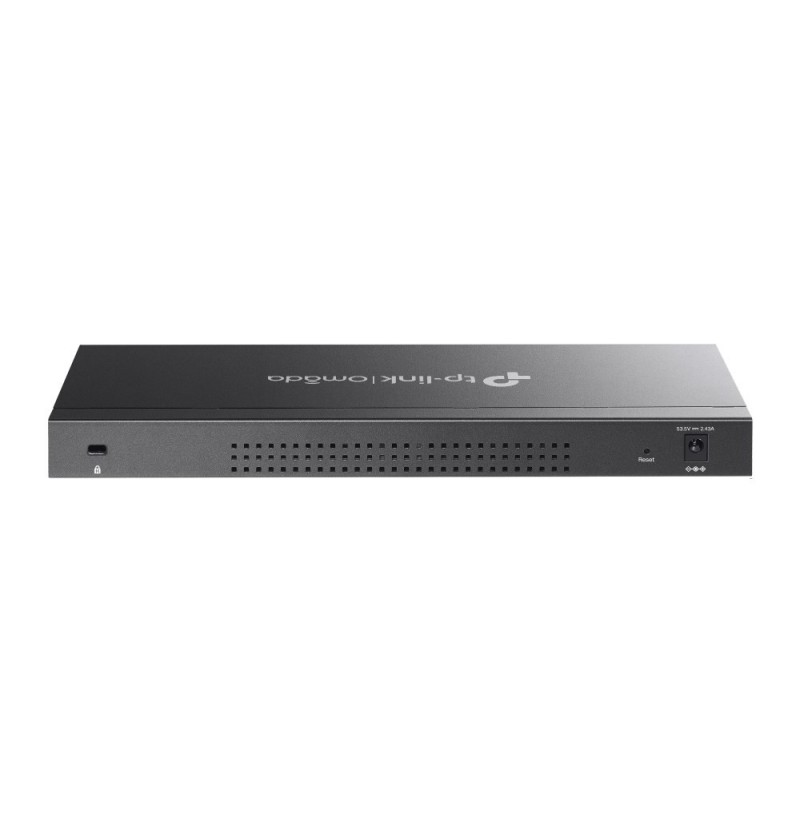

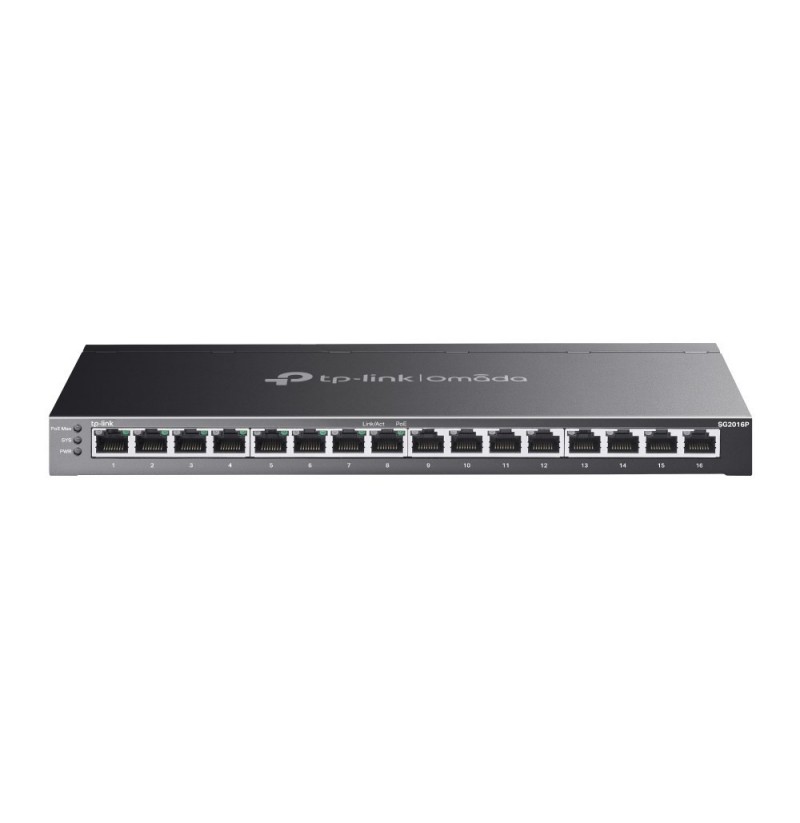

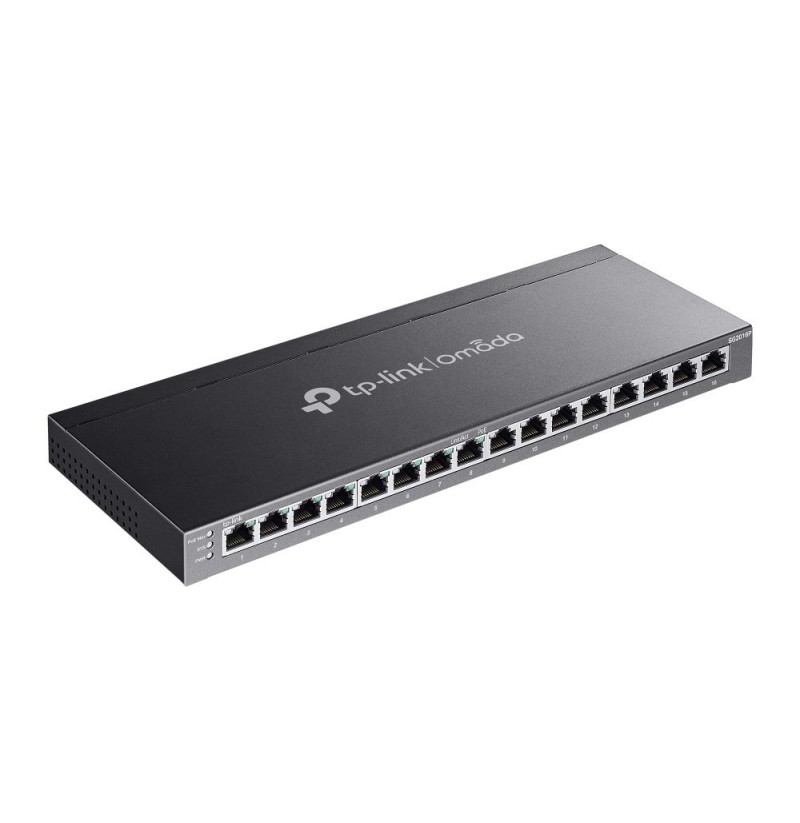

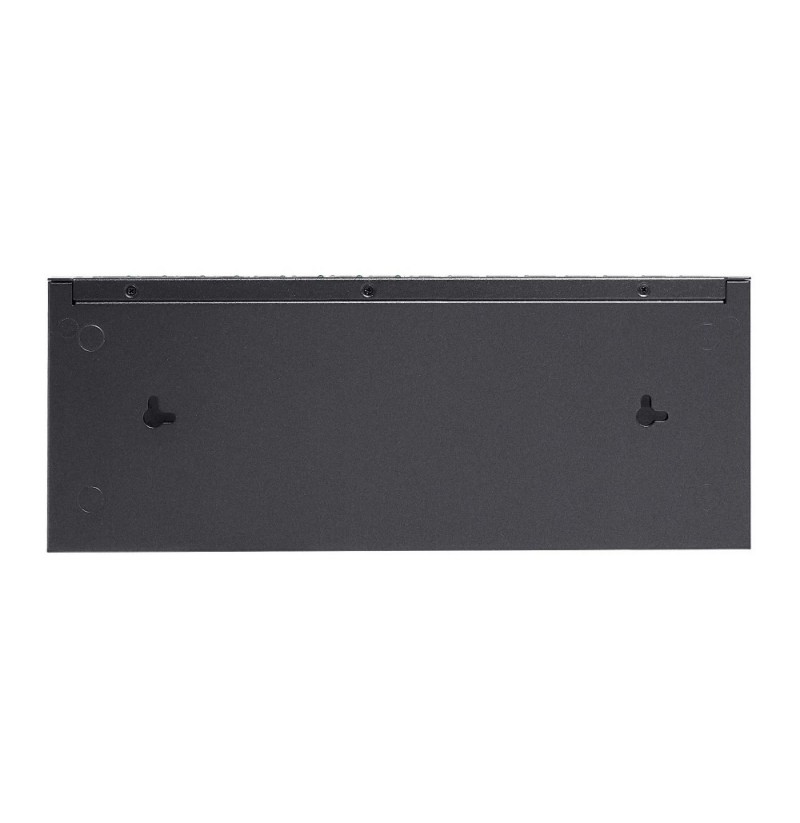

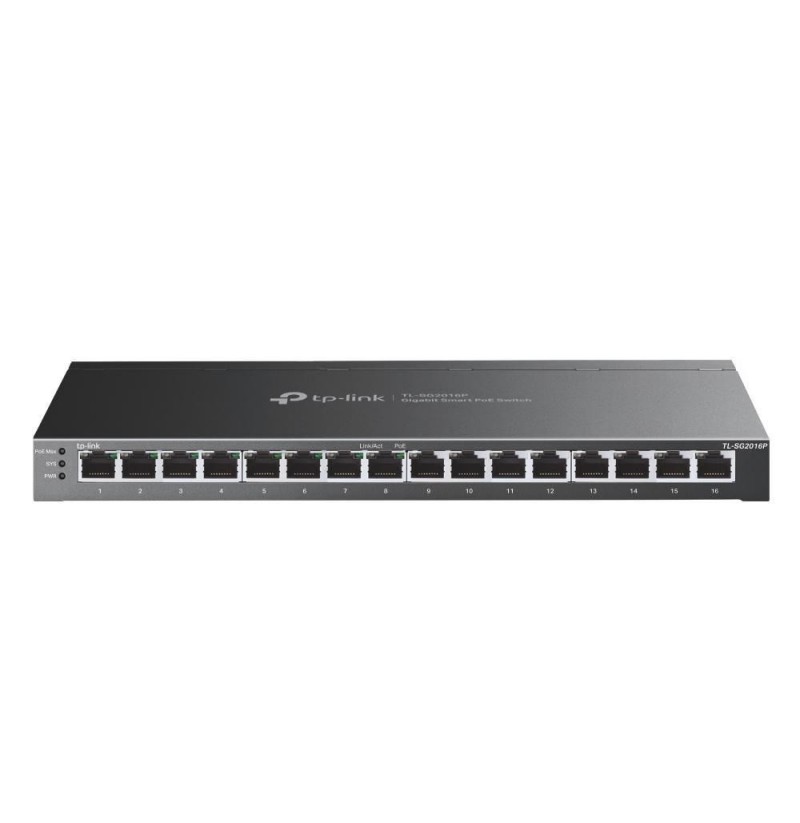

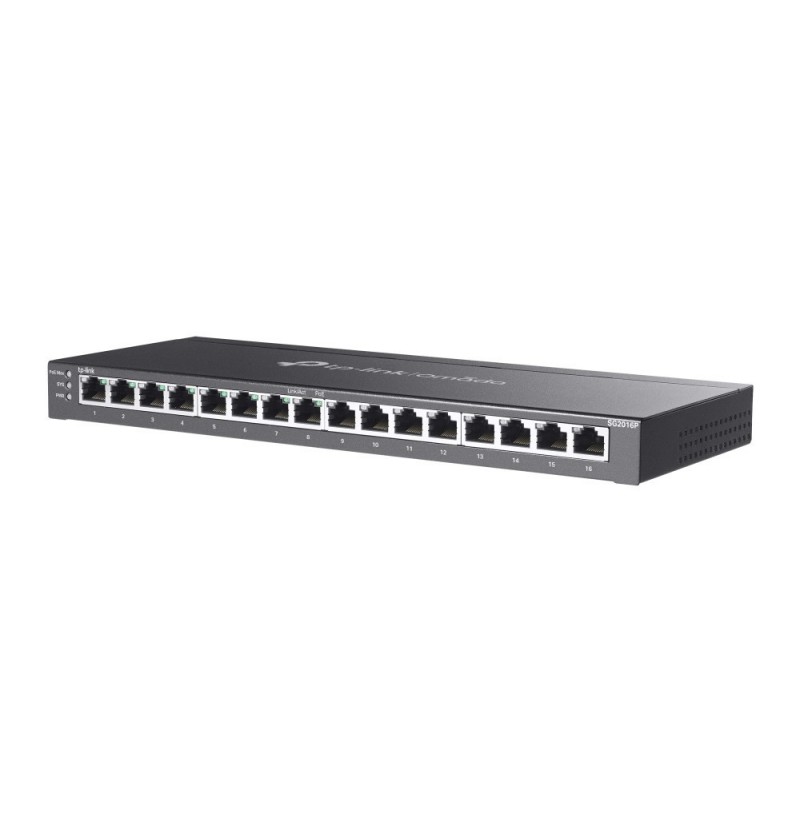

Switch TP-LINK TL-SG2016P

Certification: CE, FCC, RoHS
Product colour: Black
LED indicators: PoE, System, Power
Housing material: Metal
DC input voltage: 53.5 V
Power source: DC/PoE
Power consumption (max): 146.5 W
Input current: 1.31 A
MAC address filtering: Yes
DHCP features: DHCPv6 snooping, DHCP snooping, DHCP relay, DHCPv6 client
BPDU filtering/protection: Yes
IGMP snooping: Yes
Security algorithms: EAP-MD5, SSL/TLS, SNMPv2, HTTPS, SSH, SNMP, SNMPv3
MAC address entries: Dynamic MAC address entries, Static MAC address entries
SSH/SSL support: Yes
Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
Access Control List (ACL): Yes
Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
IP-MAC-Port binding: Yes
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 499.98 BTU/h
Storage temperature (T-T): -40 - 70 °C
Web-based management: Yes
System event log: Yes
Switch layer: L2/L3/L4
Cloud-managed: Yes
MIB support: RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
ARP inspection: Yes
Quality of Service (QoS) support: Yes
Configuring Location Settings (CLI): Yes
Width: 286 mm
Height: 25.4 mm
Depth: 111.7 mm
Ethernet LAN data rates: 10,100,1000 Mbit/s
Broadcast storm control: Yes
Spanning tree protocol: Yes
Auto-negotiation: Yes
Port mirroring: Yes
Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.1p, IEEE 802.1x, IEEE 802.3i, IEEE 802.3ad, IEEE 802.1s, IEEE 802.1D, IEEE 802.11w
10G support: No
Number of VLANs: 4000
Flow control support: Yes
Link aggregation: Yes
Cable types supported: Cat3, Cat5, Cat5e, Cat4
Virtual LAN features: Voice VLAN, Multicast VLAN, Tagged VLAN
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
VLAN support: Yes
Minimum system requirements: Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, MAC OS, NetWare, UNIX, Linux
Firmware upgradeable: Yes
Fanless: Yes
Manual: Yes
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: Dual stack IPv4/IPv6
Supported network protocols: ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: DC-in jack
Basic switching RJ-45 Ethernet ports quantity: 16
Jumbo frames: 9000
Jumbo frames support: Yes
MAC address table: 8000 entries
Packet buffer memory: 4.1 MB
Throughput: 16 Gbit/s
Number of queues: 8
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 120 W
Multicast Listener Discovery (MLD) snooping: MLD v1, MLD v2
Multicast support: Yes
