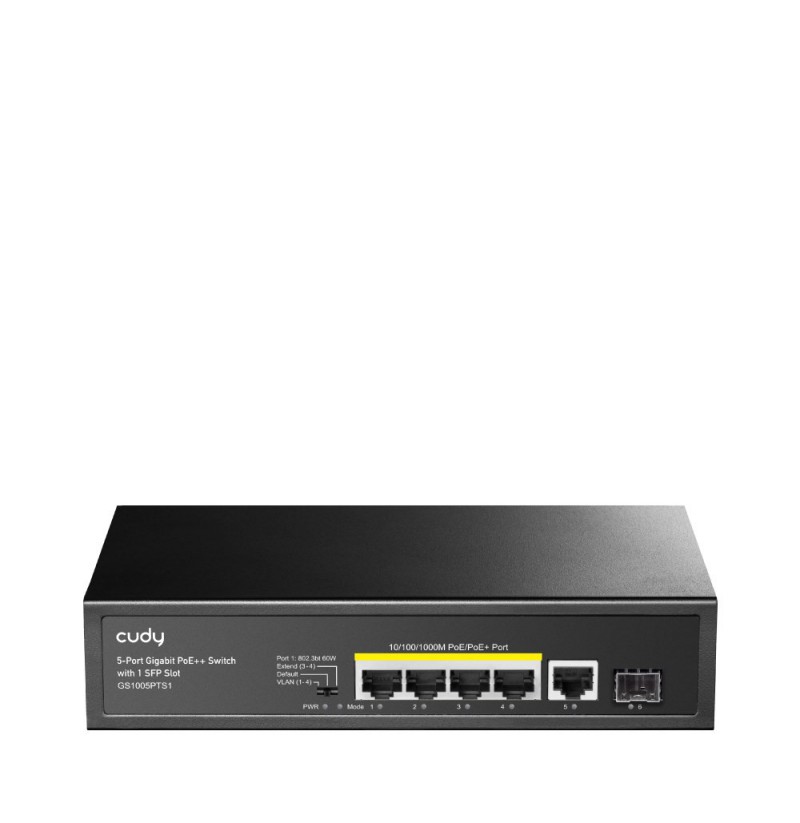

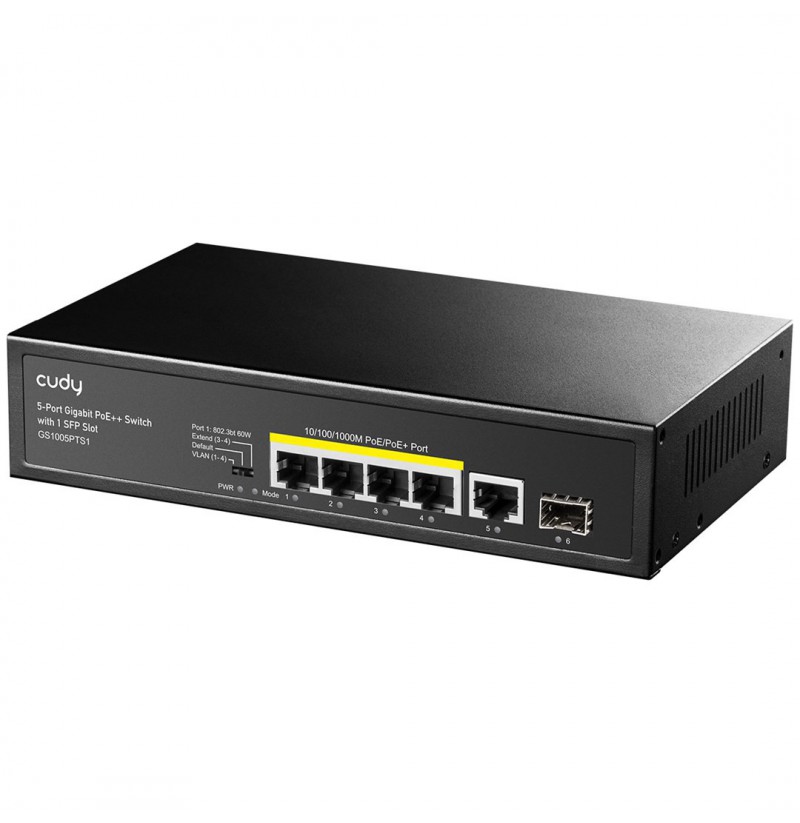

Switch CUDY GS1005PTS1

41,46 €

6971690791704

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Product colour: Black
LED indicators: Power, Link, Activity
Rack mounting: Yes
Housing material: Metal
Wall mountable: Yes
Power supply included: Yes
AC input voltage: 100 - 240 V
Output current: 1.25 A
Input current: 1.25 A
Output voltage: 52 V
Power source: AC
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 90%
Operating altitude: 0 - 3048 m
Storage relative humidity (H-H): 5 - 90%
Operating temperature (T-T): -20 - 50 °C
Width: 200 mm
Depth: 118 mm
Height: 44 mm
Weight: 600 g
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-TX, 10BASE-T
VLAN support: Yes
Networking standards: IEEE 802.3u, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at
Flow control support: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cable types supported: Cat6e, Cat7e, Cat7, Cat4, Cat8, Cat6, Cat8.1, Cat6+, Cat6a, Cat5, Cat5e, Cat3
Half duplex: Yes
Full duplex: Yes
Mean time between failures (MTBF): 100000 h
Fanless: Yes
Plug and Play: Yes
Package type: Box
Package depth: 190 mm
Package height: 60 mm
Manual: Yes
Package weight: 900 g
Cables included: AC
Package width: 245 mm
Basic switching RJ-45 Ethernet ports quantity: 5
Installed SFP modules quantity: 1
Uplink ports quantity: 1
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 1
Power connector: AC-in jack
Master (outer) case net weight: 19 kg
Products per master (outer) case: 20 pc(s)
Master (outer) case length: 320 mm
Master (outer) case width: 505 mm
Master (outer) case height: 402 mm
Jumbo frames: 9216
Packet buffer memory: 1 MB
Jumbo frames support: Yes
Store-and-forward: Yes
Throughput: 8.928 Mpps
MAC address table: 2000 entries
Switching capacity: 12 Gbit/s
Power over Ethernet (PoE) ports quantity: 4
Total Power over Ethernet (PoE) budget: 120 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet plus (PoE+) ports quantity: 1
Fiber type: Multi-mode
Switching optical modules type: Gigabit Ethernet
