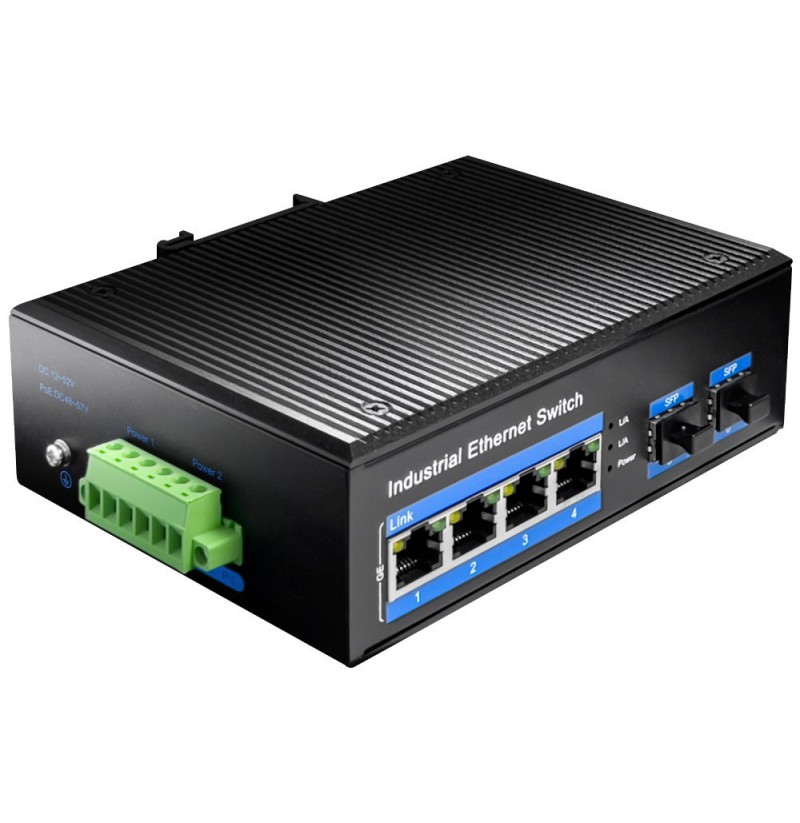

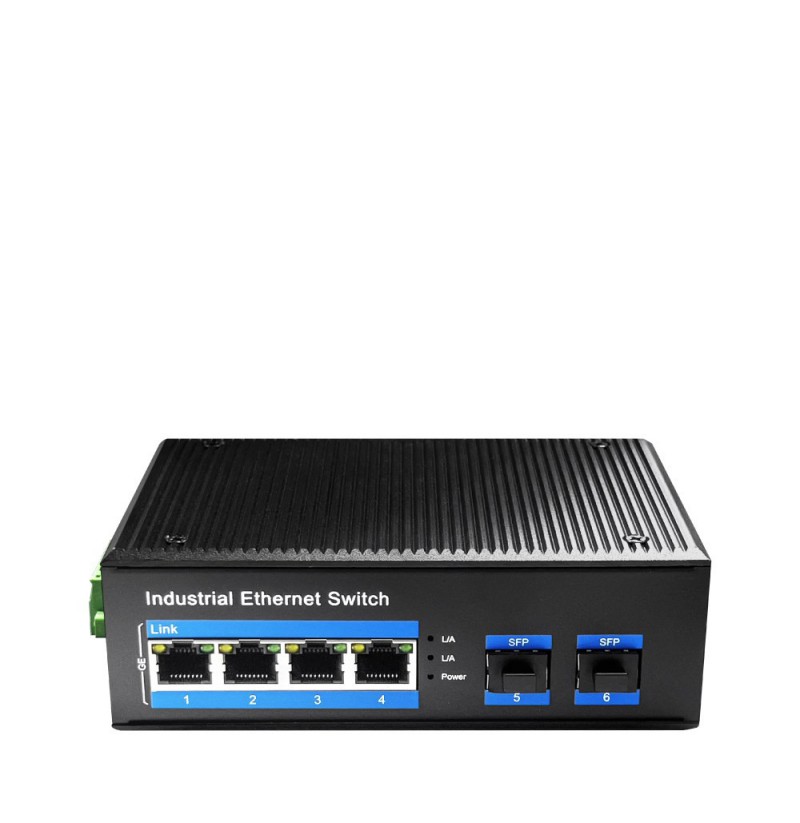

Cudy IG1004S2P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black Padidinti

Cudy IG1004S2P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

60,17 €

6971690792237

Galimas pasirinkimas

 pristatymas 5...7 d.d.


Product colour: Black
LED indicators: Yes
Reset button: Yes
International Protection (IP) code: IP40
DIN rail mounting: Yes
Housing material: Aluminium
Rack mounting: No

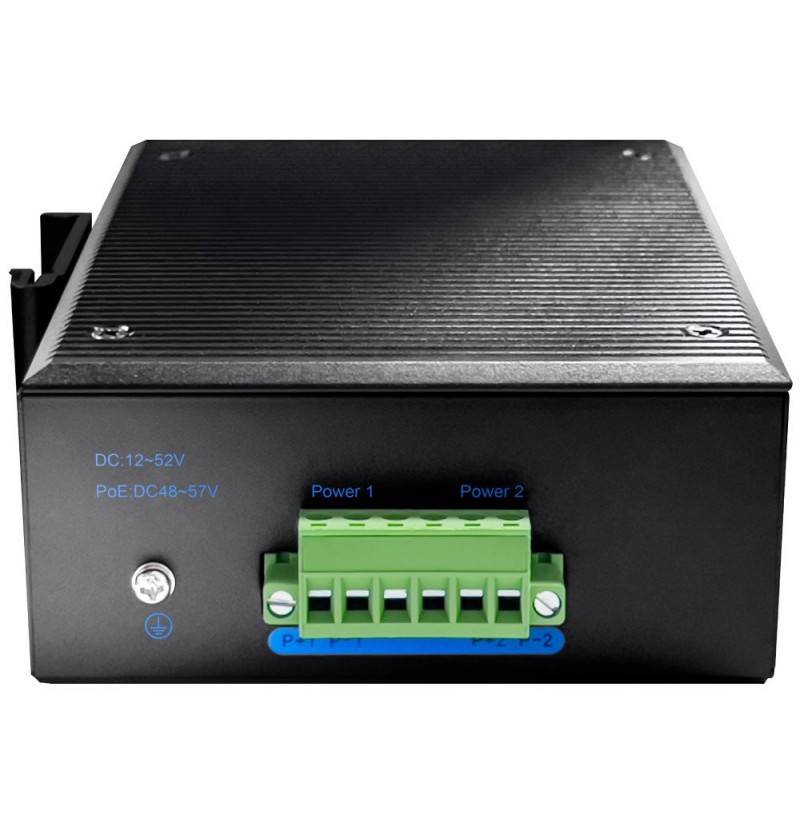

Power source: DC/PoE
Power consumption (max): 3 W
Power supply included: No
Surge protection: Yes
Surge protection voltage: 4 kV
DC input voltage: 48 - 57 V
Redundant power supply (RPS) support: Yes
Operating relative humidity (H-H): 5 - 95%
Storage temperature (T-T): -40 - 85 °C
Operating temperature (T-T): -40 - 85 °C
Switch type: Unmanaged
Weight: 360 g
Height: 44.2 mm
Depth: 103 mm
Width: 143.7 mm
Ethernet LAN data rates: 10,100,1000 Mbit/s
Networking standards: IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3u
Half duplex: Yes
Full duplex: Yes
10G support: No
Cable types supported: Cat5, Cat3, Cat4, Cat6
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 100BASE-TX, 1000BASE-TX, 10BASE-T
Mean time between failures (MTBF): 300000 h
Package weight: 460 g
Compliance certificates: CE
Gigabit Ethernet (copper) ports quantity: 4
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity: 2
Basic switching RJ-45 Ethernet ports quantity: 4
Jumbo frames: 9000
Jumbo frames support: Yes
Switching capacity: 20 Gbit/s
MAC address table: 8000 entries
Forwarding rate: 15 Mpps
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 120 W
Maximum transfer distance (Single-mode): 80000 m
Maximum transfer distance (Multi-mode): 2000 m
Transmission distance (max): 80 km
Sustainability compliance: Yes
