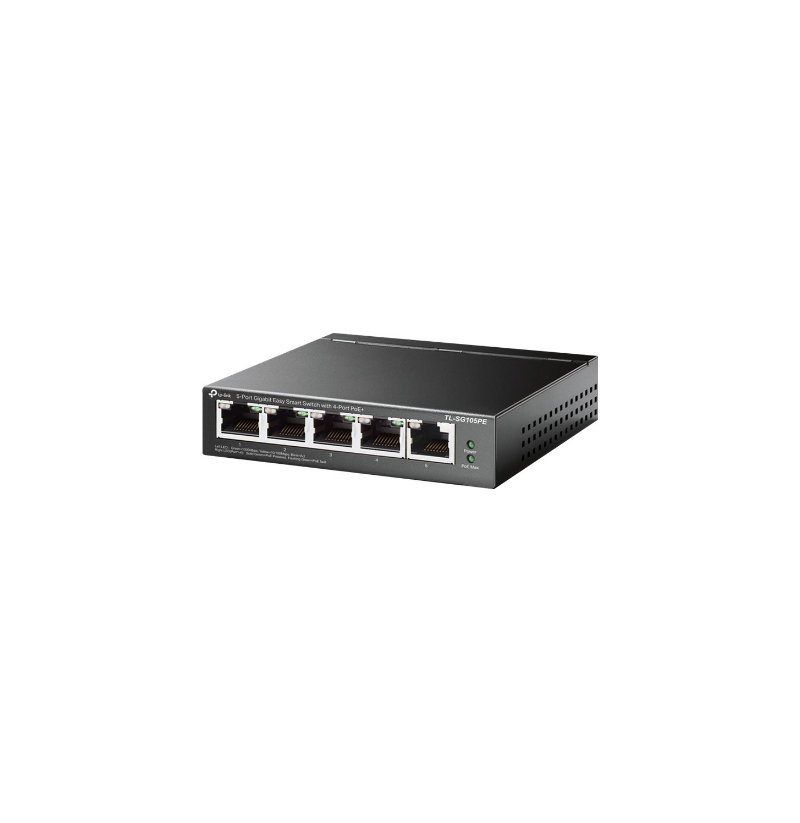

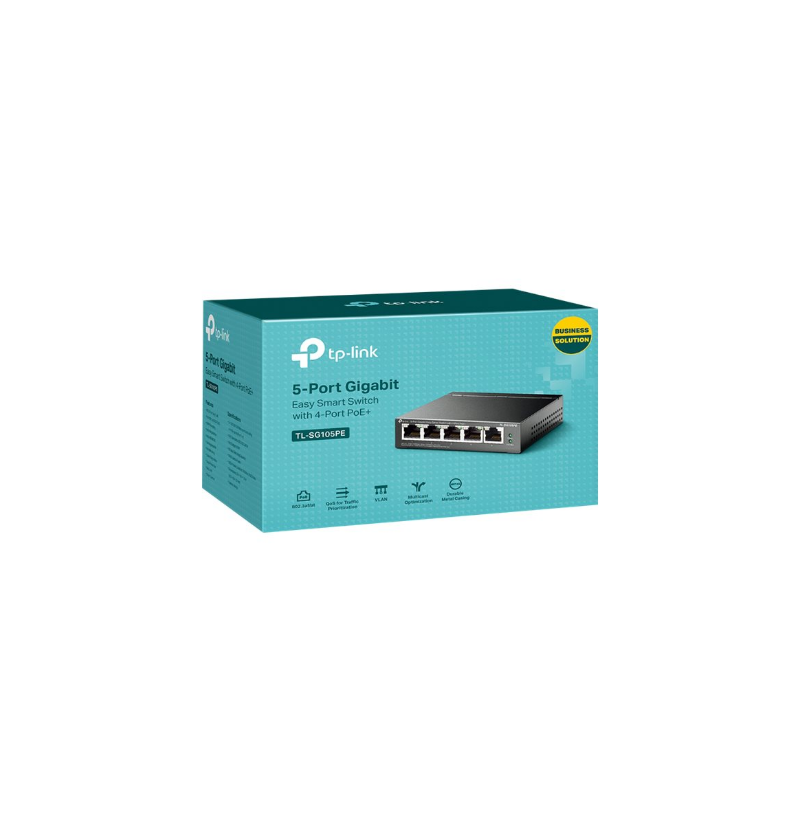

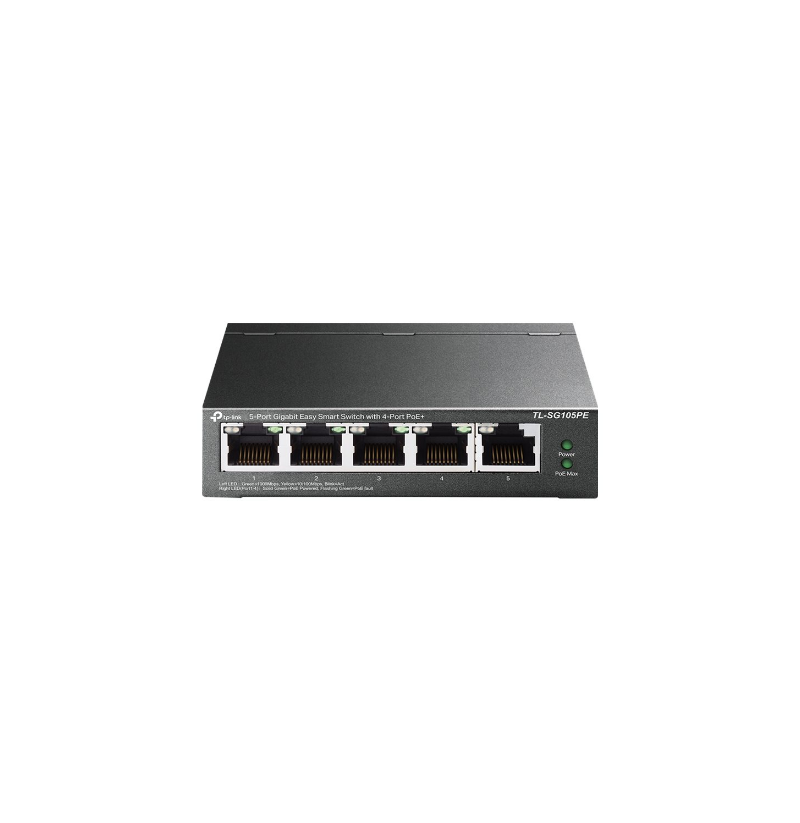

TP-LINK | Switch | TL-SG105PE | Unmanaged | Desktop | PoE+ ports quantity 4 | Power supply type External Padidinti

TP-LINK | Switch | TL-SG105PE | Unmanaged | Desktop | PoE+ ports quantity 4 | Power supply type External

42,32 €

TL-SG105PE

6935364052744

Galimas pasirinkimas

 1..4 d.d.


Product colour: Black
LED indicators: Activity, Speed, Link, PoE, Power, Status
Rack mounting: No
Input current: 1.31 A
Power consumption (max): 75.16 W
Input voltage: 53.5 V
Power source: DC
Power supply included: Yes
IGMP snooping: Yes
Loop protection: Yes
Storage relative humidity (H-H): 5 - 95%
Operating relative humidity (H-H): 10 - 90%
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Heat dissipation: 256.3 BTU/h
Web-based management: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
Switch layer: L2
Height: 25 mm
Depth: 98 mm
Width: 99.8 mm
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3at, IEEE 802.3u, IEEE 802.3af, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3i
Copper ethernet cabling technology: 1000BASE-T, 10BASE-T, 100BASE-TX, 100BASE-FX
Auto MDI/MDI-X: Yes
VLAN support: Yes
Broadcast storm control: Yes
Number of VLANs: 4000
10G support: No
Flow control support: Yes
Link aggregation: Yes
Rate limiting: Yes
Cable types supported: Cat6, Cat3, Cat4, Cat5, Cat5e
Port mirroring: Yes
Auto-negotiation: Yes
Virtual LAN features: Port-based VLAN, Tagged VLAN
Fanless: Yes
Package depth: 196 mm
Package height: 121 mm
Package width: 131 mm
Package weight: 770 g
User guide: Yes
Gigabit Ethernet (copper) ports quantity: 5
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Harmonized System (HS) code: 85176990
Jumbo frames support: Yes
Jumbo frames: 16000
Store-and-forward: Yes
Forwarding rate: 7.44 Mpps
Switching capacity: 10 Gbit/s
Number of queues: 4
MAC address table: 2000 entries
Packet buffer memory: 1 MB
Total Power over Ethernet (PoE) budget: 65 W
Power over Ethernet (PoE) power per port: 30 W
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 4
Warnings: Do not open the case or try to repair it yourself.
