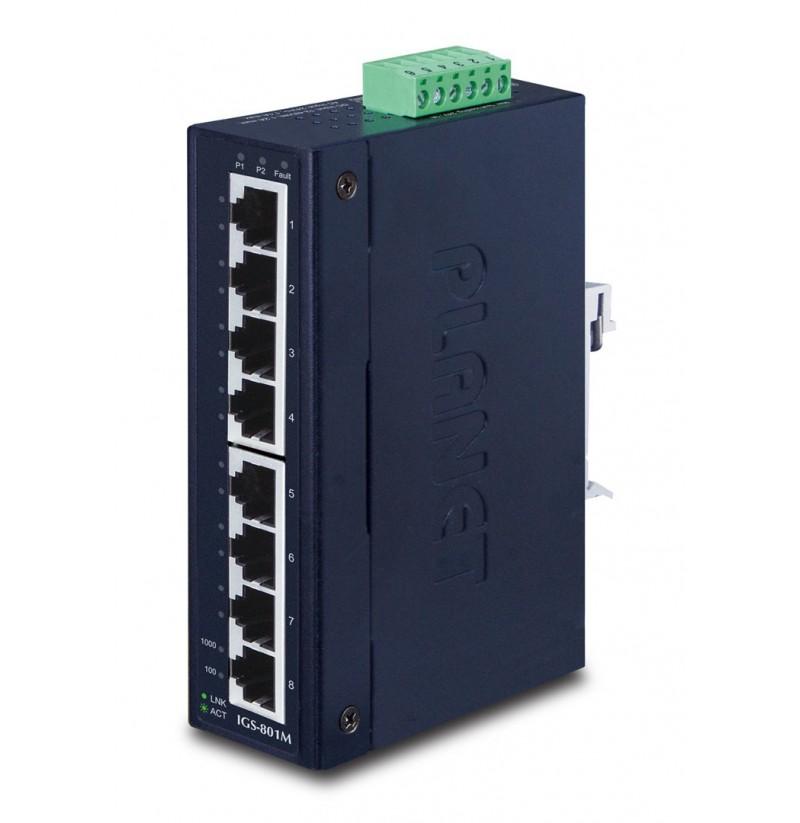

PLANET IGS-801M network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) 1U Blue Padidinti

PLANET IGS-801M network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) 1U Blue

212,31 €

4711213687266

Galimas pasirinkimas

 pristatymas 9...11 d.d.


Certification: FCC, CE
Wall mountable: Yes
LED indicators: Yes
Product colour: Blue
Rack mounting: Yes
International Protection (IP) code: IP30
Form factor: 1U
Reset button: Yes
Housing material: Metal
DIN rail mounting: Yes
Power consumption (typical): 4.5 W
Power consumption (max): 10 W
Loop protection: Yes
MAC address filtering: Yes
Security algorithms: SSH, SSL/TLS
IGMP snooping: Yes
Access Control List (ACL): Yes
SSH/SSL support: Yes
BPDU filtering/protection: Yes
Authentication: Port-based authentication
Operating relative humidity (H-H): 5 - 95%
Heat dissipation: 15 BTU/h
Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 75 °C
Storage relative humidity (H-H): 5 - 95%
Traffic classification: Yes
Switch type: Managed
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
System event log: Yes
Switch layer: L2/L4
Depth: 87 mm
Height: 135 mm
Width: 32 mm
Weight: 472 g
Rate limiting: Yes
Virtual LAN features: Private VLAN, Stacked VLAN, Protocol-based VLAN, Tagged VLAN
Half duplex: Yes
Networking standards: IEEE 802.1x, IEEE 802.3az, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p
Port mirroring: Yes
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support: Yes
Full duplex: Yes
Auto MDI/MDI-X: Yes
10G support: No
Flow control support: Yes
Number of VLANs: 4094
Broadcast storm control: Yes
Spanning tree protocol: Yes
Link aggregation: Yes
Firmware upgradeable: Yes
Supported network protocols: IPv4 / IPv6
Management protocols: Telnet/SNMP
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 8
Terminal block port: Yes
Harmonized System (HS) code: 85176990
MAC address table: 8000 entries
Number of queues: 8
Switching capacity: 16 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 10000
Store-and-forward: Yes
Throughput: 11.9 Mpps
Power over Ethernet (PoE): No
Multicast support: Yes
Number of multicast groups filtered: 256
