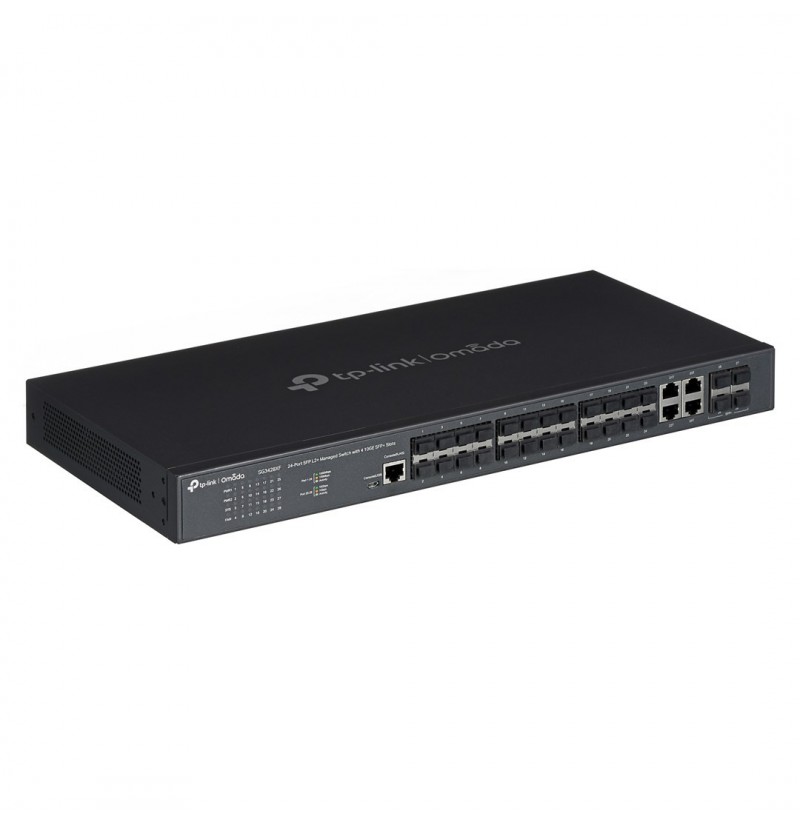

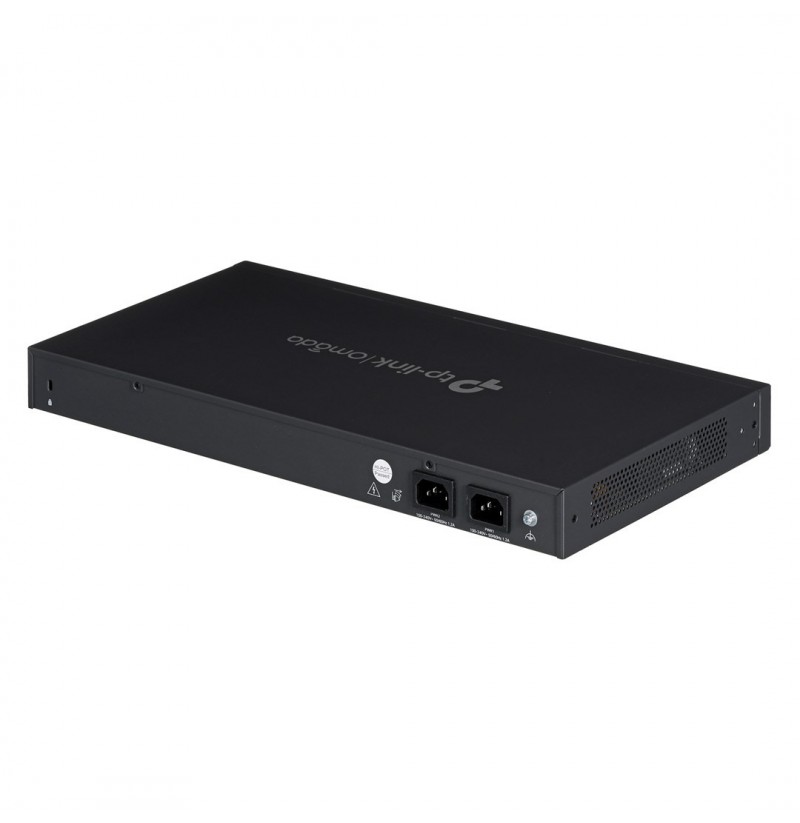

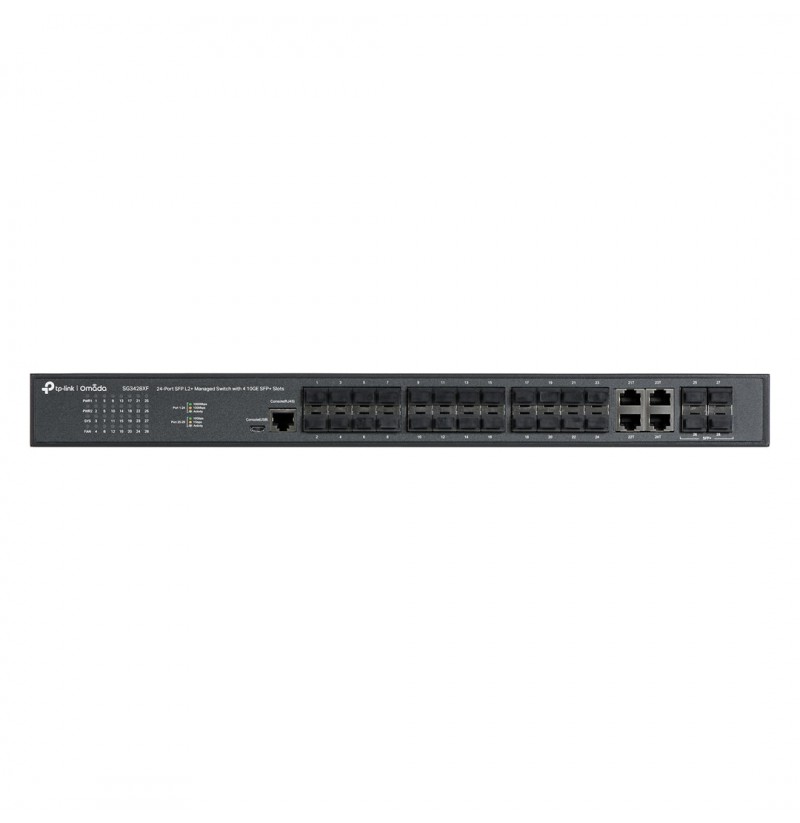

TP-Link JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots

Product colour: Black
Form factor: 1U
Number of fans: 1 fan(s)
Rack mounting: Yes
LED indicators: Yes
Power supply included: Yes
Number of power supply units: 2
Power source: AC
Redundant power supply (RPS) support: Yes
Power consumption (max): 35.7 W
SSH/SSL support: Yes
Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
DHCP features: DHCP client, DHCP relay, DHCP server
Loop protection: Yes
IGMP snooping: Yes
Password protection: Yes
Access Control List (ACL): Yes
BPDU filtering/protection: Yes
IP-MAC-Port binding: Yes
Queue scheduling algorithms: Weighted Round Robin (WRR), WRR+SP, SP
IGMP proxy: Yes
Authentication type: AAA, RADIUS, TACACS+
MAC address filtering: Yes
Heat dissipation: 121.81 BTU/h
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 90%
Storage temperature (T-T): -40 - 70 °C
Operating temperature (T-T): 0 - 45 °C
Switch type: Managed
Switch layer: L2+
System event log: Yes
MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Configuring Location Settings (CLI): Yes
ARP inspection: Yes
Cloud-managed: Yes
Quality of Service (QoS) support: Yes
Web-based management: Yes
Depth: 220 mm
Width: 440 mm
Height: 44 mm
Link aggregation: Yes
Rate limiting: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
10G support: Yes
Number of VLANs: 4000
Flow control support: Yes
IPv4 routes: 48
Routing entries: 512
IPv6 routes: 48
Head-of-line (HOL) blocking: Yes
Port mirroring: Yes
Virtual LAN features: Tagged VLAN, Voice VLAN, Port-based VLAN, Private VLAN, VLAN mapping
Policy-based routing: Yes
Active link detection: Yes
IP routing: Yes
VLAN support: Yes
Networking standards: IEEE 802.1s, IEEE 802.3i, IEEE 802.1w, IEEE 802.1ab, IEEE 802.11d, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3u
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Rack mount kit: Yes
Manual: Yes

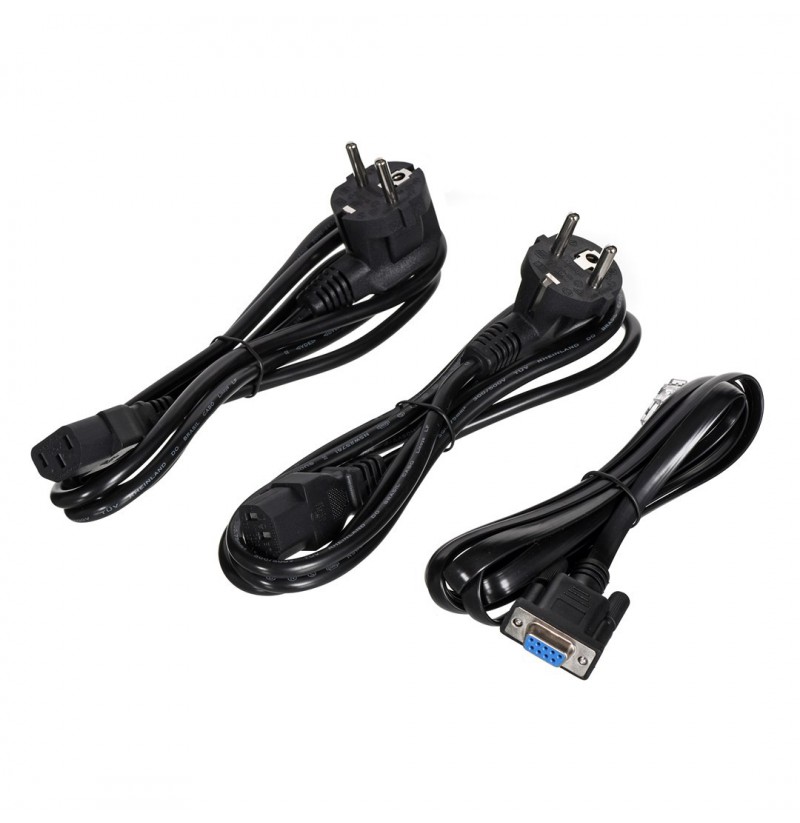

Cables included: AC
Management protocols: SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features: IPv6 ping, IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 tracert
GARP VLAN Registration Protocol (GVRP): Yes
SFP+ module slots quantity: 4
Power connector: AC-in jack
Combo SFP ports quantity: 4
Fiber optic connector: SFP, SFP+
Basic switching RJ-45 Ethernet ports type: No
Console port: RJ-45/Micro-USB
Fiber ports quantity: 20
Switching capacity: 128 Gbit/s
Jumbo frames support: Yes
MAC address table: 16000 entries
Packet buffer memory: 12 MB
Store-and-forward: Yes
Jumbo frames: 9000
Static route: Yes
Forwarding rate: 95.23 Mpps
Number of static routes: 48
Power over Ethernet (PoE): No
Multicast support: Yes
Multicast Listener Discovery (MLD) snooping: Y
