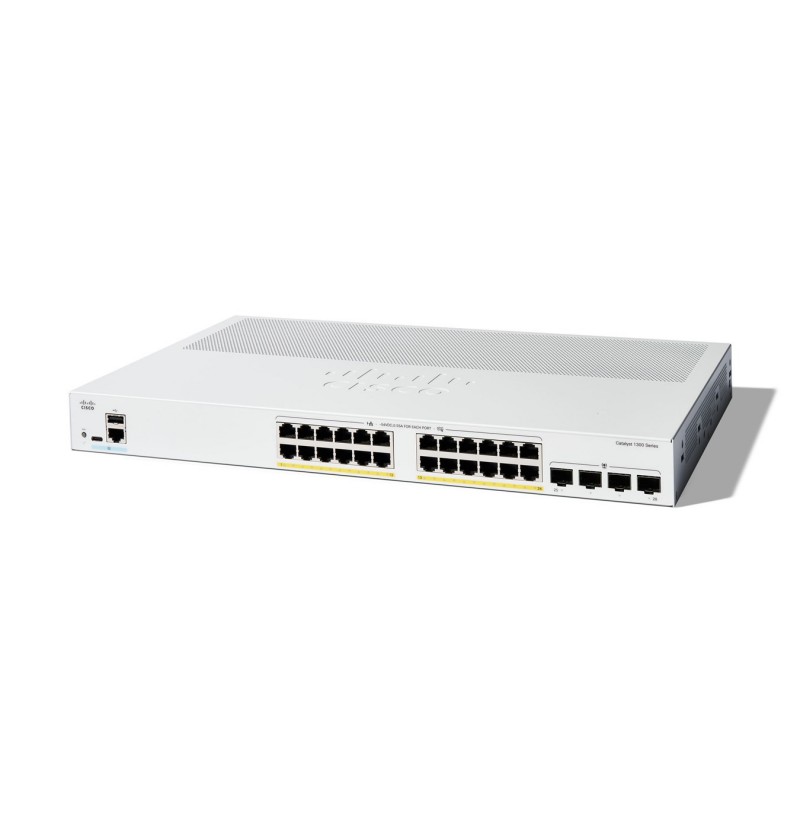

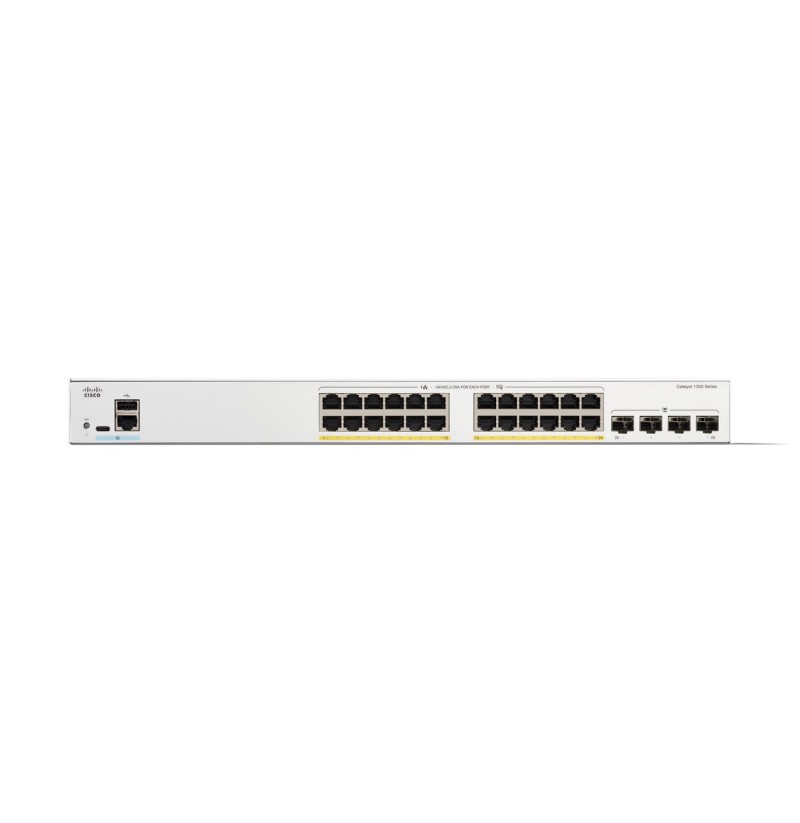

Cisco Catalyst 1300-24P-4G Managed Switch, 24 Port GE, PoE, 4x1GE SFP, Limited Lifetime Protection (C1300-24P-4G)

Product colour: Grey
Reset button: Yes
Rack mounting: Yes
Power source: AC
AC input frequency: 50/60 Hz
AC input voltage: 100 - 220 V
Power consumption (typical): 27.5 W
Power plug type: Type C
Security algorithms: SNMPv2, HTTPS, SSH, SSH-2, SNMPv3, SNMP
Access Control List (ACL): Yes
DHCP features: DHCP snooping, DHCP auto-config, DHCP server, DHCP client, DHCP relay
DoS attack prevention: Yes
Authentication: MAC-based authentication, Web-based authentication
IGMP snooping: Yes
Access Control List (ACL) rules: 1024
IGMP proxy: Yes
SSH/SSL support: Yes
Authentication type: RADIUS, TACACS+
Queue scheduling algorithms: Weighted Round Robin (WRR)
Operating temperature (T-T): -5 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Storage relative humidity (H-H): 10 - 90%
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 795.2 BTU/h
Quality of Service (QoS) support: Yes
Switch type: Managed
Web-based management: Yes
Switch layer: L2/L3
Configuring Location Settings (CLI): Yes
MIB support: Y
Weight: 3.53 kg
Width: 298.7 mm
Height: 43.9 mm
Depth: 444.5 mm
Policy-based routing: Yes
Networking standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.1D, IEEE 802.3at, IEEE 802.1ab, IEEE 802.1w, IEEE 802.1x, IEEE 802.3u, IEEE 802.3an, IEEE 802.3ad, IEEE 802.1s, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3az, IEEE 802.3, IEEE 802.3ab
Head-of-line (HOL) blocking: Yes
Cable types supported: Cat5e
Port mirroring: Yes
Rate limiting: Yes
VLAN support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Spanning tree protocol: Yes
Virtual LAN features: Voice VLAN, Private VLAN
QinQ implementation: Selective QinQ
Processor frequency: 1.4 MHz
Memory type: DDR4-SDRAM
Built-in processor: Yes
Flash memory: 512 MB
Mean time between failures (MTBF): 698220 h
Internal memory: 1000 MB
Plug and Play: Yes
Package depth: 575.1 mm
Package weight: 5.77 kg
Package width: 430 mm
Package height: 105.9 mm
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv6 SSH, IPv6 Telnet, ICMPv6, IPv6 SNMP, IPv6 TFTP
Console port: RJ-45/USB Type-C
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity: 24
SFP module slots quantity: 4
Country of origin: China
Number of queues: 8
Number of static routes: 990
MAC address table: 16000 entries
Packet buffer memory: 1.5 MB
Static route: Yes
Switching capacity: 56 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 9000
Power over Ethernet (PoE): Yes
Total Power over Ethernet (PoE) budget: 195 W
Power over Ethernet (PoE) ports quantity: 24
Multicast support: Yes
